ATEN CE700A KVM Extender VGA, USB, 150m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	14016371
Brand / Manufacturer	ATEN
Manuf. item no.	CE700A
EAN	4710423776593
Item weight	1.282 kg

Description

USB VGA Cat 5 KVM Extender - Cat 5e cable connects the Local and Remote Units - up to 150m apart

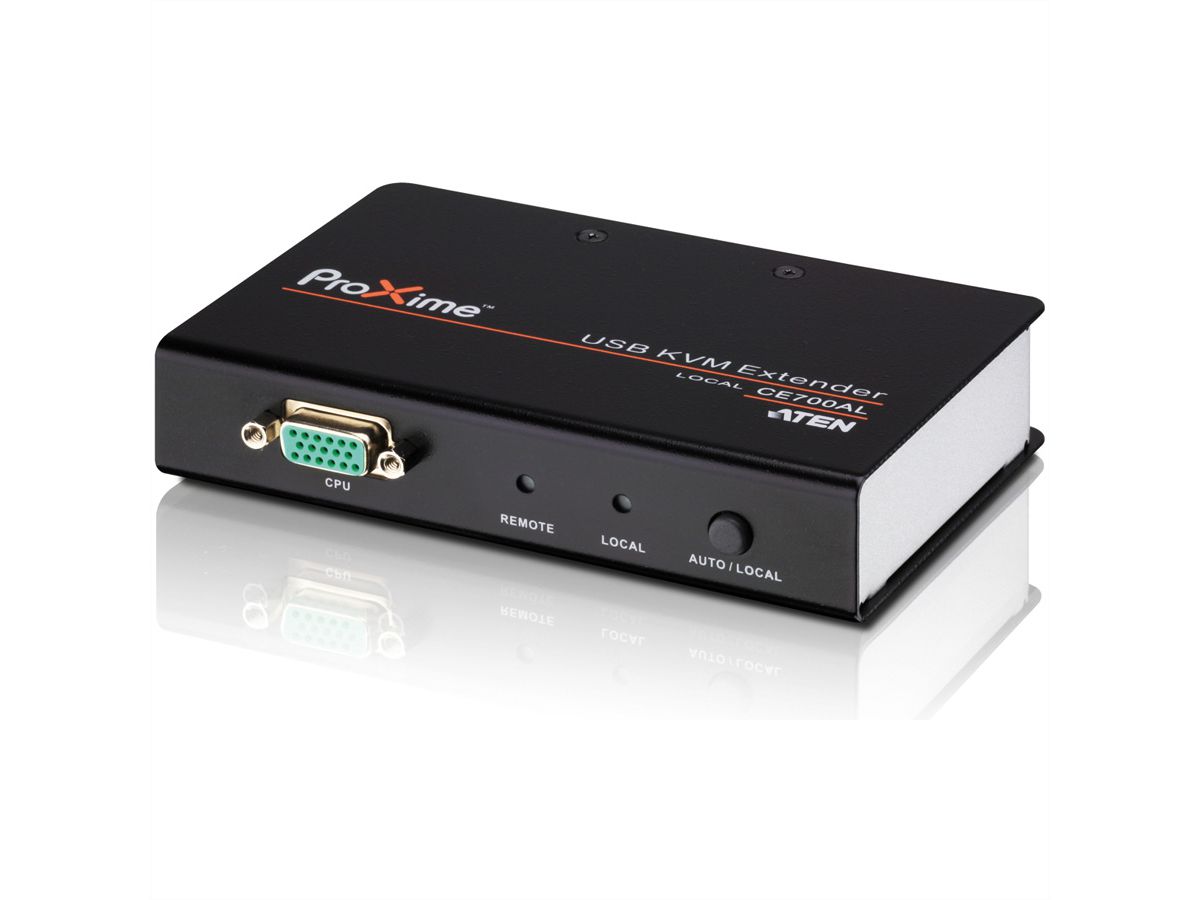

The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).

The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).

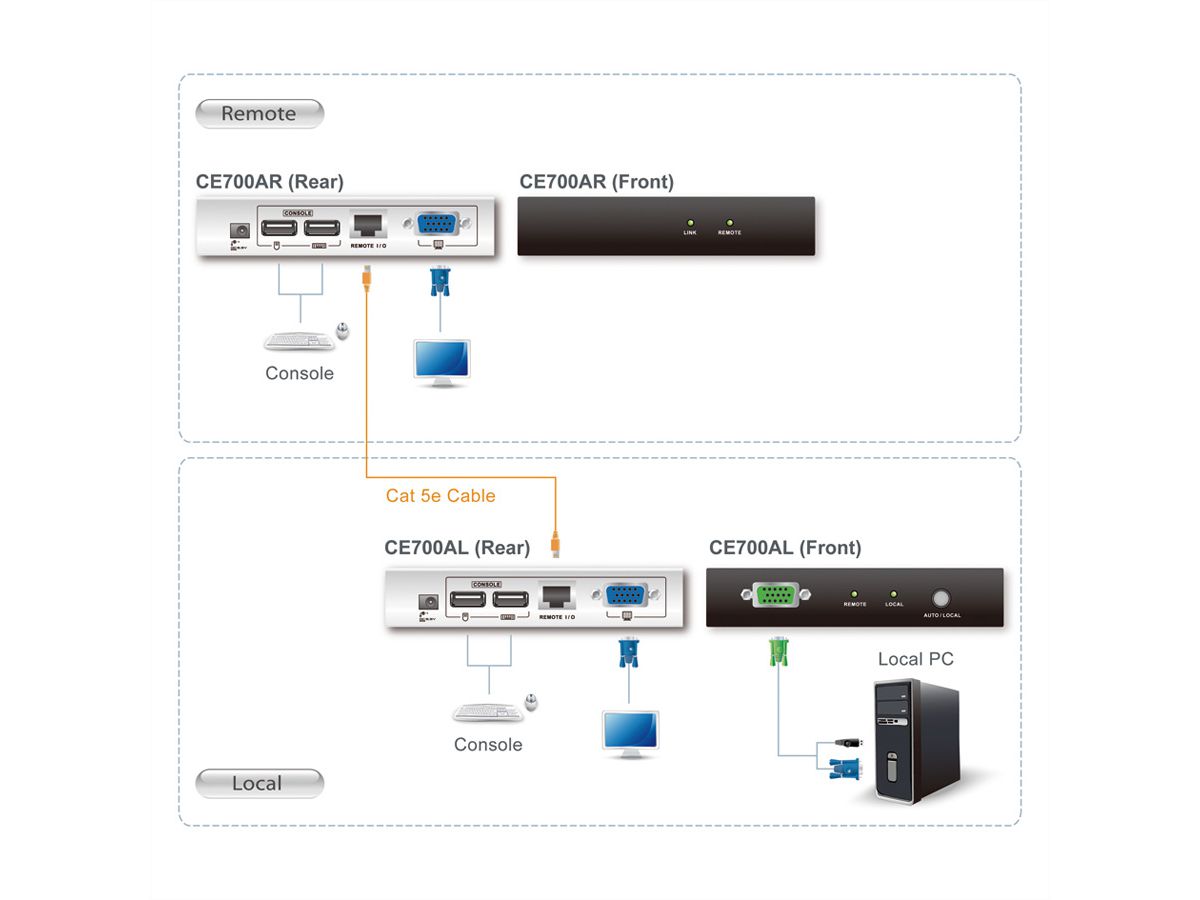

Cat 5e cable connects the Local and Remote Units - up to 150m apart
Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
Built-in ASIC for greater reliability and compatibility
Auto Signal Compensation (ASC)
USB Keyboard and USB Mouse Ports
USB overcurrent detection and prevention

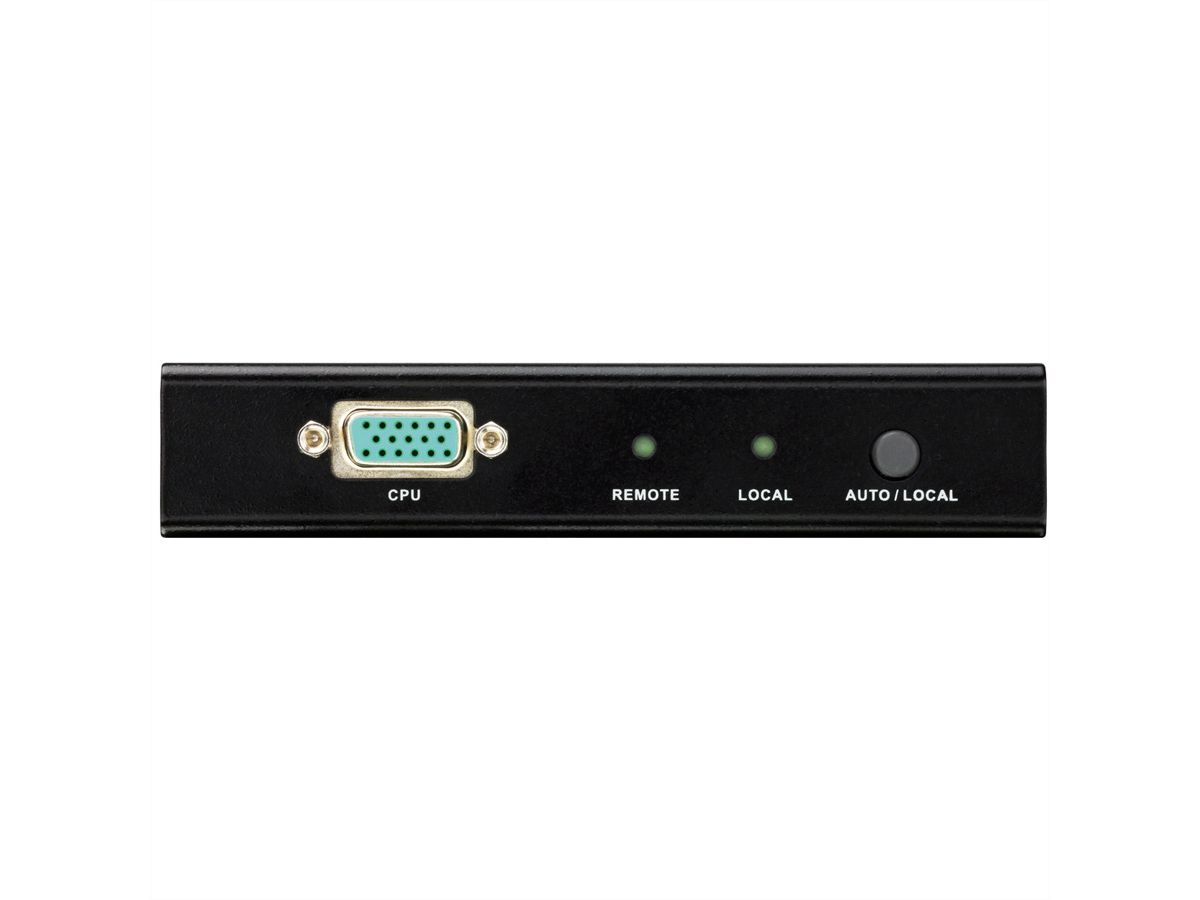

Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes.
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
Automatic gain control - adjusts signal strength to compensate for distance
High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
Supports VGA

Easy installation – no software required – connecting cables to the devices is all it takes

Specifications

Manufacturer	ATEN
Product group	KVM (IP) extensions
Product type	KVM-Extender, VGA
Colour	black

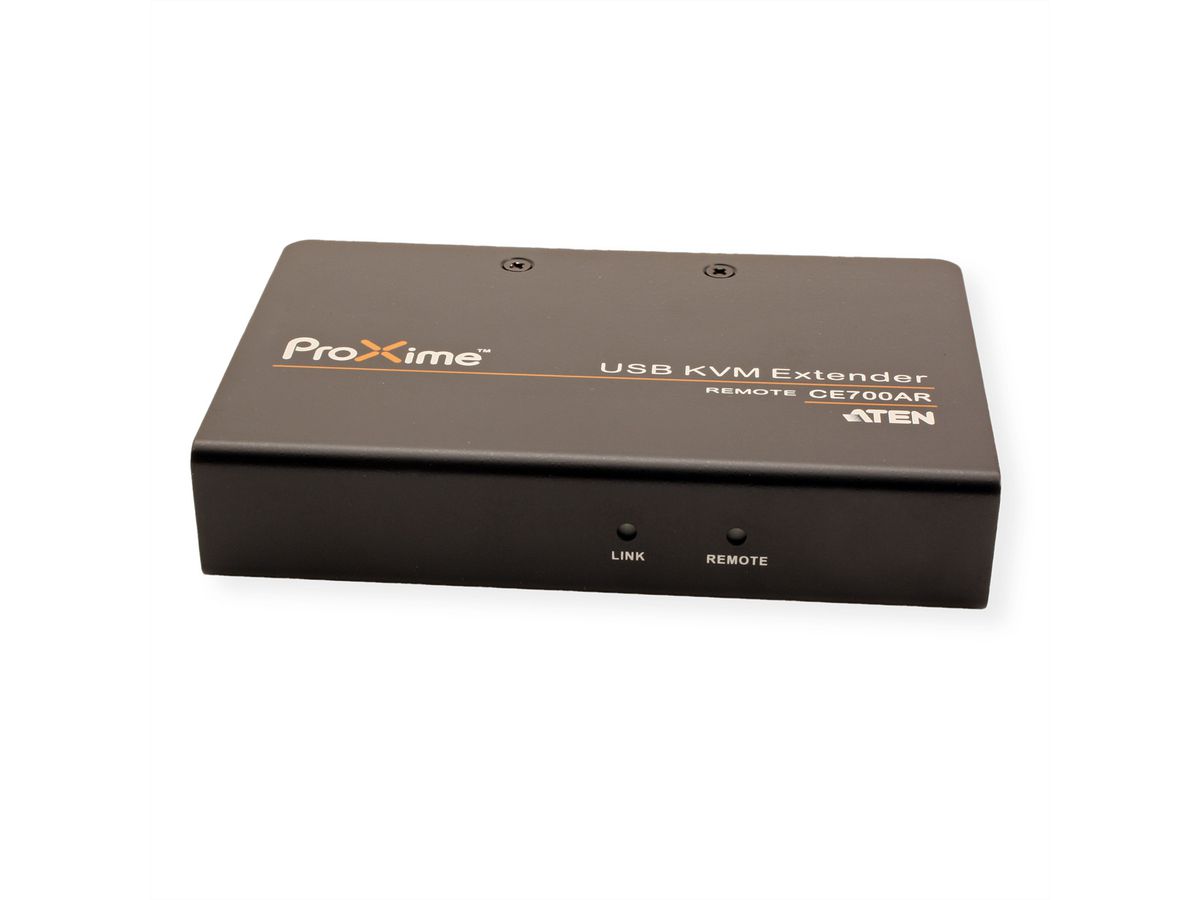

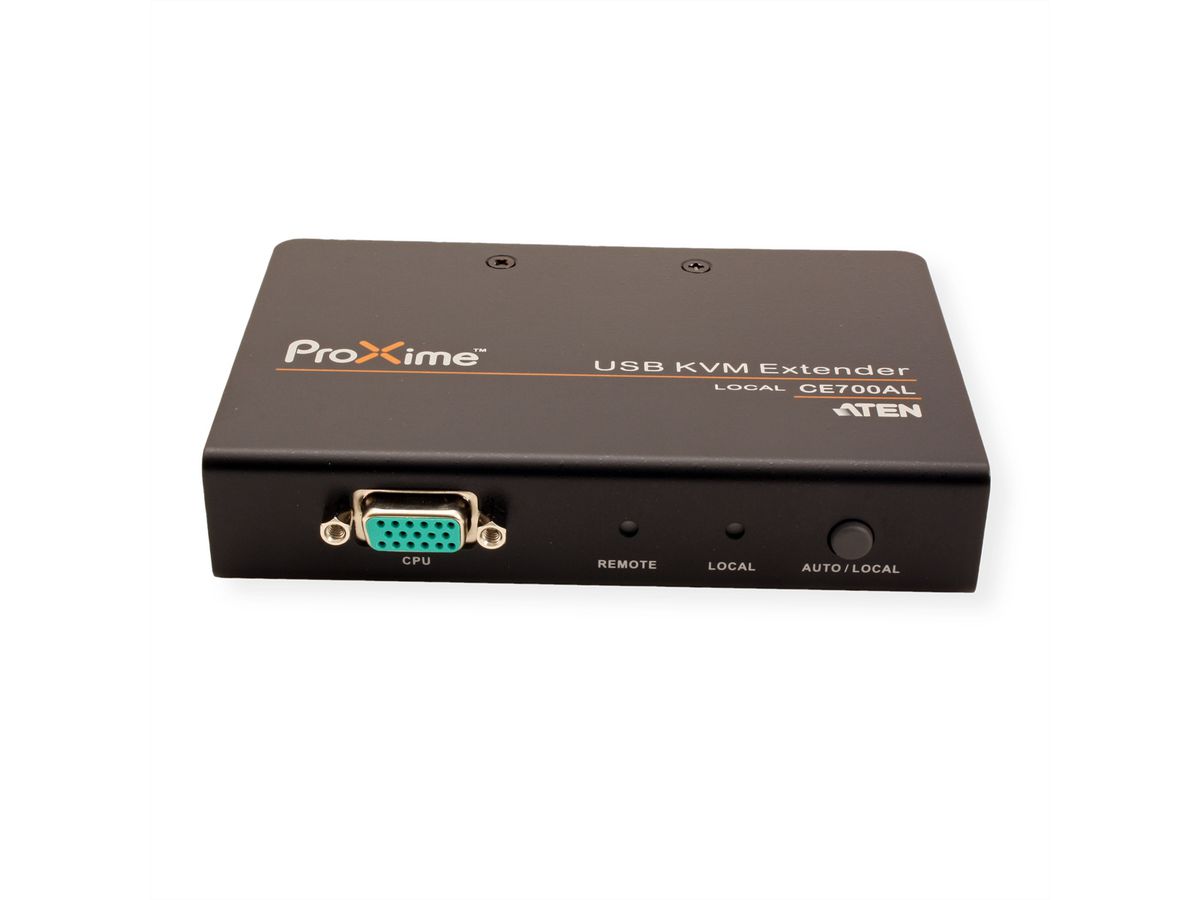

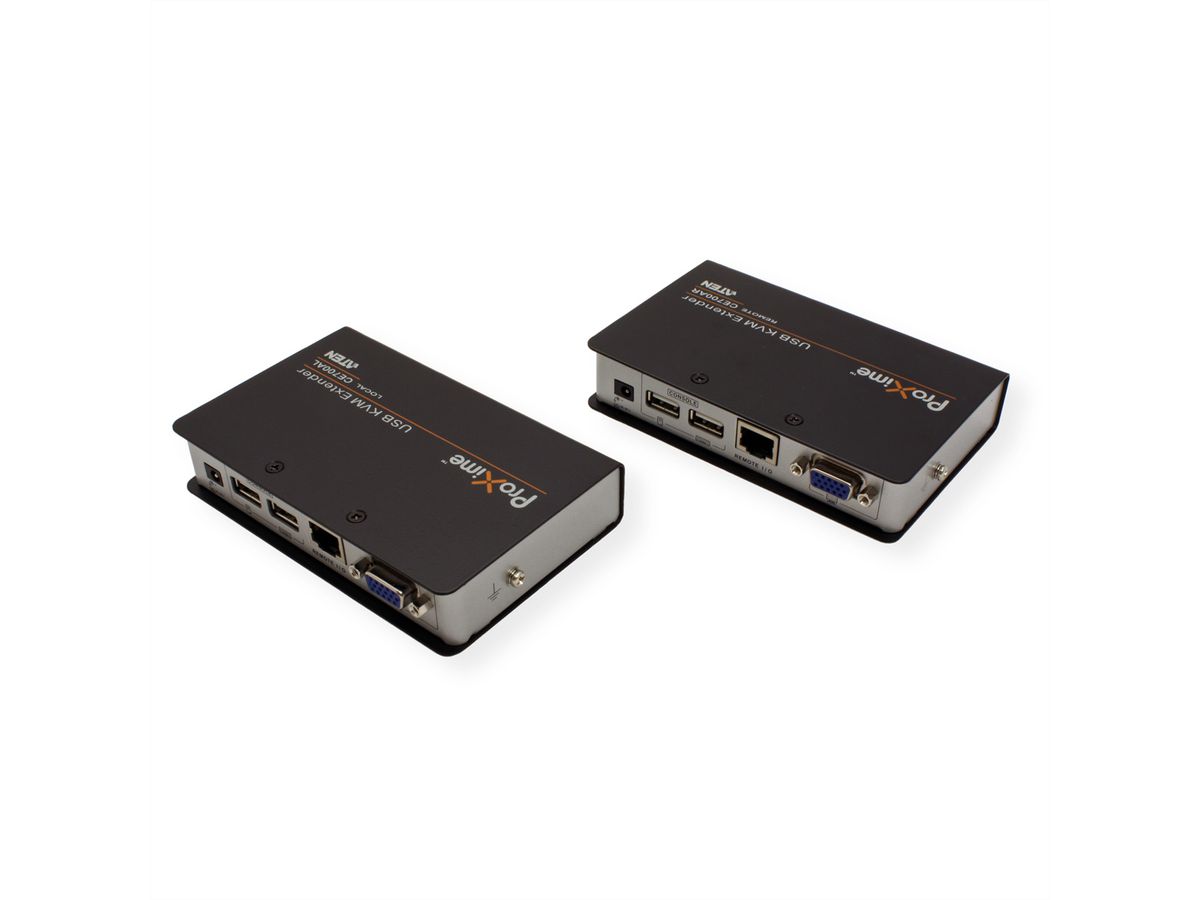

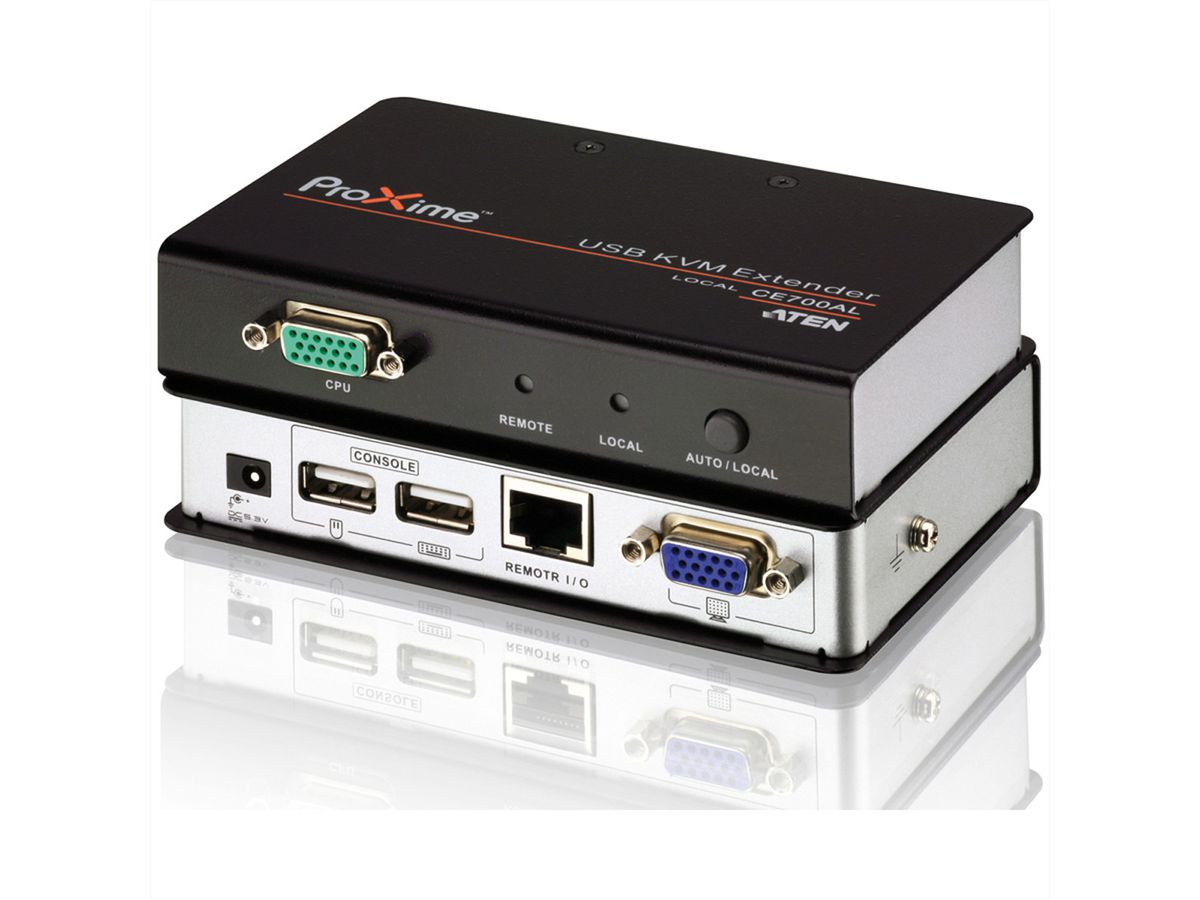

Scope of delivery	1x CE700AL USB KVM Extender (Local Unit), 1x CE700AR USB KVM Extender (Remote Unit), 2x Power Adapters, 1x Custom KVM Cable (VGA, USB; 1.8m/6ft), 1x Mounting Kit, 1x User Instructions
Supported PC-Systems	USB
PC/Switch: monitor connection	1x HD 15pol. ST
PC/Switch: mouse/keyboard connection	USB
PC/Switch: connection on moulded cables	no
Local Console connection	yes
Remote Console: Monitor connection	1x HD 15pol. BU

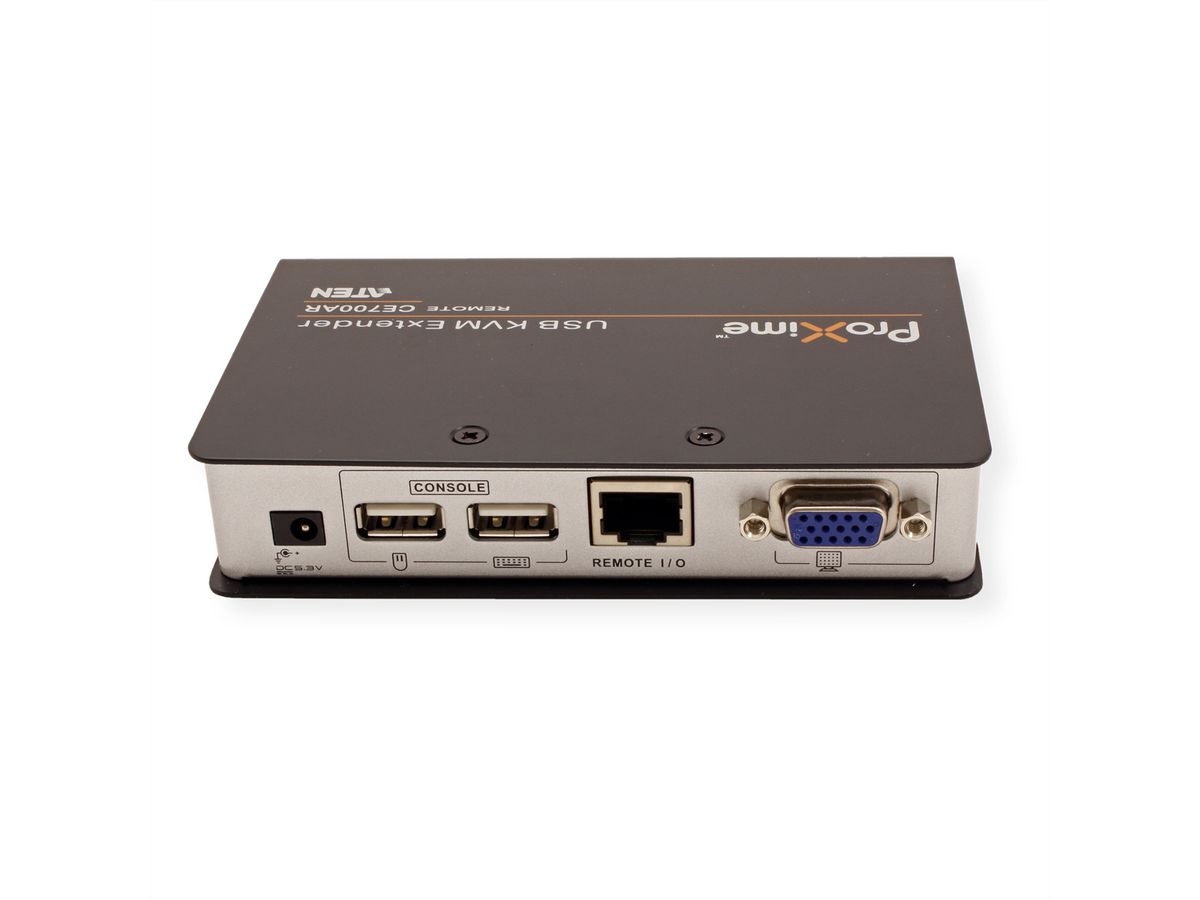

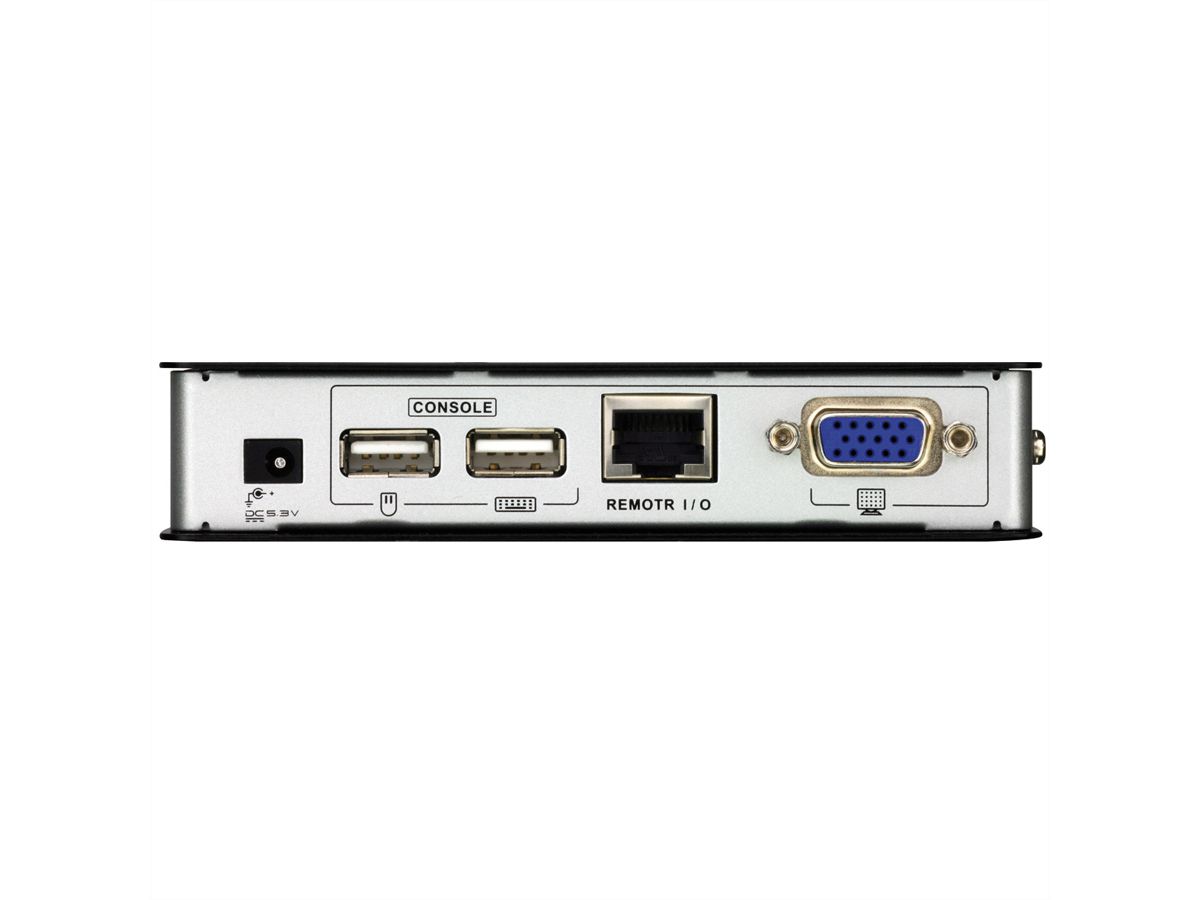

Remote Console: Mouse/Keyboard connection	2x USB
Remote console: Cable connector type	no
Network connection	RJ45
Max. distance local-remote unit	150m
Max. resolution (nominal)	1920 x 1200 ( max.)
Material (casing)	metal
Dimensions (HxWxD)	26 x 200 x 84 mm / 26 x 200 x 84 mm
Power supply unit required	yes
Power supply output	DC5,3V/2,8W
Mains connection	Appliance Europlug, Type-C
Height	26 mm
Width	200 mm
Depth	84 mm
Weight	320 g
Height of packaging (single piece)	60 mm
Width of packaging (single piece)	170 mm
Depth of packaging (single piece)	290 mm
Package weight (single piece)	1.282 kg

Downloads

Manufacturer data sheet - English (1.4 MB)

Download

User manual - English (1,000.4 KB)

Download

Quick Installation Guide - English (1.5 MB)

Download

Technical drawing - English (49.5 KB)

Download

More PDF data - English (46.6 KB)

Download
