Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 19072176 |
|---|---|
| Brand / Manufacturer | BACHMANN |
| Manuf. item no. | 800.2336 |
| EAN | 4057298006937 |
| Item weight | 3.536 kg |
:strip_icc():strip_exif()/logos/bachmann.png "BACHMANN")

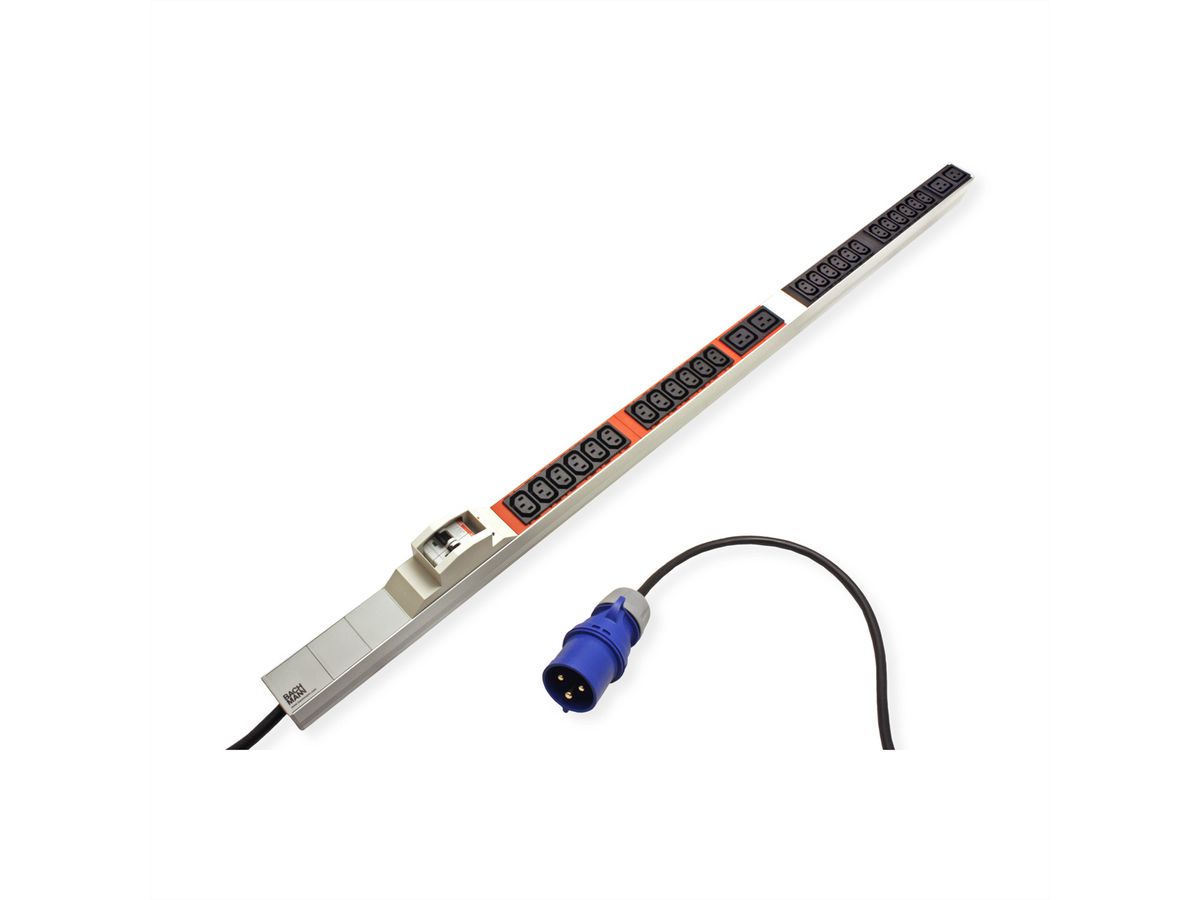

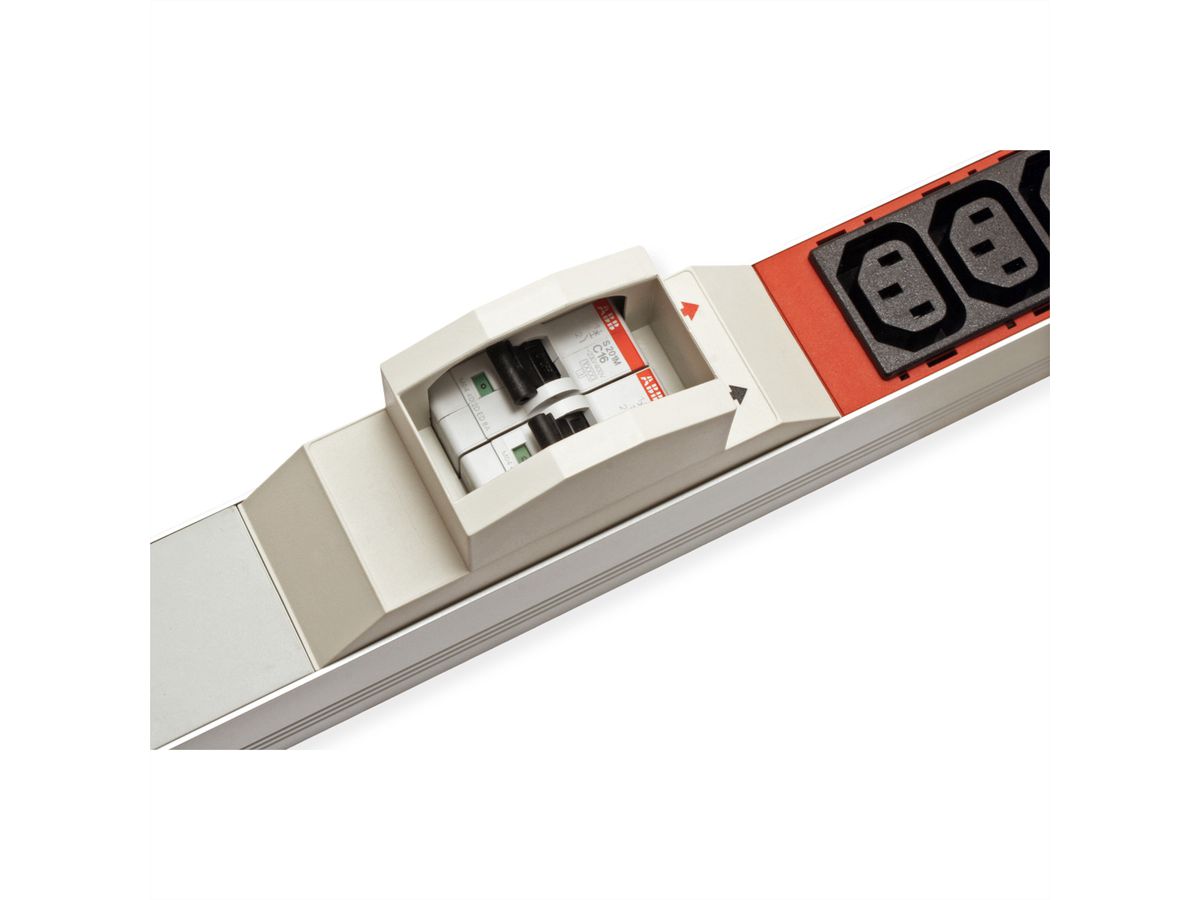

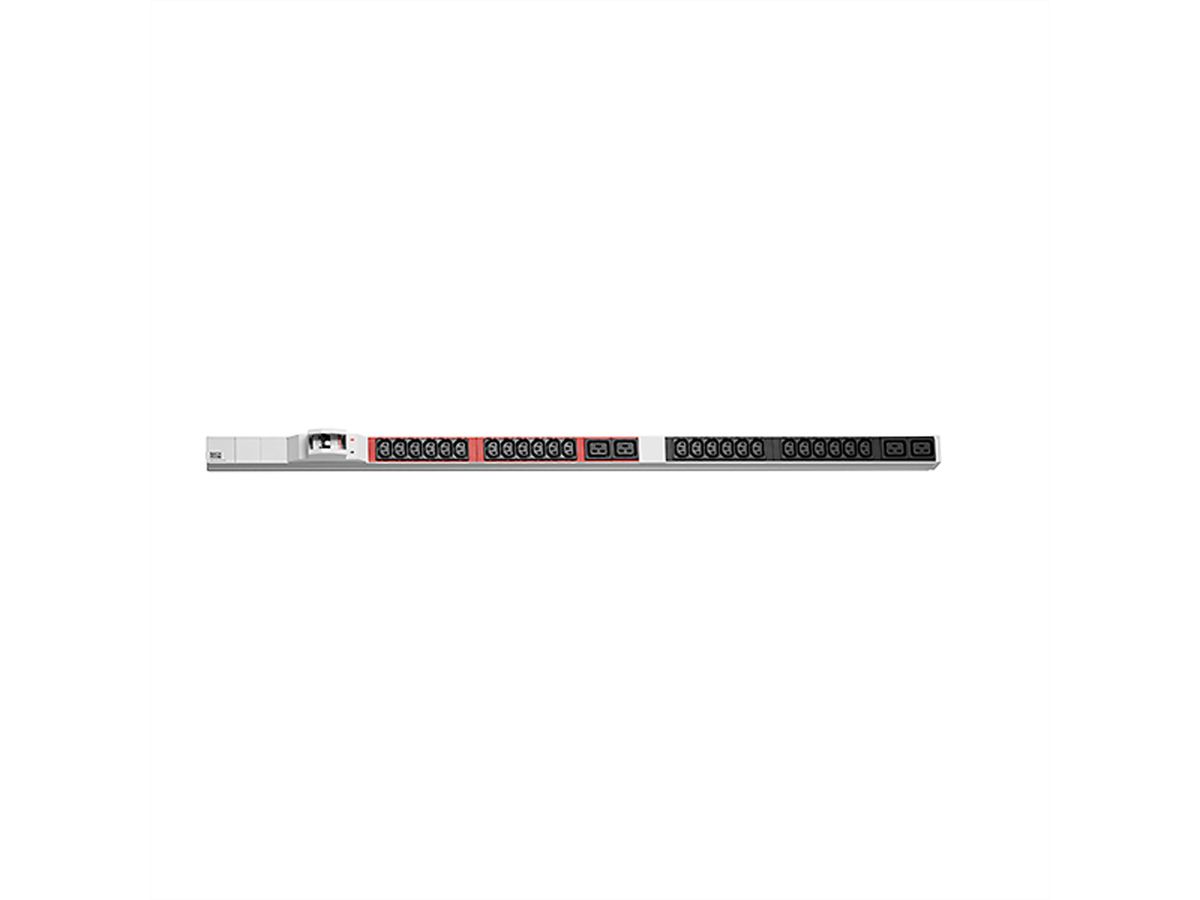

The dimensions of the high-quality and very stable aluminium profile are a compact 44 x 47 mm. - The space-saving design offers space for data cabling and air routing for air conditioning the server rack. - Aluminium socket strip, 1U profile 44 x 47mm for vertical mounting - Installation height in the cabinet 1119mm - 20x C13 cold appliance sockets, lockable - 4x C19 cold appliance sockets, lockable - 2x miniature circuit breakers - Supply cable: 3.0m H05VV-F 3G4mm² with CEE plug 1-phase 32A - incl. mounting bracket packed in cardboard box -
| Manufacturer | BACHMANN |
|---|---|
| Product group | Power Bars |
| Product type | Vertikal IT PDU |
| Colour | Aluminium |
| Length | 3 m |
| Function | 19" socket strip |
| Mounting form | Vertikal |
| Max. voltage | 230V AC |
| ON/OFF Switch | no |
| Number of socket pots | 20 |
| Quantity of outputs/angles | 20 |
| Socket type |
|
| Material (casing) | Aluminium |
| Colour (Design profile) | Aluminium |
| Connection cable | 3ph Zuleitung 3,0m CEE 16A |
| Colour (Cable) | black |
| Connector plug | CEE |
| Plug type | CEE red 32A 3P+N+PE 400V |
| Regional use | Without restriction |
| Height | 1119 mm |
| Width | 44 mm |
| Depth | 47 mm |
| Weight | 5 kg |
| Height of packaging (single piece) | 150 mm |
| Width of packaging (single piece) | 140 mm |
| Depth of packaging (single piece) | 1450 mm |
| Package weight (single piece) | 3.536 kg |
:strip_icc():strip_exif()/cms_secde/cms/ueber_uns/markenwelt/hersteller_logos/bachmann.png)
The BACHMANN brand stands for customer-oriented electrotechnical components and systems.
In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.
