Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 19072548 |
|---|---|
| Brand / Manufacturer | BACHMANN |
| Manuf. item no. | 800.2332 |
| EAN | 4057298006692 |
| Item weight | 0.912 kg |
:strip_icc():strip_exif()/logos/bachmann.png "BACHMANN")

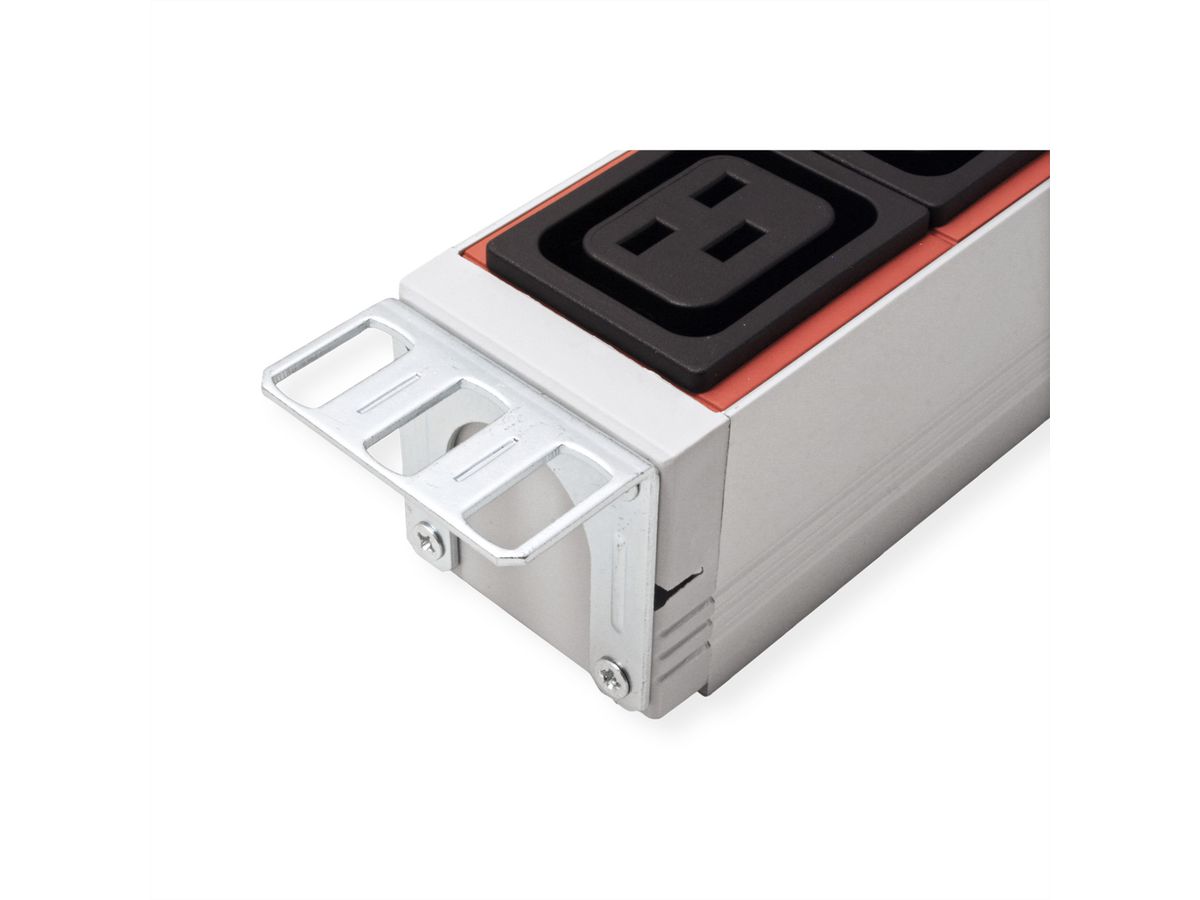

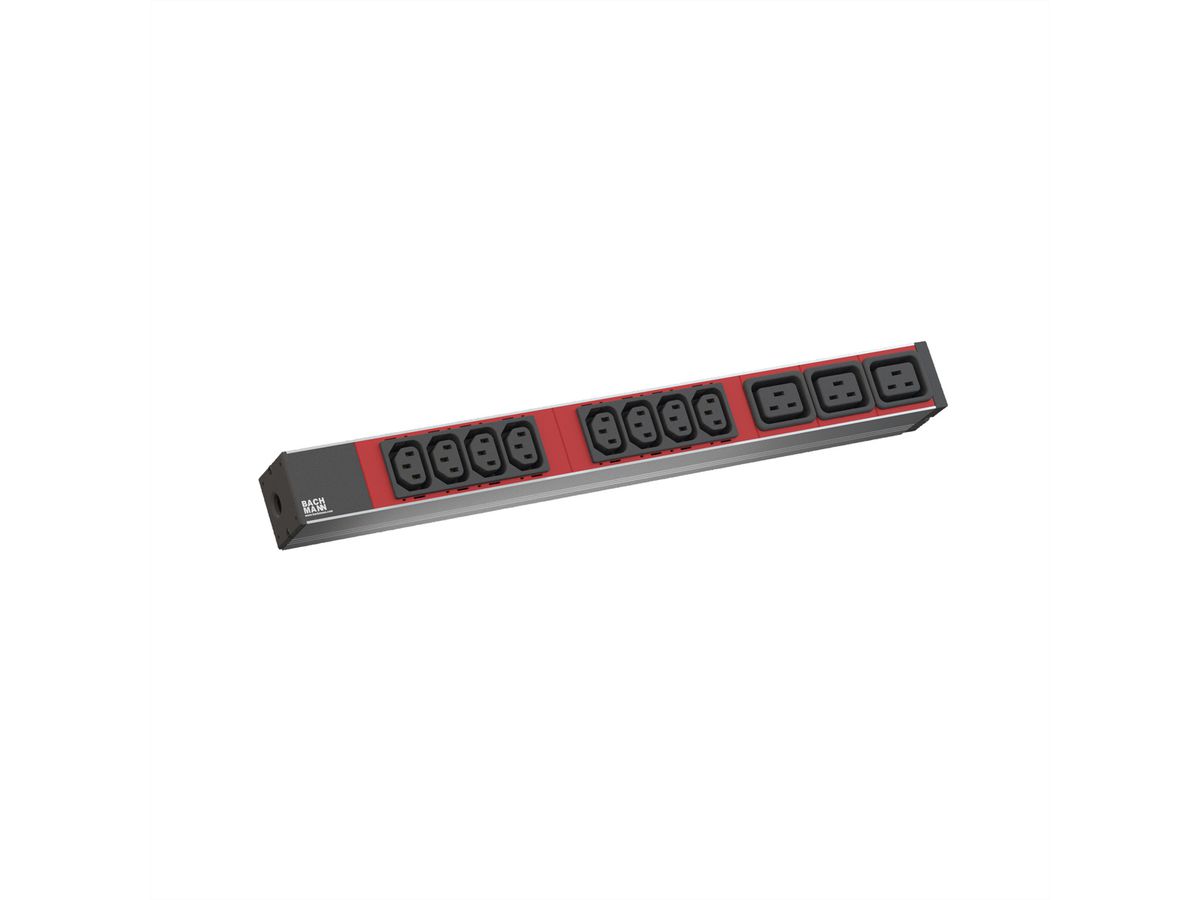

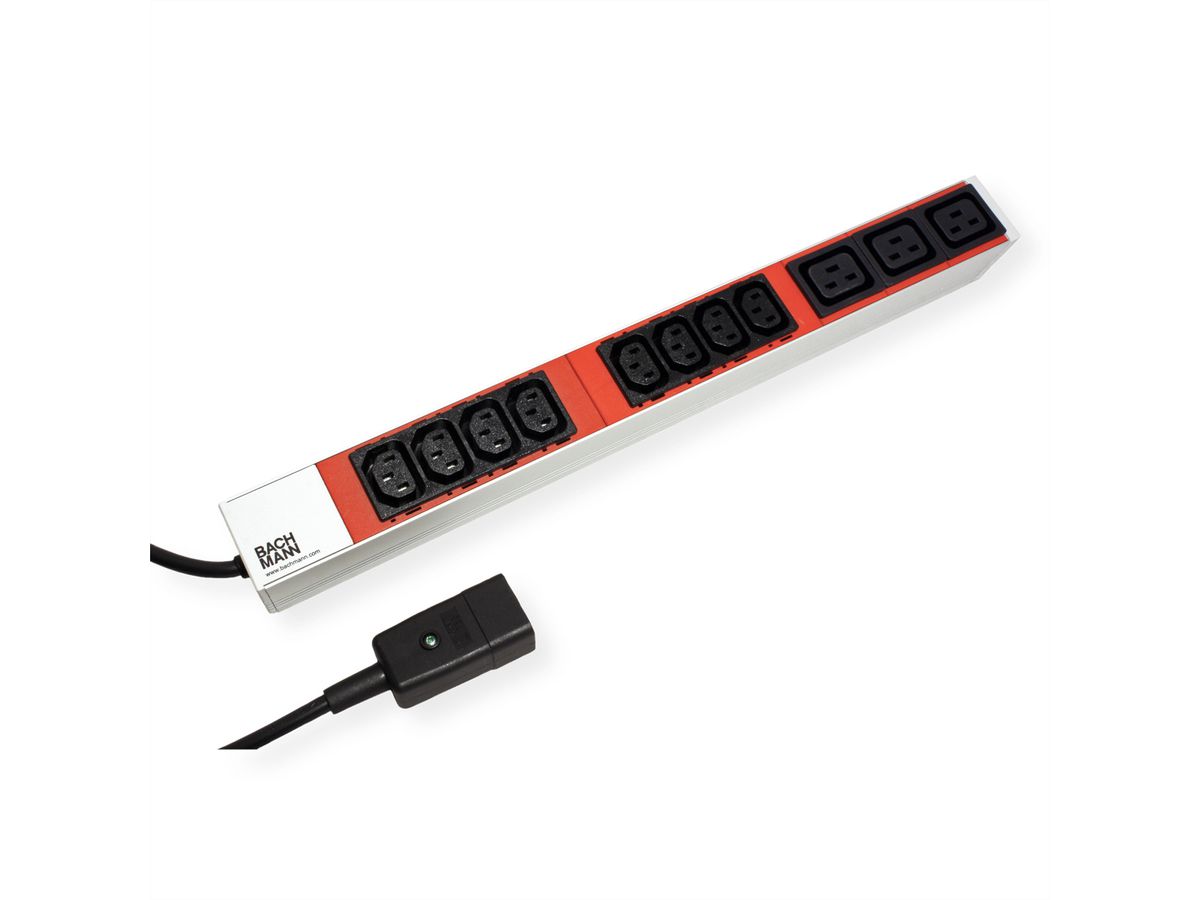

For future-oriented, highly efficient power distribution in data centres, server racks and network racks. - The dimensions of the high-quality and very sturdy aluminium profile are a compact 44 x 47 mm. - The space-saving design provides space for data cabling and air routing for air conditioning the server rack. - Aluminium socket strip, 1U profile 44 x 47mm for 19" rack - black anodised, red front panel - 8x C13 power sockets, (10A), black - 3x C19 power sockets, (16A), black - supply cable: 2m H05VV-F 3G1.5mm² with C20 plug - incl. mounting bracket packed in a box - cable: 2m H05VV-F 3G1.5mm² with C20 plug - incl. mounting bracket packed in a box. Mounting bracket packed in box - incl. PDU cable locking clips 940.103 loose in box - Dimensions: 440 x 44 x 47mm
| Manufacturer | BACHMANN |
|---|---|
| Product group | Power Bars |
| Product type | 19'' socket strip |
| Colour | black |
| Function | 19" socket strip |
| Mounting form | Vertikal |
| Max. capacitance | 3600W |
| Max. voltage | 230V AC |
| ON/OFF Switch | no |
| Number of socket pots | 11 |
| Quantity of outputs/angles | 11 |
| Output alignment | 24 x C13 3 x C19 |
| Socket type |
|
| Material (casing) | Aluminium |
| Colour (Design profile) | Aluminium |
| Connection cable | H05VV-F 3G 2,5mm² |
| Colour (Cable) | black |
| Connector plug | CEE 16A C20 zwart |
| Plug type | IEC320 C20, 16A |
| Regional use | Without restriction |
| Height | 44 mm |
| Width | 440 mm |
| Depth | 44 mm |
| Weight | 1 kg |
| Height of packaging (single piece) | 80 mm |
| Width of packaging (single piece) | 120 mm |
| Depth of packaging (single piece) | 480 mm |
| Package weight (single piece) | 0.912 kg |
:strip_icc():strip_exif()/cms_secde/cms/ueber_uns/markenwelt/hersteller_logos/bachmann.png)
The BACHMANN brand stands for customer-oriented electrotechnical components and systems.
In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.
