Description

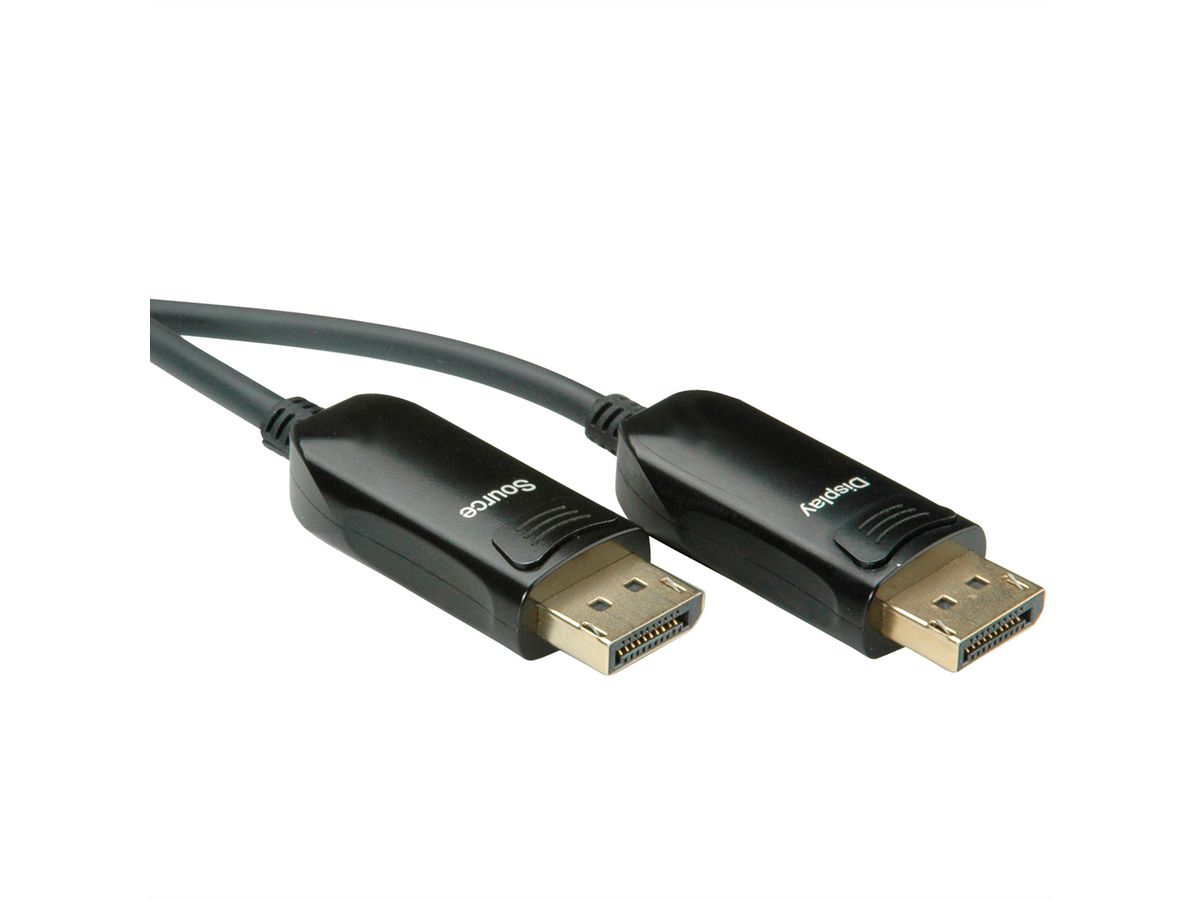

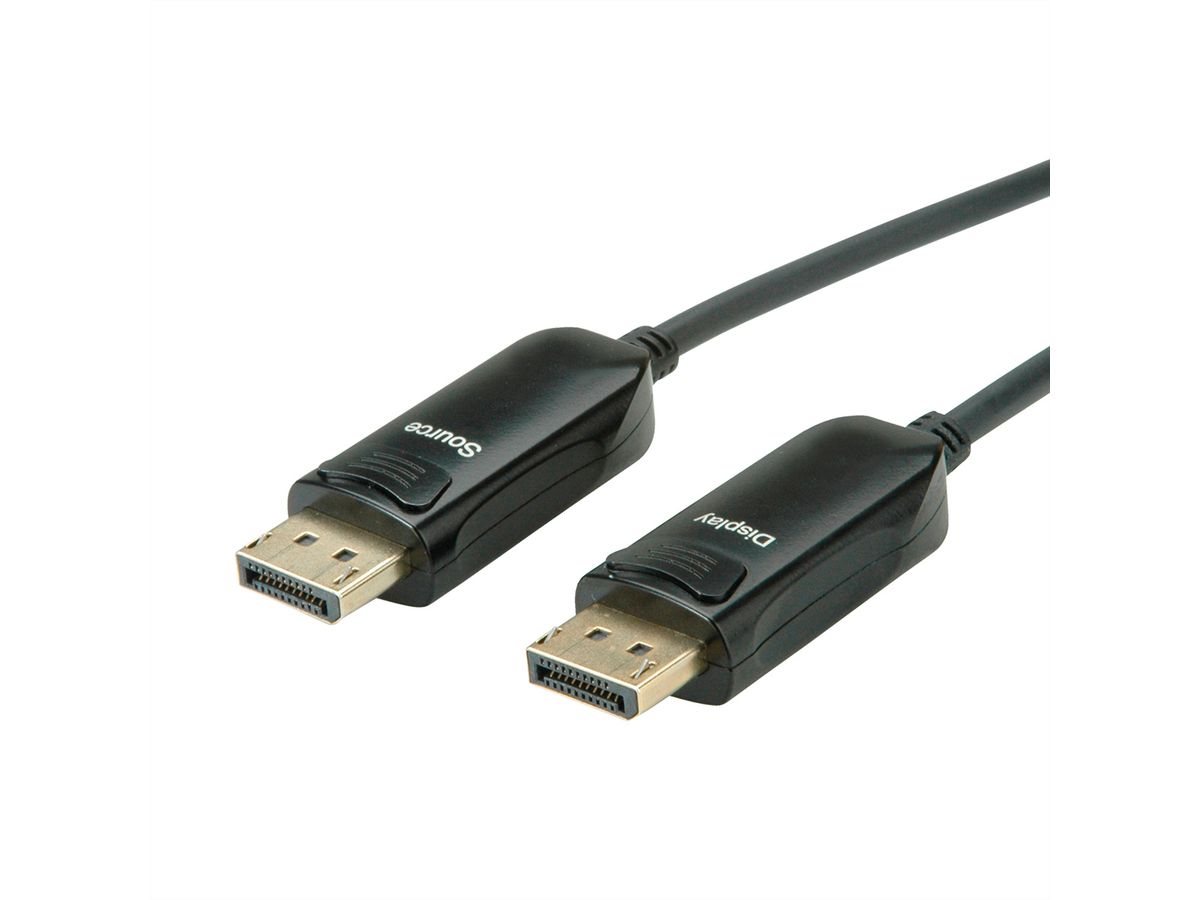

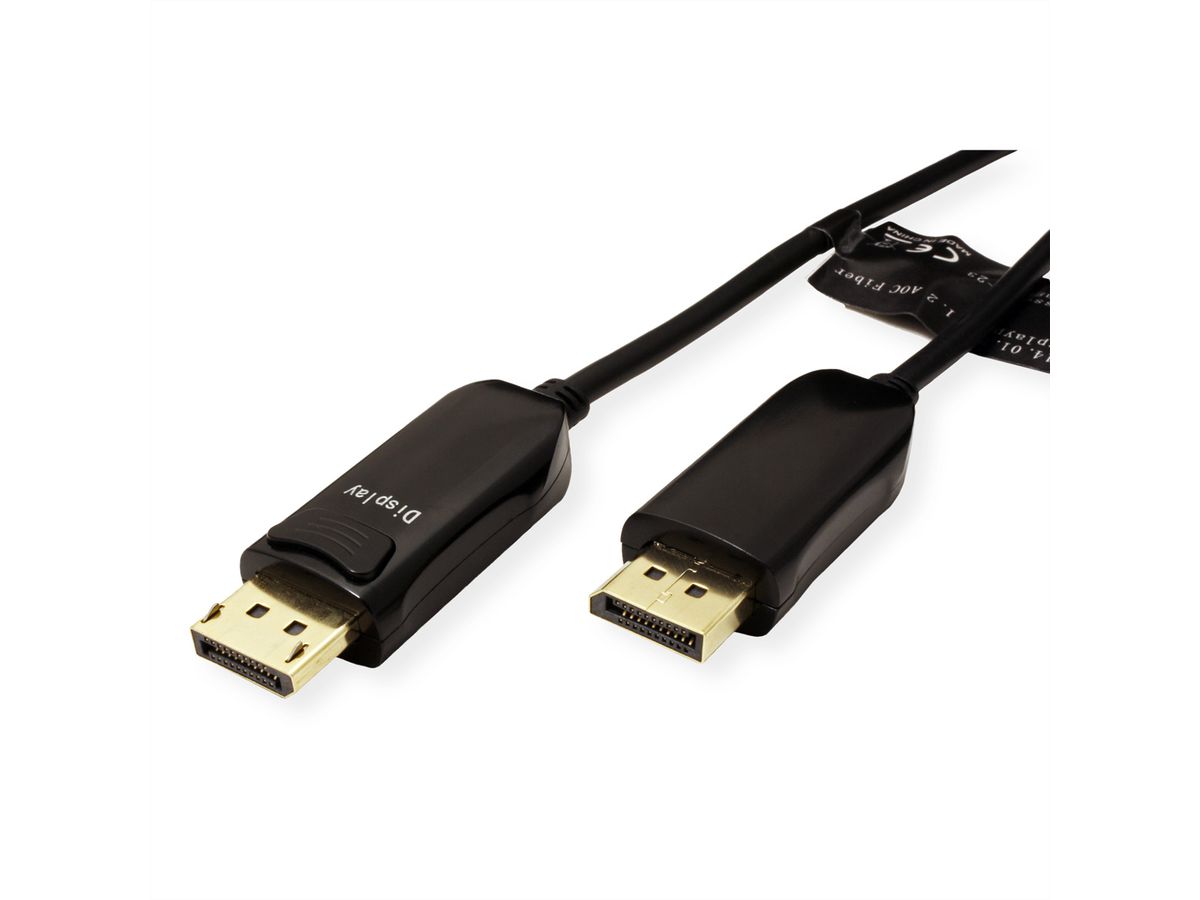

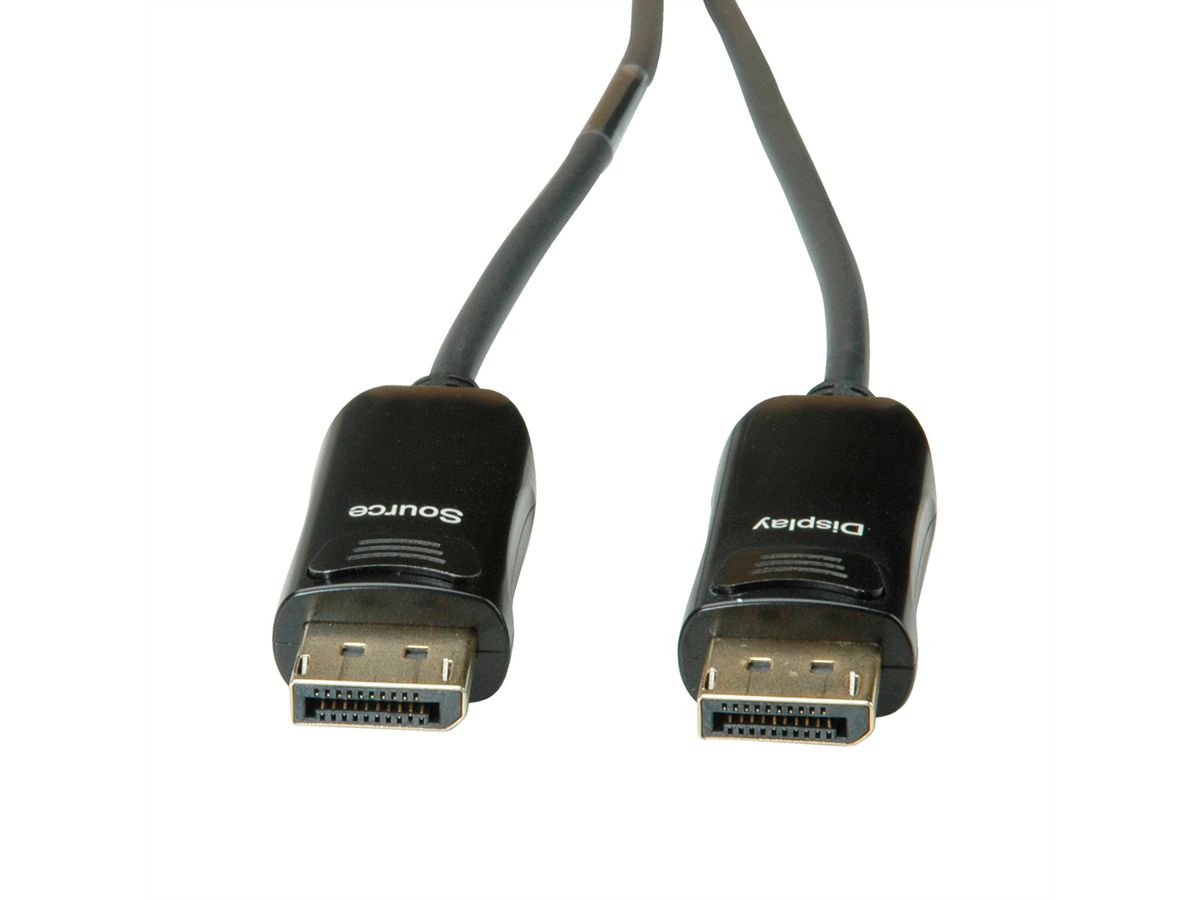

With our UHD (7680x4320 @60Hz) capable DisplayPort fiber optic cable you have the possibility to connect up to 20m between your devices. The active cable (AOC) does not require a separate power supply and is particularly suitable for installation in the cable duct due to its small diameter.

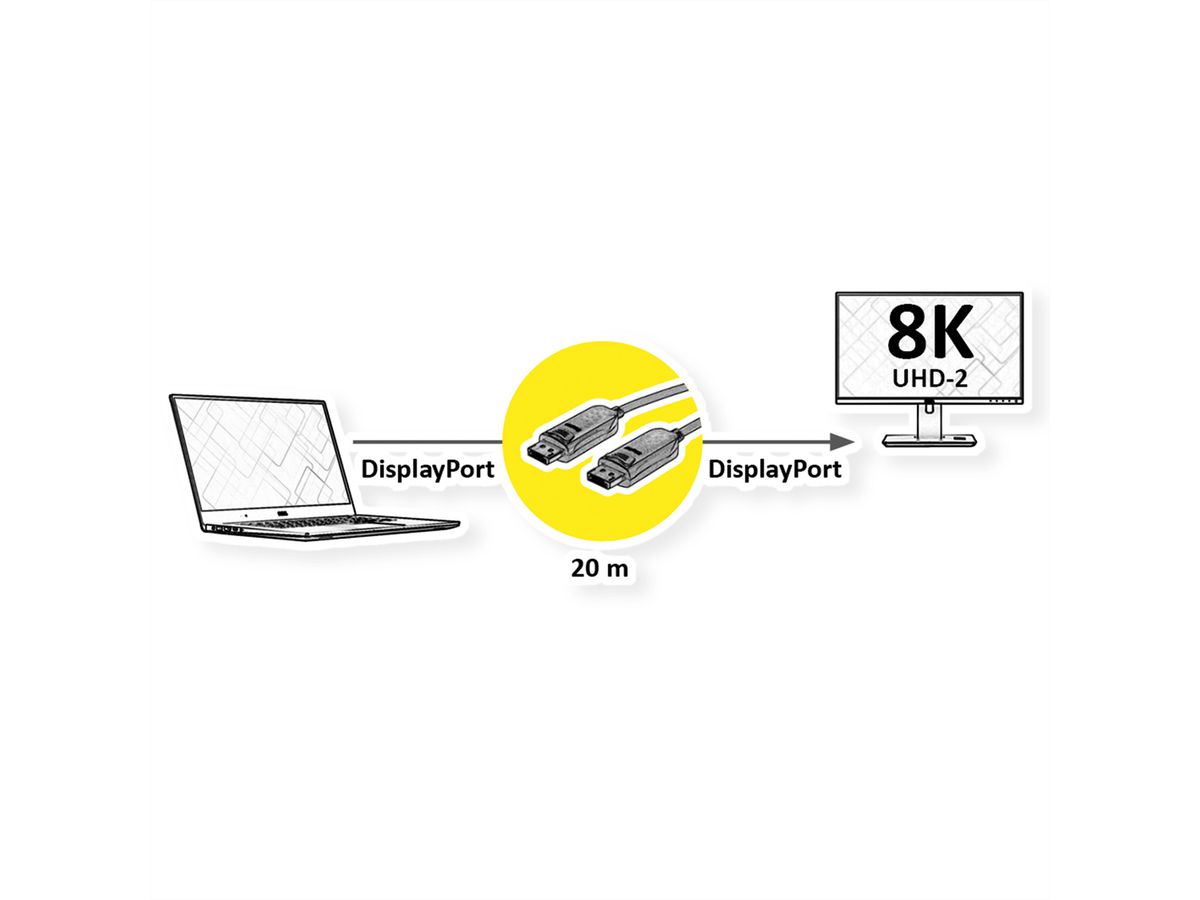

• Total length of the end device distance (e. g. from notebook/laptop to beamer or PC to monitor): 20 meters

Hardware solution, no software required

• No external power supply required; the cable contains a copper fibre for power supply
• Small connector and cable dimensions; the cable has a smaller diameter than comparable cables made of pure copper due to the glass fibres.
• The practical plug design prevents the cable from slipping out of the DisplayPort socket.

• Compliant DP v1.4 (max. 7680 x 4320 @60Hz)

Specifications

Manufacturer	ROLINE
Product group	Audio / video cable
Product type	DisplayPort extension
Colour	black
Length	20 m
Transfer quality	DisplayPort v1.4
Max. resolution	7680 x 4320 @60Hz (8K, UHD-2)
Side 1 Connector Type	DisplayPort
Side 1 Connector Gender	Male
Side 2 Connector Type	DisplayPort
Side 2 Connector Gender	Male
Weight	645 g
Height of packaging (single piece)	70 mm
Width of packaging (single piece)	180 mm
Depth of packaging (single piece)	170 mm
Package weight (single piece)	0.8 kg

Downloads

Product data sheet - English (53.6 KB)

Download

Manufacturer data sheet - English (249.0 KB)

Download

User manual - English (123.3 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 5-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
