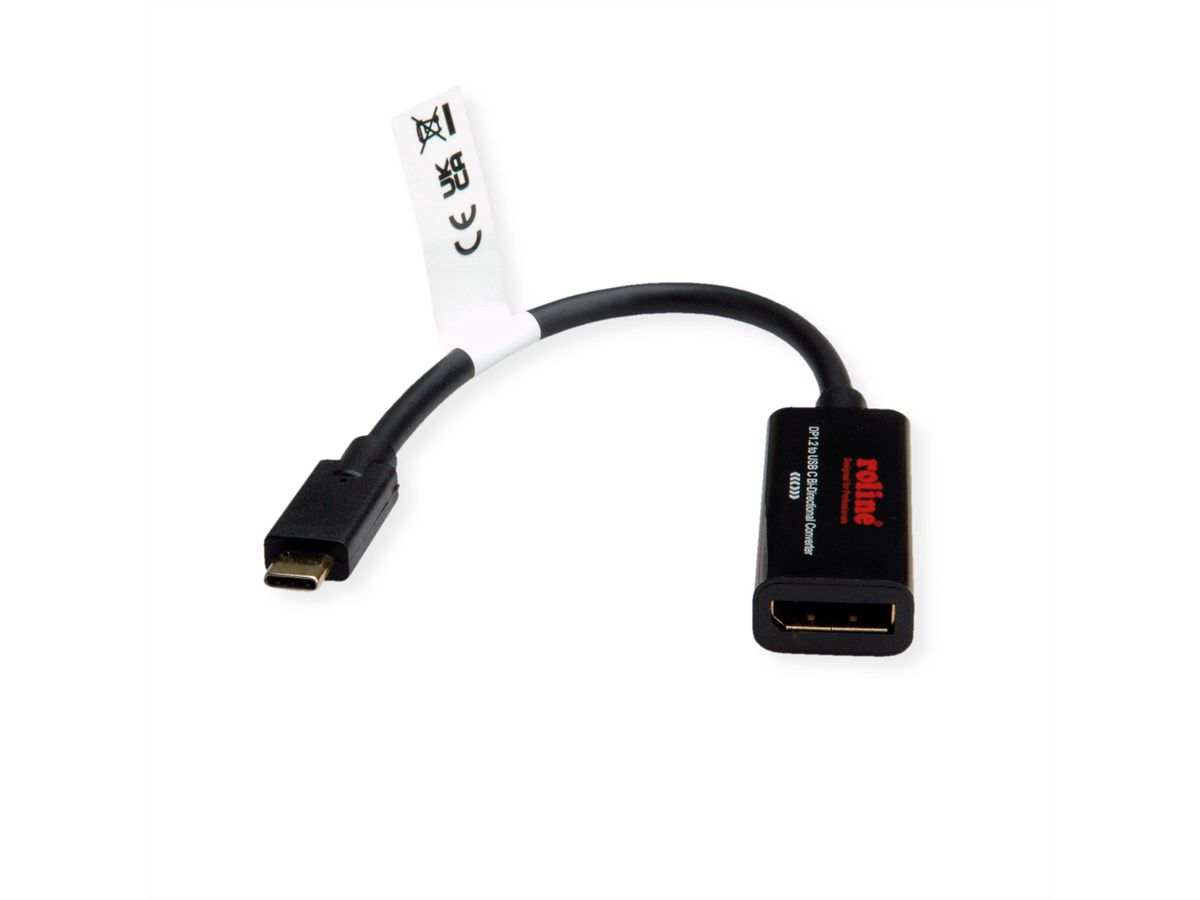

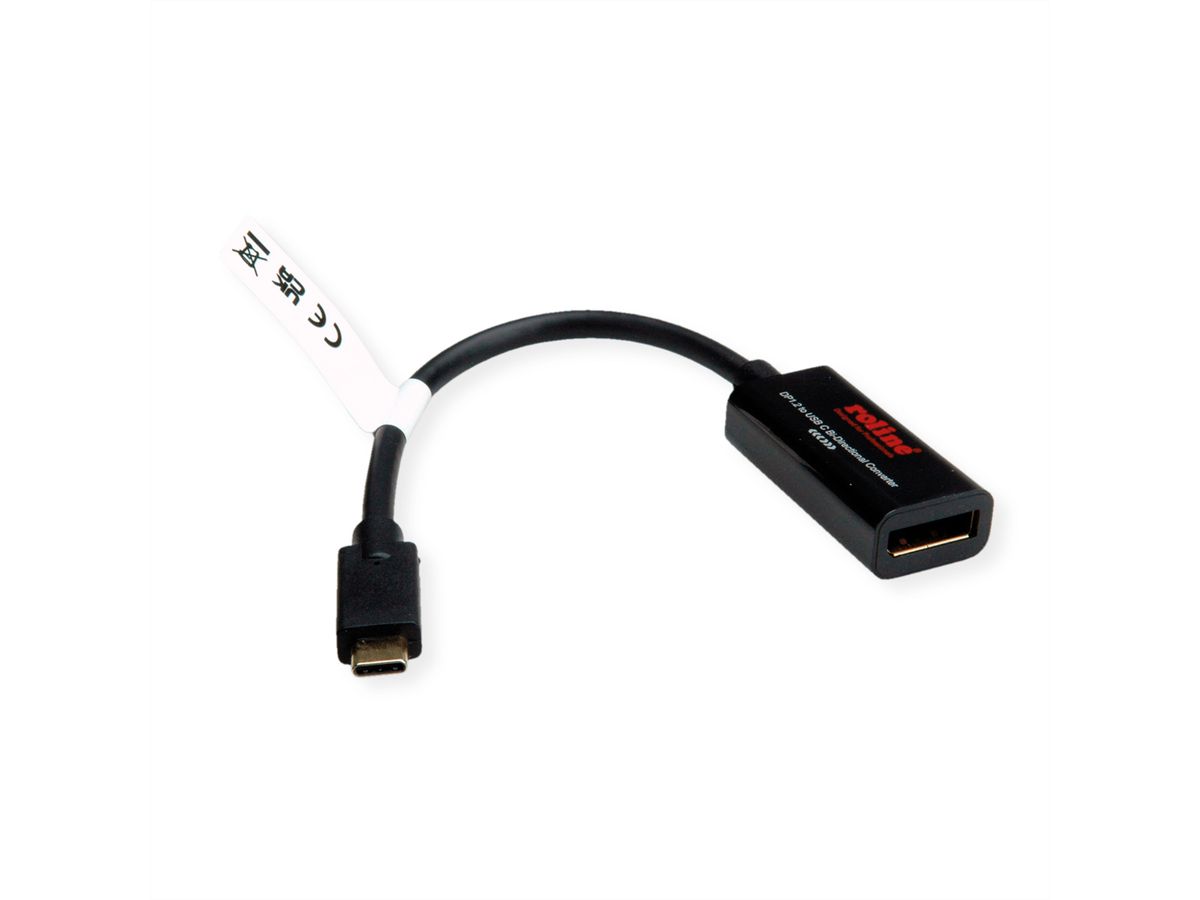

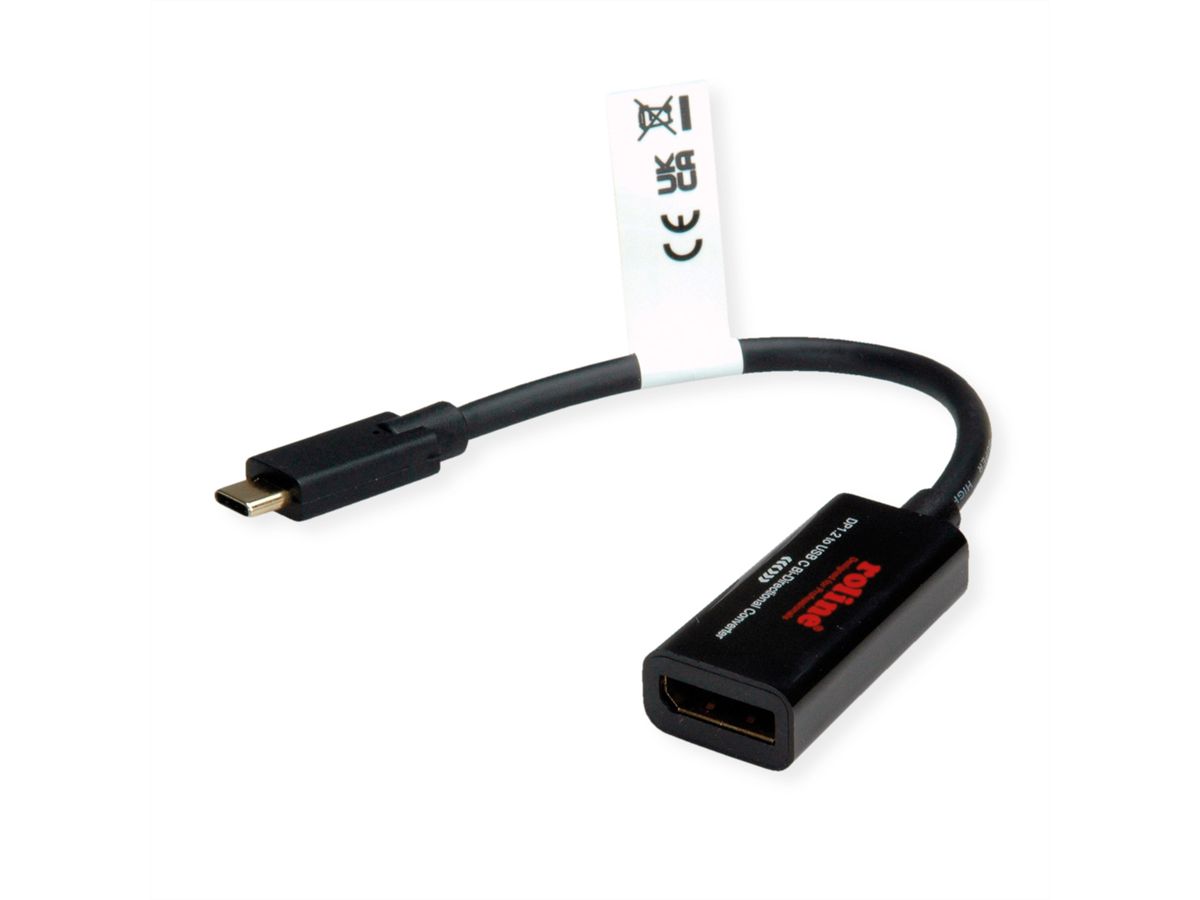

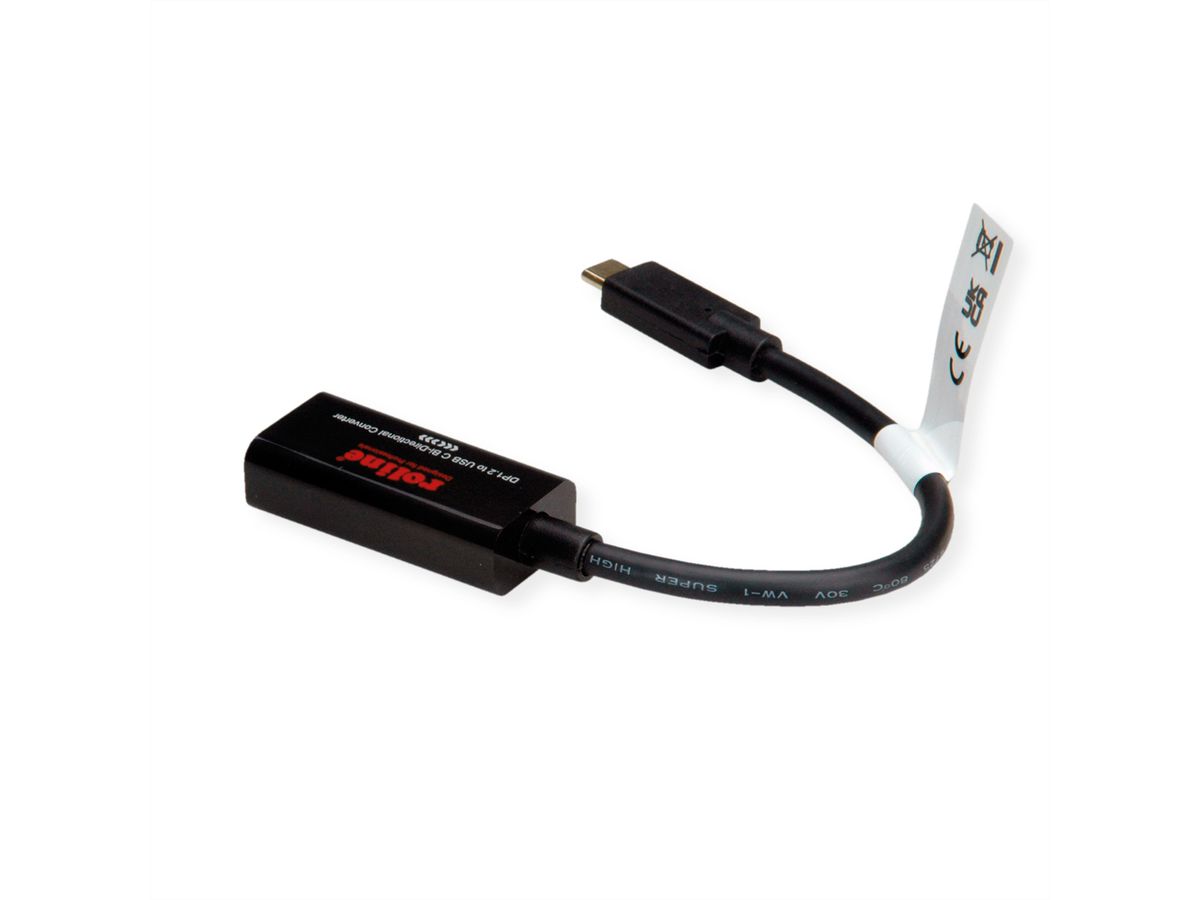

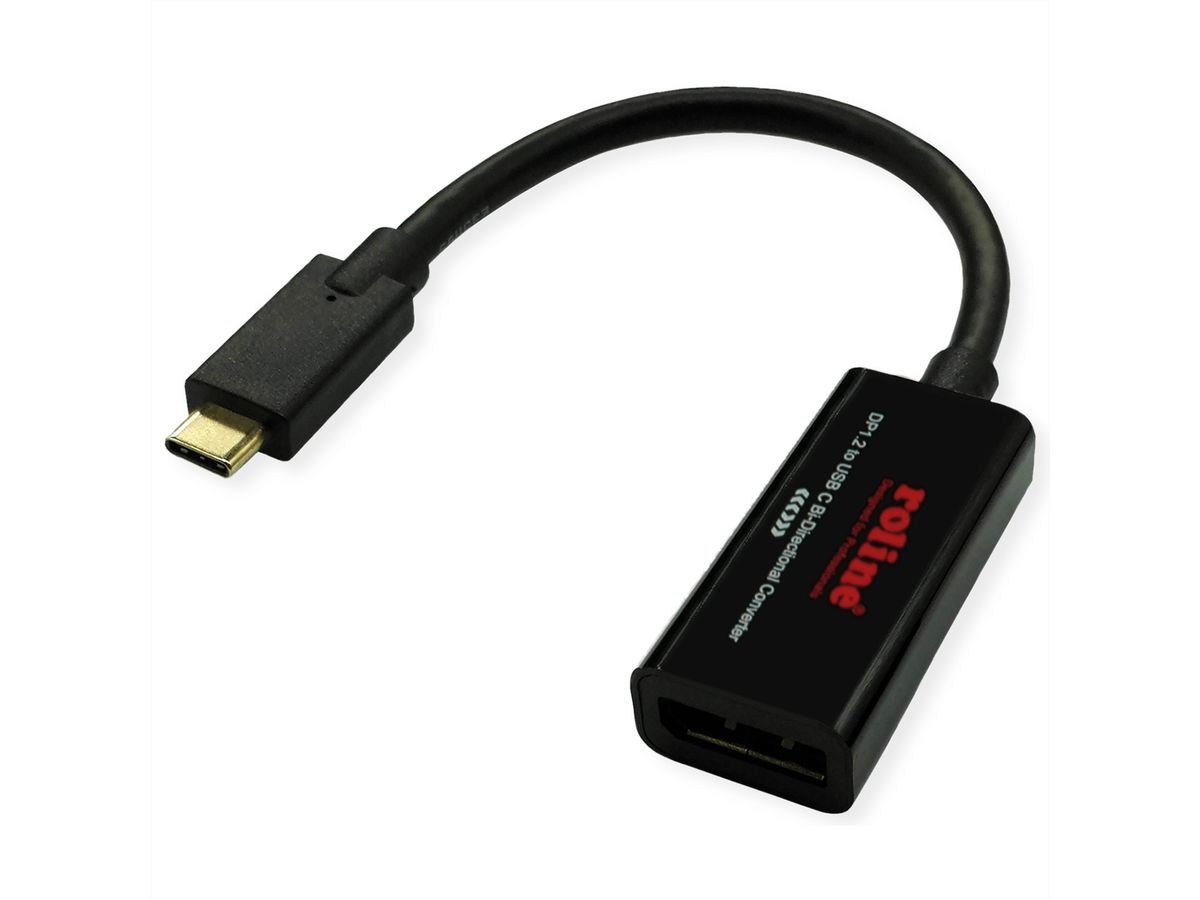

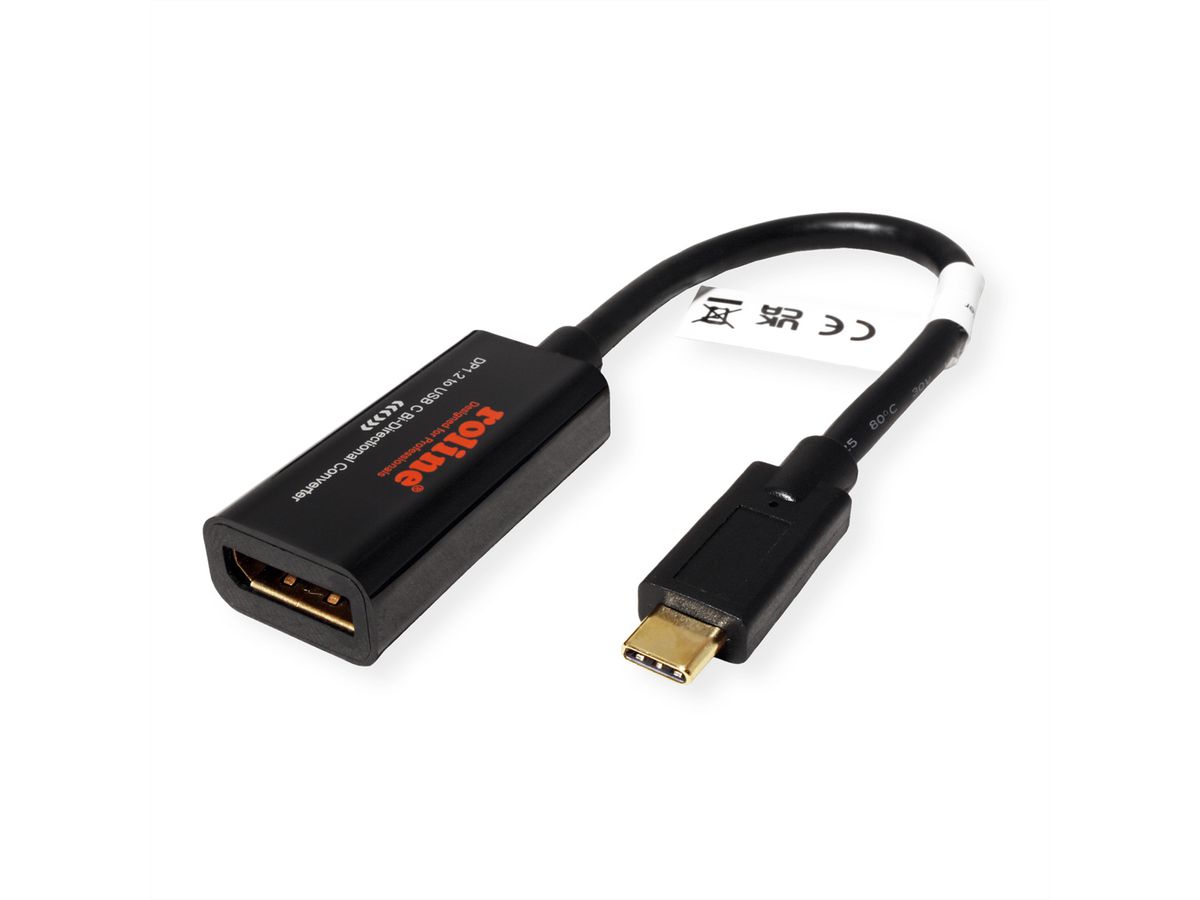

ROLINE Type C - DisplayPort AdapterCable, M/F, Bi-directional, 0.2 m
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 11045957 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. item no. | 11.04.5957 |
| EAN | 7630049625143 |
| Item weight | 0.04 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
- Reversible cableadapter which enables the connection between devices with USB Type-C and DisplayPort connectors

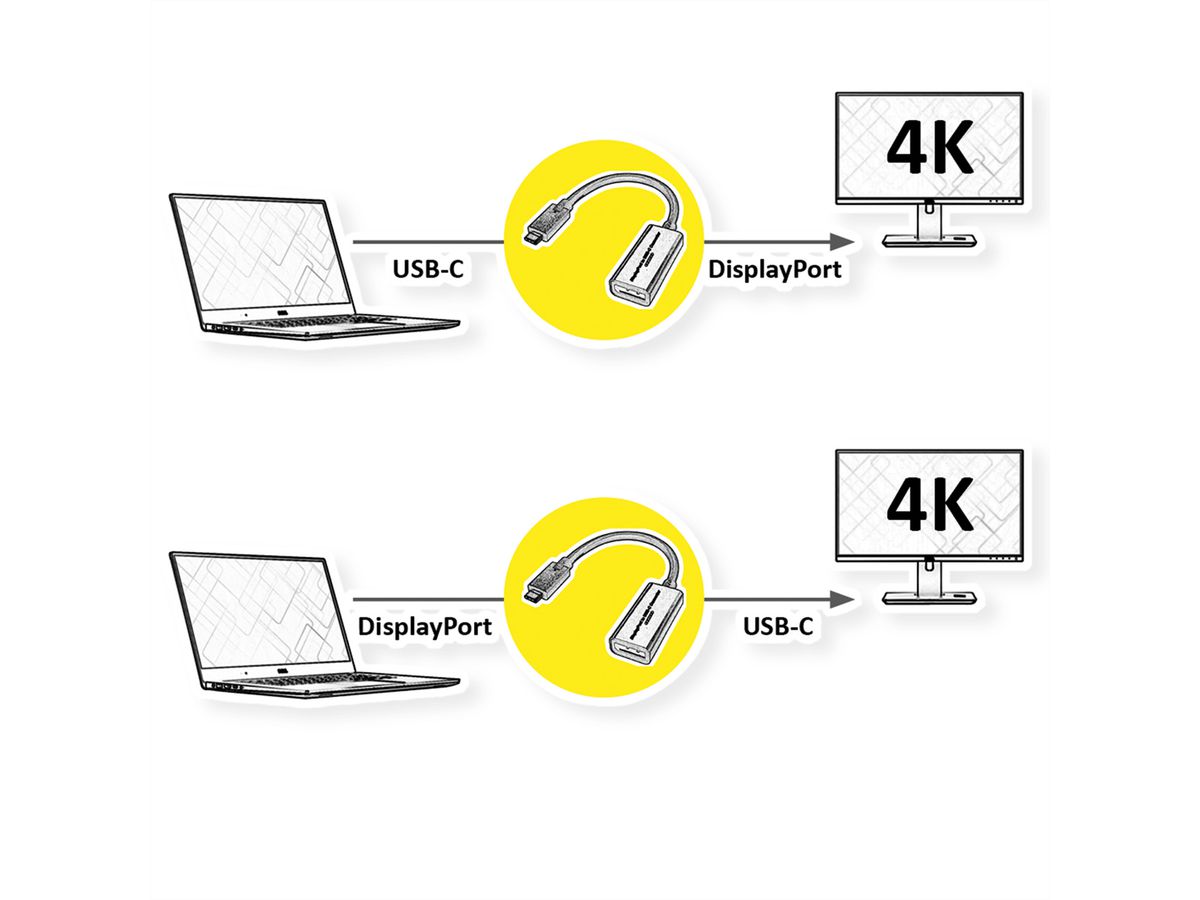

- Bidirectional cableadapter - works in BOTH signal directions with USB Type-C and DisplayPort connectors
- Requires the support of DisplayPort Alternate Mode on the USB Type C connection (laptop / PC / monitor)
- Offers a variety of possible applications
- connection of an USB Type-C monitor to a device with DisplayPort output (notebook/PC...)
- Plug & Play
- Converter is bus powered, this makes the integration within installations easy, with no additional need for external power supplies or outlets
- Max. resolution: 3840 x2160 @60Hz
- Connectors: DisplayPort female and Type C Male
- Cable length: 0.2 m
Remark: Support of "Alternate Mode (DP Alt Mode)" required
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Adapters, Terminators, Converters |
| Product type | USB-DisplayPort Adapter |
| Colour | black |
| Length | 0.2 m |
| Max. resolution | 3840 x 2160 @60Hz (4K, UHD-1) |
| Side 1 connection (PC) | Typ C Male |
| Side 2 connection (Peripherals) | DisplayPort Male |
| Side 1 Connector Type | USB Type C (USB-C) |
| Side 1 Connector Gender | Male |
| Side 2 Connector Type | DisplayPort |
| Side 2 Connector Gender | Female |
| Area of application | External |
| Technical particularity | DisplayPort Version 1.2 |
| Height | 12.2 mm |
| Width | 21 mm |
| Depth | 174 mm |
| Weight | 19.9 g |
| Height of packaging (single piece) | 20 mm |
| Width of packaging (single piece) | 20 mm |
| Depth of packaging (single piece) | 60 mm |
| Package weight (single piece) | 0.04 kg |
