Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 26100220 |
|---|---|
| Brand / Manufacturer | SCHROFF |
| Manuf. item no. | 60240006 |
| EAN | 4036088000591 |
| Item weight | 13.42 kg |
:strip_icc():strip_exif()/logos/schroff.png "SCHROFF")

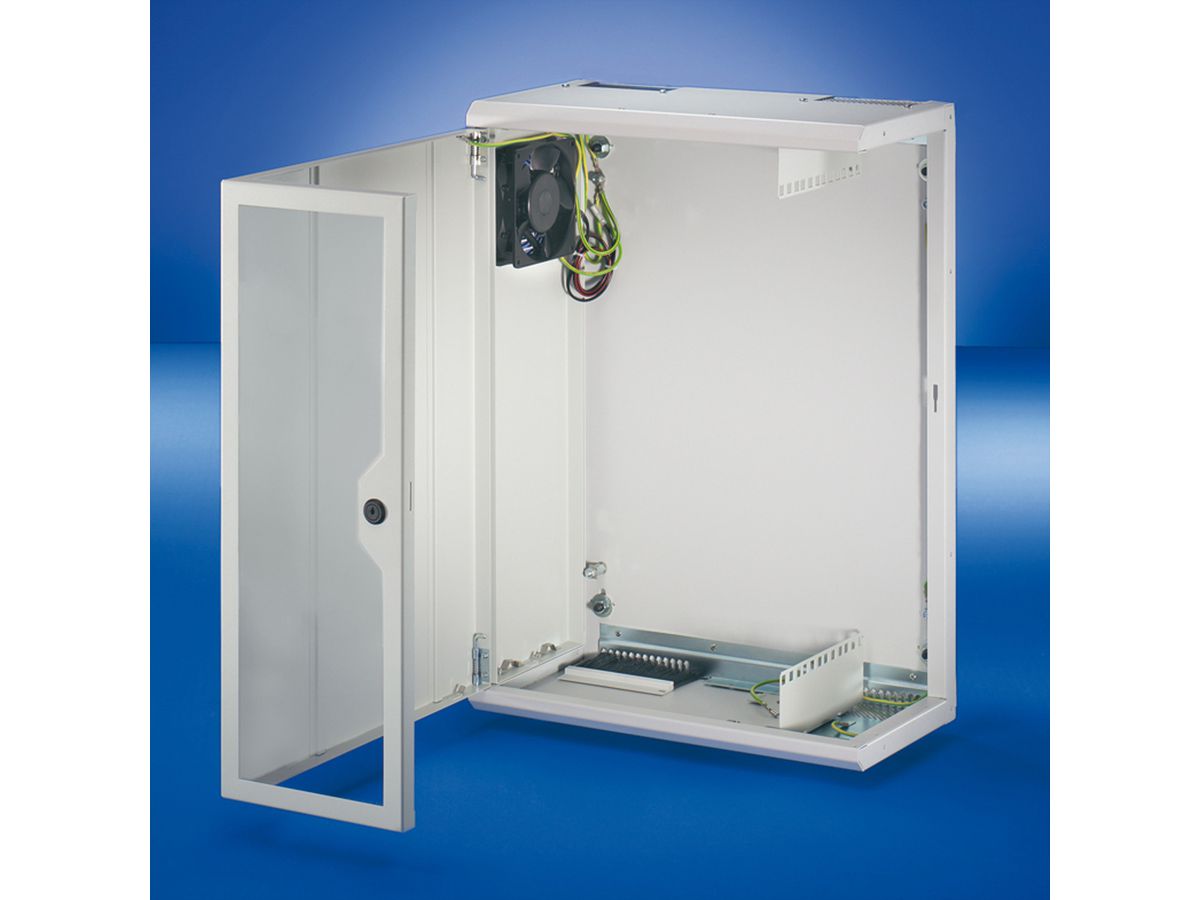

- Flat 19" wall-mounted enclosure (220 mm deep) for universal cabling systems - Installation options for distribution panels (copper and fibre optic) or for active components (e.g. switches) up to a maximum depth of 300 mm - Prepared for fan installation - External dimensions: Height 600 mm, width 425 mm, depth 220 mm - Colour: RAL 7035 light grey - Housing made of sheet steel, 1.5 mm, with 2 cable entry openings at the top and bottom - Side panel made of sheet steel, 1 mm, with ventilation openings (prepared for fan installation) - Corner door, angled at 90°, with acrylic glass and side closure - Incl. 3 cover plates for cable entry openings - Brush strip, black, is enclosed loose - Incl. fixing material for wall mounting and earthing kit
| Manufacturer | SCHROFF |
|---|---|
| Product group | 19"-/10"-Cabinet |
| Product type | 19"-wall housing |
| Colour | grey |
| Scope of delivery | Brush strip, fixing material, earthing kit |
| Height units | 4 U |
| Maximum rack depth supported | 300 mm |
| Server cabinet | no |
| Dimensions (HxWxD) w/o socket | 600 x 425 x 220 mm |
| Protection class (IP Code) | IP20 |
| Front | Glass door with frame |
| 19" level | Ahead |
| Roof | Cable entry possibility |
| Roof raised | no |
| Ventilation | Passive |
| Grounding set mounted | no |
| Fan ready | yes |
| Colour (Cabinet) | RAL 7035 Light grey |
| Colour (Covering) | RAL 7035 Light grey |
| RAL colour | RAL 7035 Light grey |
| Height | 600 mm |
| Width | 425 mm |
| Depth | 220 mm |
| Height of packaging (single piece) | 300 mm |
| Width of packaging (single piece) | 450 mm |
| Depth of packaging (single piece) | 640 mm |
| Package weight (single piece) | 13.42 kg |
:strip_icc():strip_exif()/cms_secde/cms/ueber_uns/markenwelt/hersteller_logos/nvent_schroff.png)
The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.
The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.
