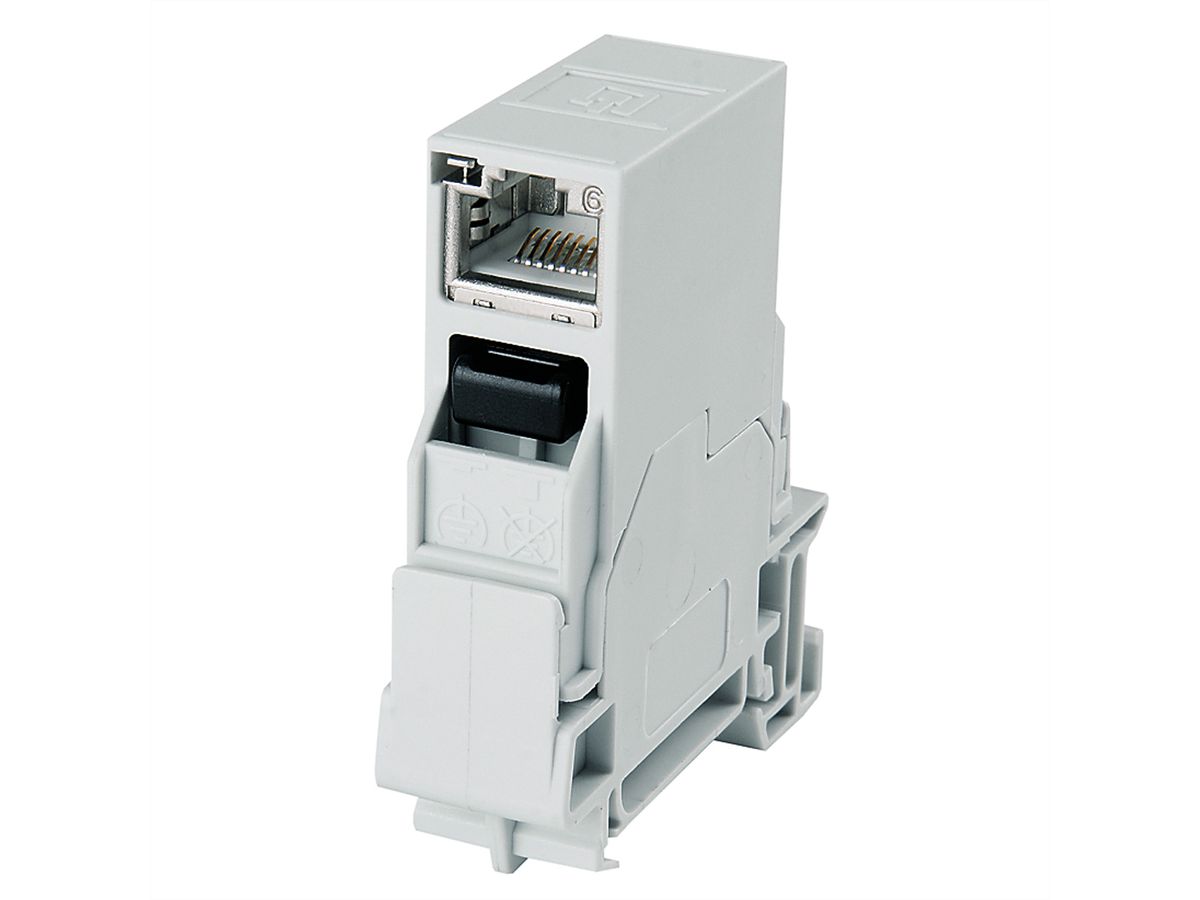

TELEGÄRTNER STX mounting rail outlet, RJ45 coupler Cat.6

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	25168706
Brand / Manufacturer	TELEGÄRTNER
Manuf. item no.	100007437
EAN	4018359341190
Item weight	0.053 kg

Description

STX mounting rail outlet incl. RJ45 coupler Cat.6

Cat.6A acc. to IEC 60603-7-51
Cat.6A re-embedded tested acc. to IEC 60512-27-100
link certificate: Class EA acc. to ISO/IEC 11801
10 Gigabit-Ethernet compliant (IEEE 802.3an)
overbending protection: ≥750 mating cycles with RJ45/RJ11/RJ12 plugs
suitable for PoE+ acc. to IEEE 802.3at
suitable for switching programs from several manufacturers with design capable faceplate AMJ-S Up/0 flex
integrated strain relief for cable O.D. to 9 mm
universal, world-wide available installation dimension for mounting cut-outs: 19.3 x 14.7 mm
universal, world-wide available installation dimension for mounting cut-outs: 19.3 x 14.7 mm
AMJ-S DD: with integrated protection against damage to the contacts by automatic disconnection of the plug connection

Specifications

Manufacturer	TELEGÄRTNER
Product group	Connection technology TP
Product type	Connectors RJ-45
Colour	grey
Transfer quality	Cat6A / Class EA
Material (casing)	PA UL94 V0
Protection class (IP Code)	IP20
Dimensions (HxWxD)	67,1 x 17,5 x 59,6 mm
Operating temperature min.	-40 °C
Operating temperature max.	85 °C
Height	67.1 mm
Width	17.5 mm
Depth	59.6 mm
Weight	50.3 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	60 mm
Depth of packaging (single piece)	90 mm
Package weight (single piece)	0.053 kg
