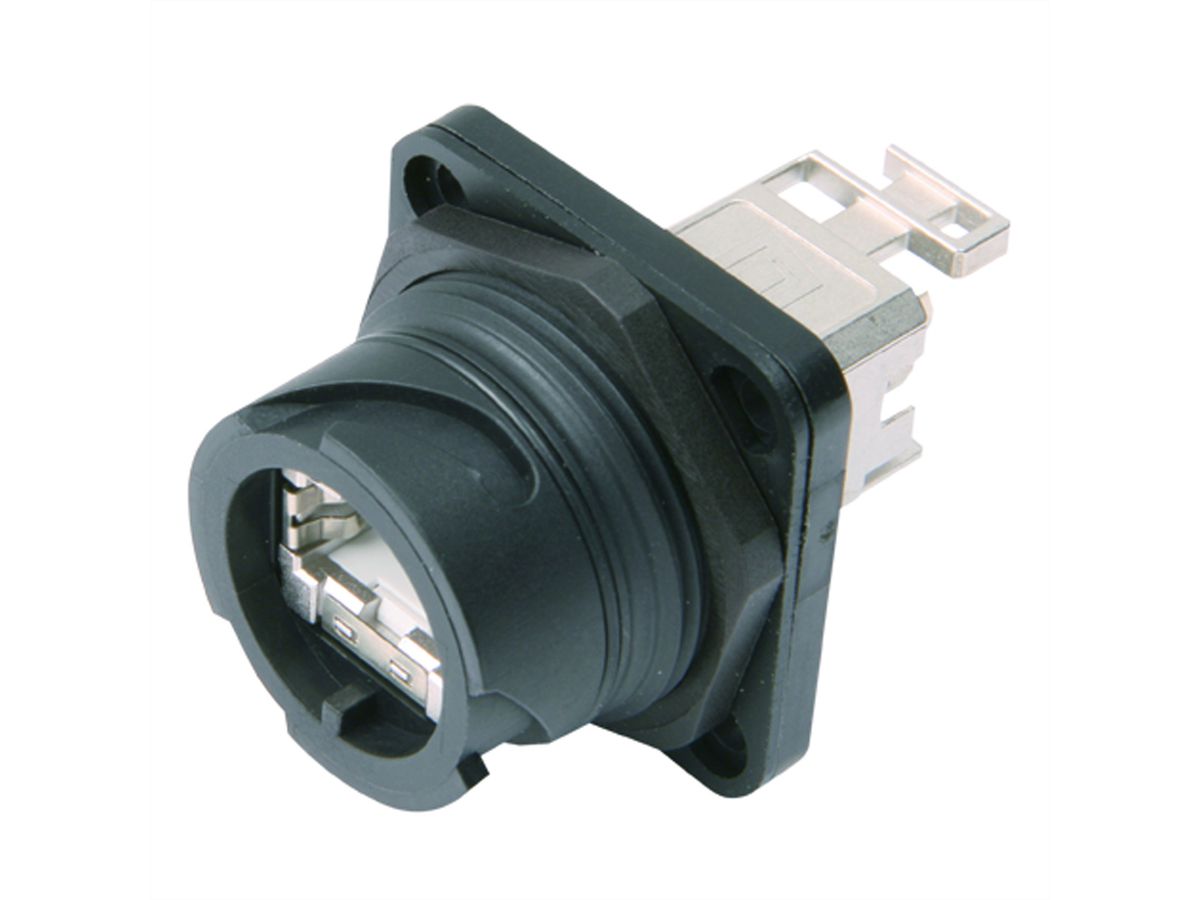

TELEGÄRTNER STX V1 Flanschset, RJ45 Module Cat.6A

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	25168703
Brand / Manufacturer	TELEGÄRTNER
Manuf. item no.	100007416
EAN	4018359328719
Item weight	0.035 kg

Description

STX V1 Flanschset RJ45 Modul Cat.6A

storage of cables with diameter 5...10 mm
simple mounting of bulkheads through a central screwed gland or four screws
NBR aiguilette at the protection cap
bay for marking labels
rugged zinc diecast or plastic housing
protection class IP67
Variant 1 acc. to IEC 61076-3-106
pre-assembled plugs and set products for simple assembly

available with RJ45 Cat.6A, Cat.6 Class EA, USB or FO insert

Specifications

Manufacturer	TELEGÄRTNER
Product group	Connection technology TP
Product type	Connectors RJ-45
Colour	black
Transfer quality	Cat6A / Class EA
Material (casing)	plastic
Protection class (IP Code)	IP67
Operating temperature min.	-40 °C
Operating temperature max.	85 °C
Height	32 mm
Width	32 mm
Depth	47.2 mm
Weight	37.15 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	100 mm
Depth of packaging (single piece)	150 mm
Package weight (single piece)	0.035 kg
