TELEGÄRTNER STX V6 surface mounting outlet, RJ45 Module A Cat.6A (ISO/IEC)

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	25168726
Brand / Manufacturer	TELEGÄRTNER
Manuf. item no.	100022949
EAN	4018359274054
Item weight	0.084 kg

Description

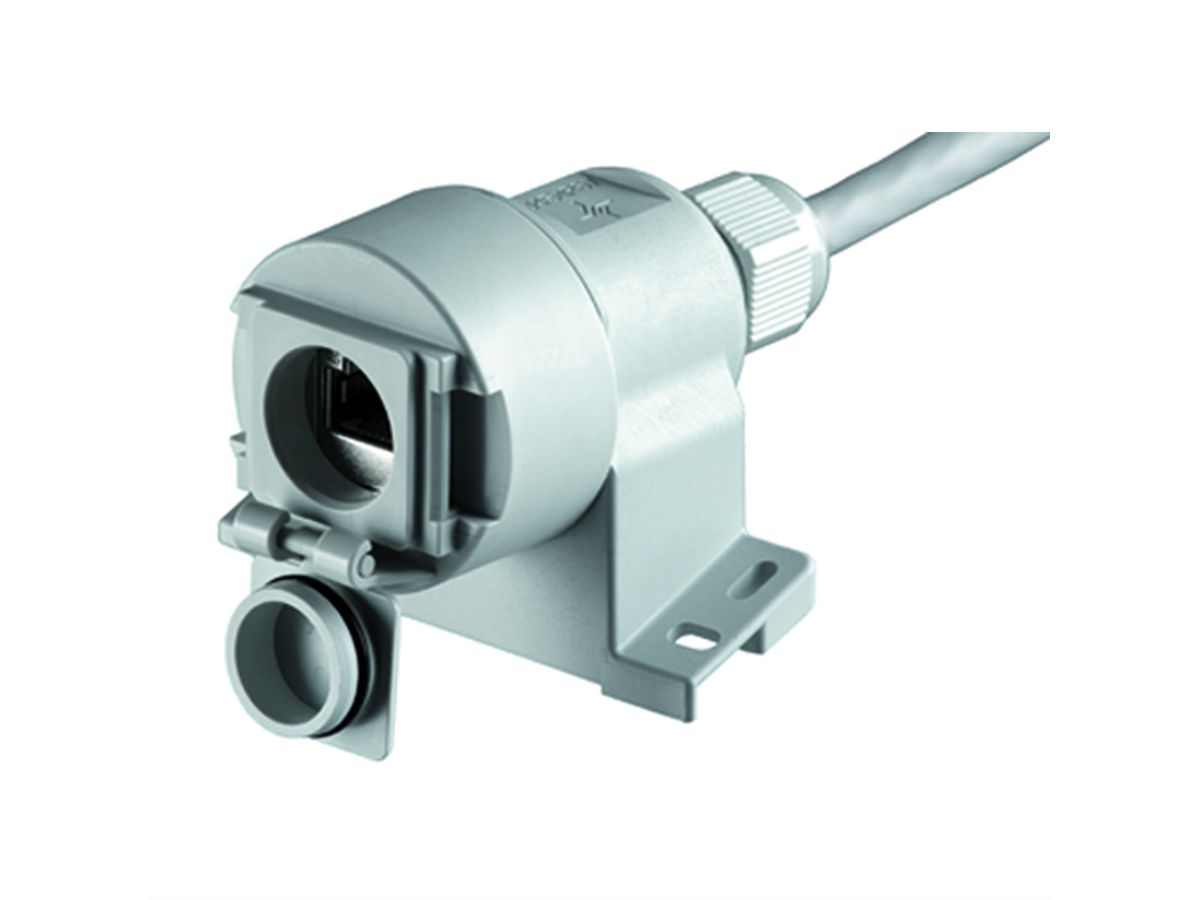

STX V6 surface mounting outlet Cat.6A

Variant 6 acc. to IEC 61076-3-106
connector for Automation Island acc. to IEC 61918
8-way contact for 10 Gigabit-Ethernet
large surface 360° screen connection
non-detachable cover ensures protection class IP67 seal (unmated)
easily opened, re-usable modules
Fire rating UL94 V0
mating face mountable in two directions set at 90° to each other
connection of commercially available RJ45 plugs is possible (IP20 protection)

Specifications

Manufacturer	TELEGÄRTNER
Product group	Connection technology TP
Product type	Connectors RJ-45
Transfer quality	Cat6A / Class EA
Material (casing)	PA6 UL94 V0
Protection class (IP Code)	IP67
Dimensions (HxWxD)	59,5 x 64 x 73,8 mm
Operating temperature min.	-40 °C
Operating temperature max.	70 °C
Height	59.5 mm
Width	64 mm
Depth	73.8 mm
Weight	83.9 g
Height of packaging (single piece)	40 mm
Width of packaging (single piece)	190 mm
Depth of packaging (single piece)	230 mm
Package weight (single piece)	0.084 kg
