Allied Telesis 2914SX/LC Internal Fiber 1000 Mbit/s

Allied Telesis 2914SX/LC Internal Fiber 1000 Mbit/s

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 01/01/2025
Item no. 518605500
Brand / Manufacturer Allied Telesis
Manuf. item no. AT-2914SX/LC-901
EAN 0767035210636

Description

Allied Telesis 2914SX/LC. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 1000 Mbit/s

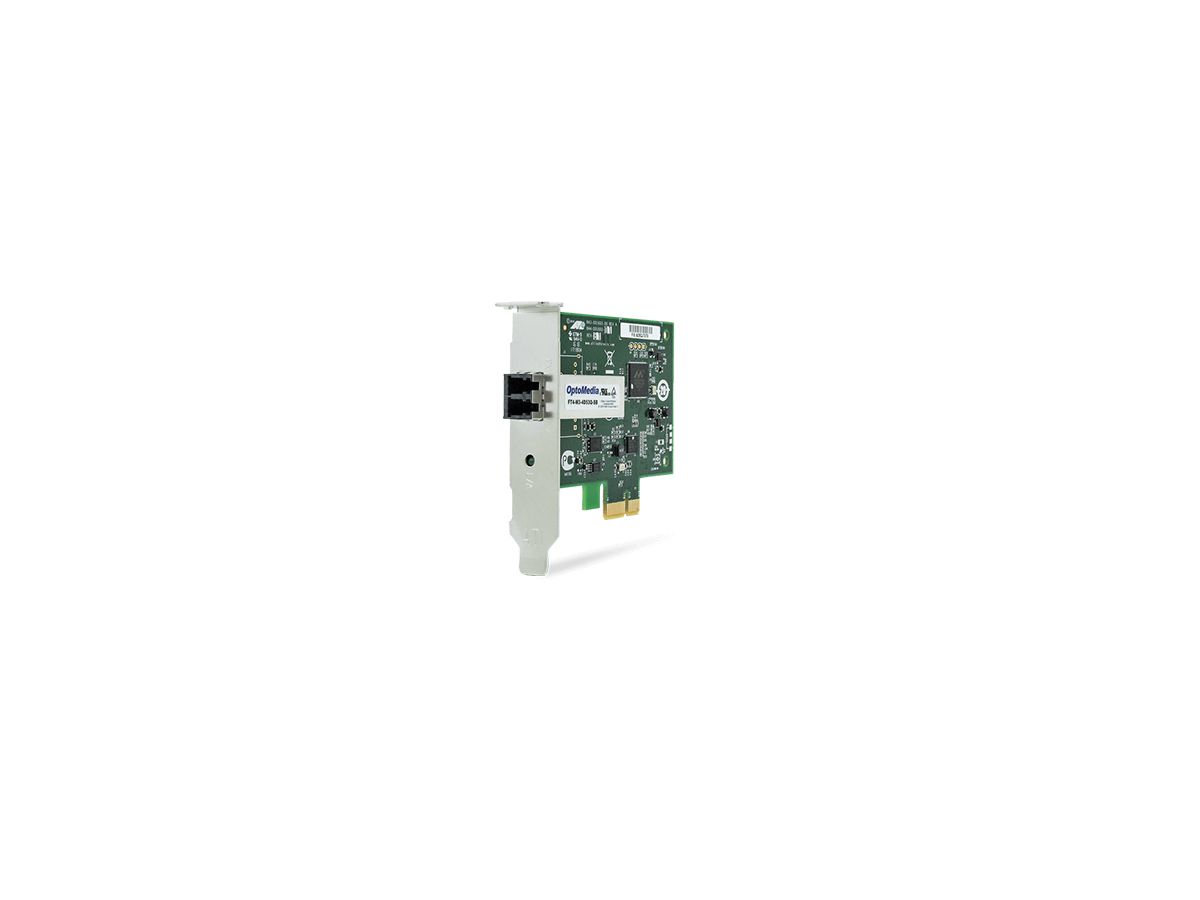

PCI Express Gigabit Network Adapters with Wake-on-LAN (WoL) SupportThe Allied Telesis 2914SX/LC is a gigabit PCIe x1 network adapter with a fixed LC connector. It supports Wake-on-LAN without the use of an external power supply.

Specifications

Manufacturer Allied Telesis
Product type Network Cards
System requirements
Windows operating systems supported Windows 10,Windows 7
Linux operating systems supported Y
Server operating systems supported Windows Server 2016,Windows Server 2019
Ports & interfaces
Connectivity technology Wired
Host interface PCI Express
Interface Fiber
Fiber ports quantity 2
Fiber optic connector LC
Weight & dimensions
Width 88 mm
Height 69 mm
Weight 68 g
Power
Power consumption (typical) 1.5 W
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -25 - 70 °C
Operating relative humidity (H-H) 5 - 90%
Network
Maximum data transfer rate 1000 Mbit/s
Networking standards IEEE 802.1Q,IEEE 802.1p,IEEE 802.2,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3x,IEEE 802.3z
Security algorithms SNMP
Wake-on-LAN ready Y
Auto-negotiation Y
Jumbo frames support Y
Quality of Service (QoS) support Y
Load balancing system Y
Other features
Flow control support Y
Jumbo frames 9600
Design
Internal Y
LED indicators Y
Certification UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK, VCCI
Sustainability
Sustainability certificates RoHS

Downloads

PDF data sheet - Allied Telesis 2914SX/LC Internal Fiber 1000 Mbit/s - English (460.9 KB)

Download
