Description

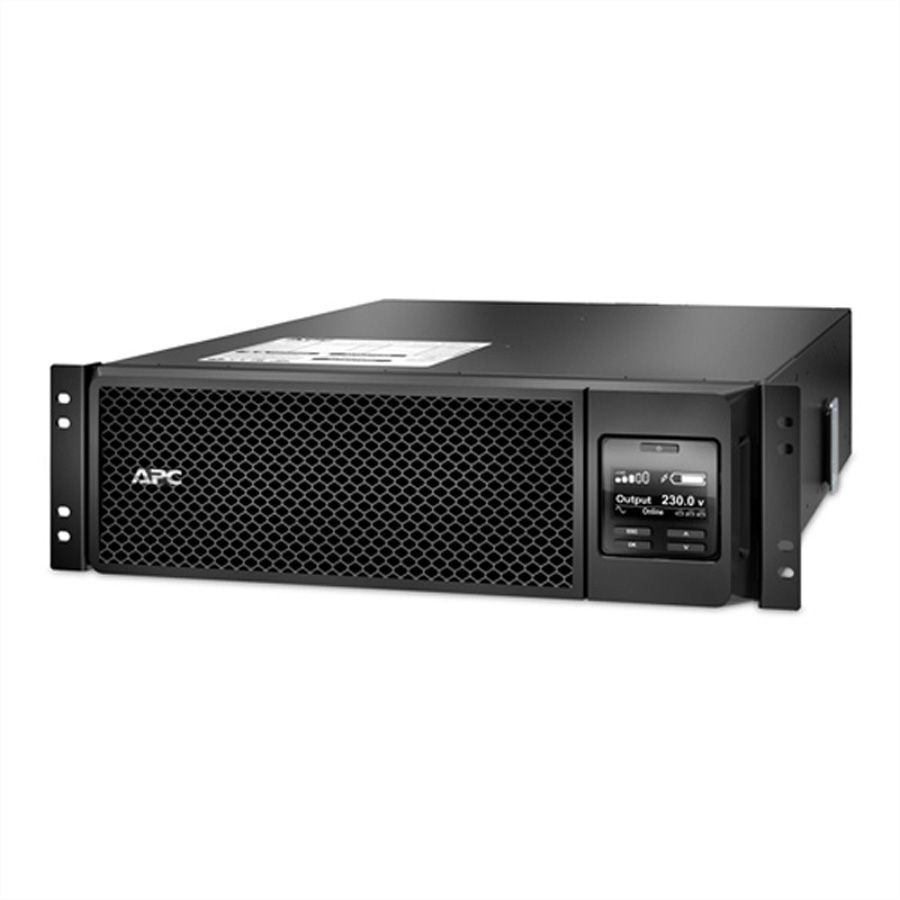

APC Smart-UPS Rackmount

APC SRT5KRMXLI - Hauptmerkmale

• Begutachtung: CE, CE-Kennzeichnung
• Batterietype: Wartungsfrei abgedichtete Bleisäurebatterie mit schwebendem Elektrolyt, auslaufsicher
• Leistungsfaktor 0.9
• integrierte Netzwerkschnittstelle mit Temparaturfühler und zusätzlichem Smartslot
• Garantie: 3 Jahre Reparatur oder Ersatz und 2 Jahre für die Batterien

Lieferumfang: Dokumentations-CD, Installationsanleitung, Abnehmbare Stützfüsse, Garantiekarte

>> ACHTUNG: Diese Anlage hat einen Einphasigen Anschluss über 16A / 3.6kW, klären Sie im Vorfeld den Anschluss mit dem Elektrounternehmen ab!

Specifications

Manufacturer	APC
Product group	USV
Product type	UPS Online, Rackmount
Colour	black
Classification (IEC 62040-3)	VFI-SS-111
UPS technology	Online
Output (VA/W)	5000 / 4500
Backup time full/half-load	4 / 11 min
Dimensions (HxWxD)	130 x 432 x 719 mm; 3 U
Mounting form	Rackmount
Voltage (input)	230 V
Voltage (output)	230 V
Frequency	50Hz
Connector type (input)	Festanschluss (Hard Wire 3 wire (1PH+N+G)

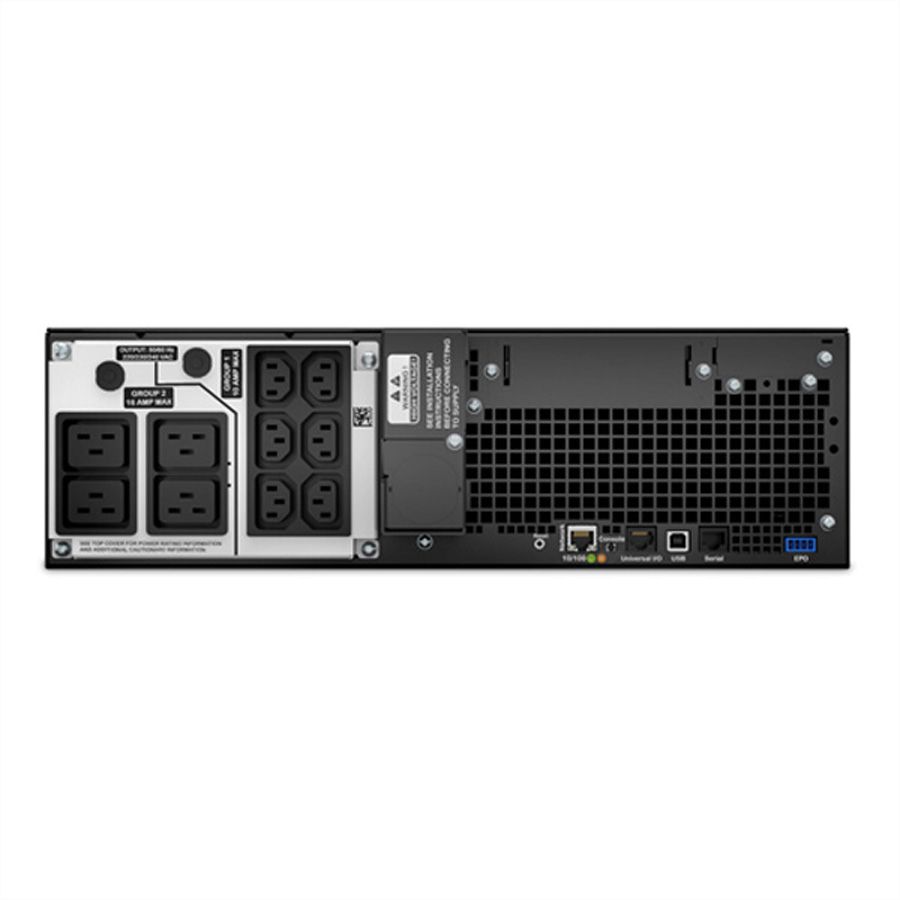

Connector type (output)	6 x IEC320 C13; 4 x IEC320 C19
Phase in/output	230V/230V / 50Hz
Delay expansion unit	10 x SRT192RMBP 19.29.3067
Interface	RJ-45 10/100 Base-T, RJ-45 seriell, SmartSlot, USB
USB 2.0 Interface	ja
Hot swap batteries	Ja, Frontseite
Bypass	automatisch + manuell
Activity Display	Ja
Internal cooling	Aktiv, Lüfter
Ambient temperature	0-40°C
Operating temperature min.	0 °C
Operating temperature max.	40 °C
Height	130 mm
Width	432 mm
Depth	719 mm
Weight	64 kg
Height of packaging (single piece)	330 mm
Width of packaging (single piece)	620 mm
Depth of packaging (single piece)	950 mm
Package weight (single piece)	55 kg

Downloads

Manufacturer data sheet - Betriebsanleitung SRT5 / SRT6 - Deutsch (697.2 KB)

Download

Safety instructions - Deutsch - English - Français - Italiano (189.1 KB)

Download
