ATEN CE770 KVM Extender VGA, USB, Audio, RS232, 300m

Product recommendations

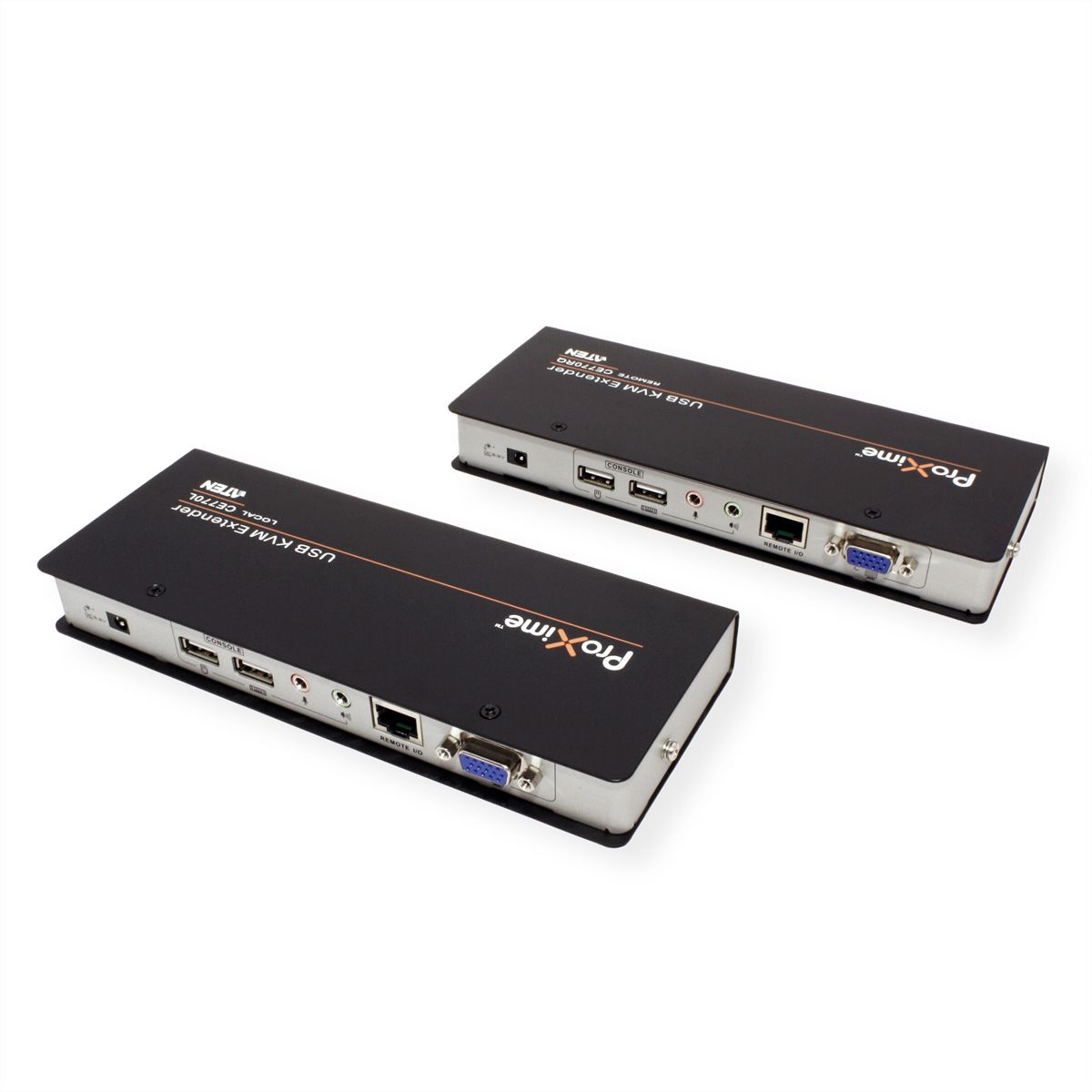

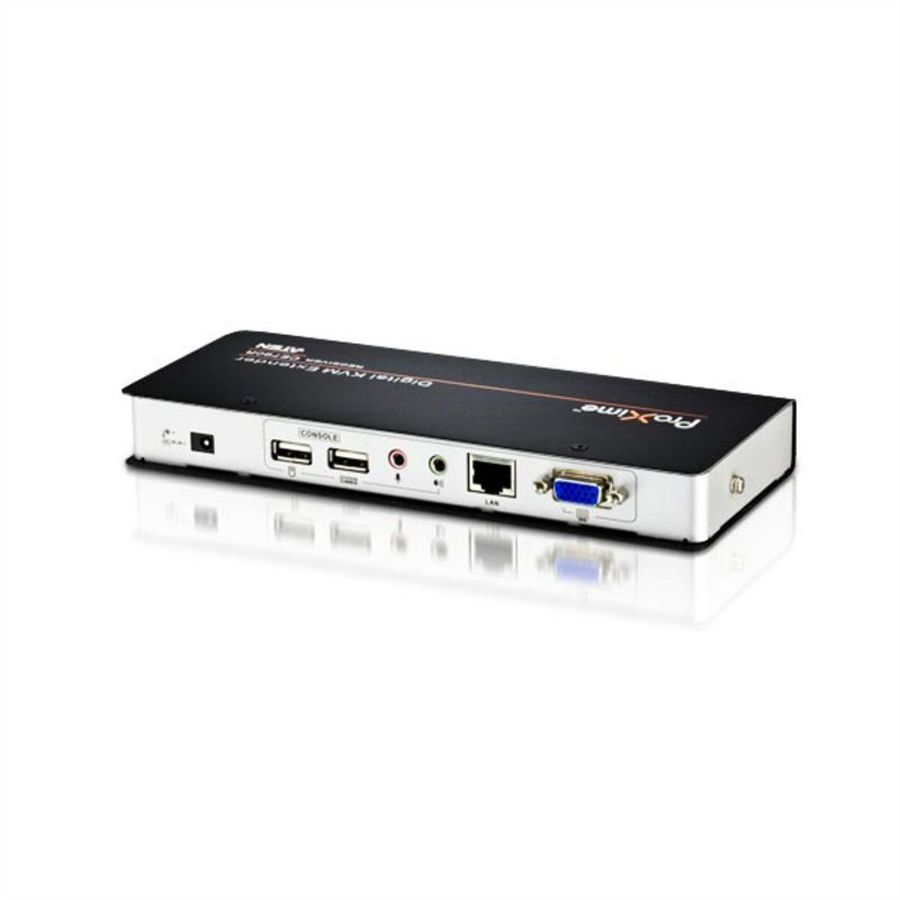

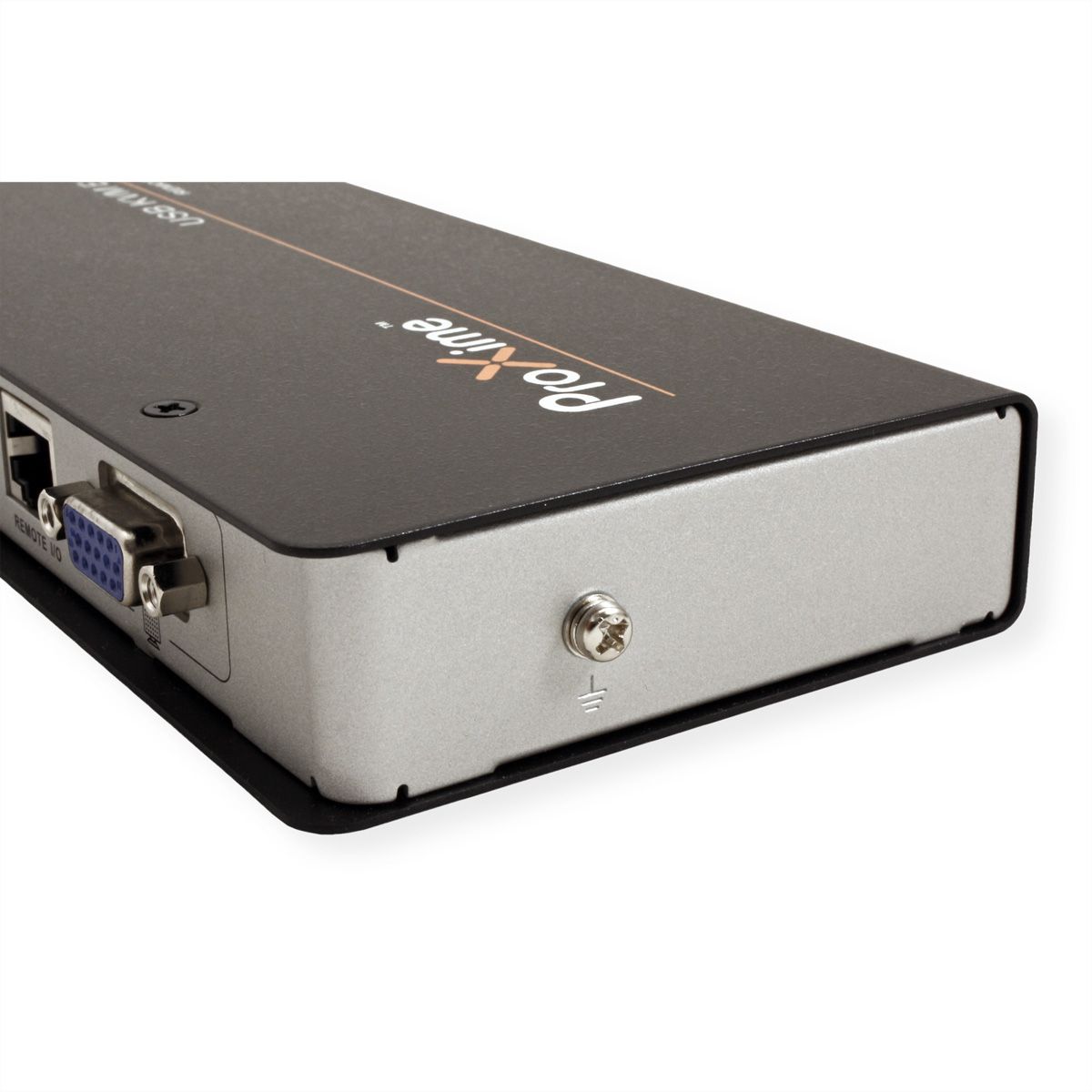

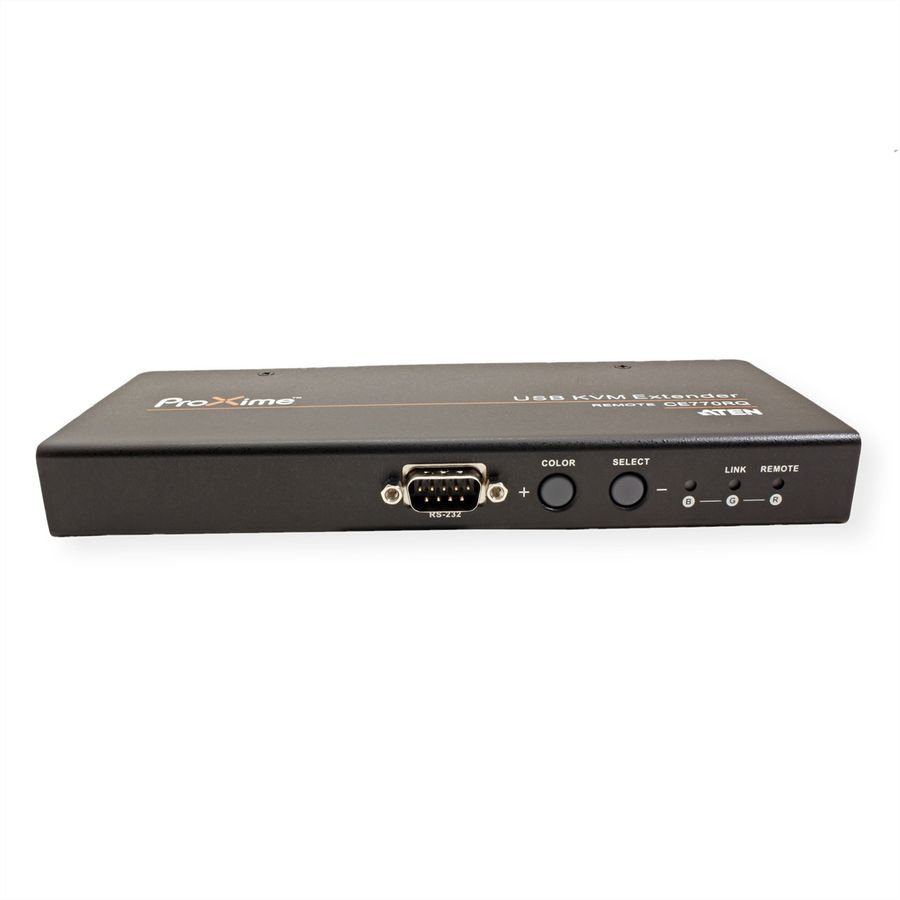

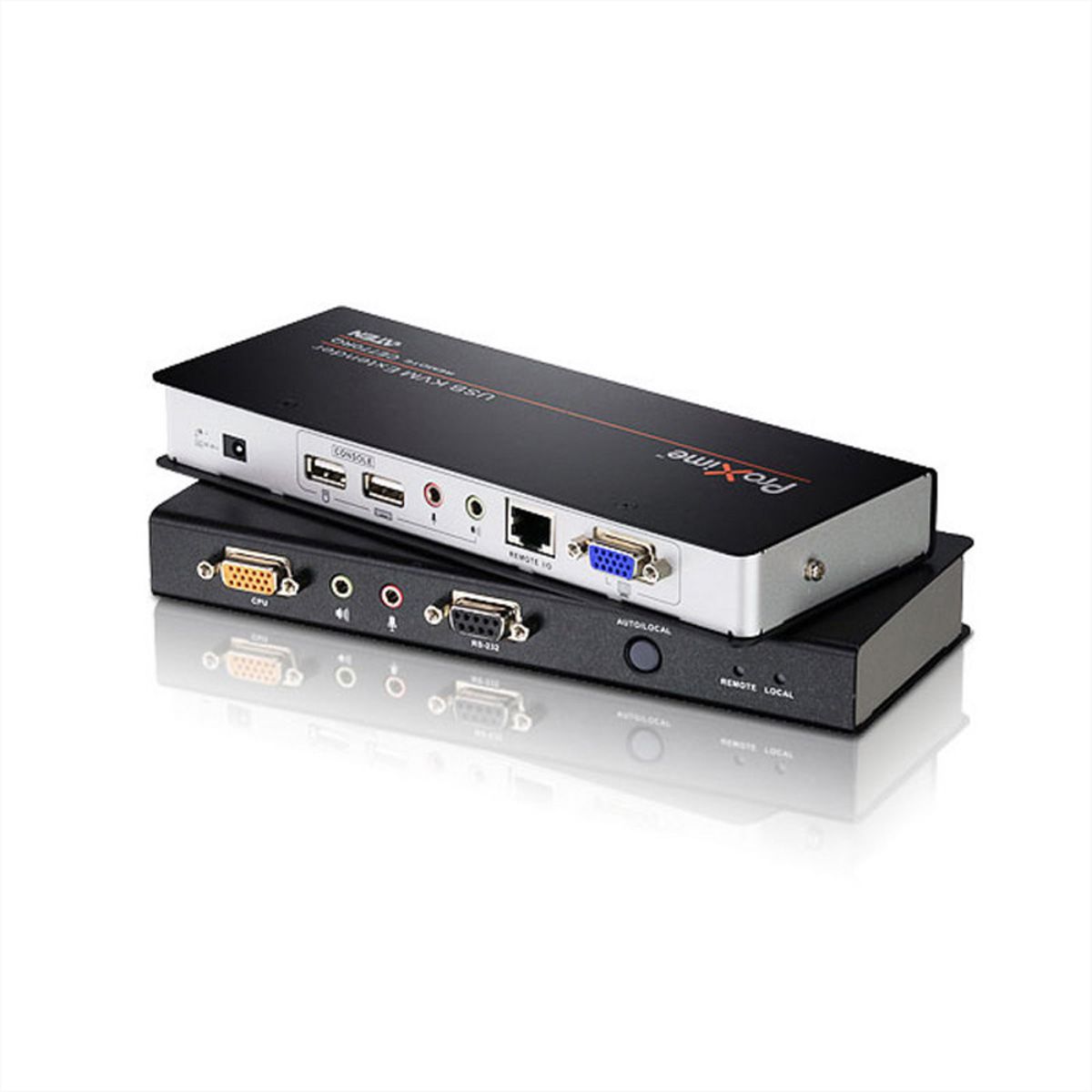

ATEN CE770 KVM Extender VGA, USB, Audio, RS232, 300m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 14016375
Brand / Manufacturer ATEN
Manuf. item no. CE770
EAN 4710423776432
Item weight 1.83 kg
ATEN

Description

USB VGA/Audio Cat 5 KVM Extender with Deskew (1280 x 1024@300m) - Local and Remote Units connect at distances up to 300 m using Cat 5e cable

The CE770 is a USB based KVM Extender with Deskew function. The automatic signal compensation and RS-232 serial functionality allow access to a computer system from a remote USB console.
The CE770 supports RGB delay tuner to manually synchronize the RGB signals. This allows users to deploy system equipment over large distances. The CE770's line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings.

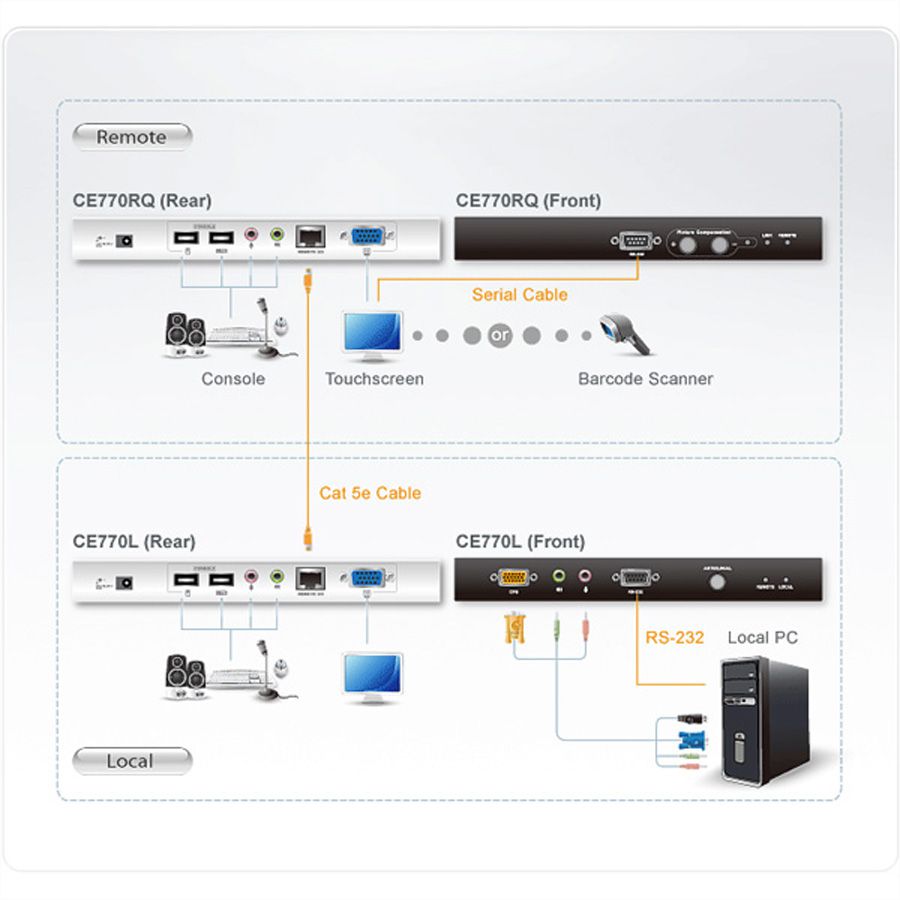

  • Local and Remote Units connect at distances up to 300 m using Cat 5e cable
  • Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
  • Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
  • Built-in ASIC for greater reliability and compatibility
  • Auto Signal Compensation (ASC)
  • RS-232 serial ports - allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners
  • Sun/Mac

support and emulation

  • Audio Enabled - supports stereo speakers and microphone
  • USB overcurrent detection and prevention
  • Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
  • High resolution video - up to 1920 x 1200@60Hz (150 m); 1280 x 1024@60Hz (300 m)
  • Superior Audio - no loss in audio quality at 300 m
  • Spports Wide Screen formats
  • Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
  • Hot pluggable
  • Rack mountable
  • Easy to install - no software required - connecting cables to the devices is all it takes

Package Contents

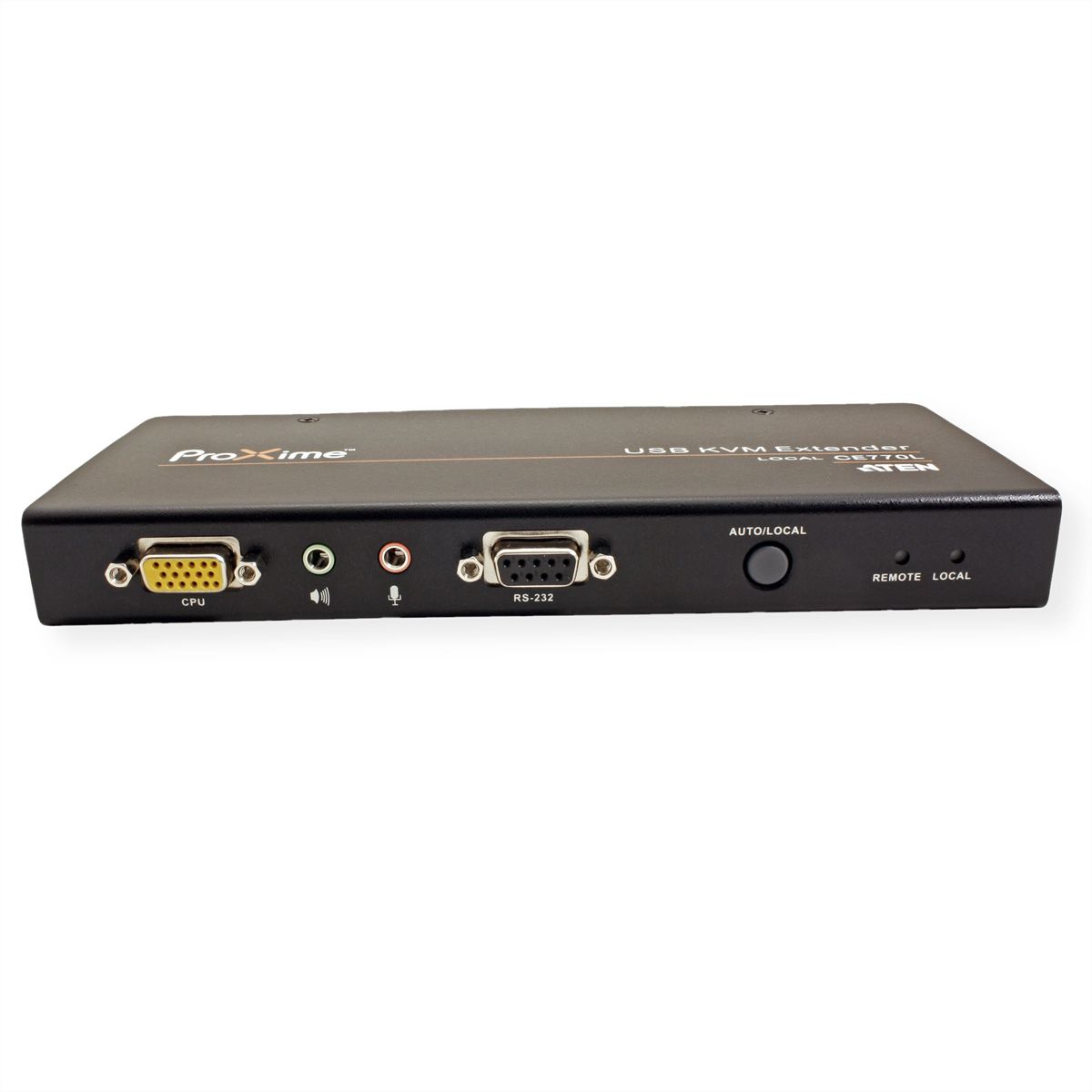

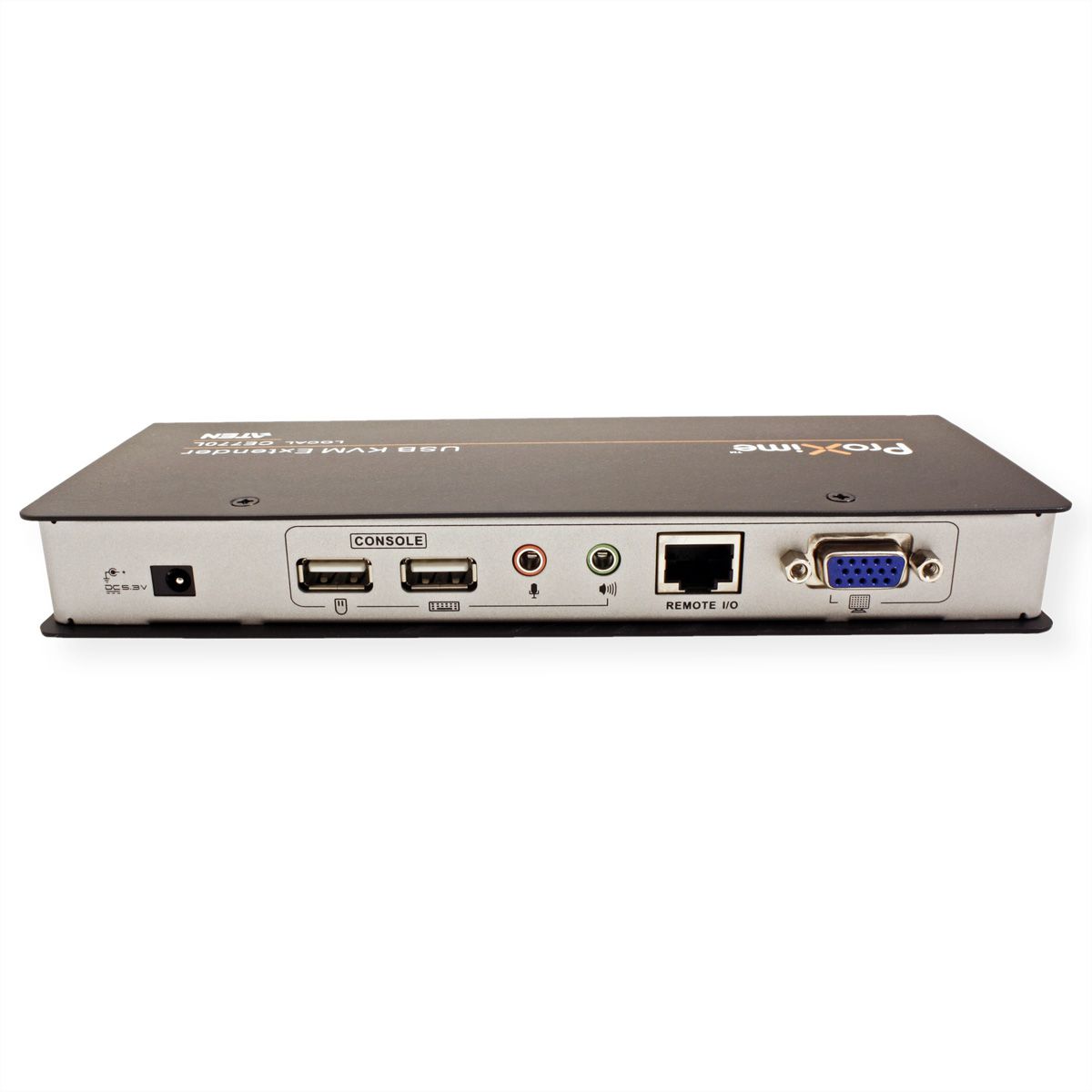

1x CE770L USB KVM Extender (Local Unit)

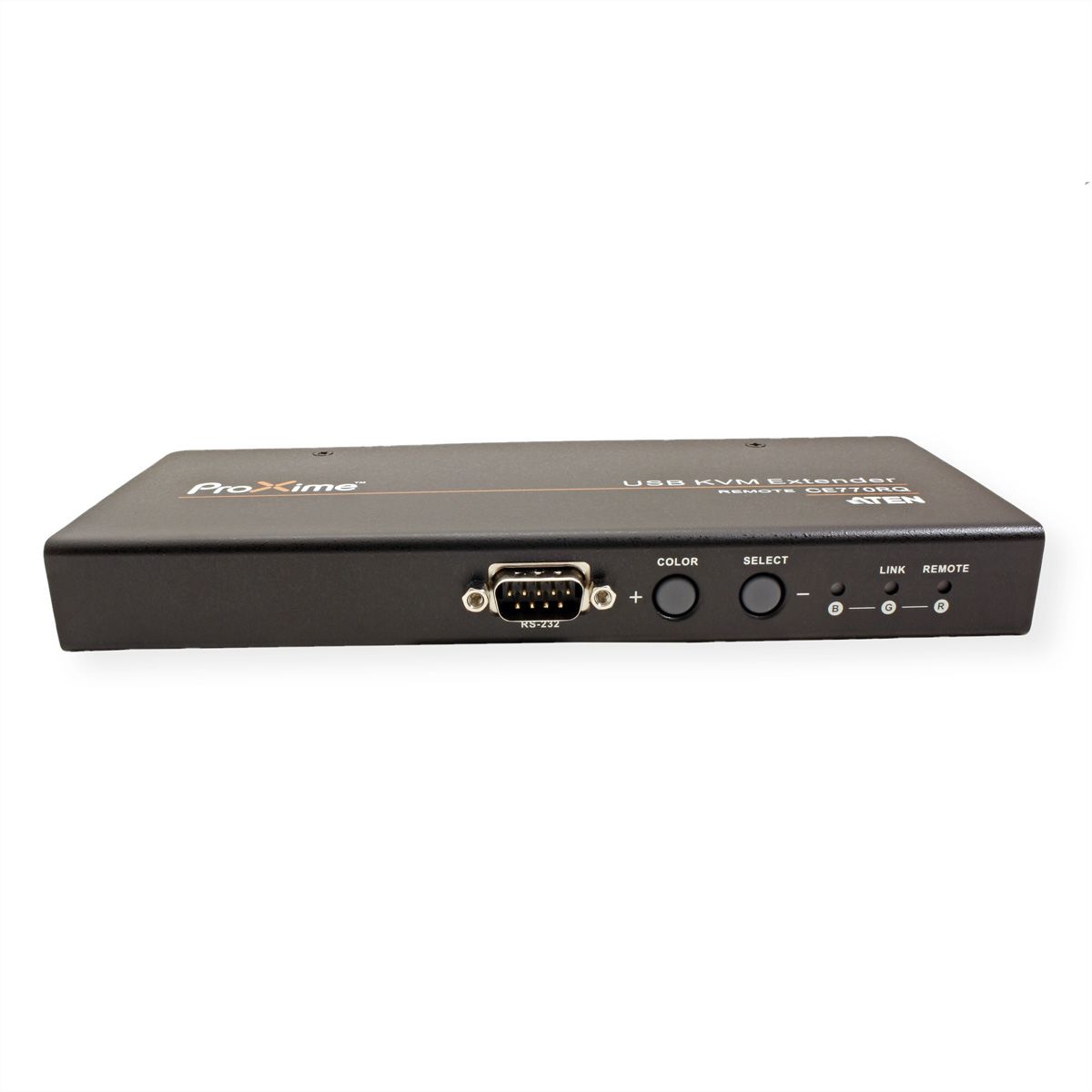

1x CE770RQ USB KVM Extender (Remote Unit)
1x USB KVM Cable (1.8m)

  • Local monitor supports DDC; DDC2; DDC2B
  • Hot pluggable
  • Rack mountable
  • Easy to install - no software required - connecting cables to the devices is all it takes

Specifications

Manufacturer ATEN
Product group KVM (IP) extensions
Product type KVM-Extender, VGA
Colour black

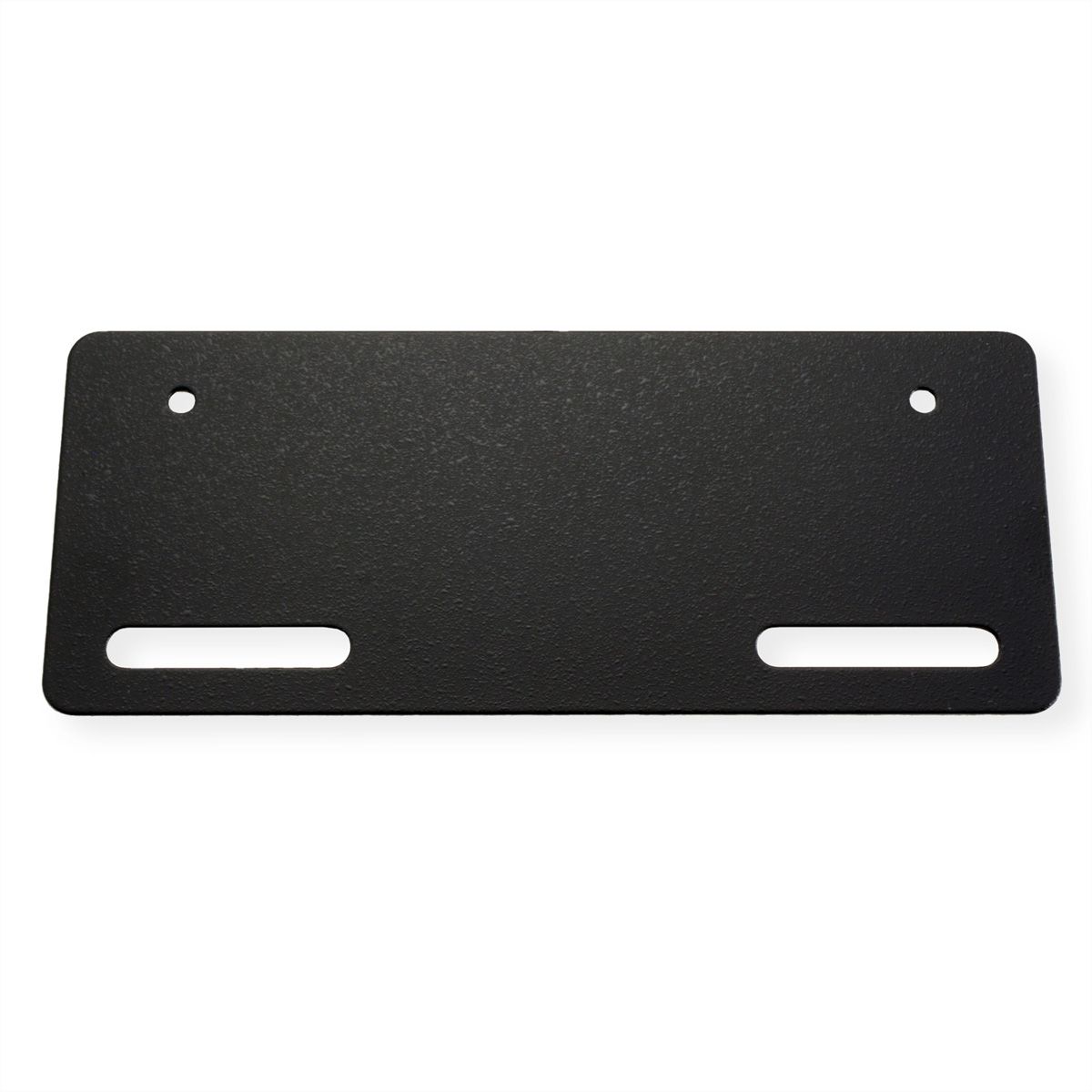

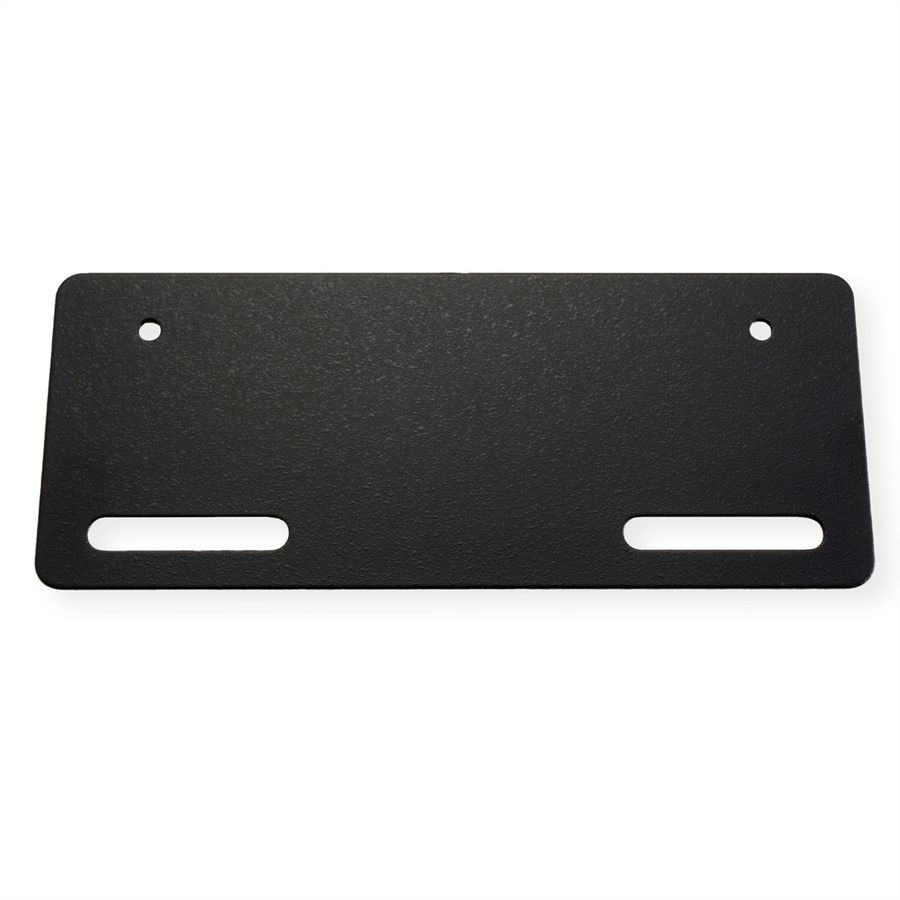

Scope of delivery 1x CE770L USB KVM Extender (Local Unit), 1x CE770RQ USB KVM Extender (Remote Unit), 1x Custom KVM Cable (VGA, USB, Audio; 1.8m/6ft), 2x Power Adapter, 1x Mounting Kit, 1x User Instructions
Supported PC-Systems USB
PC/Switch: monitor connection 1x HD 15-pin M
PC/Switch: mouse/keyboard connection USB
PC/Switch: connection on moulded cables no
Local Console connection yes
Remote Console: Monitor connection 1x HD 15-pin F
Remote Console: Mouse/Keyboard connection 2x USB
Remote console: Cable connector type yes
Network connection RJ45
Max. distance local-remote unit 150m
Max. resolution (nominal) 1920 x 1200 ( max.)
Audio extender Speakers and microphones
Colour (Design profile) black
Material (casing) Plastic
Dimensions (HxWxD) 25 x 200 x 80 mm
Power supply unit required yes
Power supply output DC5,3V/3W
Technical particularity RS232, Audio
Mains connection Appliance Europlug, Type-C
Height 25 mm
Width 200 mm
Depth 80 mm
Weight 490 g
Height of packaging (single piece) 100 mm
Width of packaging (single piece) 220 mm
Depth of packaging (single piece) 320 mm
Package weight (single piece) 1.83 kg
Max. distance PC-extension unit (local unit) 3 m

Downloads

Manufacturer data sheet - English (2.3 MB)

Download

User manual - English (2.1 MB)

Download

Quick Installation Guide - English (3.8 MB)

Download

Technical drawing - English (31.0 KB)

Download

More PDF data - English (25.9 KB)

Download
