ATEN CS1762A KVM Switch DVI, USB, Audio, USB-Hub, 2 Ports

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	14016317
Brand / Manufacturer	ATEN
Manuf. item no.	CS1762A
EAN	4710423776821
Item weight	1.616 kg

Description

2-Port USB DVI/Audio KVMP™ Switch with a 2-port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI)

The CubiQ™ CS1762A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 2-port KVM switch with a 2-port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).

In addition, the CS1762A comes with ATEN’s Video DynaSync™ technology, enhancing display resolution, and power-on detection. This means that if one computer is powered off, the CS1762A will automatically switch to the next powered-on computer.

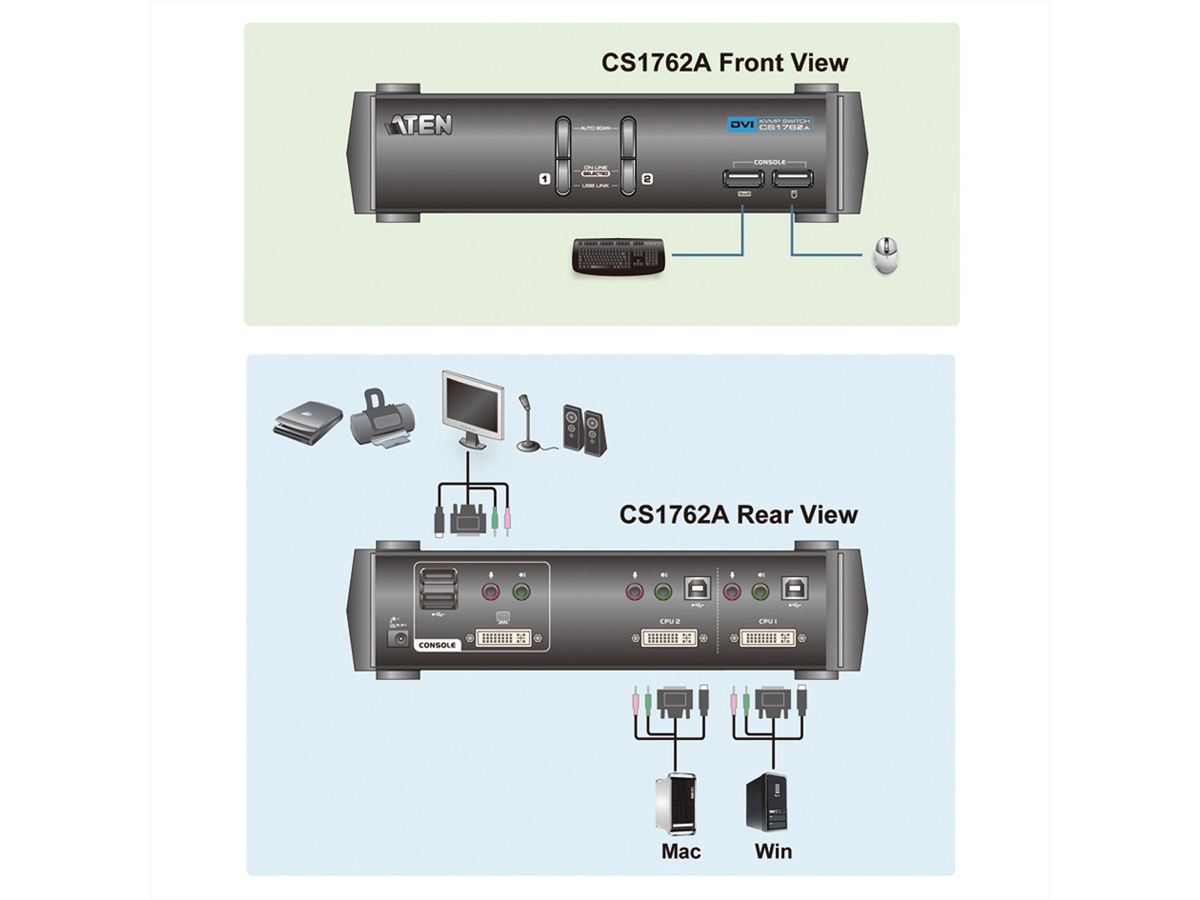

Functioning as a KVM switch, it allows users to access 2 computers using a single USB keyboard, USB mouse, and monitor console. Operating as a USB 2.0 hub, it enables each computer to access peripherals connected to the hub one at a time.

One USB console controls two DVI computers and two additional • USB 2.0 devices
2-port USB 2.0 hub built in
Fully compliant with the USB 2.0 specification

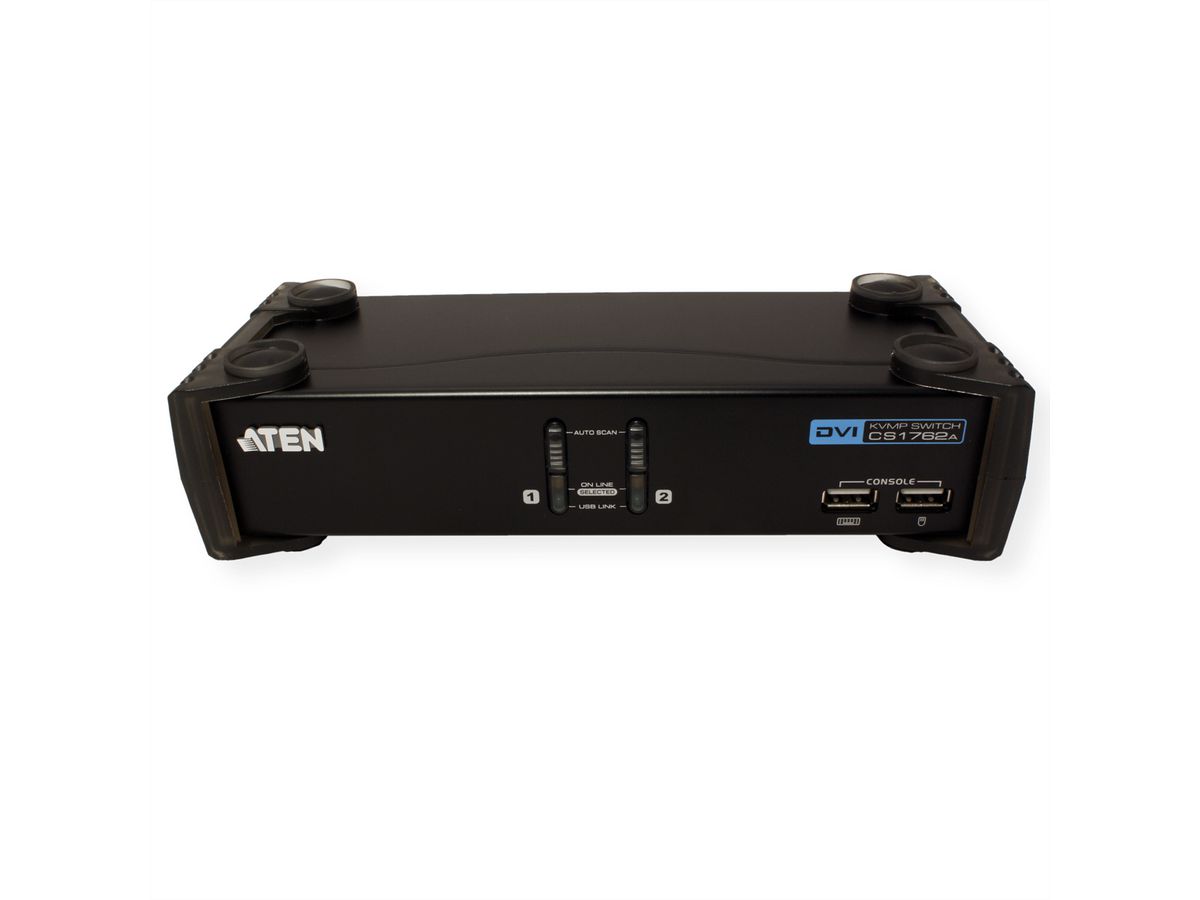

Computer selection via front panel pushbuttons, hotkeys, and mouse

Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
Multiplatform support – Windows, Linux, Mac, and Sun
Supports widescreen resolutions
Superior video quality – 1920 x 1200
Independent switching of KVM, USB, and Audio focus
DVI digital and analog monitor support – fully compliant with the • DVI specifications
HDCP compatible
Video DynaSync™ – exclusive ATEN technology optimizes display resolution and eliminates boot-up display problems
Power on detection – if one computer is powered off, the switch will automatically switch to the next powered-on computer
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
Complete keyboard emulation for error-free booting
Mac/Sun keyboard support and emulation*
Multilingual keyboard mapping – supports English, Japanese, and French keyboards
Auto Scan Mode for monitoring all computers
Firmware upgradable

* 1. PC keyboard combinations emulate Mac/Sun keyboards
2. Mac/Sun keyboards only work with their own computer

Specifications

Manufacturer	ATEN
Product group	KVM switches / PC shares
Product type	KVM-Switch, DVI
Colour	black
Scope of delivery	1x CS1762A USB 2.0 DVI KVMP™ Switch, 2x KVM Cable (DVI-D, USB, Audio; 1.8m/6ft), 1x Power Adapter, 1x User Instructions
Quantity of PCs	2
Supported PC-Systems	USB
PC: monitor connection	2x DVI F
PC: mouse/keyboard connection	USB
PC: connection on moulded cables	no
Quantity of digital consoles	1
Analogue Console: Monitor connection	1x DVI F
Analogue Console: Mouse/Keyboard connection	USB
Integrated console	no
Switching over Scan Run	yes
Print button on device	yes
Switching over Hot Keys	Keyboard
Switching over OSD	no
Integrated Hub	yes
Quantity of USB-Hub ports	2
Keyboard/mouse emulation	yes
19" compatible	no
Cascadable	no
Max. resolution (nominal)	1920x1200
Colour (Design profile)	black
Material (casing)	Metal
Dimensions (HxWxD)	21 x 87 x 55 mm
Power supply unit required	yes
Mains connection	Appliance Europlug, Type-C
Height	21 mm
Width	87 mm
Depth	55 mm
Weight	0.8 kg
Height of packaging (single piece)	100 mm
Width of packaging (single piece)	180 mm
Depth of packaging (single piece)	290 mm
Package weight (single piece)	1.616 kg
Quantity of analogue consoles	1
