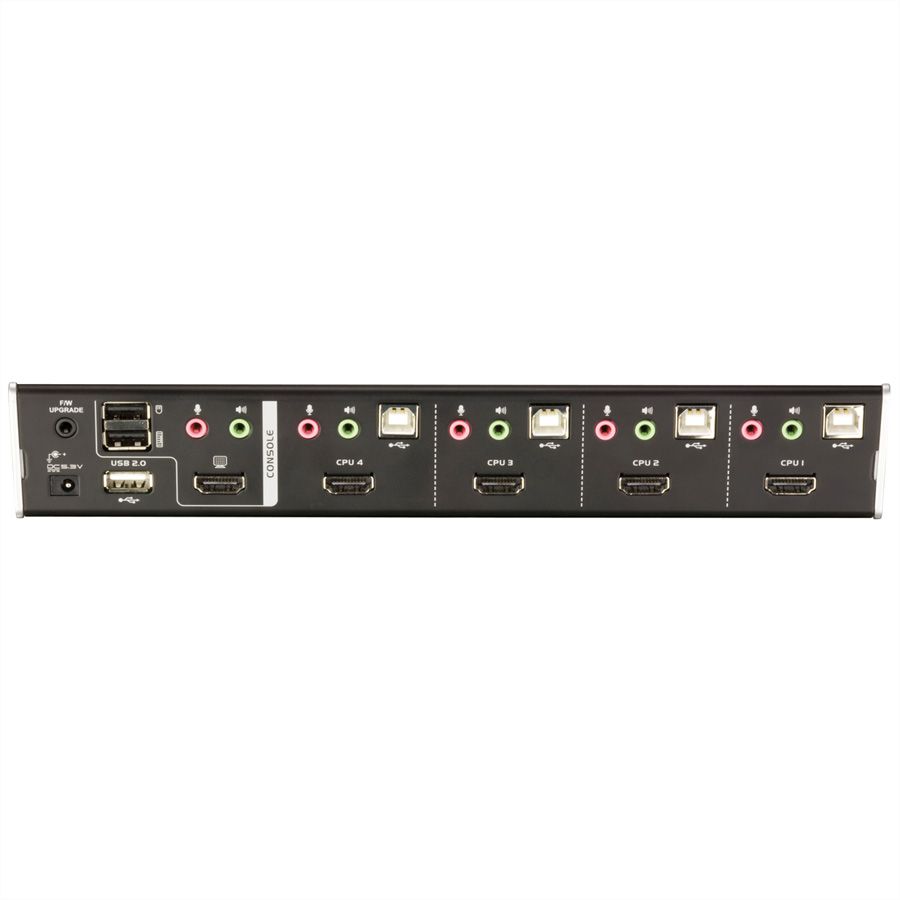

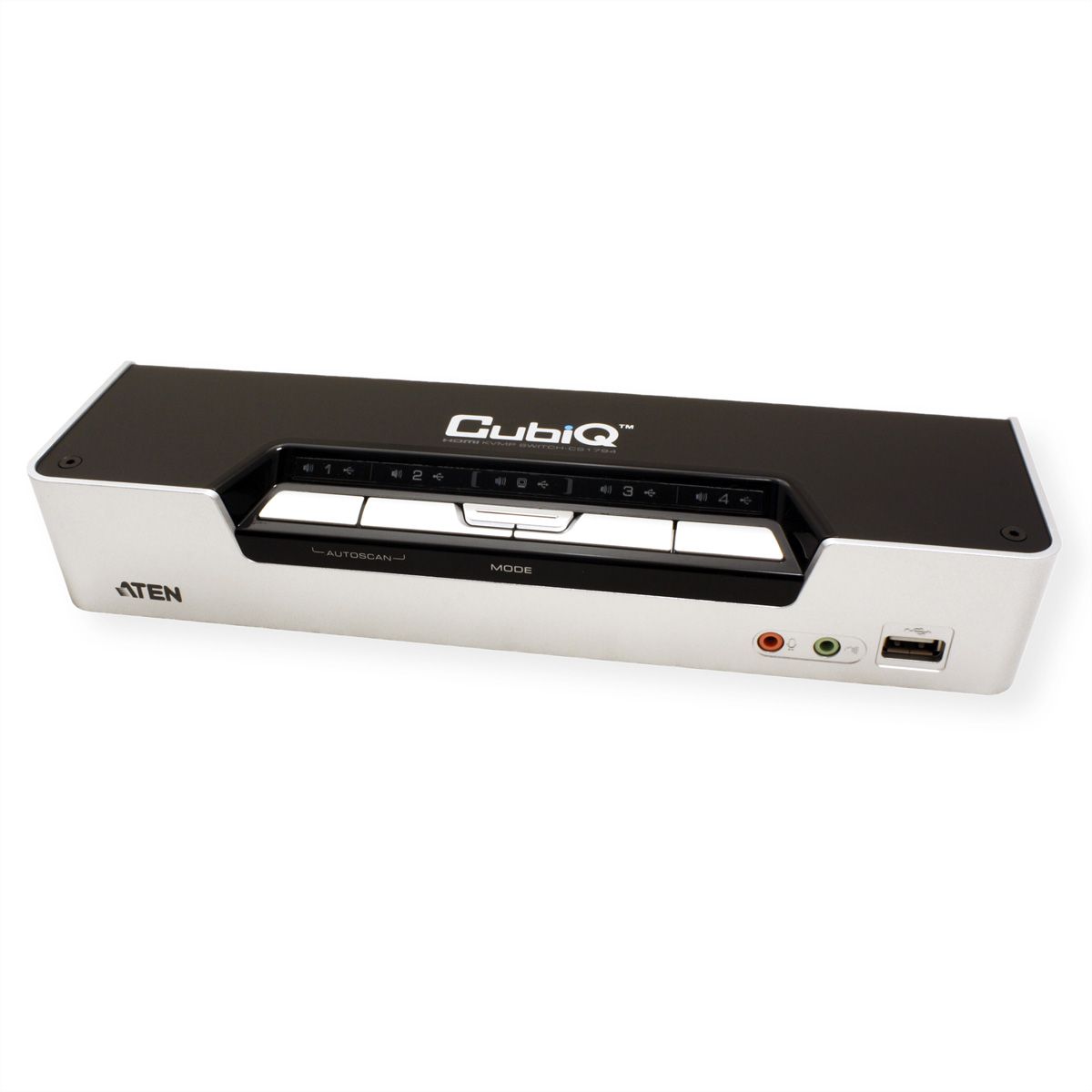

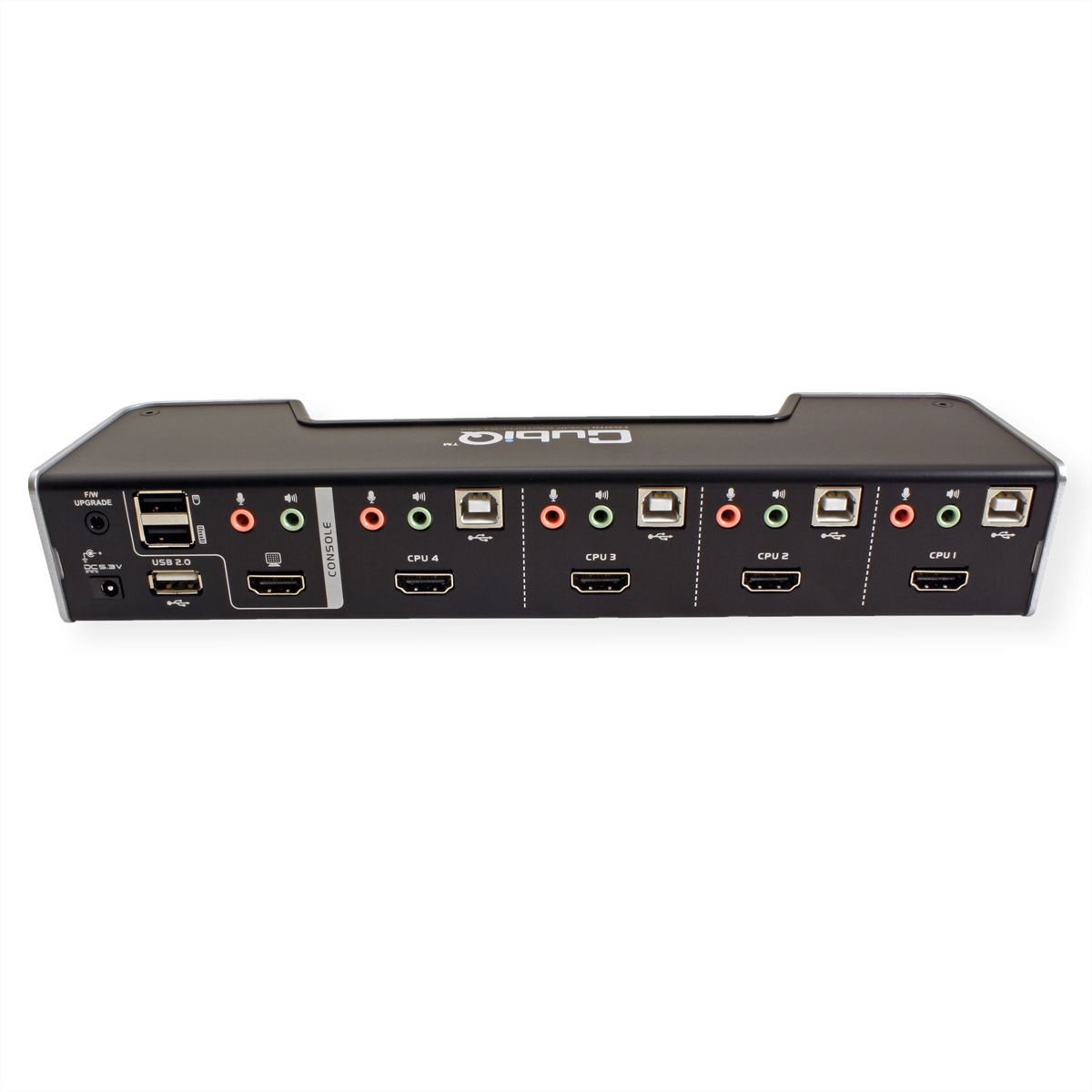

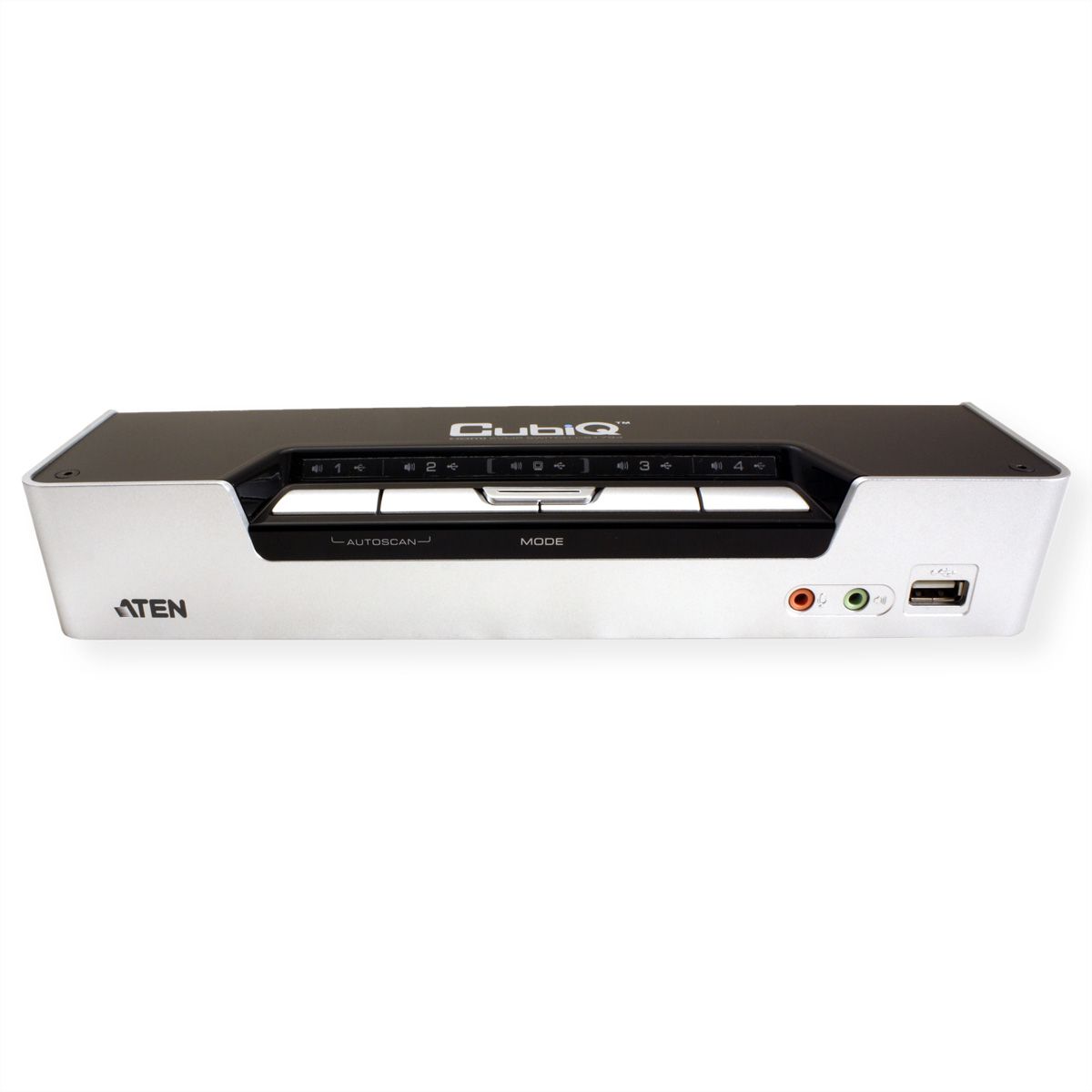

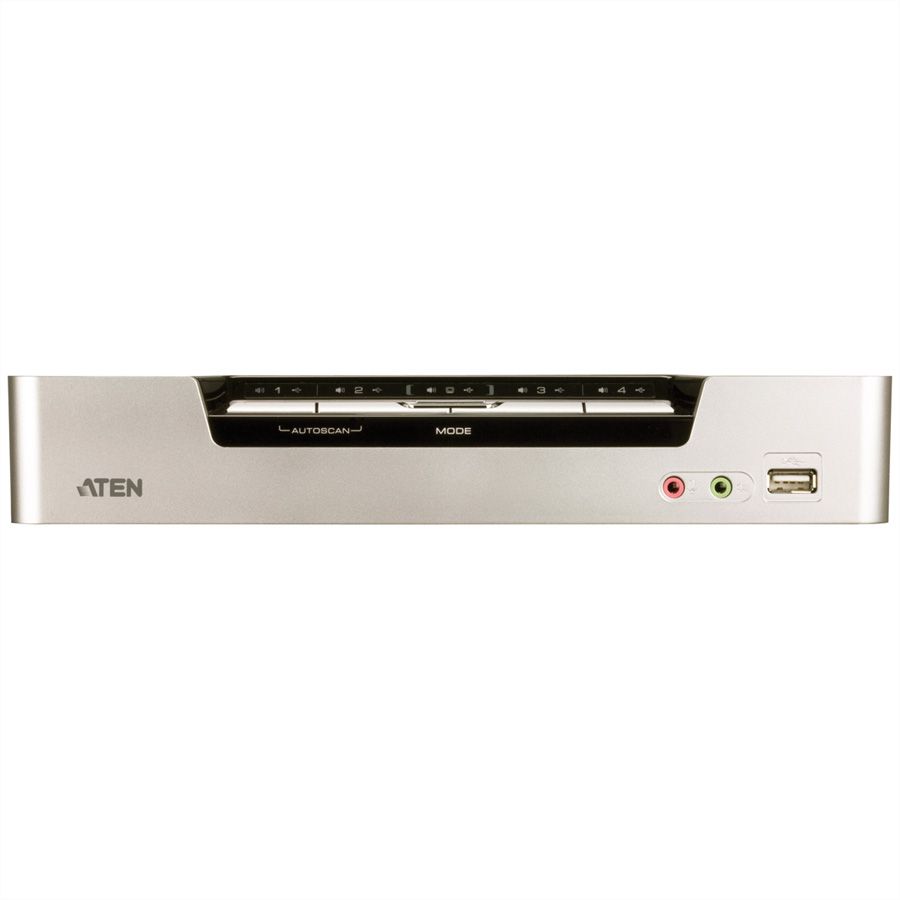

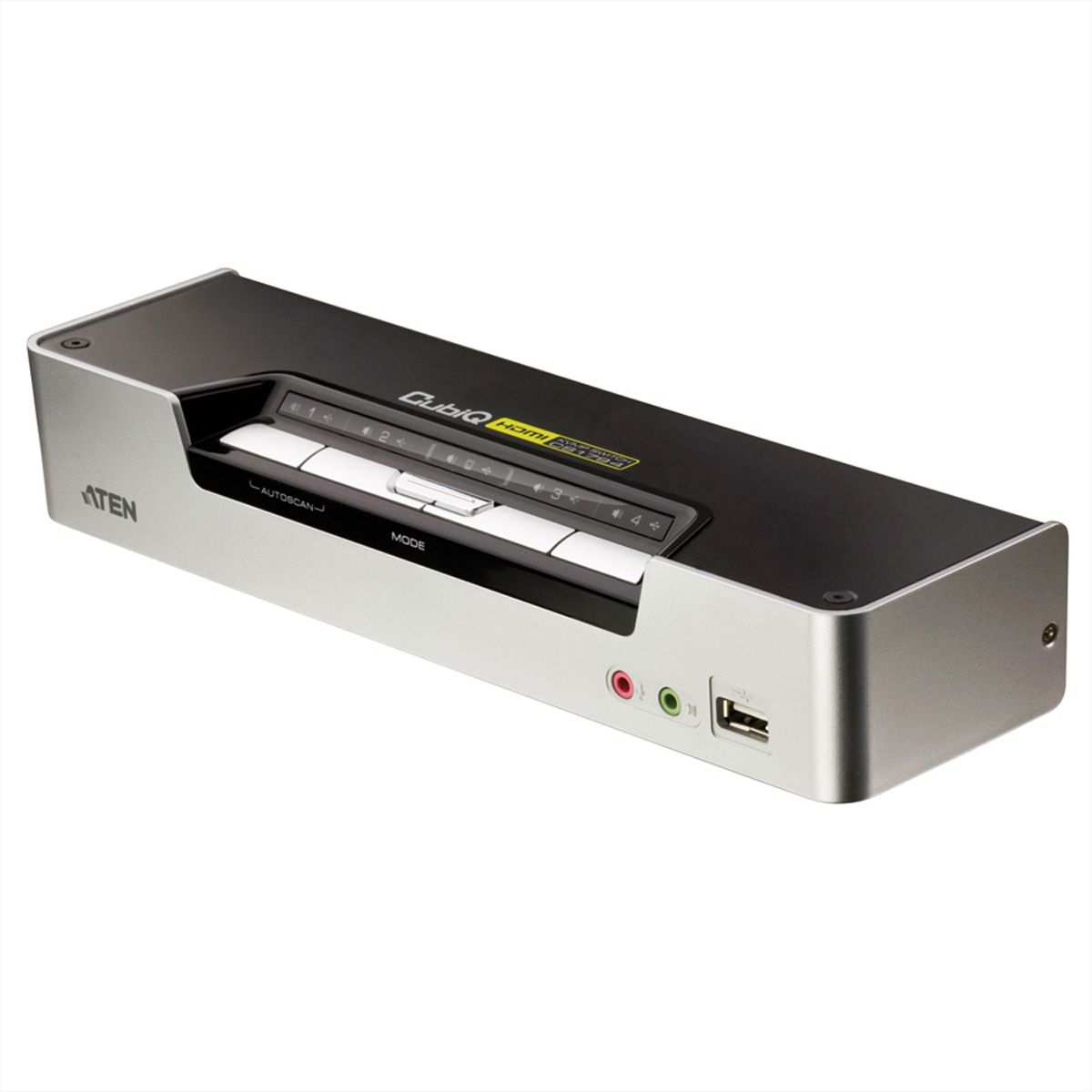

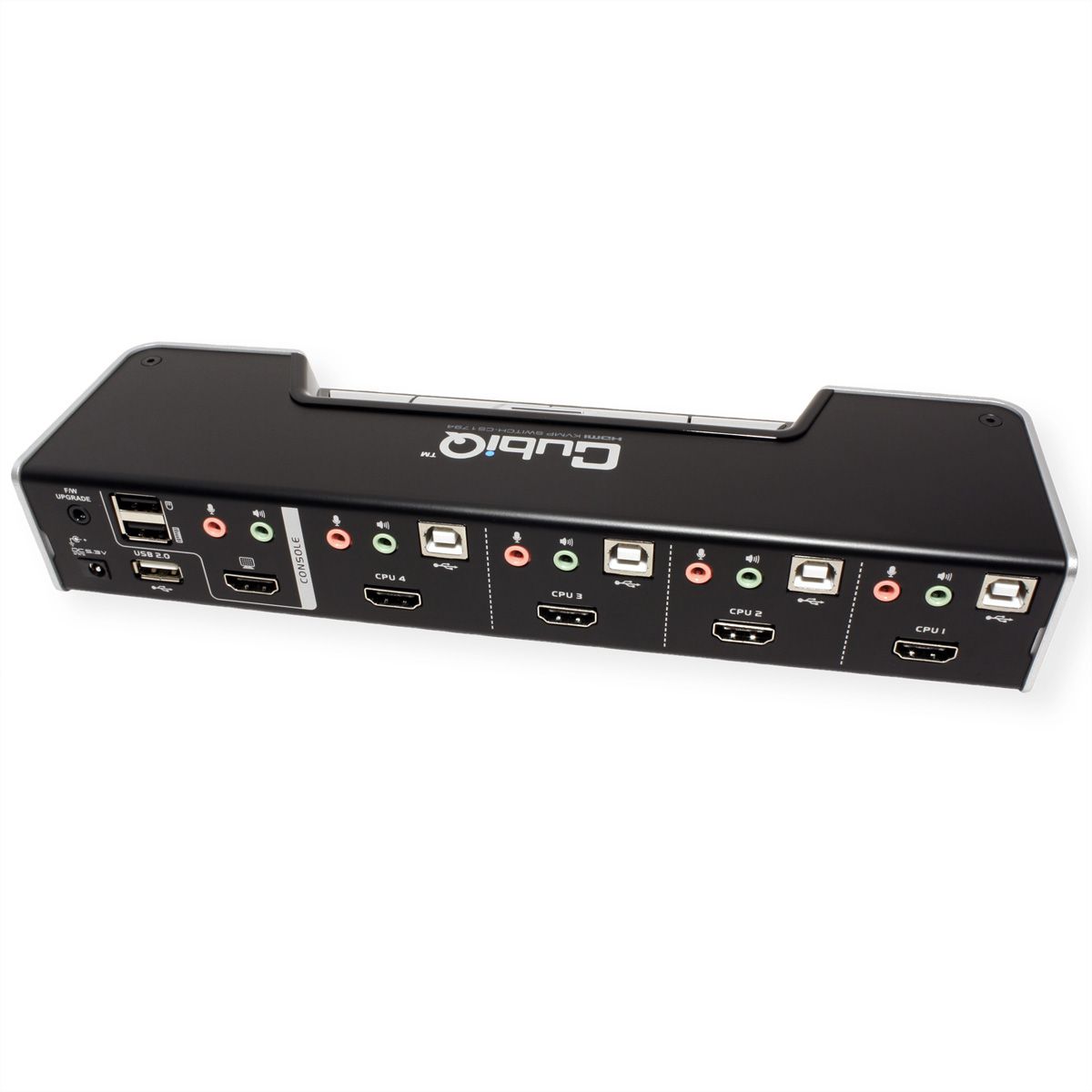

ATEN CS1794 KVM Switch HDMI, USB, Audio, USB-Hub, 4 Ports
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 14016327 |
|---|---|
| Brand / Manufacturer | ATEN |
| Manuf. item no. | CS1794 |
| EAN | 4710423775718 |
| Item weight | 2.044 kg |
:strip_icc():strip_exif()/logos/aten.png "ATEN")
Description
4-Port USB HDMI/Audio KVMP™ Switch - via one KVM console and flexible media sharing via a 2-port USB hub

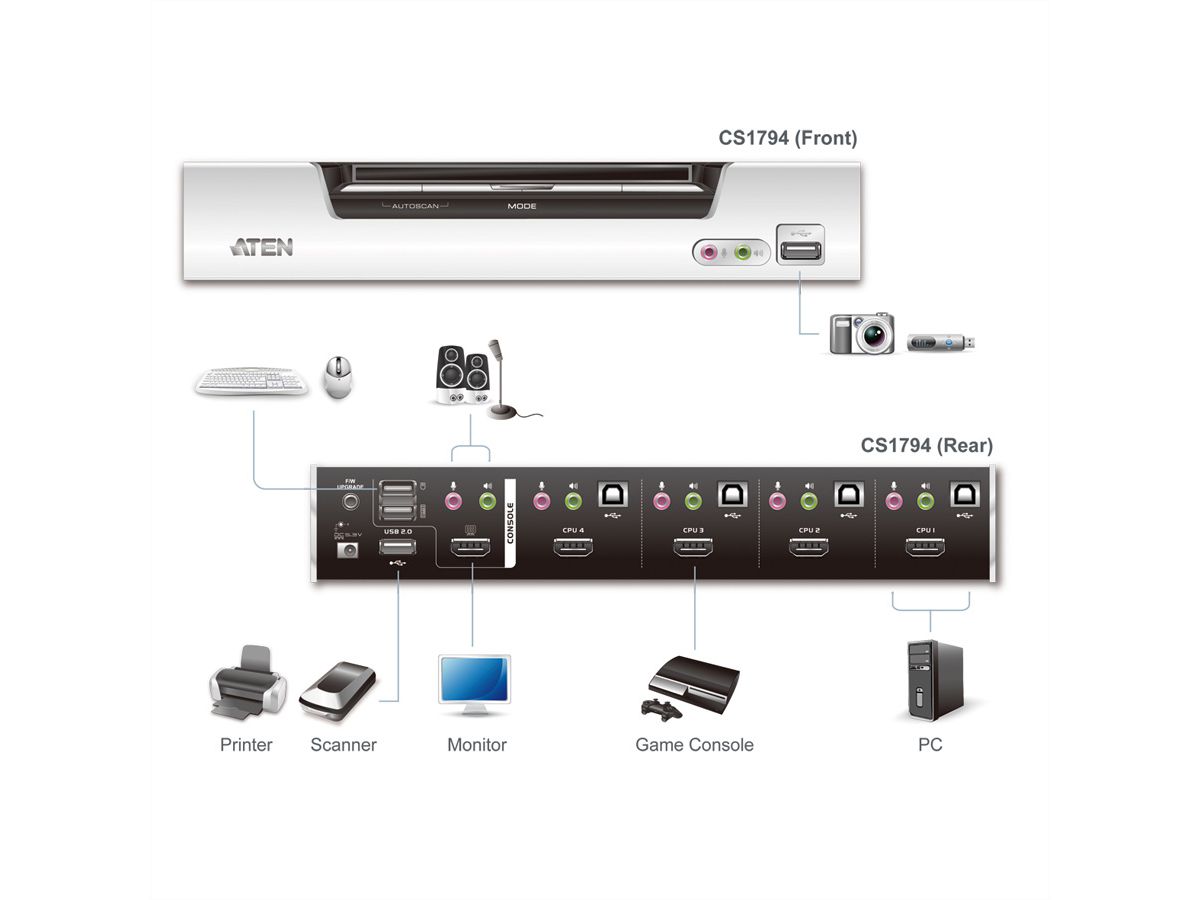

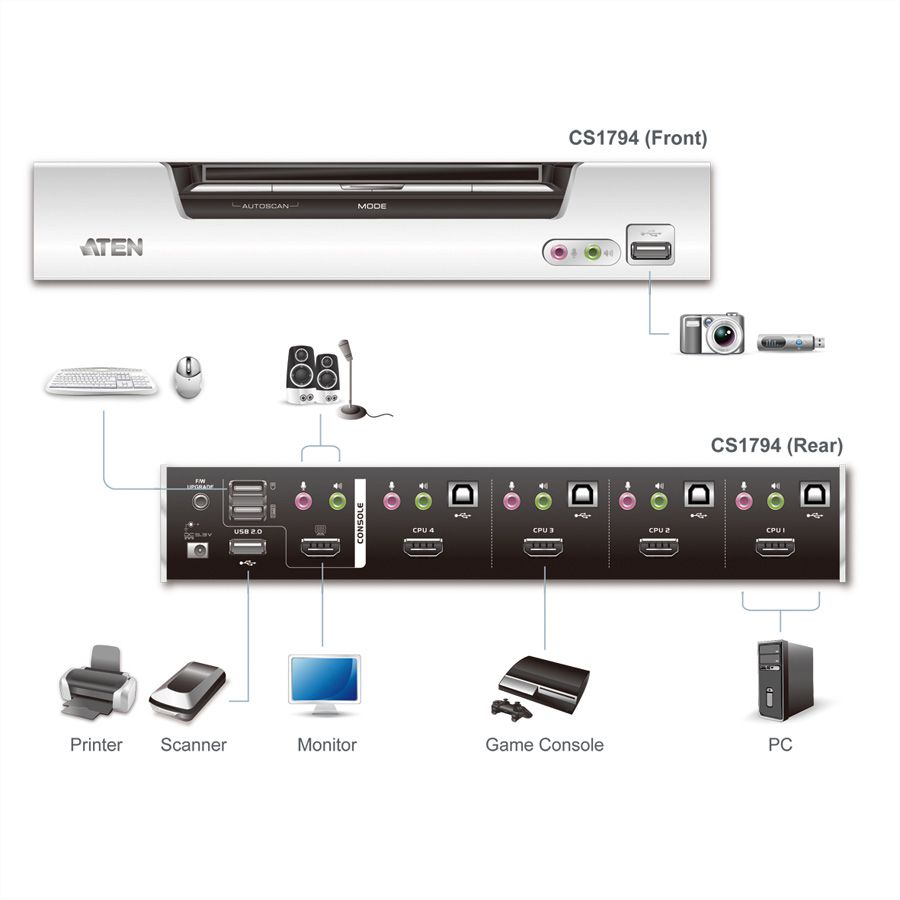

The CS1794 allows quick access to 4 HDMI-interfaced PCs via one KVM console and flexible media sharing via a 2-port USB hub, which helps to expand your desktop workspace while keeping it tidy and organized for improved productivity. With the shared FHD video quality and speaker set, multitasking between computers can be more enjoyable.- 4-port HDMI USB 2.0 KVMP™ Switch
- One USB console controls four HDMI-interface computers and two additional USB devices
- 2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification
- Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
- HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
- Dolby True HD and DTS HD Master Audio support
- Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
- Power on detection - If one of the computers is powered off, the CS1794 will automatically switch to the next powered-on computer
- Supports widescreen resolutions
- Multiplatform support - Windows, Linux,and Mac
- Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Complete keyboard emulation for error-free booting
- Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers and HDMI devices
- Firmware Upgradable
* 1. PC keyboard combinations emulate Mac Keyboards
2. Mac keyboards only work with their own computers
Specifications
| Manufacturer | ATEN |
|---|---|
| Product group | KVM switches / PC shares |
| Product type | KVM-Switch, HDMI |
| Colour | grey |
| Scope of delivery | 1x CS1794 USB 2.0 HDMI KVMP™ Switch, 4x KVM Cable (HDMI, USB, Audio; 1.8m/6ft), 1x Firmware Upgrade Cable, 1x Power Adapter, 1x User Instructions |
| Quantity of PCs | 4 |
| Supported PC-Systems | USB |
| PC: monitor connection | 4x DVI F |
| PC: mouse/keyboard connection | 4x USB Type B |
| PC: connection on moulded cables | no |
| Quantity of digital consoles | 1 |
| Analogue Console: Monitor connection | 1x DVI F |
| Analogue Console: Mouse/Keyboard connection | 2x USB Type A |
| Integrated console | no |
| Monitor size of integrated console | not applicable |
| Keyboard layout | not applicable |
| Trackball/Touchpad integrated console | not applicable |
| Switching over Scan Run | yes |
| Print button on device | yes |
| Switching over Hot Keys | Keyboard |
| Switching over OSD | no |
| Audio switching | Speakers and microphones |
| Audio switching separately | yes |
| Integrated Hub | yes |
| Quantity of USB-Hub ports | 2 |
| USB Hub switching separately | yes |
| Keyboard/mouse emulation | not applicable |
| 19" compatible | no |
| Cascadable | no |
| Max. resolution (nominal) | 1600x1200 |
| Colour (Design profile) | silver |
| Material (casing) | Metal |
| Dimensions (HxWxD) | 45 x 73 x 265 mm |
| Power supply unit required | yes |
| Power supply output | 5,3V DC 1,1A |
| Technical particularity | LED display for easy status monitoring |
| Mains connection | Appliance Europlug, Type-C |
| Height | 45 mm |
| Width | 73 mm |
| Depth | 265 mm |
| Weight | 0.53 kg |
| Height of packaging (single piece) | 130 mm |
| Width of packaging (single piece) | 250 mm |
| Depth of packaging (single piece) | 330 mm |
| Package weight (single piece) | 2.044 kg |
| Quantity of analogue consoles | 1 |
