Description

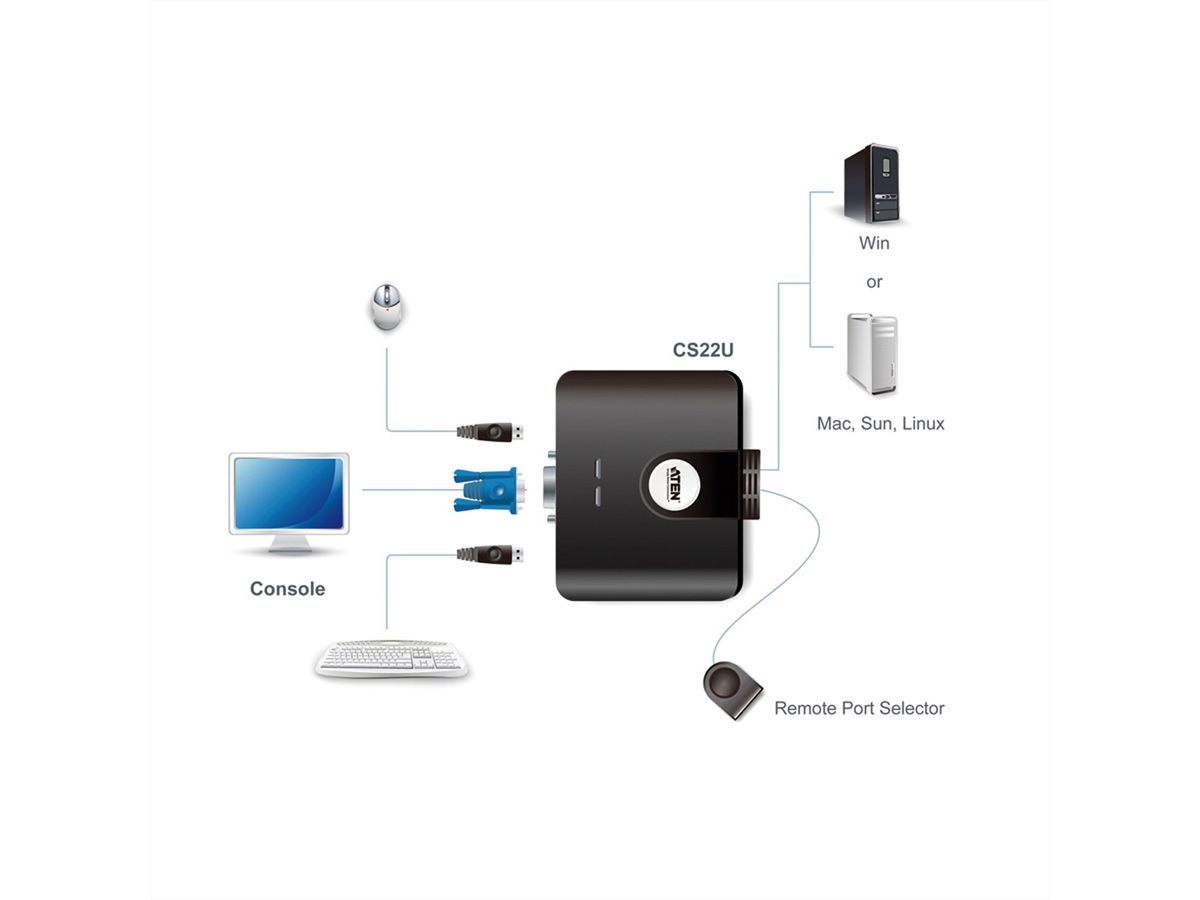

The compact CS22U allows quick switching between 2 VGA-interfaced PCs via one KVM console and flexible media sharing via the console USB ports

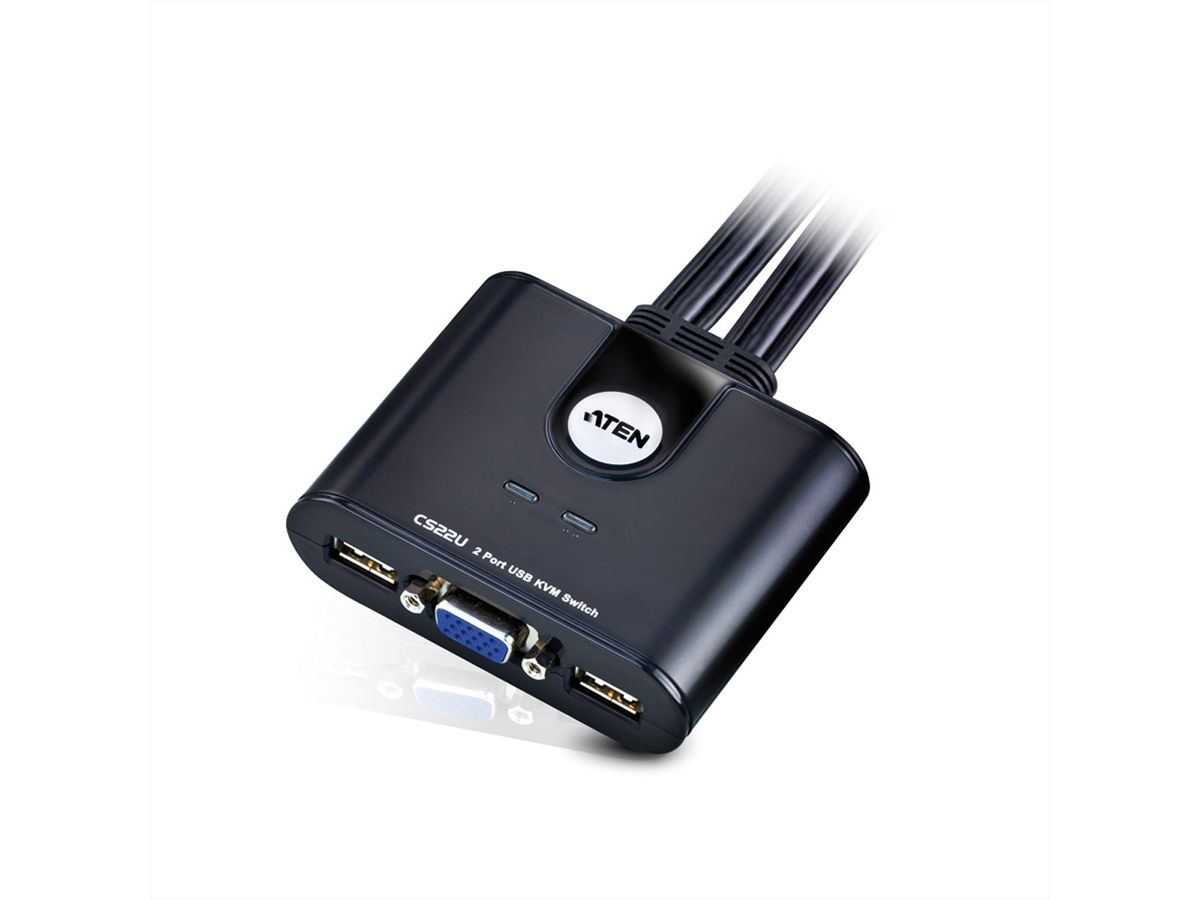

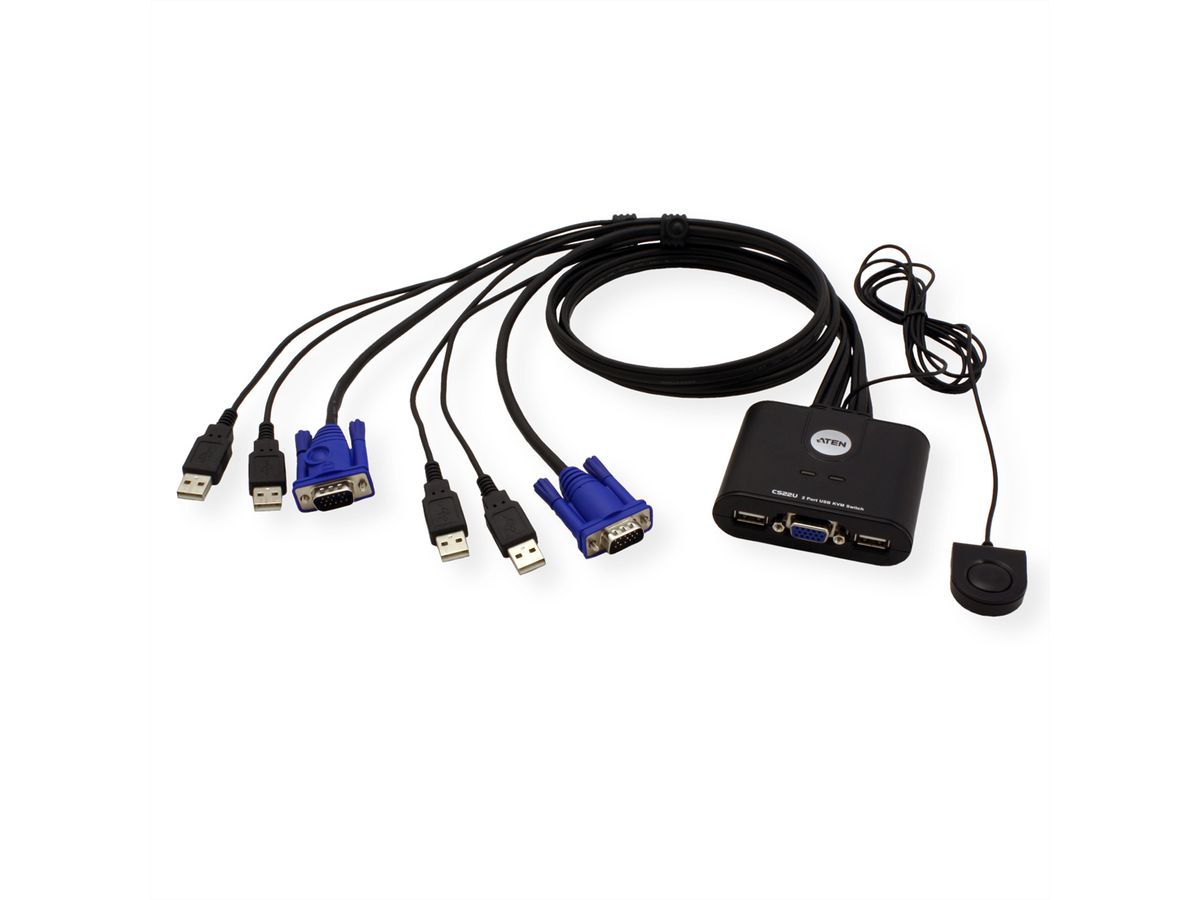

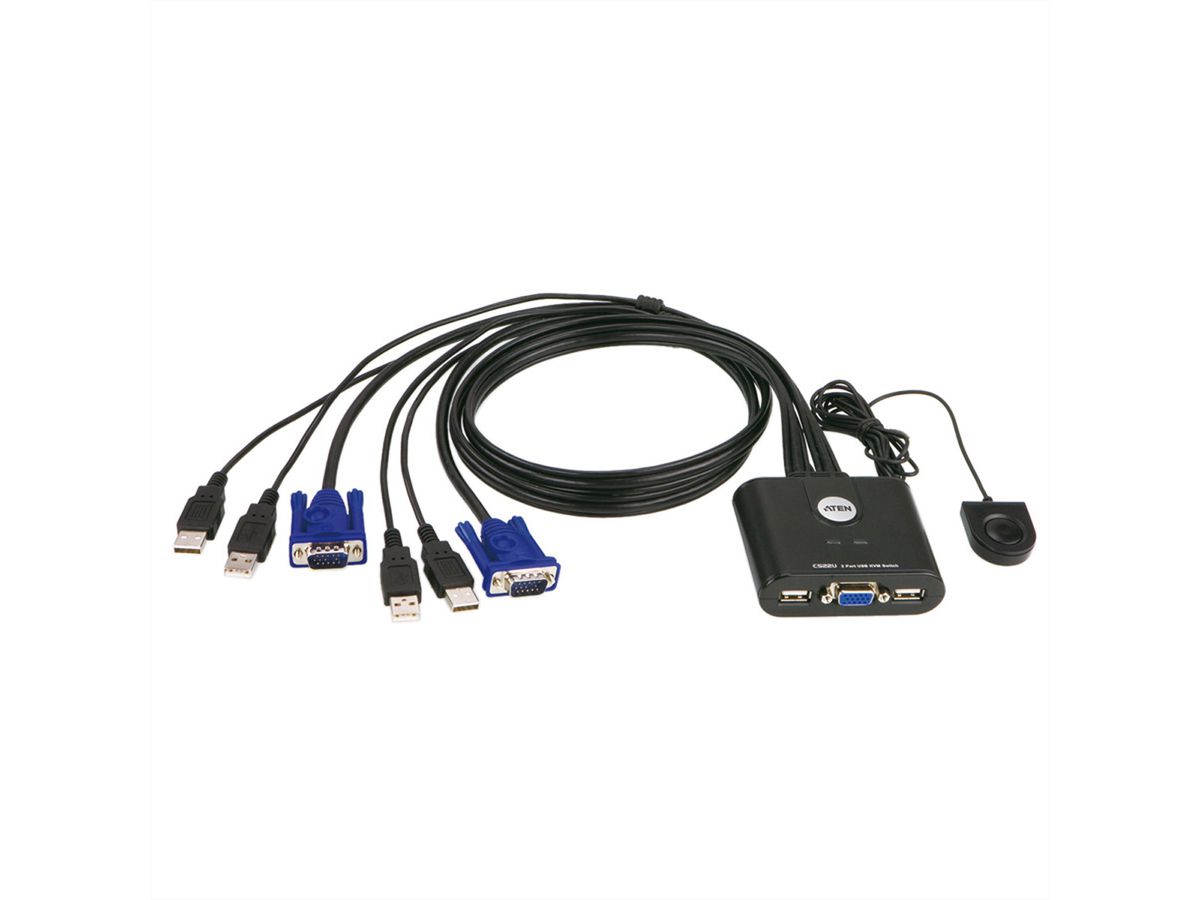

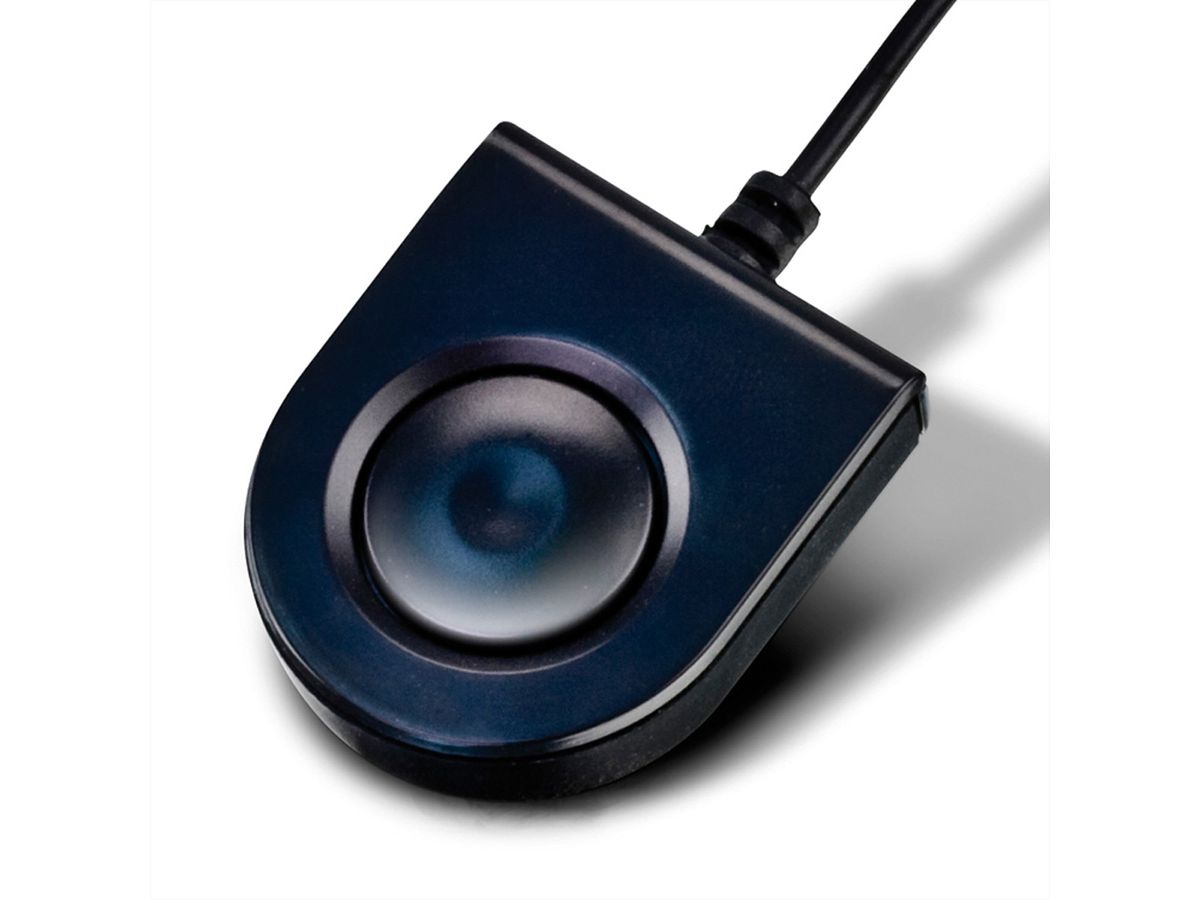

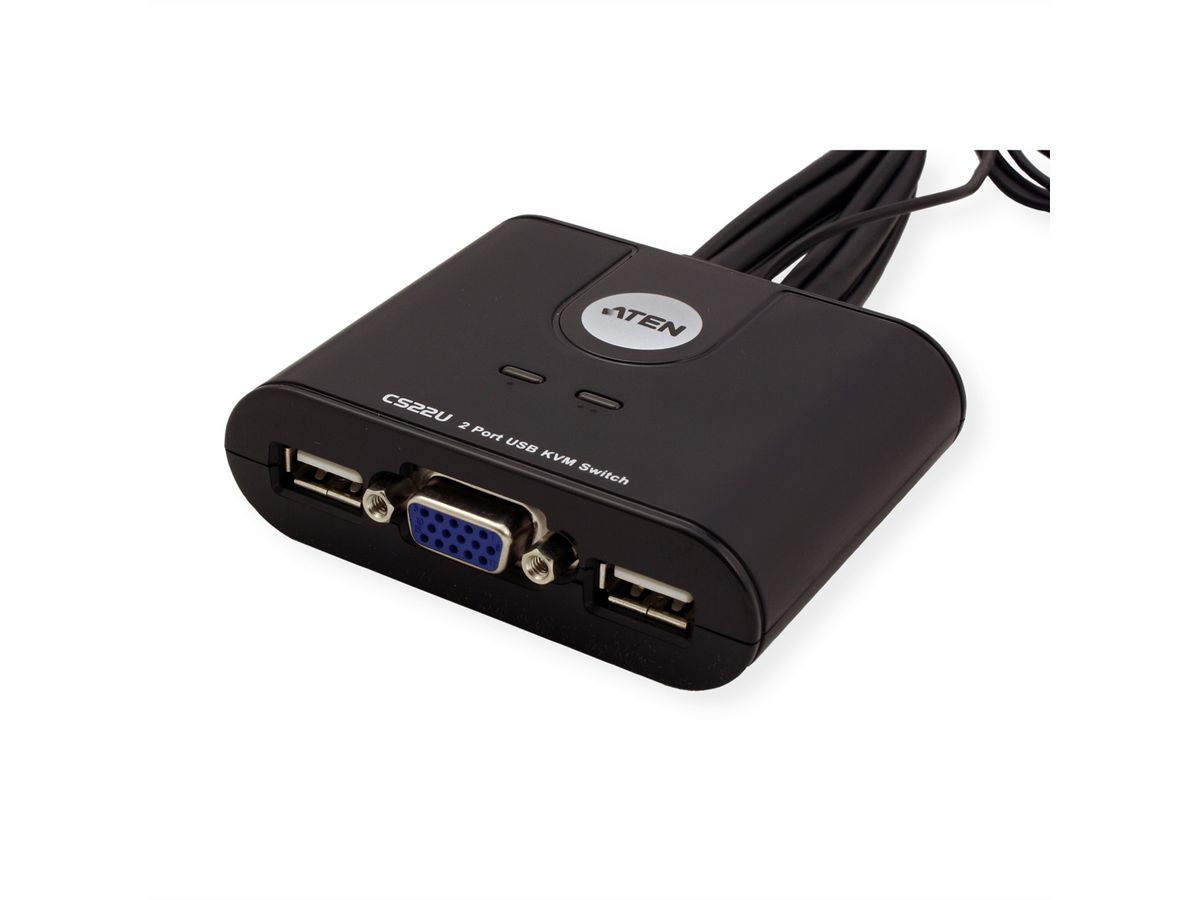

The CS22U is a 2-port USB Cable KVM Switch that provides a simple and quick method of selecting computers - a built-in remote port selector. This allows the CS22U unit to be hidden from sight, while the remote port selector can be placed conveniently on the desktop.

• One USB console controls two USB computers
• Supports multifunction mice
• Multiplatform support - Windows, Mac, Linux and Sun
• USB mouse port can be used for USB 1.1 hub ad USB 1.1 peripheral sharing
• Superior video quality - up to 2048 x 1536; DDC2B
• Bus-powered

Specifications

Manufacturer	ATEN
Product group	KVM switches / PC shares
Product type	KVM-Switch, VGA
Colour	black
Scope of delivery	1x CS22U 2-Port USB Cable KVM Switch with Remote Port Selector, 1x User Instructions
Quantity of PCs	2
Supported PC-Systems	USB
PC: monitor connection	2x HD 15pin M
PC: mouse/keyboard connection	2x USB Type A M
Quantity of analogue consoles	1
Analogue Console: Monitor connection	1x HD 15pin F
Analogue Console: Mouse/Keyboard connection	2x USB Type A F
Integrated console	no
Monitor size of integrated console	not applicable
Keyboard layout	not applicable
Trackball/Touchpad integrated console	not applicable
Switching over Scan Run	yes
Print button on device	yes
Switching over Hot Keys	Keyboard
Switching over OSD	no
Integrated Hub	no
Keyboard/mouse emulation	no
19" compatible	no
Cascadable	no
Hot plug compatible	no
Max. resolution (nominal)	2048 x 1536
Material (casing)	Plastic
Power supply unit required	no
Technical particularity	LED display for easy status monitoring
Height	2.46 cm
Width	7.01 mm
Depth	8.24 mm
Weight	0.3 kg
Height of packaging (single piece)	60 mm
Width of packaging (single piece)	160 mm
Depth of packaging (single piece)	230 mm
Package weight (single piece)	0.374 kg

Downloads

Manufacturer data sheet - ATEN CS22U KVM Switch VGA, USB, 2 Ports - Data Sheet - English (1.2 MB)

Download

Quick Installation Guide - English (2.1 MB)

Download
