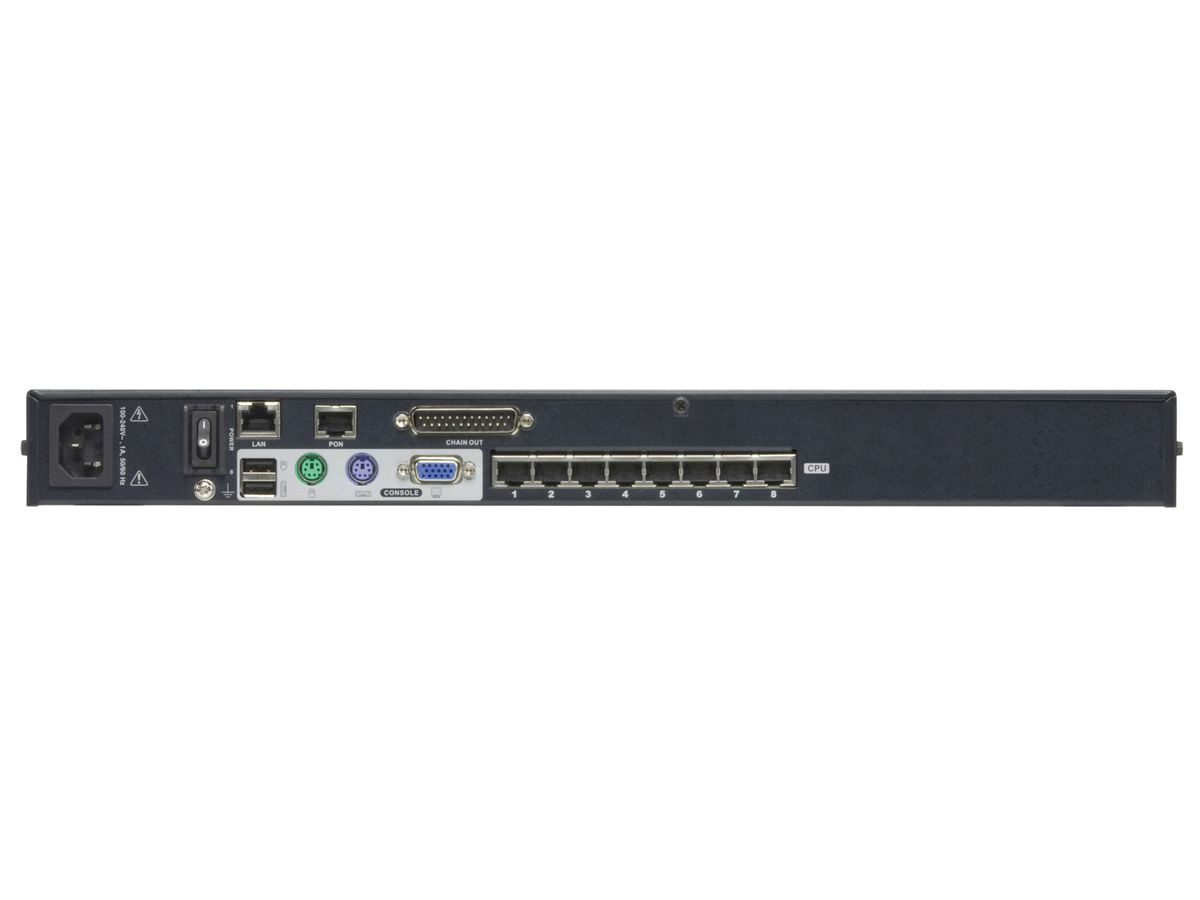

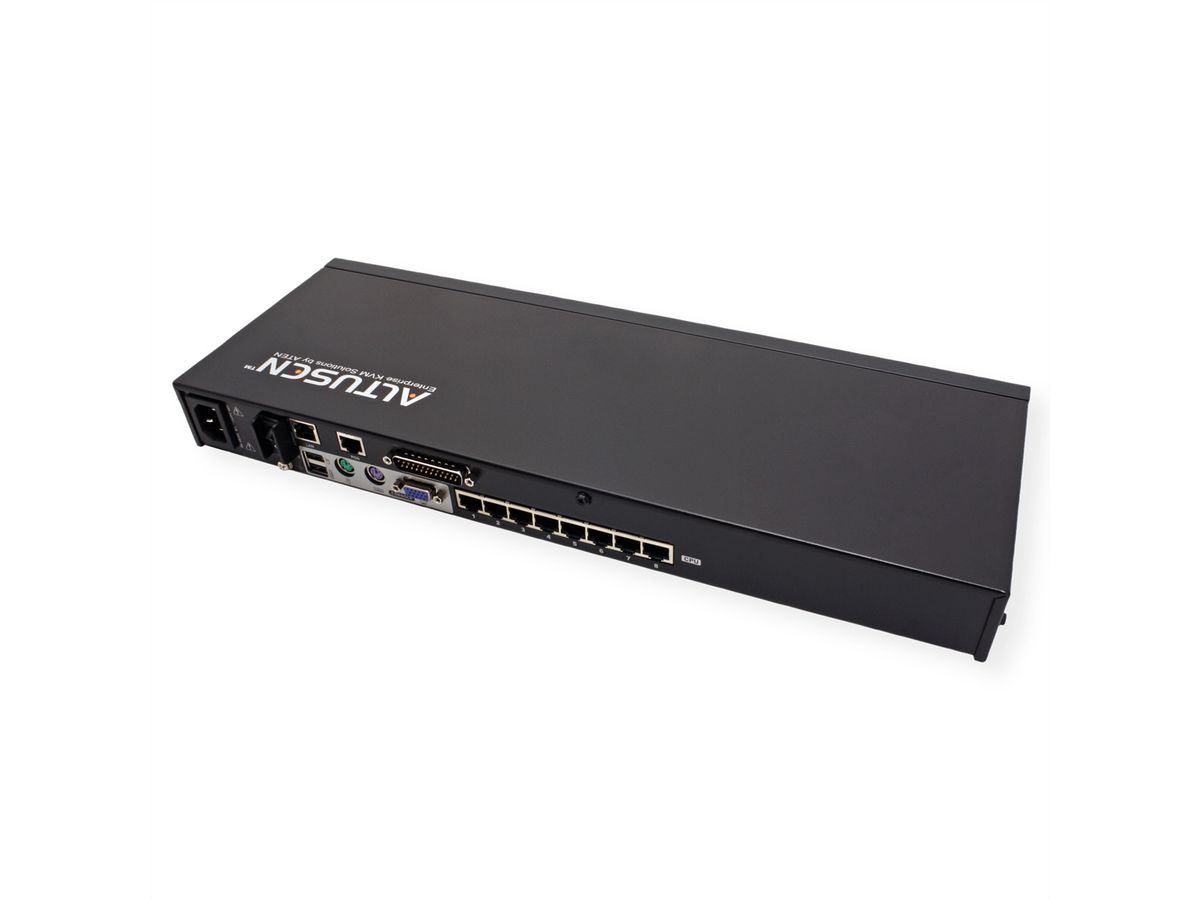

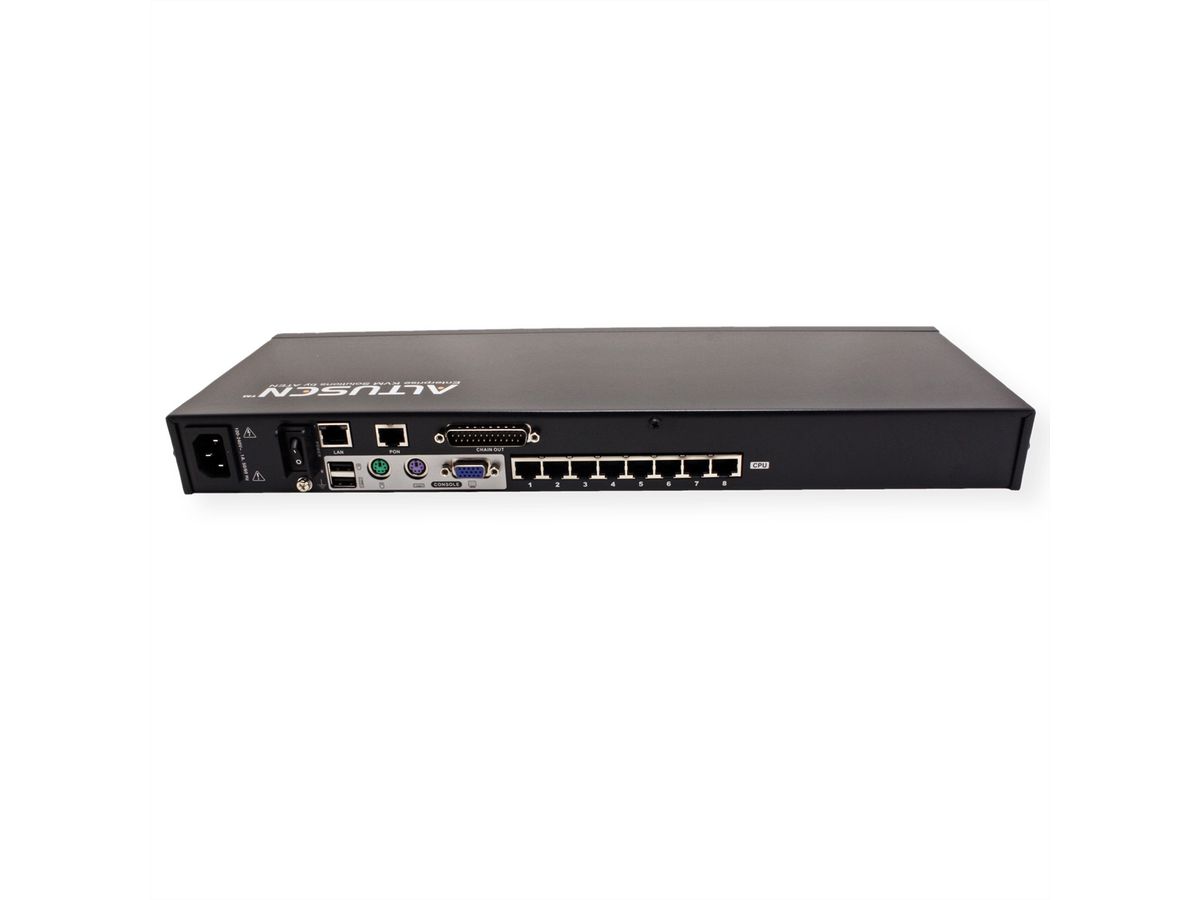

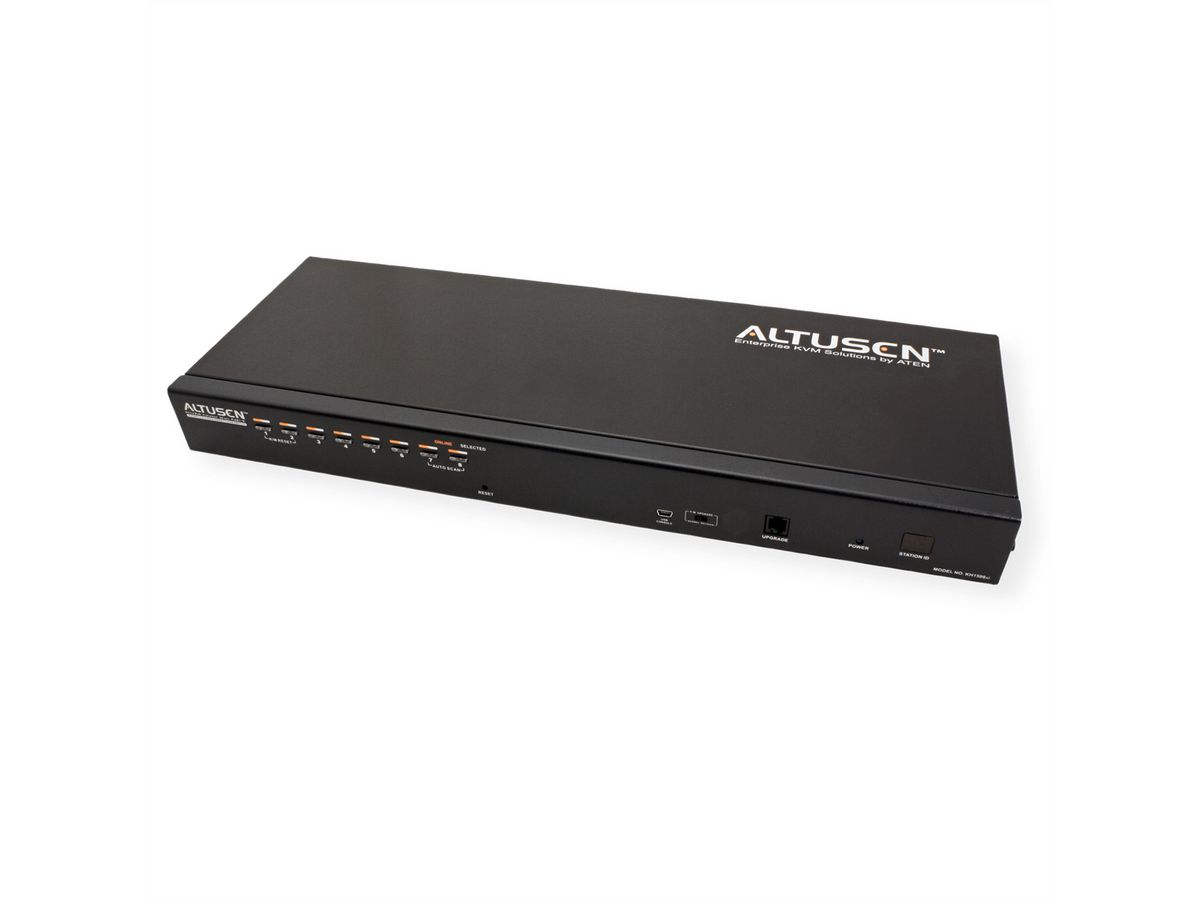

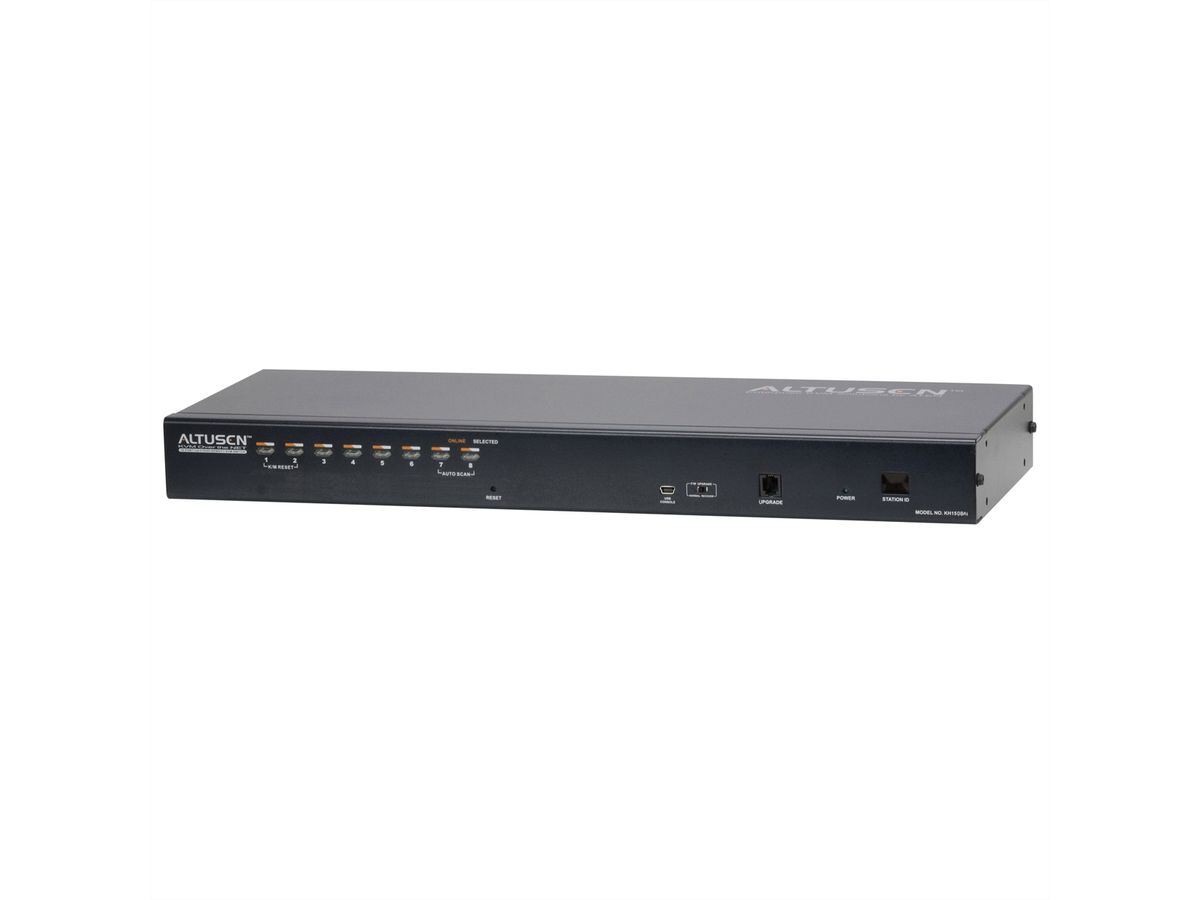

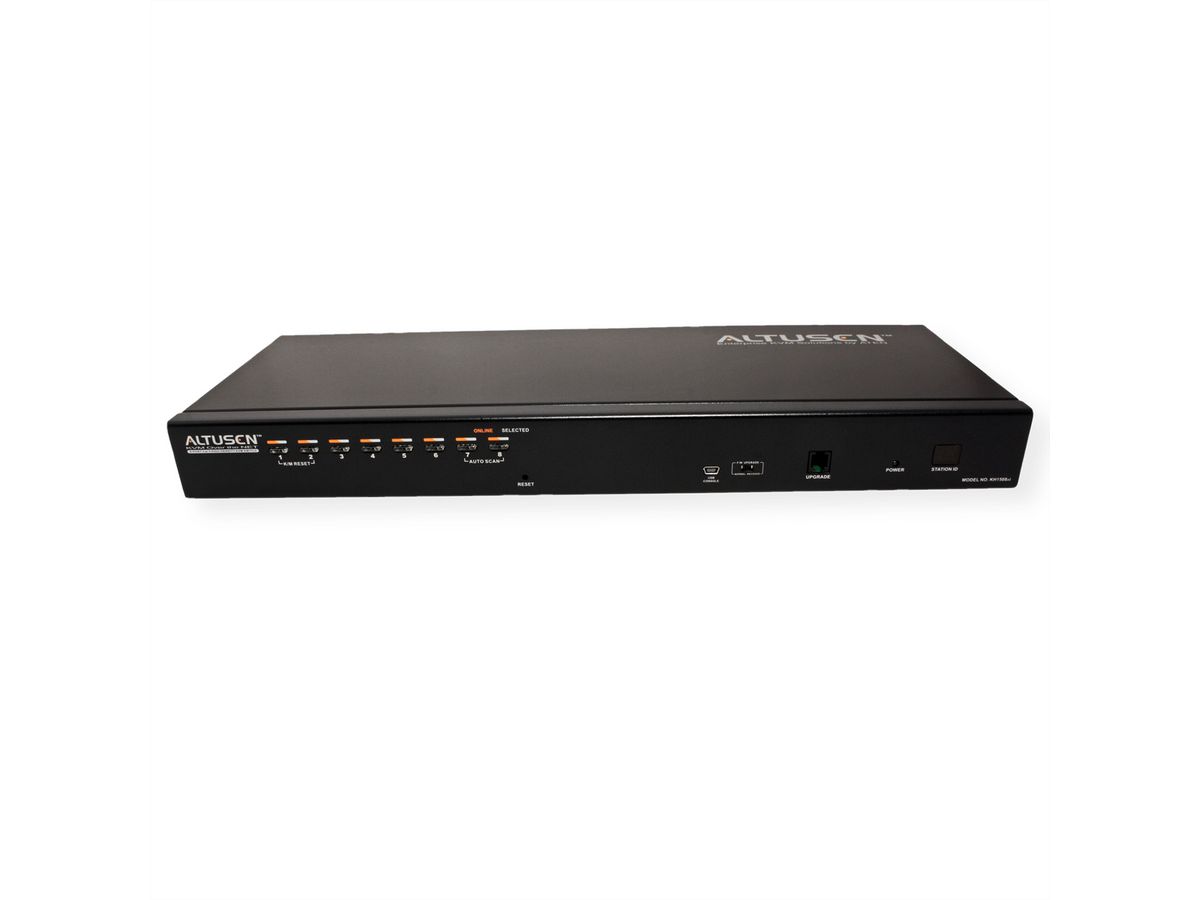

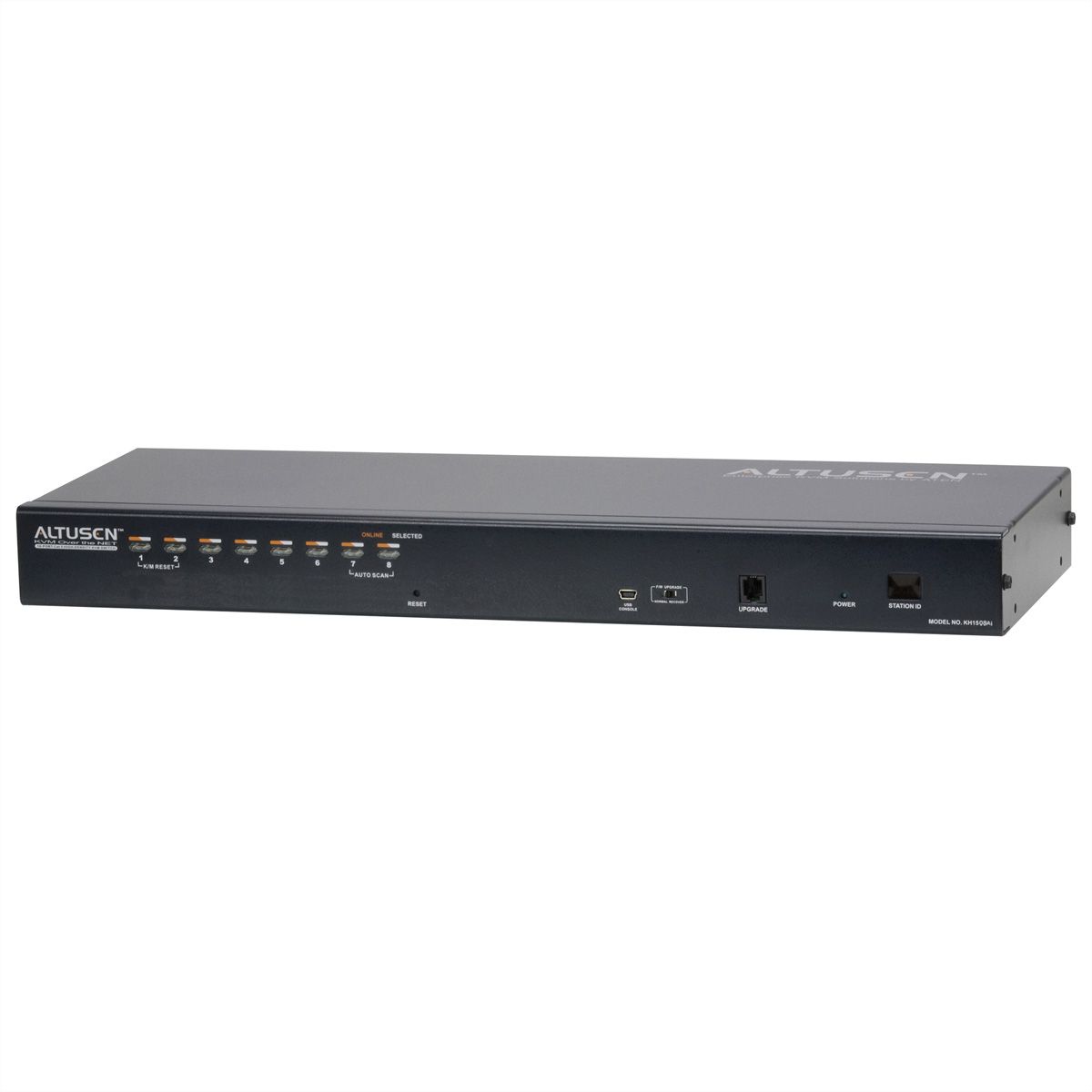

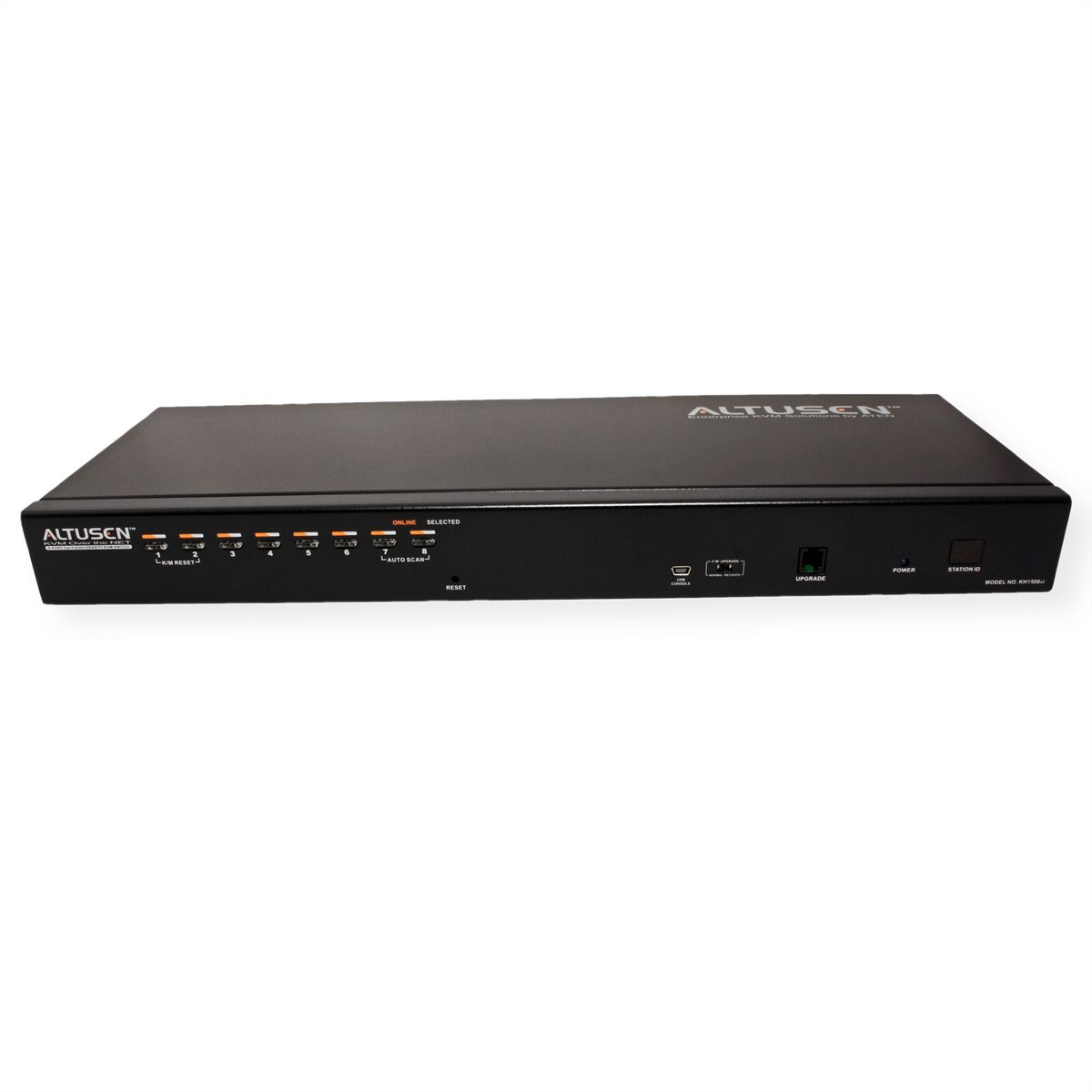

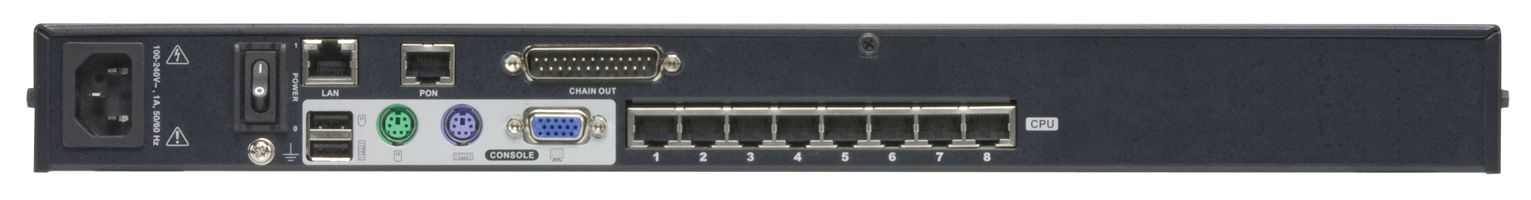

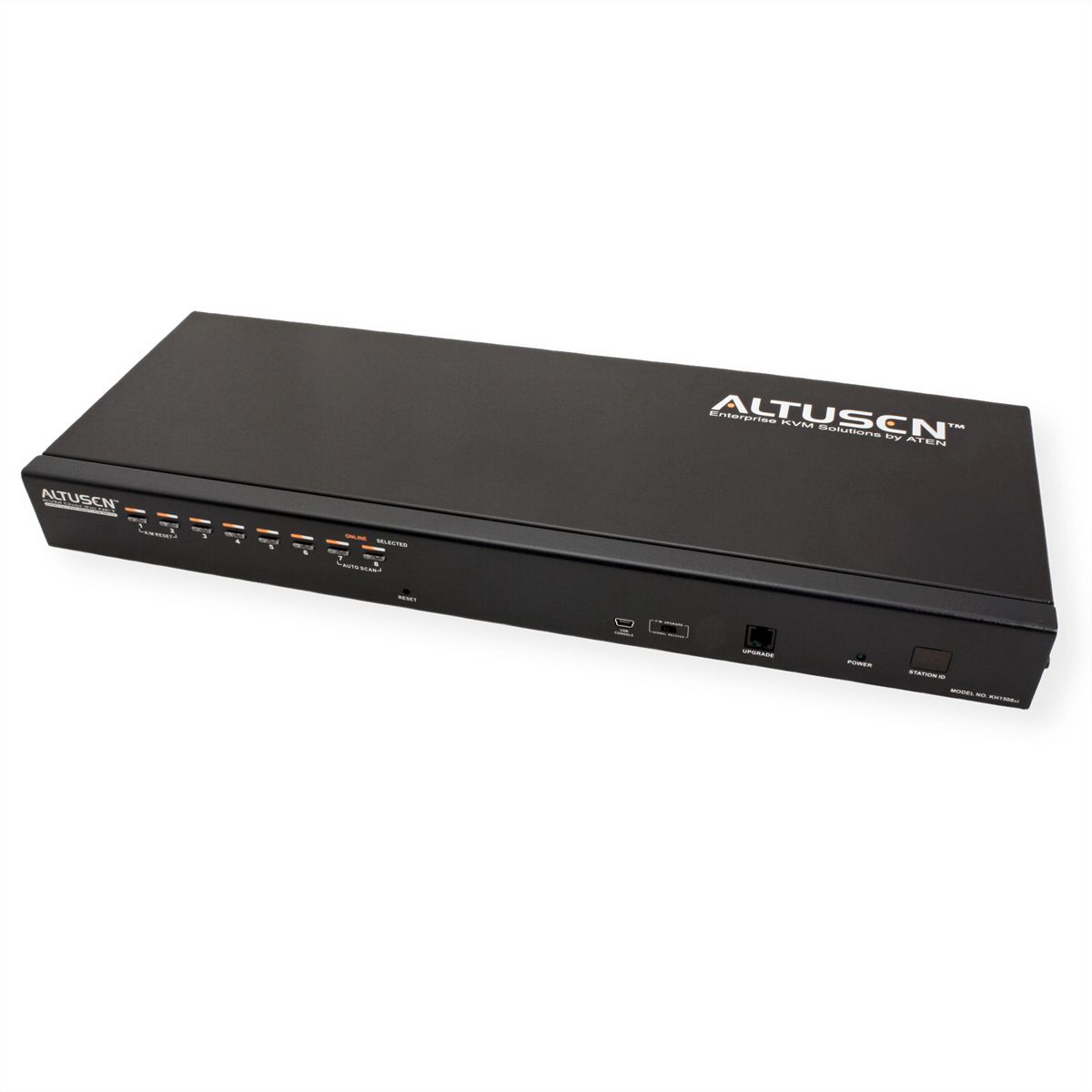

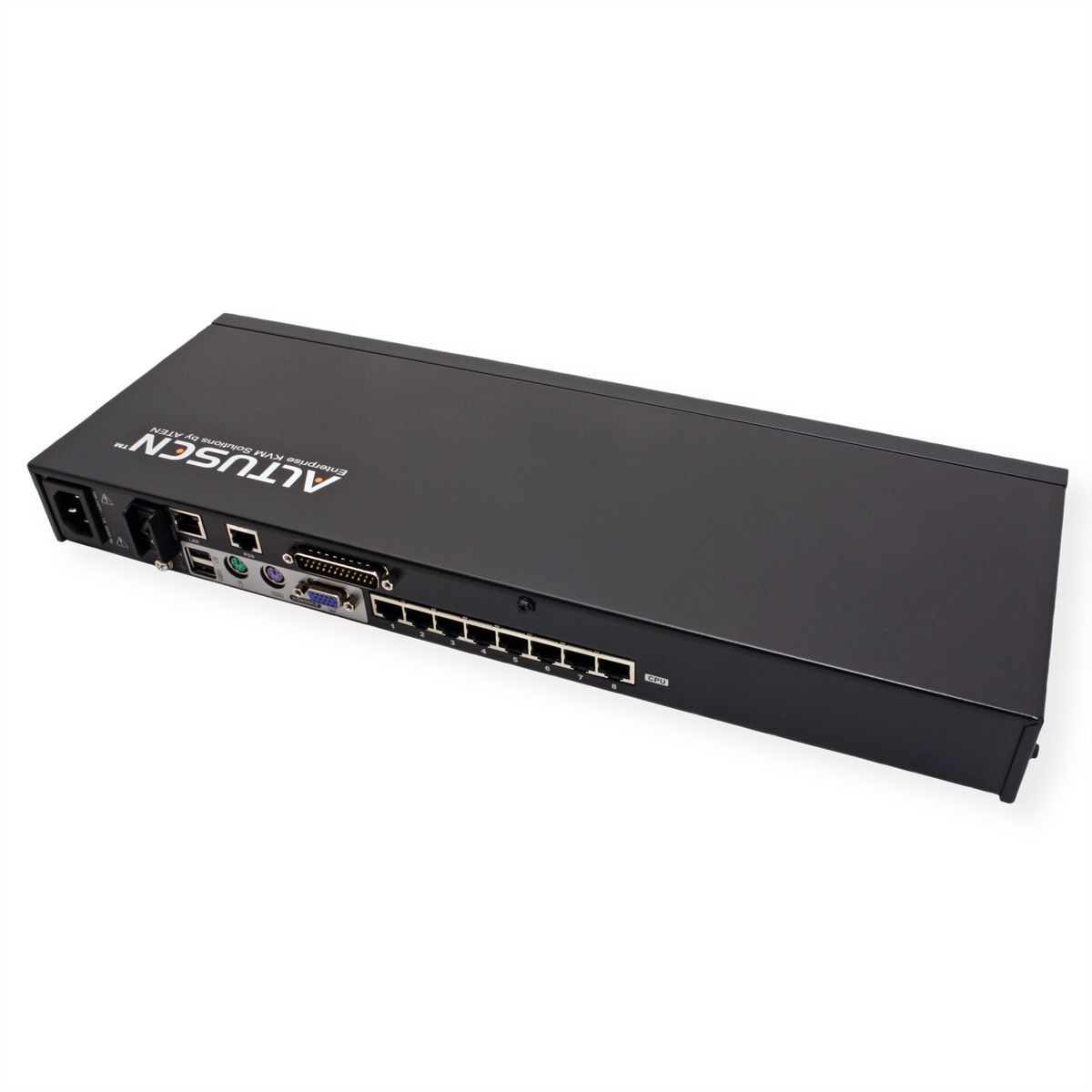

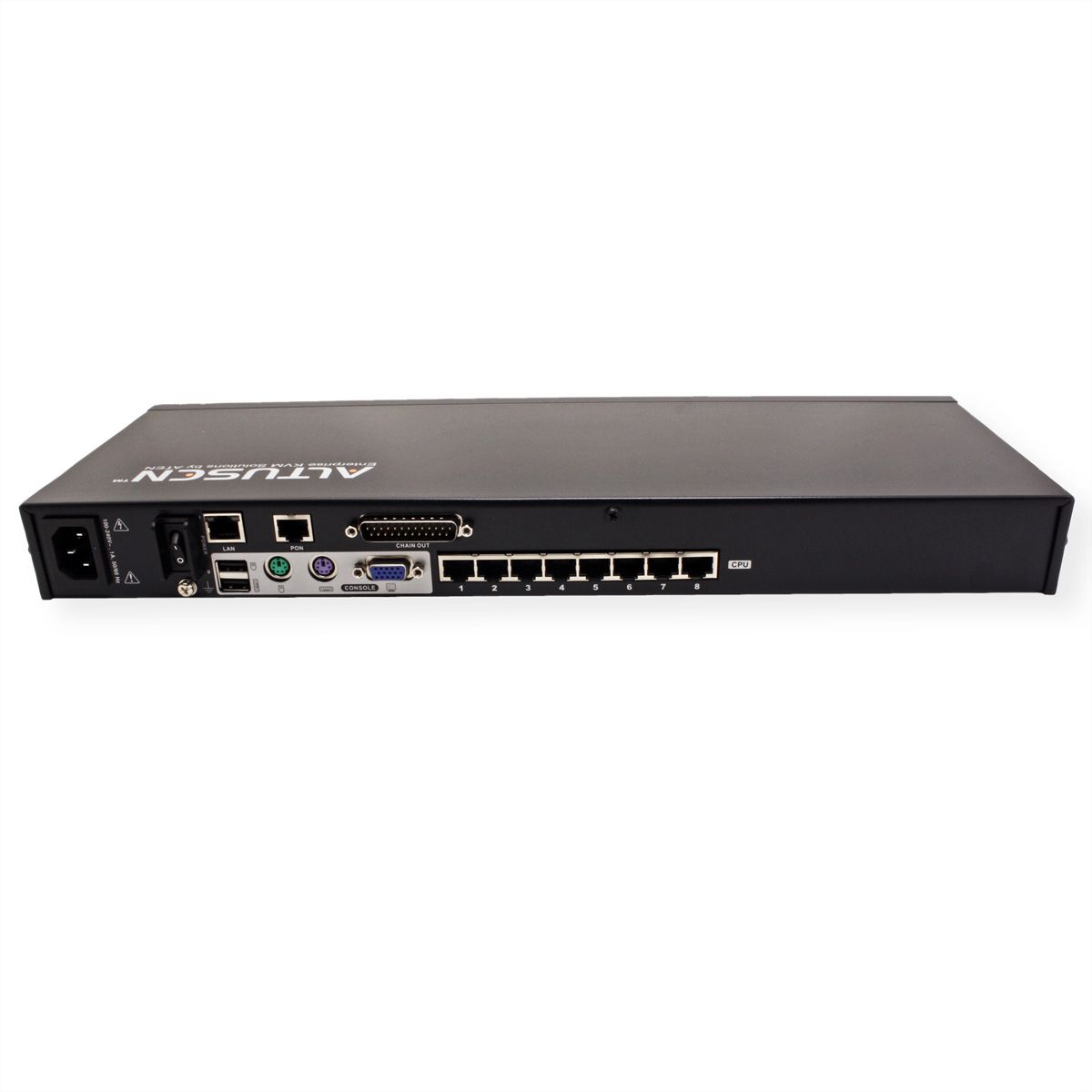

ATEN KH1508Ai 1-Local/Remote Shared Access 8-Port Multi-Interface Cat 5 KVM over IP Switch

Product recommendations

ATEN KH1508Ai 1-Local/Remote Shared Access 8-Port Multi-Interface Cat 5 KVM over IP Switch

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 02/26/2025
Item no. 14016031
Brand / Manufacturer ATEN
Manuf. item no. KH1508AI
EAN 4710423777439
Item weight 3.596 kg
ATEN

Description

The KH1508Ai Cat 5 High-Density KVM over IP Switch offers 8 computer port configurations in a 1U-high housing for convenient rack mounting. They allow local and remote operators to monitor and access the entire enterprise data center over the Internet using a web-based browser.

  • High port density – RJ-45 connectors for up to 8 ports in a 1U housing
  • A dedicated USB port directly connects to a laptop for easy Console operation
  • One bus for remote KVM over IP access
  • Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
  • Local console provides PS/2 and USB keyboard and mouse support
  • Multiplatform support - Windows, Mac, Sun and Linux
  • Superior Video Quality – supports input video resolutions up to 1920 x 1200 @ 60 Hz* up to 30 meters, 1600 x 1200 @ 60 Hz up to 40 meters, and 1280 x 1024 @ 75 Hz up to 50 meters

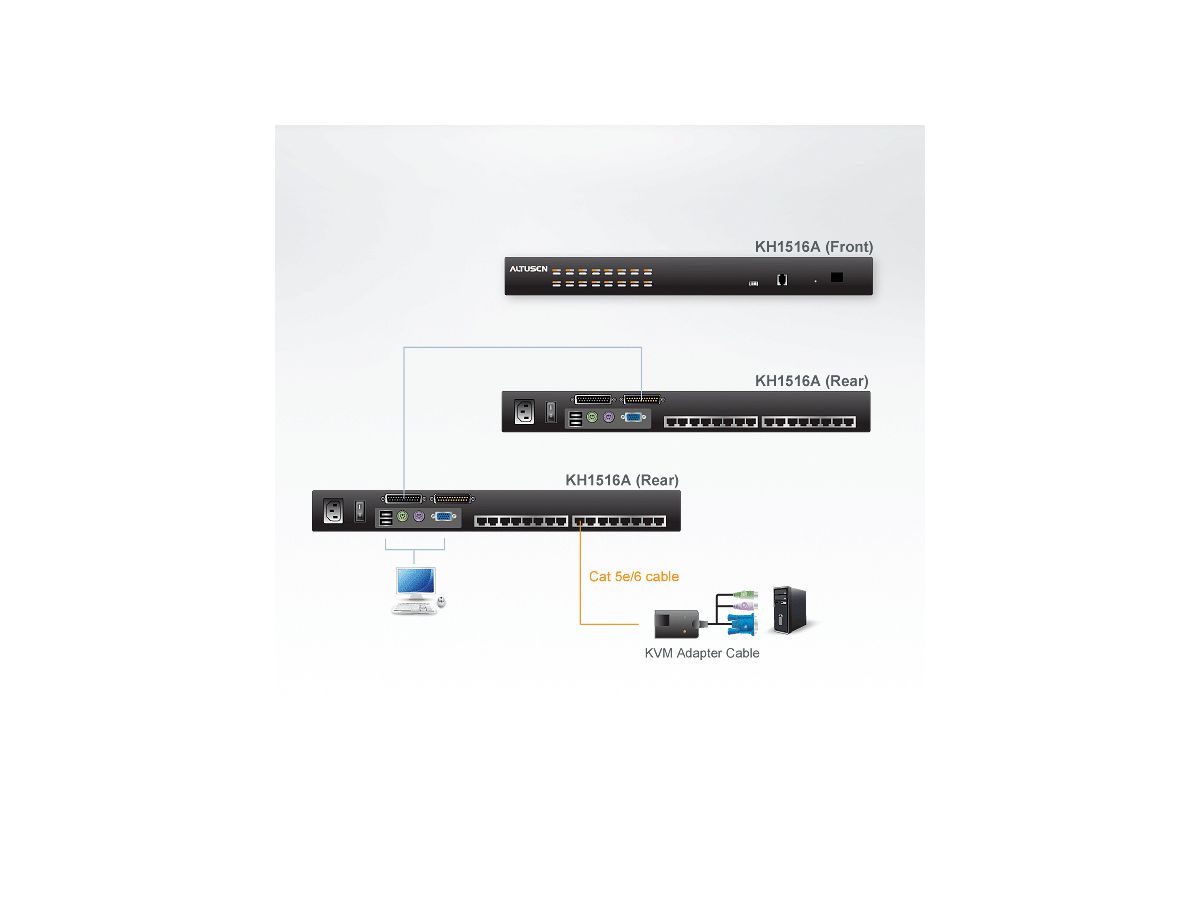

  • Daisy-chain up to 15 additional units – control up to 128 computers from a single console
  • Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
  • Firmware upgradeable
  • TCP/IP, HTTP, HTTPS, UDP, RADIUS, DHCP, SSL, ARP, DNS, 10Base- T/100Base-TX, auto sense, Ping
  • Video resolutions max. 1920 x 1200 @ 60Hz for Windows 2000/XP/Vista, Mac, Unix, SUN

Specifications

Manufacturer ATEN
Product group KVM switches / PC shares
Product type KVM over IP-Switch
Colour black
Scope of delivery 1x KH1508Ai Cat 5 High-Density KVM over IP Switch, 1x Firmware Upgrade Cable, 1x Laptop USB Console Cable
1x Power Cord, 1x Rack Mount Kit, 1x Foot Pad Set (4 pcs.)
1x User Instructions
Quantity of PCs 8
Supported PC-Systems PS/2, USB
PC: connection on moulded cables no
Quantity of analogue consoles 1
Analogue Console: Monitor connection 1x HD 15pol. BU
Integrated console no
Switching over Scan Run yes
Print button on device yes
Switching over Hot Keys Keyboard
Switching over OSD yes
Integrated Hub no
Keyboard/mouse emulation yes
19" compatible yes
Cascadable yes
Hot plug compatible yes
Colour (Design profile) black
Material (casing) metal
Power supply unit required yes
Mains connection Cold appliance connection
Height 4.4 cm
Width 16.36 cm
Depth 43.72 cm
Weight 2.65 kg
Height of packaging (single piece) 150 mm
Width of packaging (single piece) 240 mm
Depth of packaging (single piece) 540 mm
Package weight (single piece) 3.596 kg
PC: combi connection 16x SPHD 15pol. ST
Technical particularity LED display for port status, special cables have to be ordered separately

Downloads

Manufacturer data sheet - English (912.2 KB)

Download

User manual - English (6.3 MB)

Download

Quick Installation Guide - English (2.6 MB)

Download

Technical drawing - English (27.9 KB)

Download

Accesories

Show all

Compatible with

Show all

ATEN brand products have a high security standard and are therefore often used in the fields of broadcasting and media, education, transport as well as in government bodies or other comparable companies and institutions.

ATEN company specializes in connectivity and management solutions. These include KVM switches, remote maintenance solutions, image transmission products, USB peripherals and data communication products.
