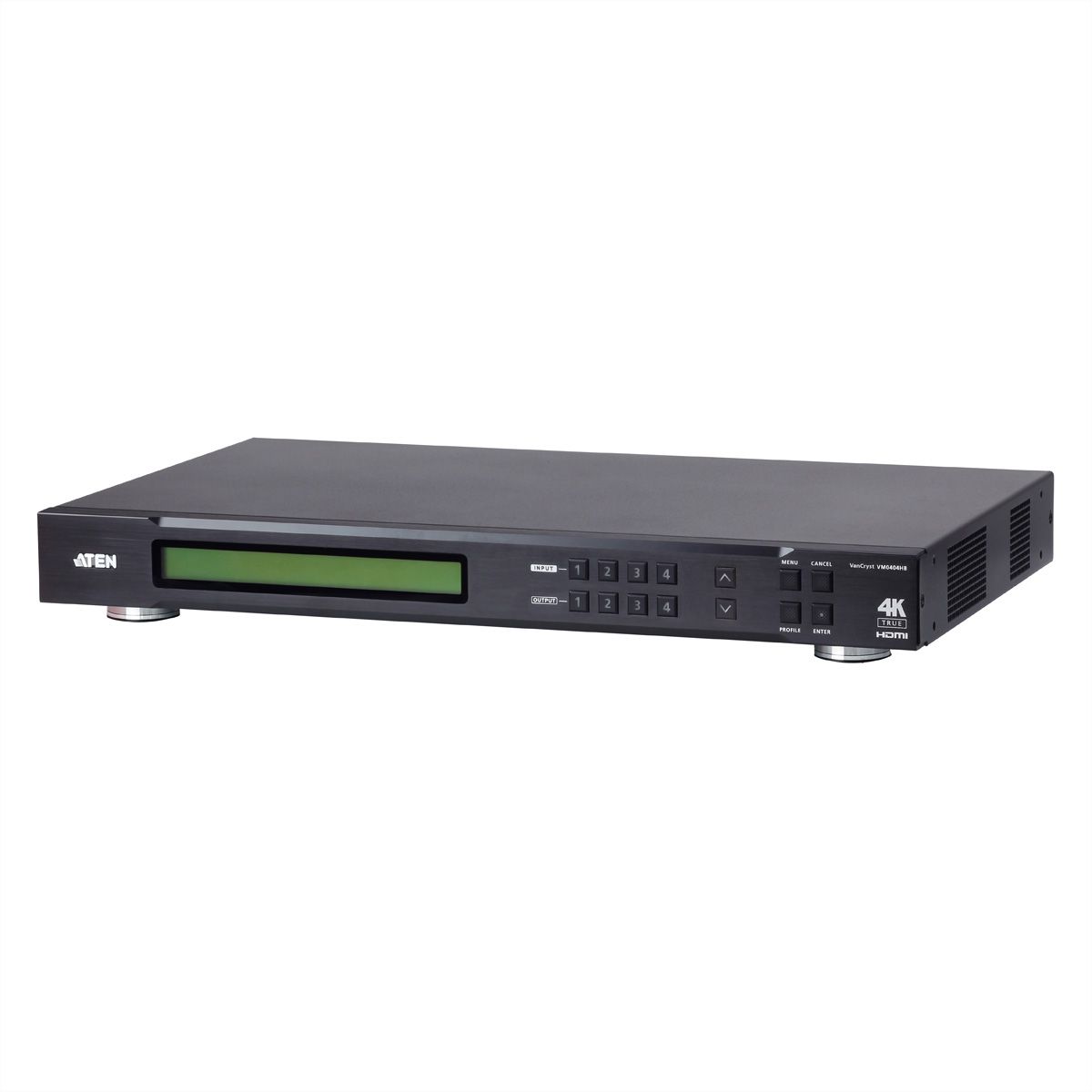

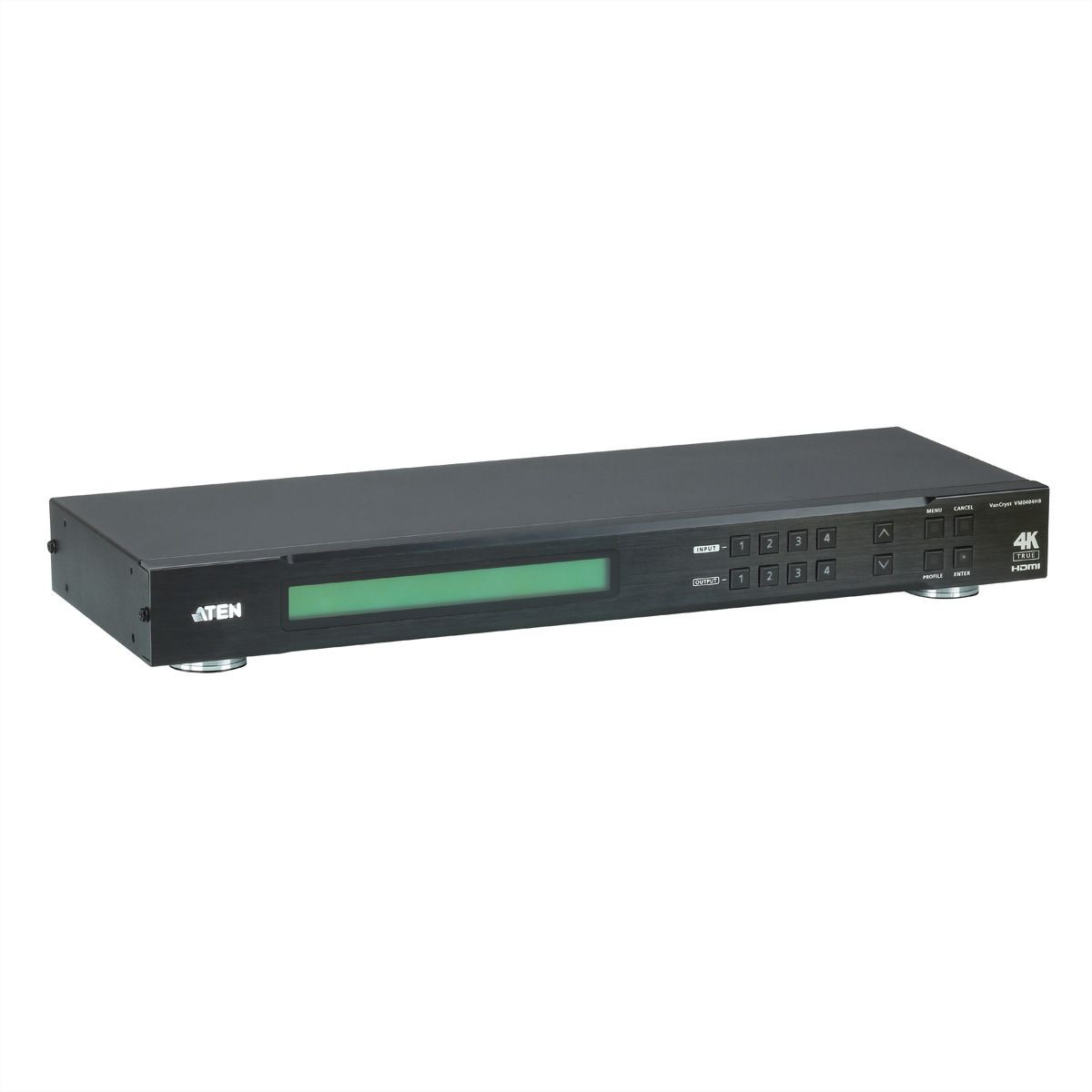

ATEN VM0404HB 4 x 4 True 4K HDMI Matrix Switch

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	14016984
Brand / Manufacturer	ATEN
Manuf. item no.	VM0404HB
EAN	4719264646829
Item weight	3.674 kg

Description

ATEN’s VM0404HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays.

ATEN’s VM0404HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0404HB delivers robust signal routing and ultra-fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more.

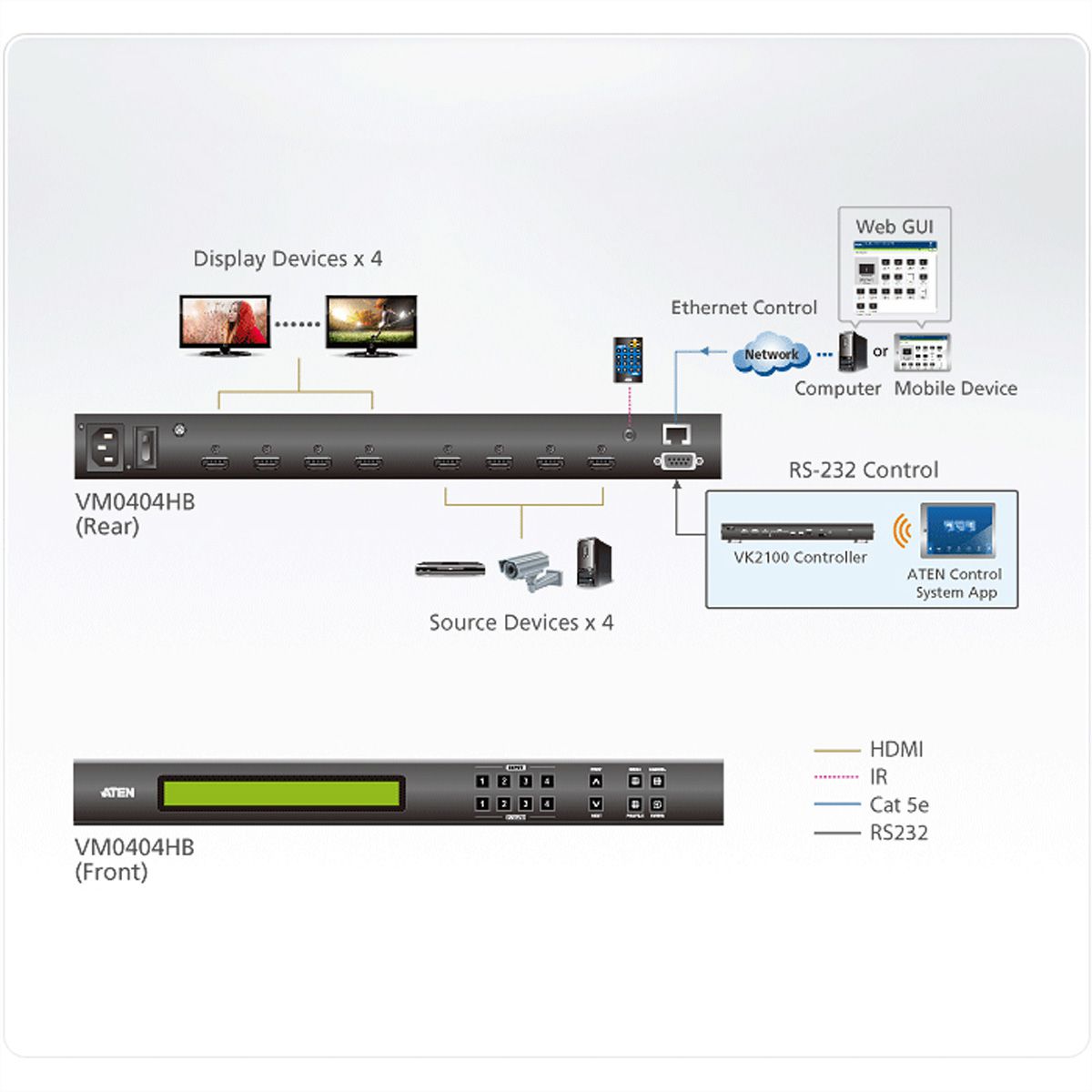

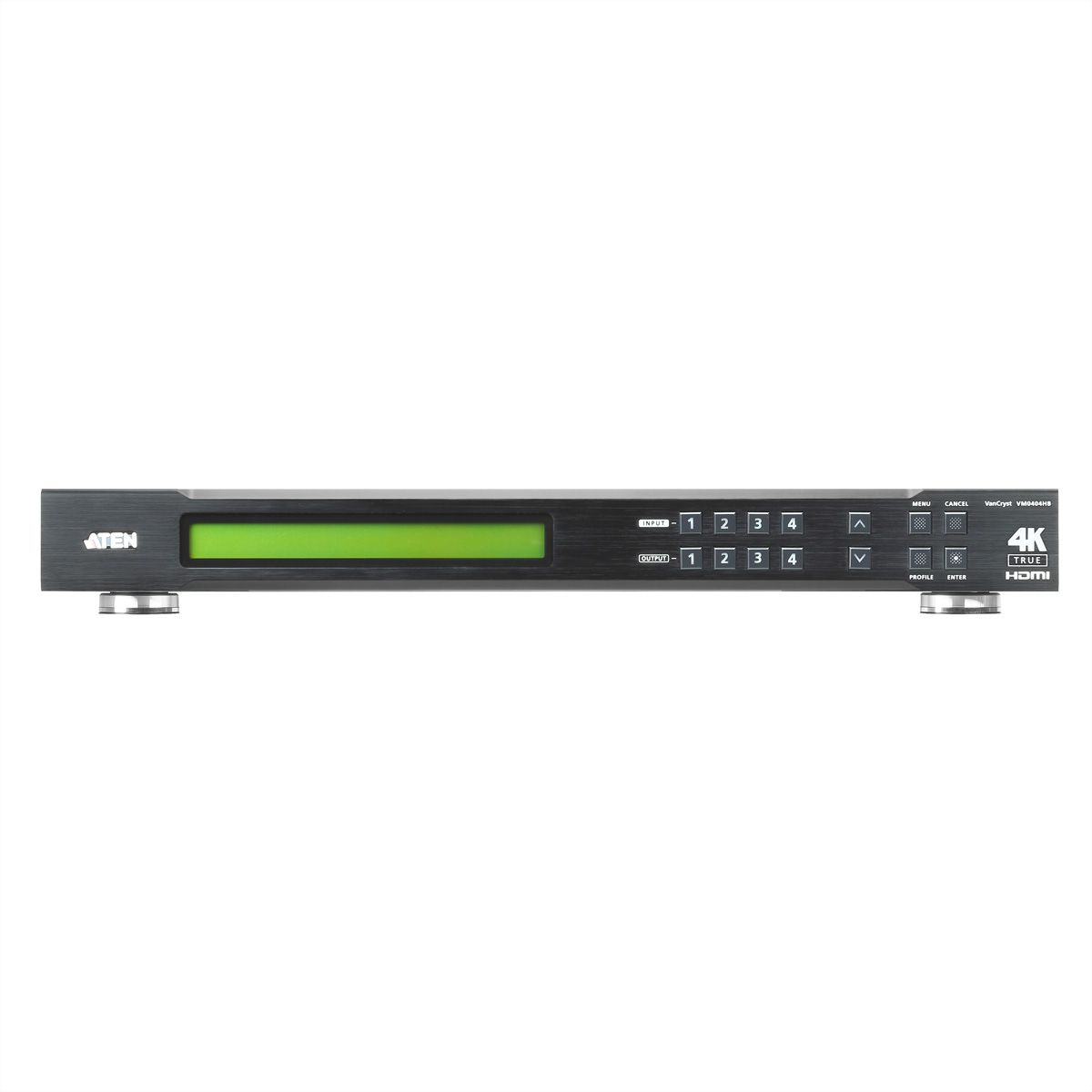

The intuitive GUI design of the VM0404HB allows users to flexibly configure any input to output connections, eliminating the need of frequent physical configuration changes. In addition to the built-in web GUI, the VM0404HB can be operated through front-panel pushbuttons, IR remote, RS-232 control, and Telnet via Ethernet connections, giving users the ultimate convenience while keeping the system available with performance video switching anytime.

Connects any of 4 HDMI sources to any of 4 HDMI displays
Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
Supports HDR10+
Multiple Control Methods – system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via • • Ethernet connections
View and control via ATEN Video Matrix Control App in a swift and agile way
EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
Signaling rates up to 6 Gbits for flawless true 4K output
Supports Dolby True HD and DTS HD Master audio
HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
Supports Consumer Electronics Control (CEC)
Power-on Detection – switches to the next powered-on source when one source is powered off
ESD protection for HDMI
Supports ATEN’s LockPro™ HDMI cable lock for secure HDMI cable connections
Firmware upgradeable
Rack mountable (1U)

Specifications

Manufacturer	ATEN
Product group	Splitters and selectors
Product type	HDMI Video Matrix Switch
Colour	black

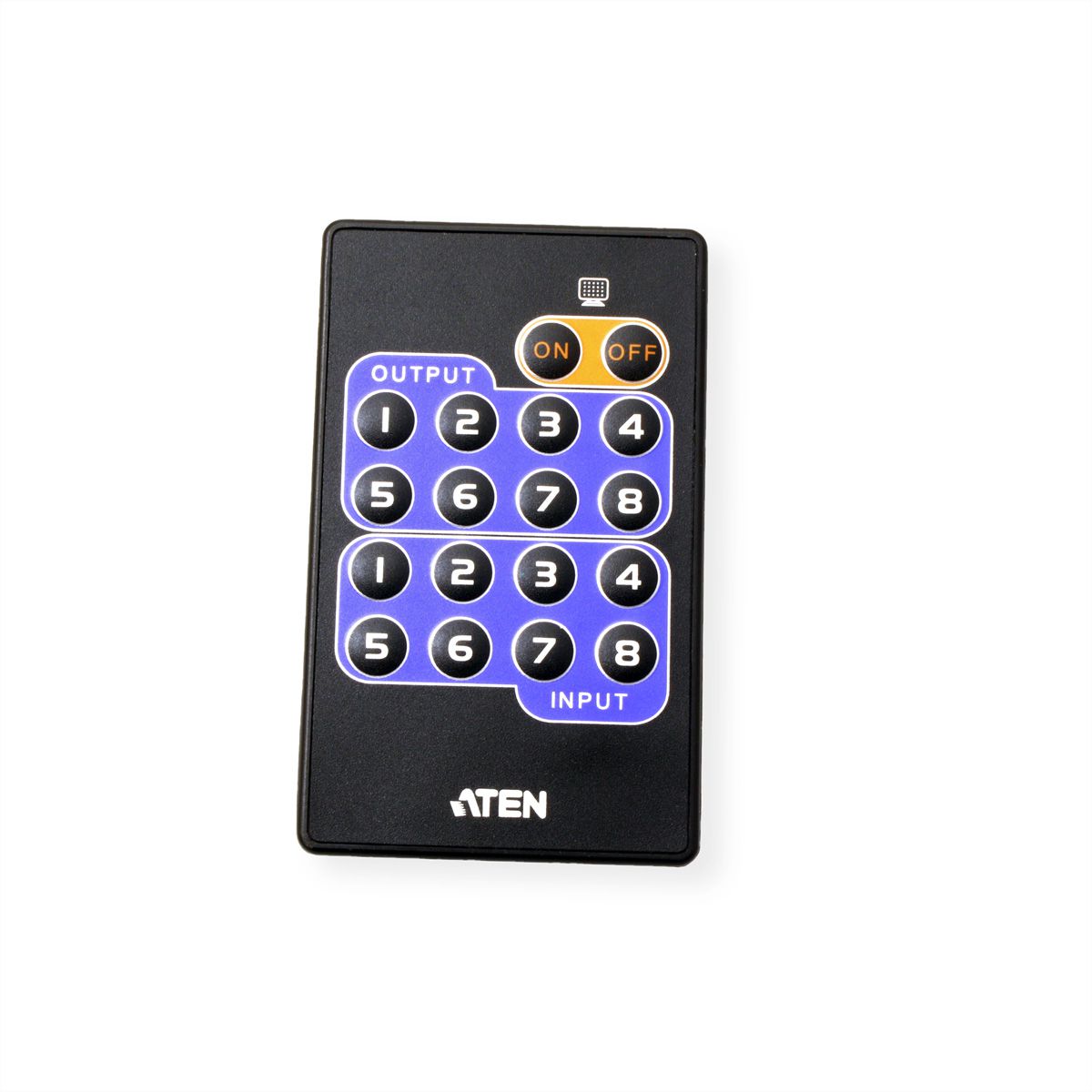

Scope of delivery	1x VM0404HB 4 x 4 True 4K HDMI Matrix Switch, 1x Power Cord, 1x IR Remote Control, 1x IR Receiver, 1x Rack Mounting Kit, 1x User Instructions
Interface	HDMI
Inputs	4
Outputs	4
Max. distance	15 m

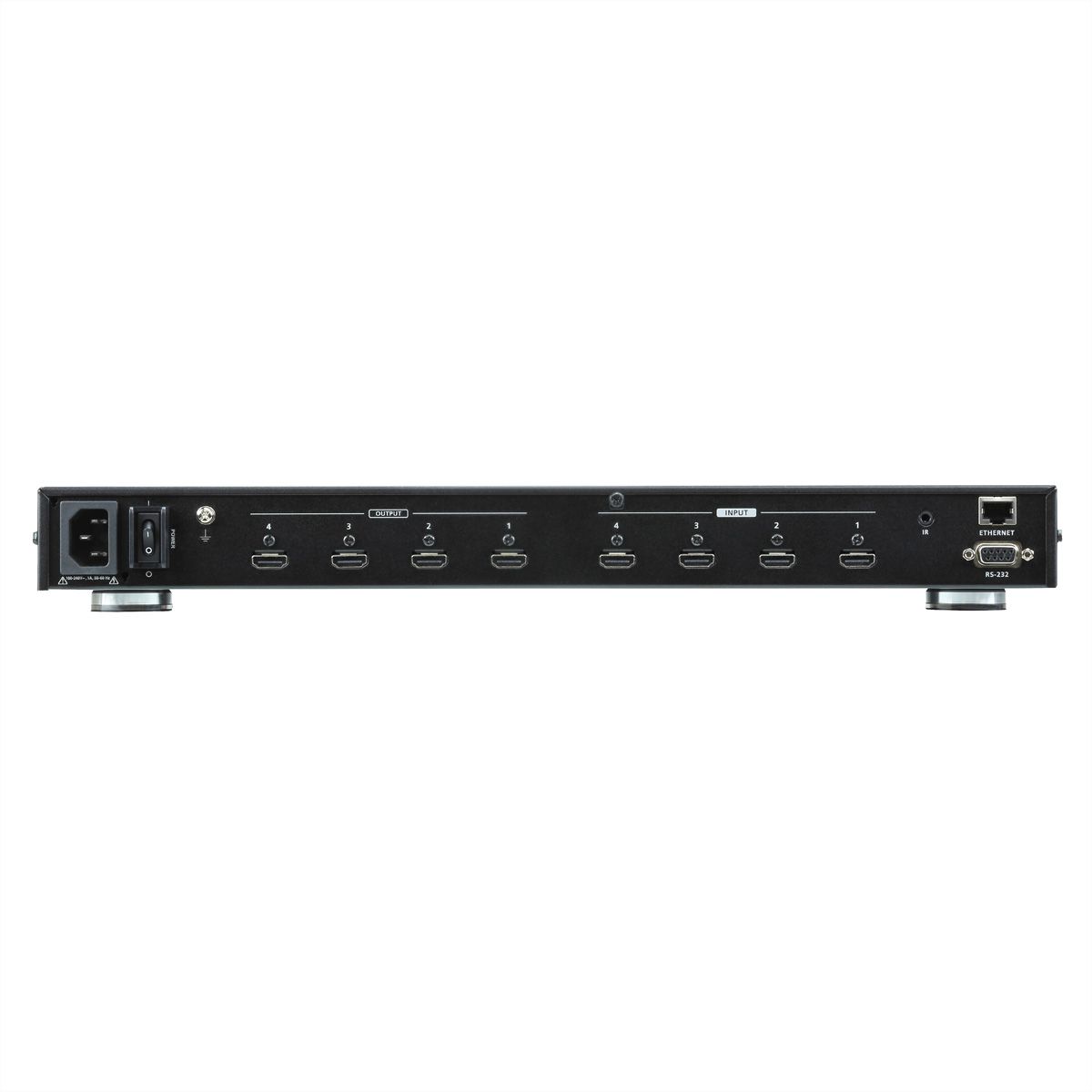

Video input	4x HDMI Female
Video output	4x HDMI Female
Max. resolution (nom.)	up to 4096x2160/ 3840x2160@60 Hz (4:4:4)
Dimensions (HxWxD)	43,7 x 15,28 x 4,4 cm
Mains connection	Cold appliance connection
Height	43.7 cm
Width	15.28 cm
Depth	4.4 cm
Weight	2.47 kg
Height of packaging (single piece)	150 mm
Width of packaging (single piece)	270 mm
Depth of packaging (single piece)	550 mm
Package weight (single piece)	3.674 kg
Power supply output	5 Volt DC, 2500mA

Downloads

Manufacturer data sheet - English (1.3 MB)

Download

User manual - English (4.0 MB)

Download

Quick Installation Guide - English (872.7 KB)

Download

Technical drawing - English (66.3 KB)

Download
