Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 14017333 |
|---|---|
| Brand / Manufacturer | ATEN |
| Manuf. item no. | VM5808HA |
| EAN | 4710469342127 |
| Item weight | 7.238 kg |
:strip_icc():strip_exif()/logos/aten.png "ATEN")

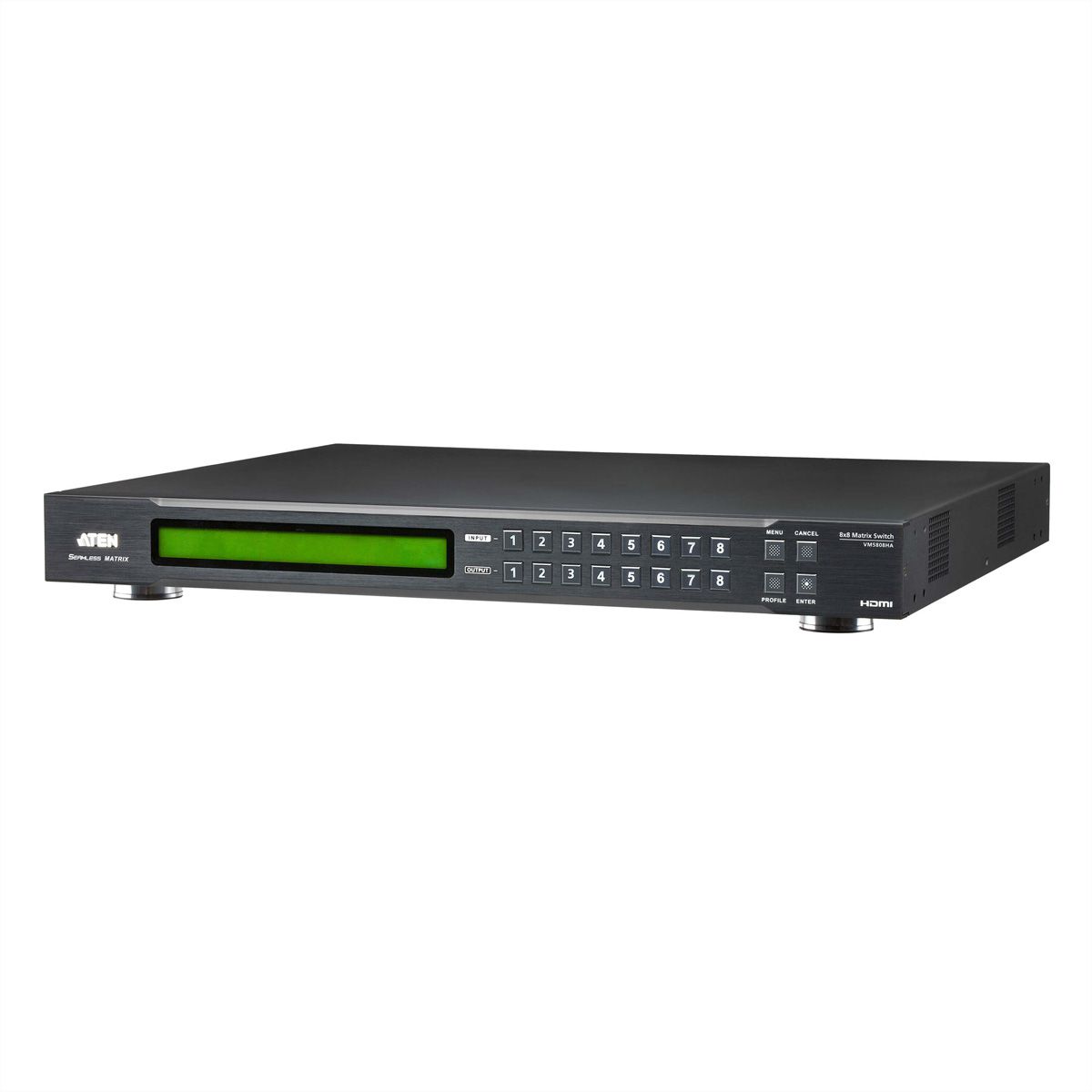

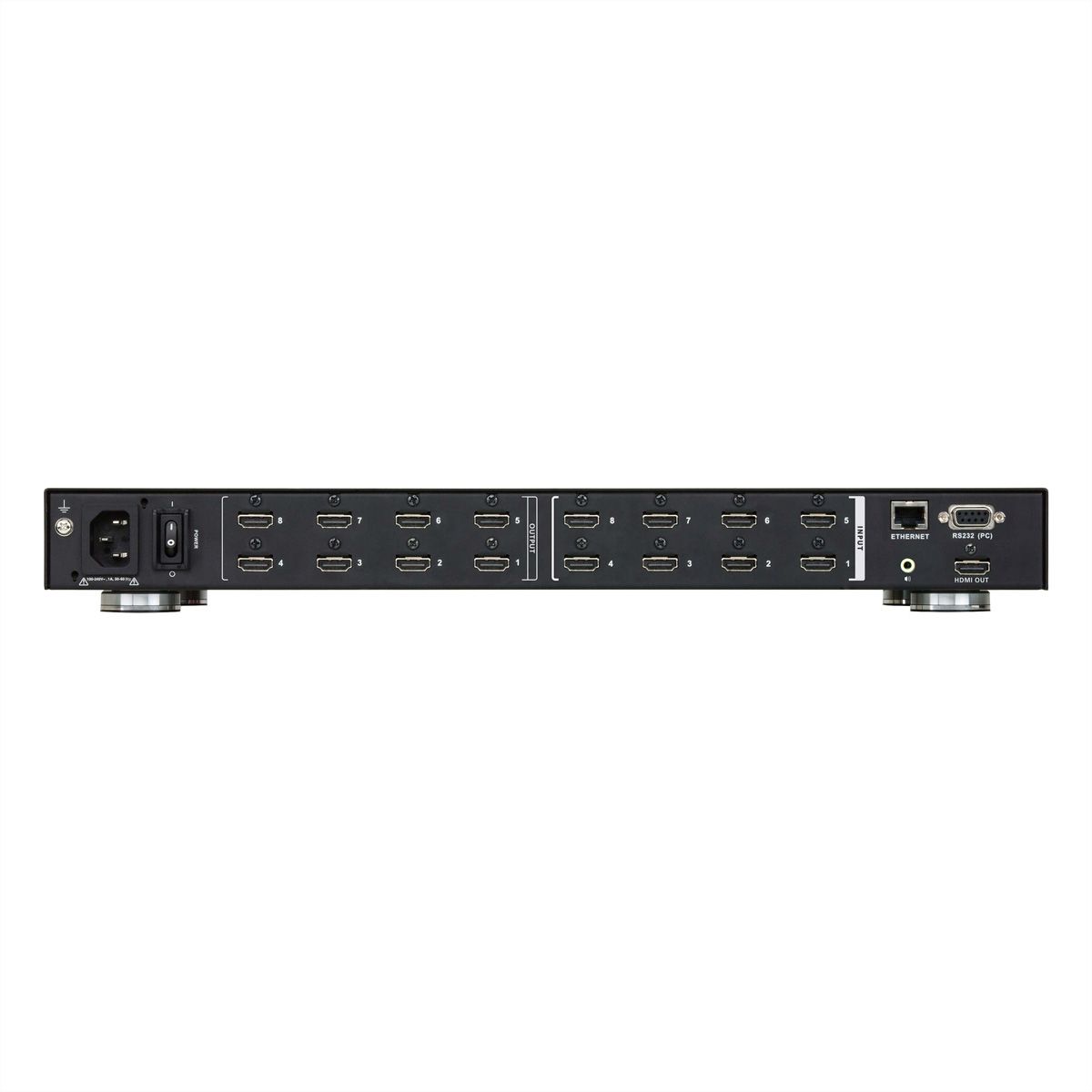

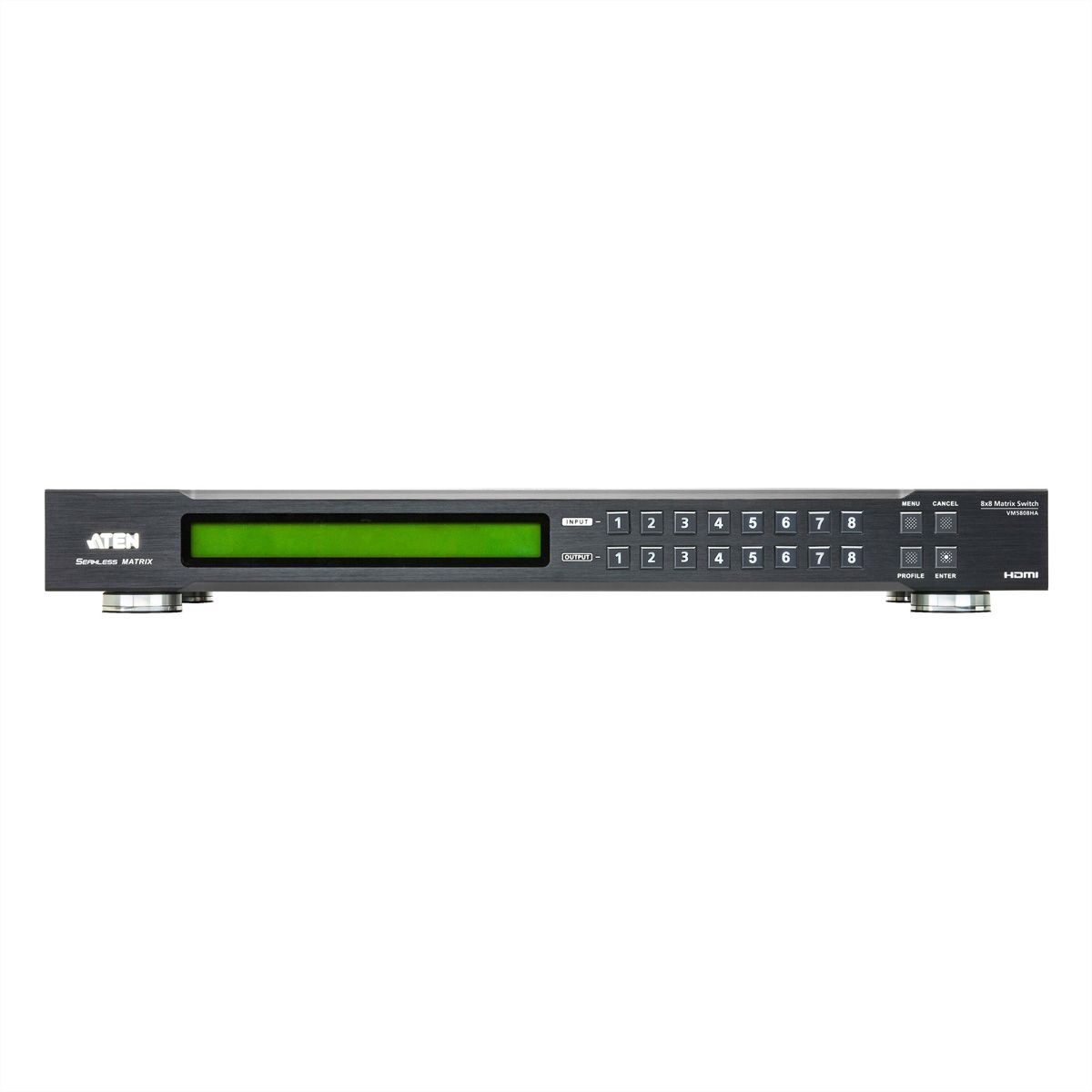

The 8 x 8 HDMI Matrix Switch allows any of the 8 HDMI input signals to be routed to any of the 8 HDMI output channels with no compromise on flexibility. Multiple methods are available when it comes to controlling the device, such as through the front panel pushbuttons, RS-232, and Ethernet (Telnet / Web GUI) connections. Plus, the VM5808HA supports ATEN Video Matrix Control app for device status viewing and controlling. It can also be integrated with ATEN Control System, a platform where Ethernet-based ATEN Video Matrix Switches and third-party devices (such as projectors, lights, AV devices) are centrally monitored, managed, and controlled. Signal management is made efficient with the front panel LCD, giving users a quick view of all port connections. In addition, the local HDMI output port allows real-time monitoring of multiple sources on a single display exactly where the Matrix Switch is located.
As the ultimate video wall solution, the FPGA-based VM5808HA features ATEN's exclusive Seamless Switch technology, ensuring uninterrupted video streams, real-time control, and stable signal transmission.
| Manufacturer | ATEN |
|---|---|
| Product group | KVM switches / PC shares |
| Product type | HDMI Video Matrix Switch |
| Colour | black |
| Scope of delivery | 1x HDMI Matrix Switch with Scaler, 1x power cord, 1x mounting kit, 1x user instructions |
| Interface | HDMI |
| Inputs | 8 |
| Outputs | 8 |
| Height | 4.4 cm |
| Width | 37.82 cm |
| Depth | 43.24 cm |
| Weight | 5.54 kg |
| Height of packaging (single piece) | 140 mm |
| Width of packaging (single piece) | 520 mm |
| Depth of packaging (single piece) | 580 mm |
| Package weight (single piece) | 7.238 kg |
:strip_icc():strip_exif()/cms_secde/cms/ueber_uns/markenwelt/hersteller_logos/aten.png)
ATEN brand products have a high security standard and are therefore often used in the fields of broadcasting and media, education, transport as well as in government bodies or other comparable companies and institutions.
ATEN company specializes in connectivity and management solutions. These include KVM switches, remote maintenance solutions, image transmission products, USB peripherals and data communication products.
