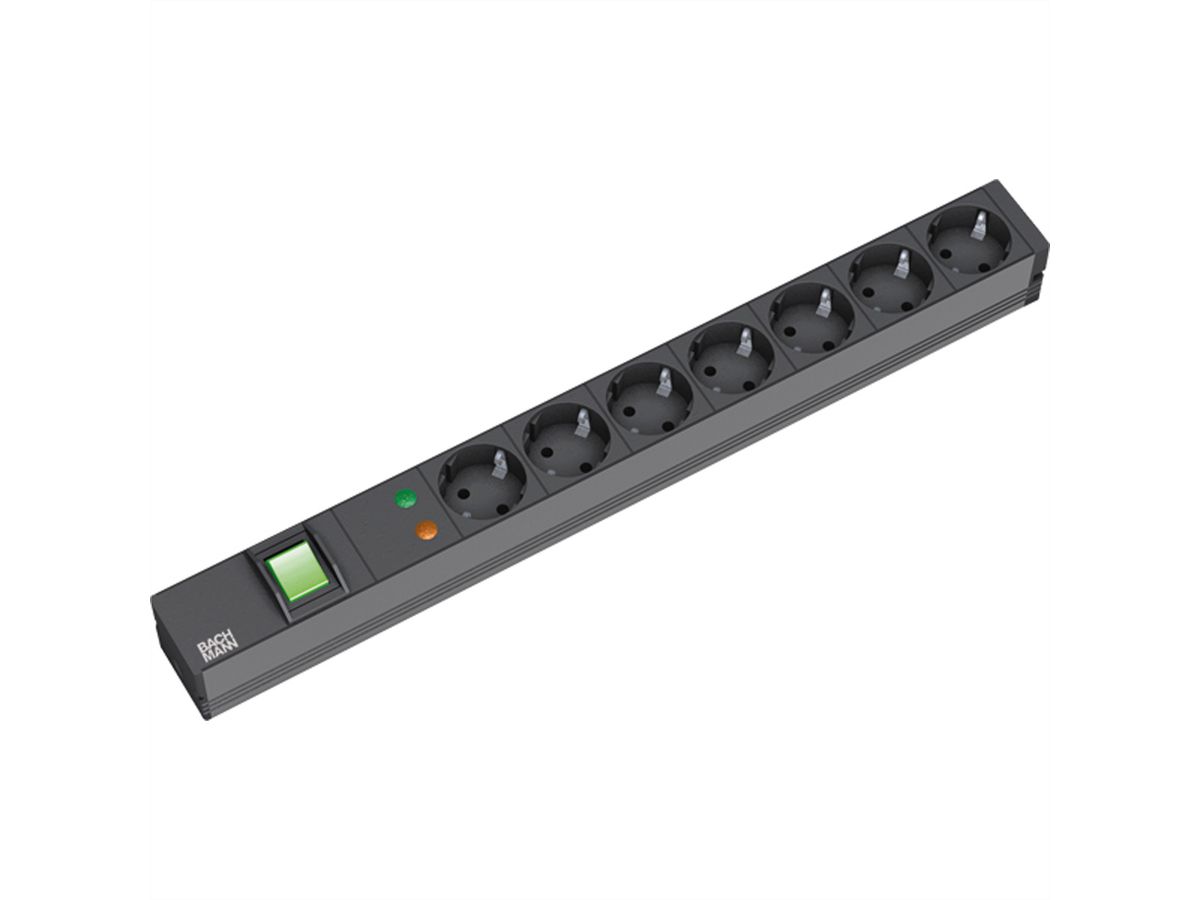

BACHMANN 19" socket strip 7-way with ÜS with switch, black

BACHMANN 19" socket strip 7-way with ÜS with switch, black

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 19071187
Brand / Manufacturer BACHMANN
Manuf. item no. 333.535
EAN 4016514019489
Item weight 0.858 kg

Description

19" socket strip with overvoltage protection for installation in 19" cabinets

- 19" socket strip 1 U for installation in 19" cabinets, incl. installation bracket - Socket outlet arrangement 35° - Suitable for 16 A, with varistors, thermal fuse, gas discharge tube, visual function and failure indicator - Profile made of anodised aluminium

Specifications

Manufacturer BACHMANN
Product group Power Bars
Product type 19" power strip with surge protection
Colour black
Length 2 m
Function 19" socket strip
Mounting form 19" Rackmount
Max. capacitance 3600W
Max. voltage 250V AC
ON/OFF Switch yes
Switch type 2 pol. beleuchtet
Number of socket pots 7
Quantity of outputs/angles 7 / 45°
Output alignment Reihe
Material (casing) Aluminum
Colour (Design profile) RAL 7021 Black grey
Connection cable H05VV-F 3G 1,5mm²
Connector plug Schuko
Regional use Germany, Austria, Netherlands

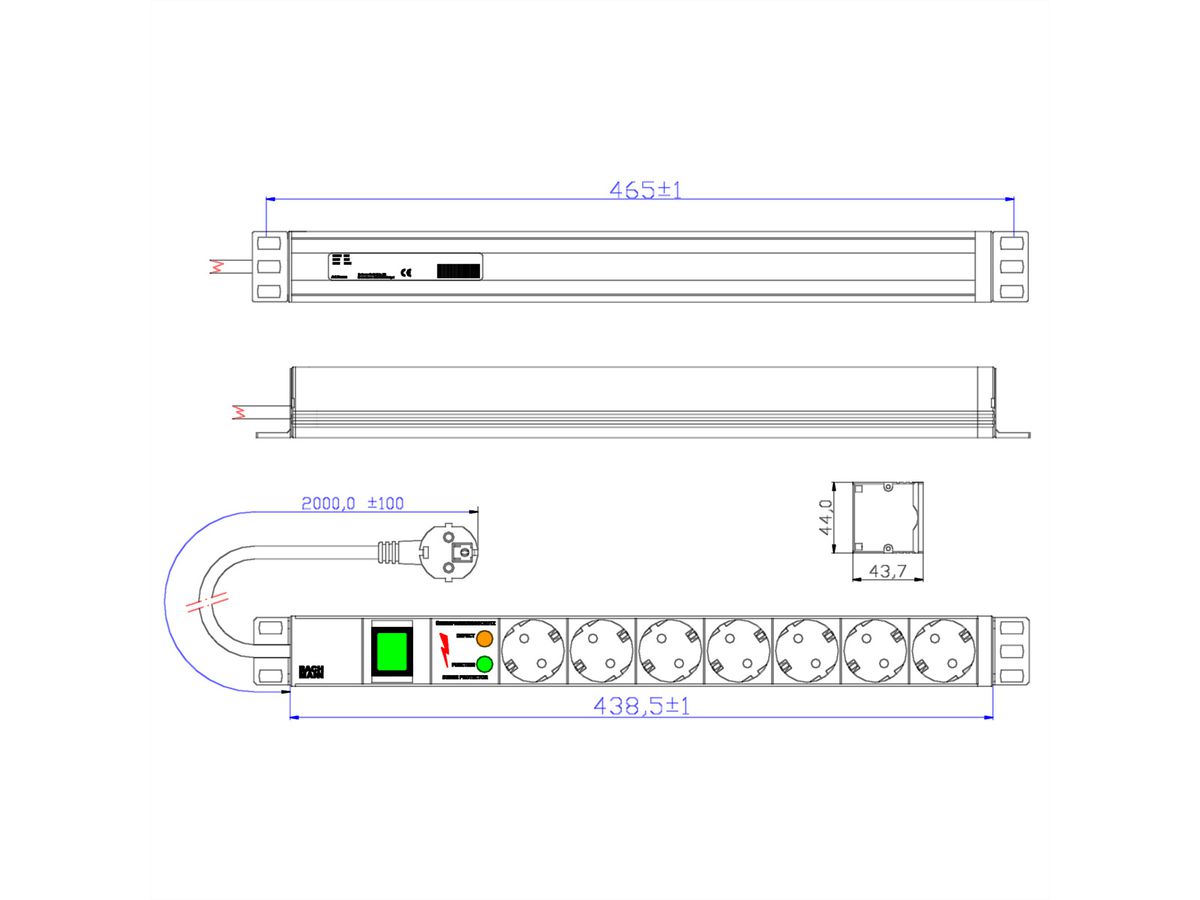

Height 44 mm
Width 440 mm
Depth 44 mm
Weight 0.88 kg
Height of packaging (single piece) 80 mm
Width of packaging (single piece) 90 mm
Depth of packaging (single piece) 480 mm
Package weight (single piece) 0.858 kg

Downloads

Manufacturer data sheet - Deutsch (44.5 KB)

Download

Manufacturer data sheet - English (44.5 KB)

Download

More PDF data - Installation and safety instructions - German - English - French - Italian (482.4 KB)

Download

The BACHMANN brand stands for customer-oriented electrotechnical components and systems.

In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.
