BACHMANN cable snake Easy - Switch

BACHMANN cable snake Easy - Switch

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 19073834
Brand / Manufacturer BACHMANN
Manuf. item no. 930.057
EAN 4016514022328
Item weight 0.406 kg

Description

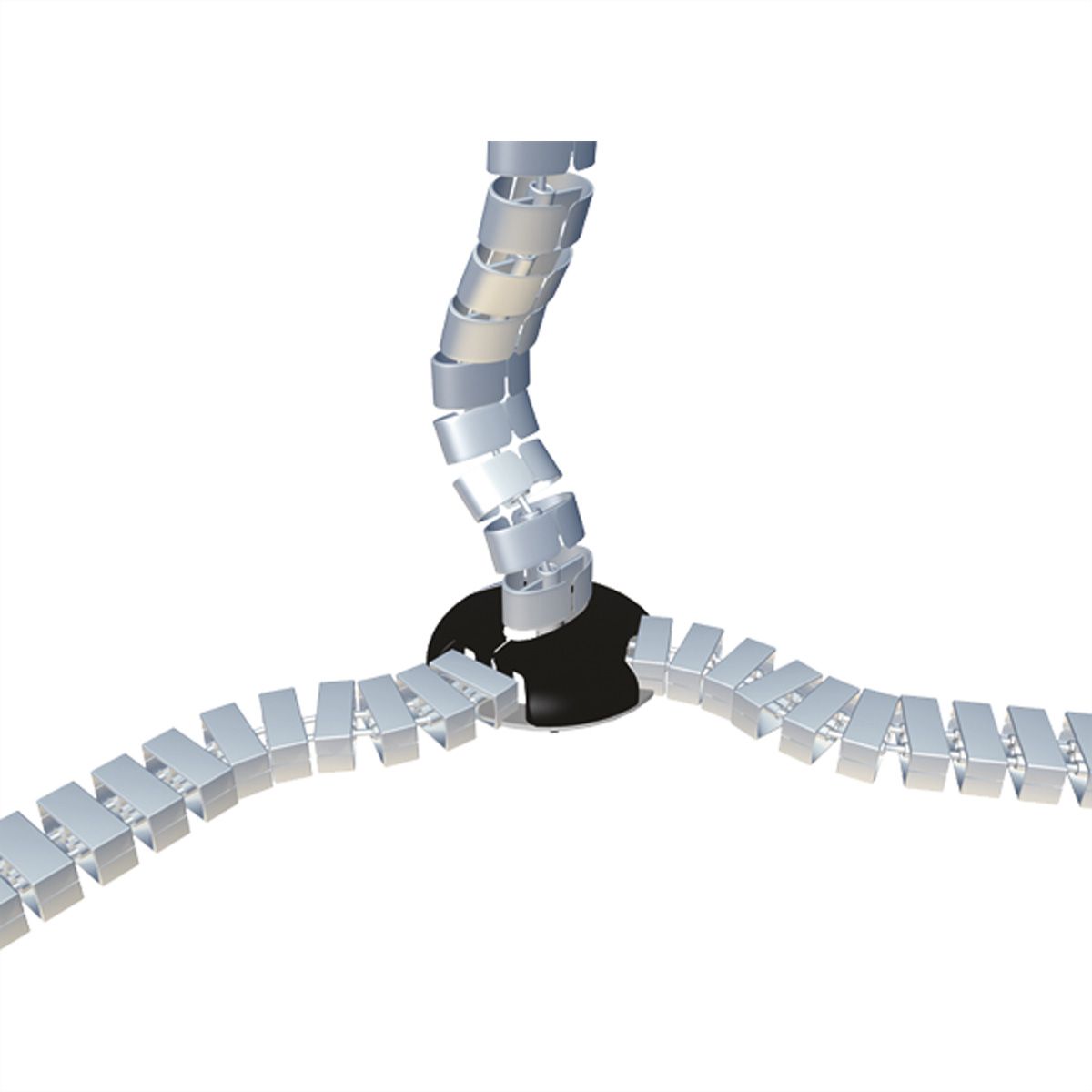

Cable snake Easy - Switch Premium, material - polypropylene - Flexible cable routing system for vertical cable routing. Optimum unwinding properties for height-adjustable workstations

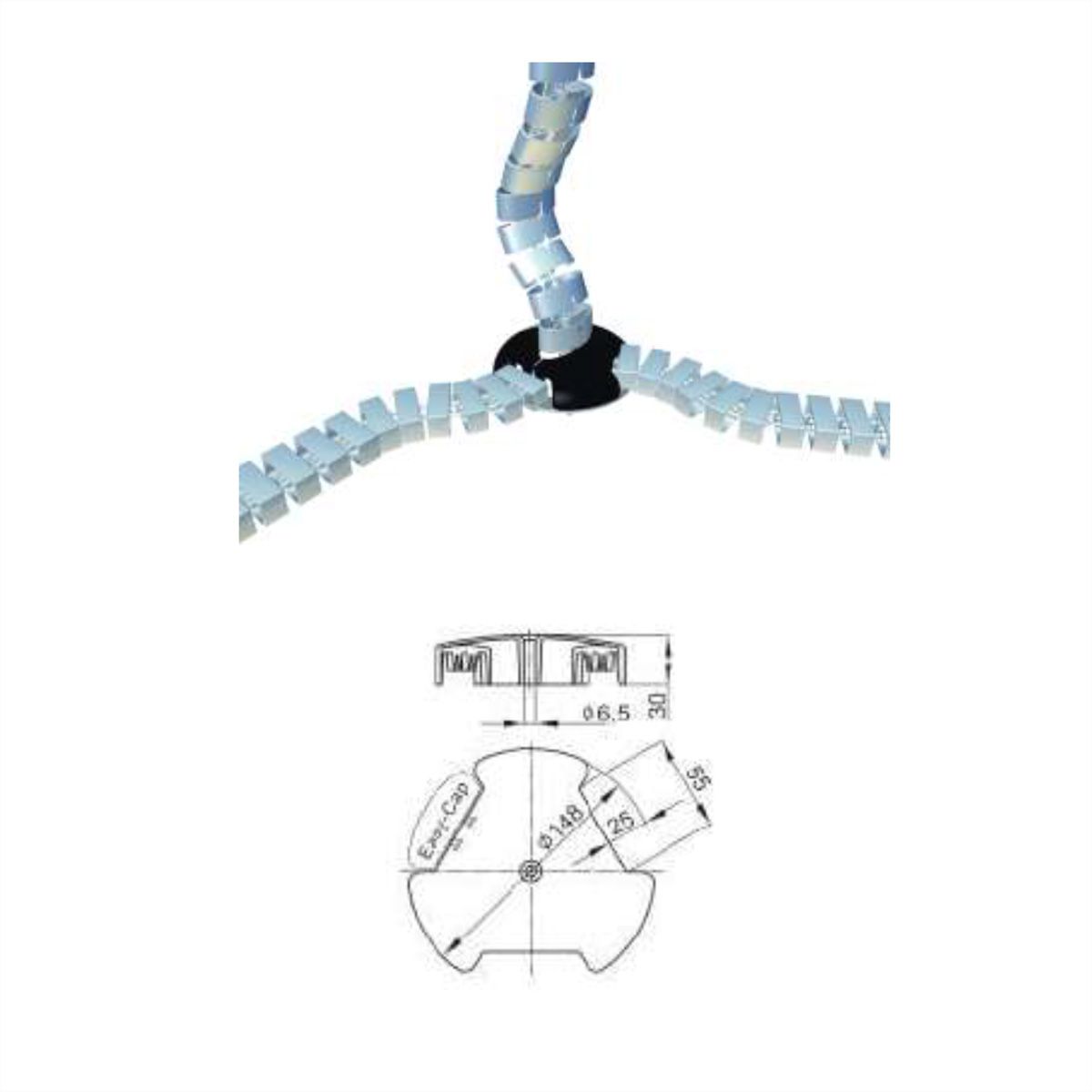

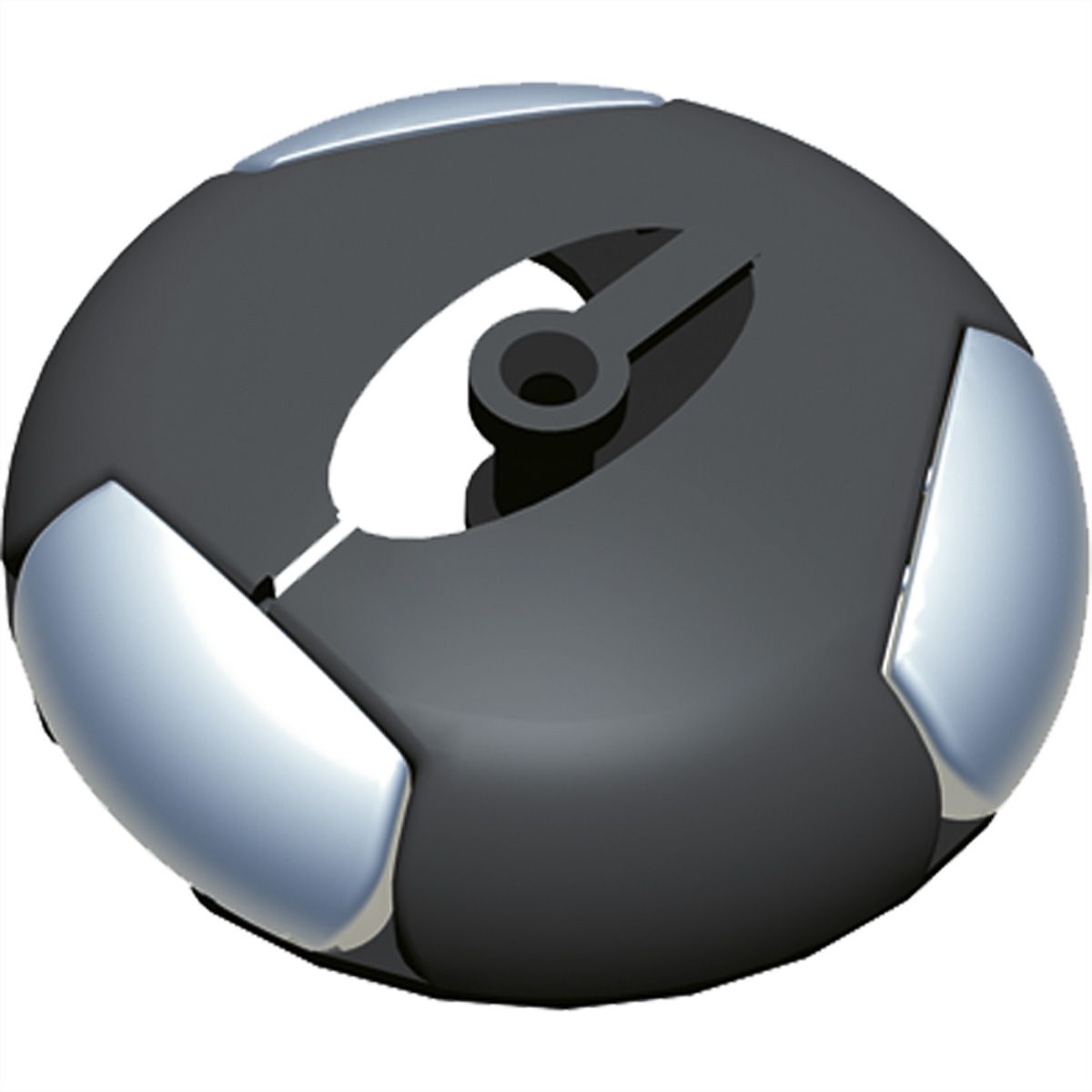

- Cable snake 4-way distributor - 3x 120° horizontal branch sockets - For cable snake Classic, Cube, Pro - 1 vertical coupling point for cable snake Premium - Incl. fixing screw and solid base plate Easy-Floor-Premium - Material: polypropylene. Finely anodised surface

Flexible cable routing system for vertical cable routing. Optimum unwinding properties for height-adjustable workstations. Short-term loads with optional Easy-Rope™ pull rope up to approx. 100 kg. Two-chamber system for separating data and power cables. 2D/3D movable and longitudinally flexible. Optional: tool-free branching with Easy-Switch™Premium distributor. Can be attached to mounting rod or mounting cable. - Tool-free and time-saving cable installation thanks to Easy-Zip™ zip fastener principle. Accessories also for special applications.

Specifications

Manufacturer BACHMANN
Product group Power Bars
Product type Cable management system
Colour grey
Height 35 mm
Width 170 mm
Depth 170 mm
Weight 0.408 kg
Height of packaging (single piece) 40 mm
Width of packaging (single piece) 200 mm
Depth of packaging (single piece) 220 mm
Package weight (single piece) 0.406 kg

Downloads

Manufacturer data sheet - Deutsch (79.2 KB)

Download

The BACHMANN brand stands for customer-oriented electrotechnical components and systems.

In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.
