BACHMANN CEE adapter CEE plug 16A, 1x16A 5p400V 1x32A 5p400v 2protect.

BACHMANN CEE adapter CEE plug 16A, 1x16A 5p400V 1x32A 5p400v 2protect.

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 12/09/2024
Item no. 19073515
Brand / Manufacturer BACHMANN
Manuf. item no. 349.006
EAN 4016514010257
Item weight 0.903 kg

Description

Power distributor 400V/230V

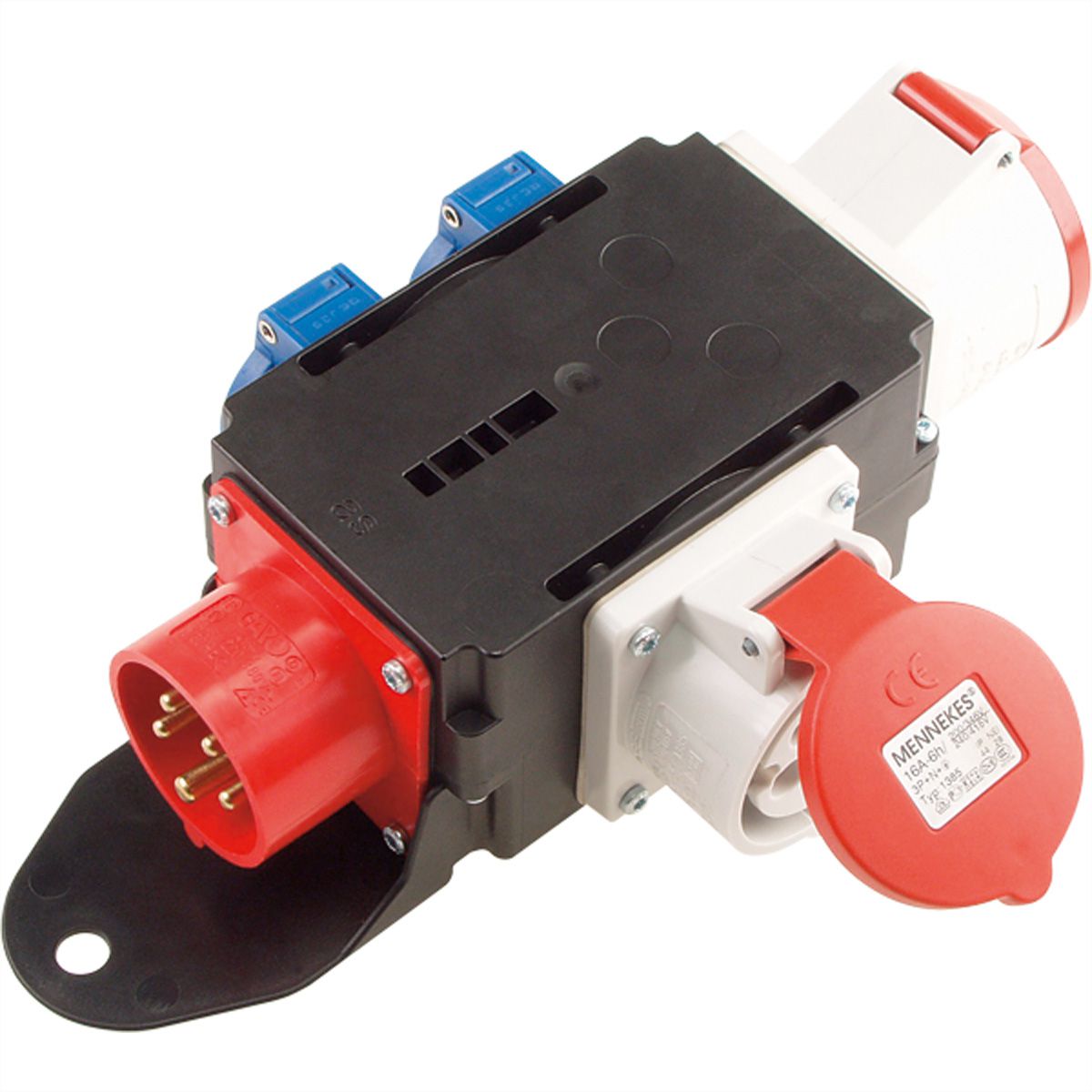

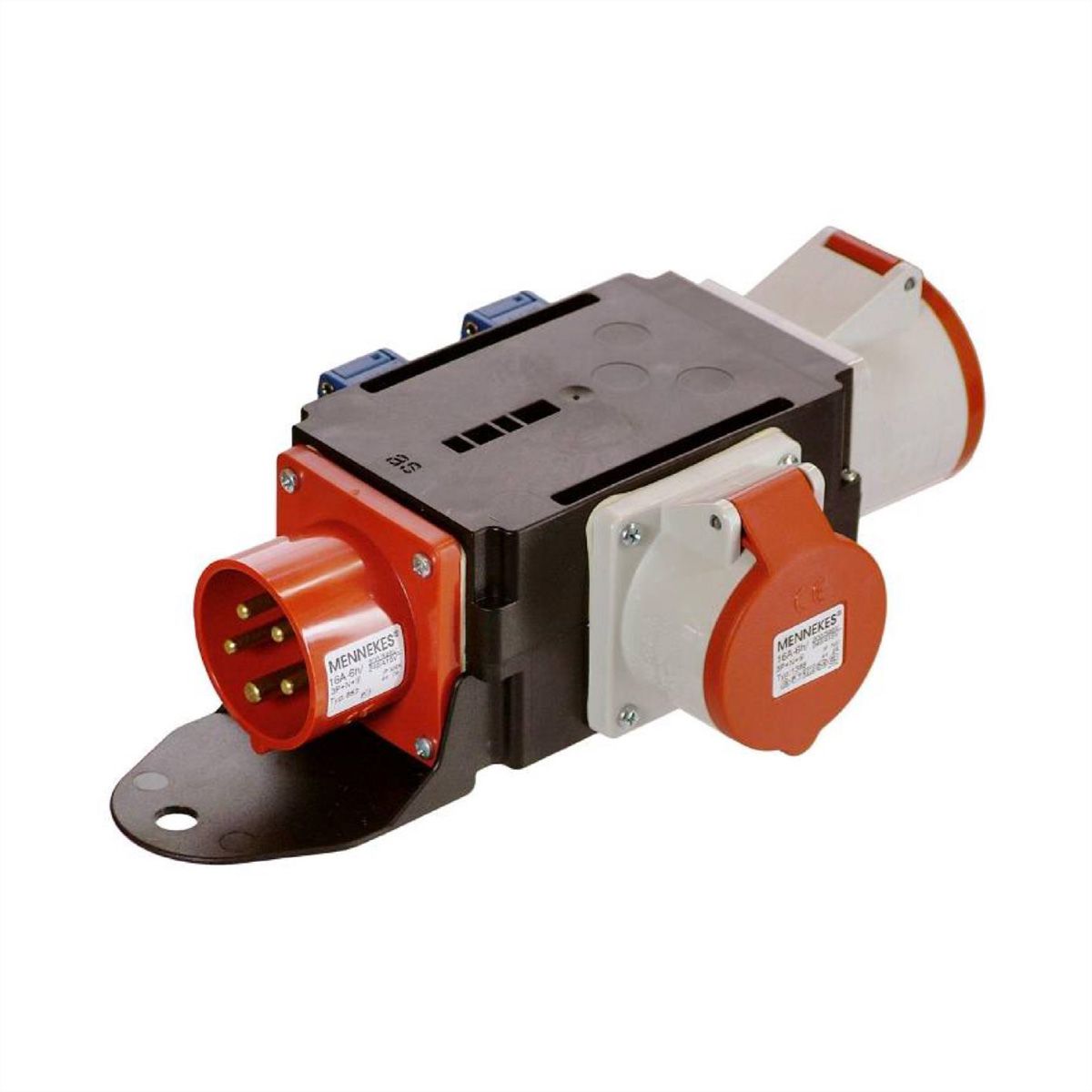

CEE adapter 1CEE plug 16A, 1 CEE socket 16A + 1x32A, 2x protective contact 16A, IP44 special plastic - Sockets: - Tested according to DIN VDE 0620-1, IEC 60309, RN-F tested according to DIN VDE 0282-4 - 230V/400V, IP44 splash-proof - Red/black - Connection: - Input: CEE plug (400V, 16A, 5-pin) - Output: 1 CEE socket outlet (400V, 32A, 5-pin), 1 CEE socket outlet (400V, 16A, 5-pin), 2 earthed socket outlets with safety hinged covers (230V/ 16A)

Specifications

Manufacturer BACHMANN
Product group Power Bars
Product type Power Distribution Units
Colour Red Black
Length 0 m
Scope of delivery 1x power distributor
Protection class (IP Code) IP44
Height 90 mm
Width 175 mm
Depth 300 mm
Weight 0.913 kg
Height of packaging (single piece) 90 mm
Width of packaging (single piece) 250 mm
Depth of packaging (single piece) 160 mm
Package weight (single piece) 0.903 kg

Downloads

Manufacturer data sheet - Deutsch (111.6 KB)

Download

More PDF data - Installation and safety instructions - German - English - French - Italian (482.4 KB)

Download

The BACHMANN brand stands for customer-oriented electrotechnical components and systems.

In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.

Product security

Information in accordance with the EU Product Safety Regulation, (GPSR):

Bachmann GmbH
Ernsthaldenstr. 33, 70565 Stuttgart, Germany
