Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 19070423 |
|---|---|
| Brand / Manufacturer | BACHMANN |
| Manuf. item no. | 950.010 |
| EAN | 4057298126666 |
| Item weight | 0.02 kg |
:strip_icc():strip_exif()/logos/bachmann.png "BACHMANN")

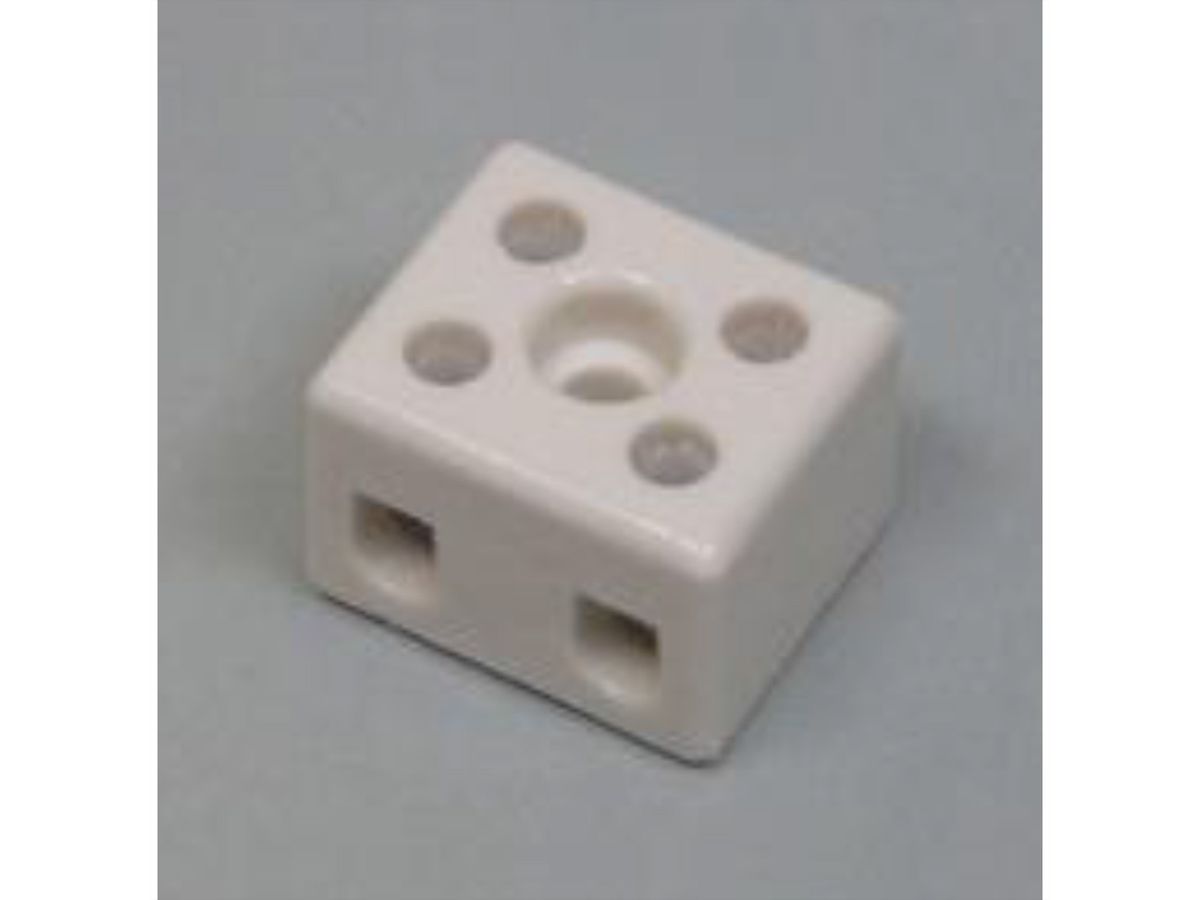

Ceramic socket terminal up to 4mm² 2-pole Non-flammable, temperature-resistant Dimensionally stable up to approx. 1000°C (ceramic only) Steatite unglazed C220, IEC 672-1 With fastening hole in the middle Colour: Light beige Continuous operating temperature: max. 200°C Rated insulation voltage: 450V Test current: 32A Terminal range 2.5-10mm², hole diameter approx. 4.2mm Terminal body: Brass, electroplated Screws: Steel, electroplated Screws are screwed in completely, M3.5 LxWxH: approx. 24x21.2x19.8mm
| Manufacturer | BACHMANN |
|---|---|
| Product group | Power Bars |
| Product type | Light |
| Regional use | Without restriction |
| Height | 0.02 m |
| Width | 0.02 m |
| Depth | 0.02 m |
| Height of packaging (single piece) | 0 mm |
| Width of packaging (single piece) | 0 mm |
| Depth of packaging (single piece) | 0 mm |
| Package weight (single piece) | 0.02 kg |
:strip_icc():strip_exif()/cms_secde/cms/ueber_uns/markenwelt/hersteller_logos/bachmann.png)
The BACHMANN brand stands for customer-oriented electrotechnical components and systems.
In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.
