Description

TOP FRAME, the elegant design solution

TOP FRAME is the solution for power and data supply in living and working environments, such as conference rooms. Thanks to the fully retractable cover, power and data access is easy to reach from different sides. The balanced geometry of TOP FRAME fits elegantly into the furniture surface and allows it to be veneered with sophisticated surfaces. The opening of TOP FRAME emphasises the demand for elegance: TOP FRAME is opened and closed simply and silently at the touch of a finger.

- Power and data access from any side - Silent opening - Integrated into the furniture surface - Can be installed flush with the surface - Version with surrounding frame suitable for retrofitting

Specifications

Manufacturer	BACHMANN
Product group	Power Bars
Product type	Integrated unit CONFERENCE
Colour	black
Length	0 m
Number of socket pots	5
Output alignment	2x Geaard stopcontact, 2x USB, 1x ABD
Regional use	Germany, Austria, Netherlands

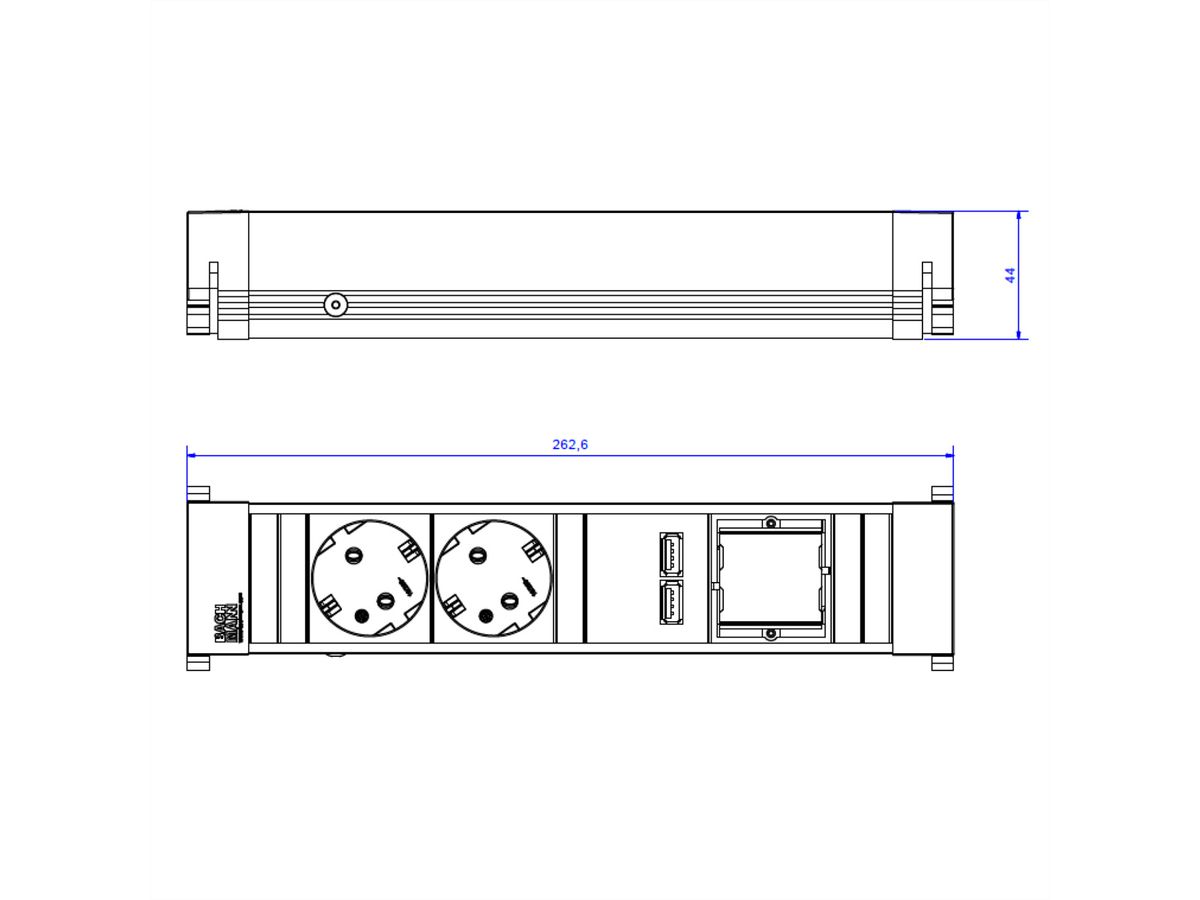

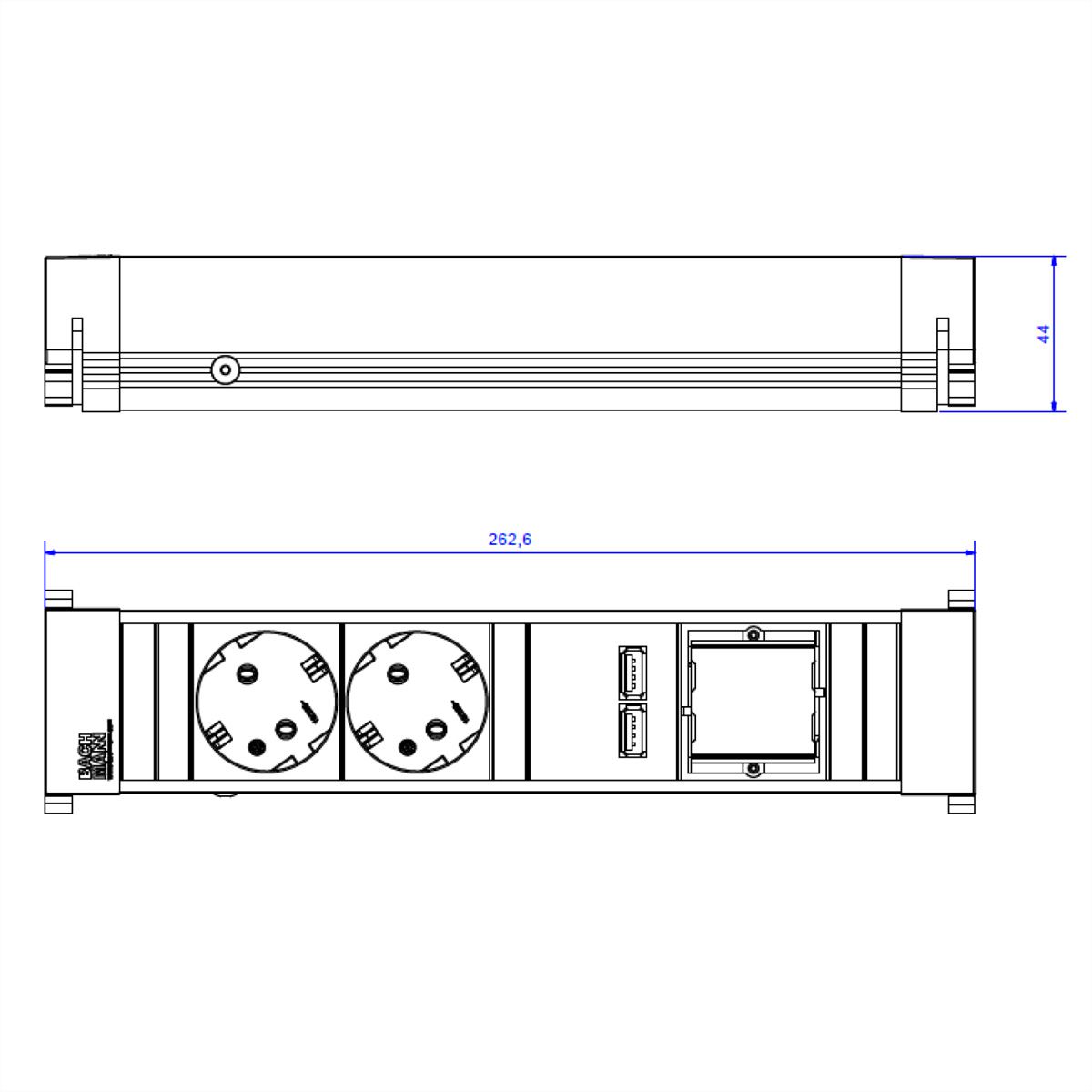

Height	42 mm
Width	263 mm
Depth	52 mm
Weight	424 g
Height of packaging (single piece)	80 mm
Width of packaging (single piece)	320 mm
Depth of packaging (single piece)	70 mm
Package weight (single piece)	0.424 kg

Downloads

Manufacturer data sheet - Deutsch (61.2 KB)

Download

Manufacturer data sheet - English (61.2 KB)

Download

Safety instructions - German - English - French - Italian - Nederlands (467.0 KB)

Download

Accesories

BACHMANN GST18-3 device cable with earthing contact/device coupler, 1,5 m, black, 1.5 m

Item no.:	19071257
Manuf. item no.	375.000

None EUR incl. VAT

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

BACHMANN GST18-3 earthing contact/device coupler cable, 3 m, black, 3 m

Item no.:	19071258
Manuf. item no.	375.003

None EUR incl. VAT

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

BACHMANN Appliance cable earthing contact/appliance coupler GST18-3, 3 m, black, 5 m

Item no.:	19071259
Manuf. item no.	375.007

None EUR incl. VAT

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Show all

Compatible with

BACHMANN CONFERENCE connection panel with frame, Medium, chrome

Item no.:	19072562

None EUR incl. VAT

Deliverable approx. 01/06/2025

BACHMANN CONFERENCE connection panel with frame, Medium, grey

Item no.:	19072563

None EUR incl. VAT

Deliverable approx. 01/06/2025

BACHMANN CONFERENCE connection panel with frame, Medium, moonstone iron mica

Item no.:	19072564

None EUR incl. VAT

Deliverable approx. 01/06/2025

Show all
