Description

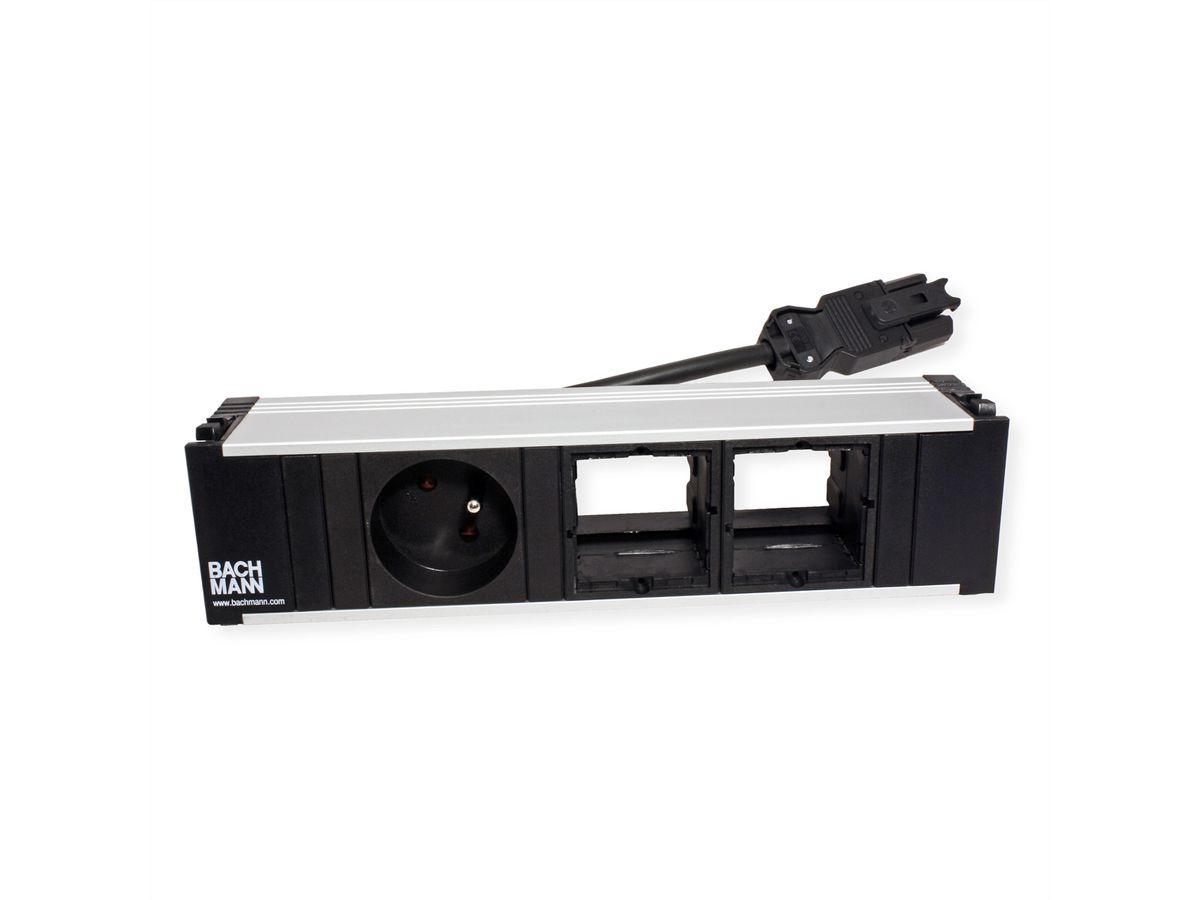

CONI built-in connection panels

CONI brings flexibility to the work surface, as CONI enables free, customised access to electricity. Thanks to its minimal installation depth, CONI provides sufficient space, even when installed close to the edge. Different standard surface designs also ensure creative freedom. When closed, the furniture surface and CONI form a flat surface. If connections are required, CONI can be opened, the required plugs inserted and then closed again. The cables are not pinched thanks to the integrated brush insert. - The configuration of the sockets can be freely selected with CONI, as the respective socket outlet unit can be replaced quickly and without tools.

Power input: 0.2 m cable and GST18i3 plug - Output: - 1x UTE (F) - 2x ABD

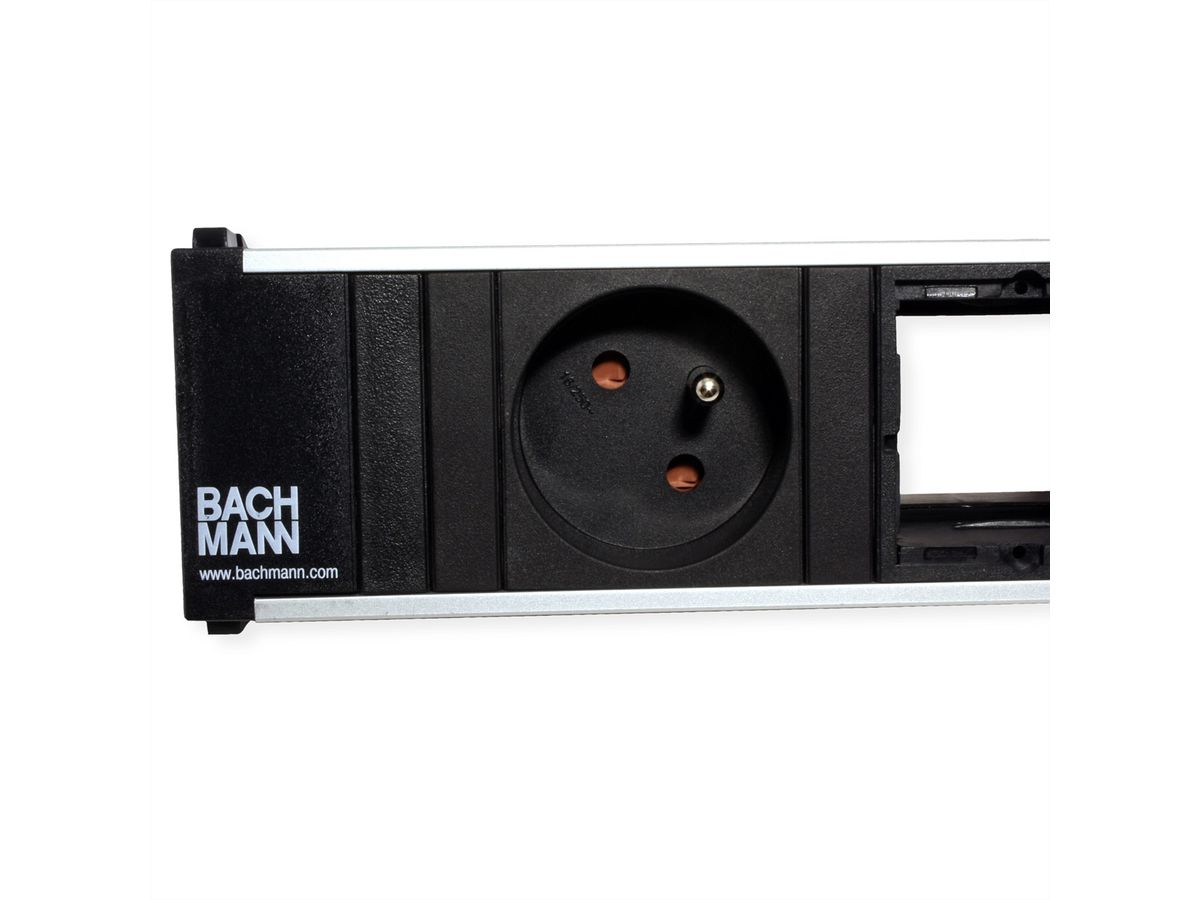

UTE Version - Suitable for France, Czech Republic, Slovakia

Specifications

Manufacturer	BACHMANN
Product group	Power Bars
Product type	Integrated unit CONI
Colour	various
Number of socket pots	3
Socket type	3P. UTE, CEE 7/5, Type-E
Regional use	France, Czech Republic, Slovakia
Height	44 mm
Width	217 mm
Depth	52 mm
Weight	305 g
Height of packaging (single piece)	90 mm
Width of packaging (single piece)	320 mm
Depth of packaging (single piece)	70 mm
Package weight (single piece)	0.302 kg

Downloads

Manufacturer data sheet - Deutsch (278.1 KB)

Download

Manufacturer data sheet - English (278.1 KB)

Download

More PDF data - Installation and safety instructions - German - English - French - Italian (482.4 KB)

Download
