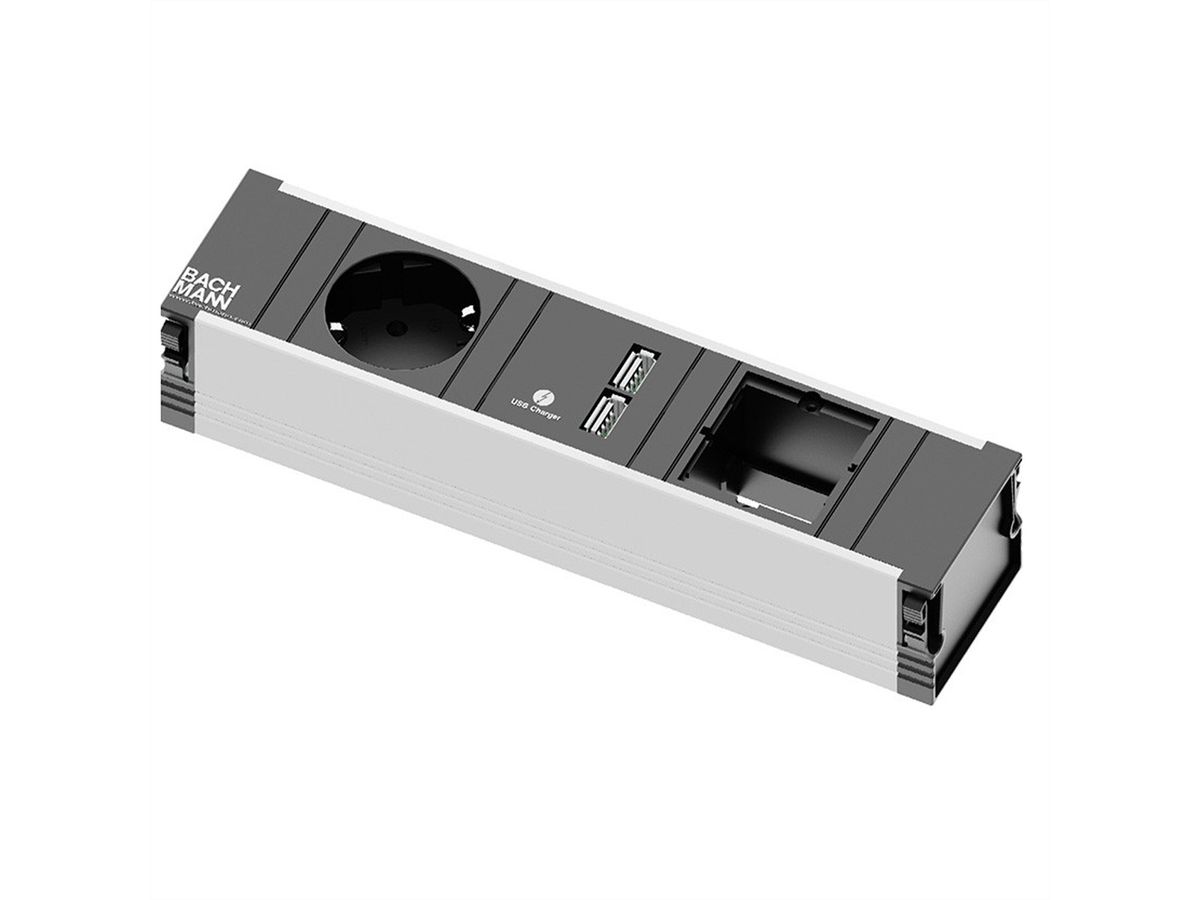

BACHMANN CONI Small 1x earthing contact 1x USB Charger 1x ABD
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 19071980 |
|---|---|
| Brand / Manufacturer | BACHMANN |
| Manuf. item no. | 912.0167 |
| EAN | 4016514059485 |
| Item weight | 0.346 kg |
:strip_icc():strip_exif()/bilder/icons/icon_plug_type-f.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_flag_germany.png){kind=icon}
|
|
:strip_icc():strip_exif()/logos/bachmann.png "BACHMANN")
Description
Power strips for CONI, CONI DUO and CONI COVER
CONI brings flexibility to the work surface, because CONI enables free, individual access to power. Thanks to its minimal installation depth, CONI provides sufficient space, even when installed close to the edge. Different standard surface designs also ensure design freedom. When closed, the furniture surface and CONI form a flat surface. If connections are required, CONI can be opened, the required plugs inserted and then closed again. The cables are not pinched thanks to the integrated brush insert. With CONI, the configuration of the socket outlets can be freely selected, as the respective socket outlet unit can be replaced quickly and without tools.

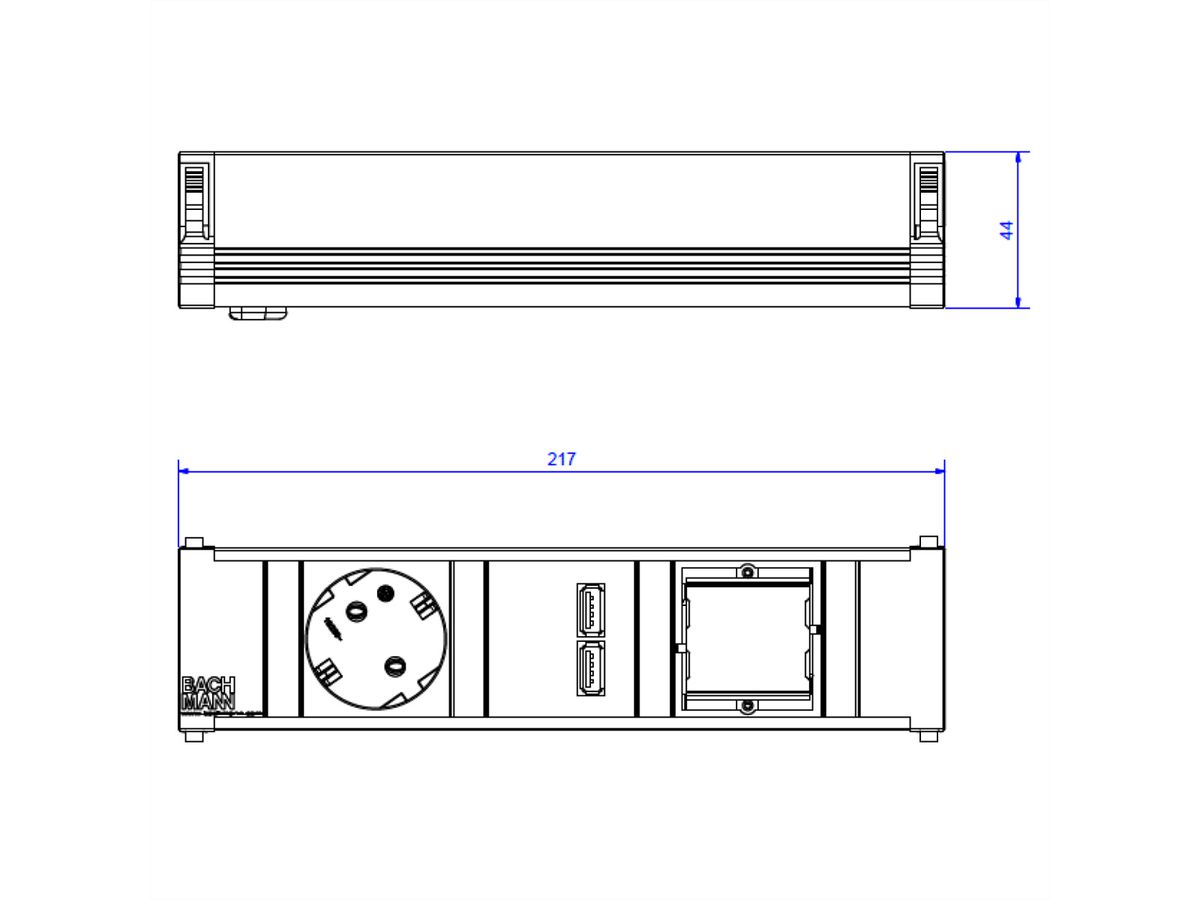

- Integrated into the furniture surface - Minimal installation depth - robust frame design - Integrated brush insert for closing when cables are plugged in - Quick replacement of the power strip - Subsequent installation possible - Dimensions: 255 x 151 x 59 mm - For panel thickness: 10 - 35 mm
Specifications
| Manufacturer | BACHMANN |
|---|---|
| Product group | Power Bars |
| Product type | Integrated unit CONI |
| Colour | various |
| Length | 0.2 m |
| Function | ingebouwd aansluitpaneel |
| Max. capacitance | 3600W |
| Max. voltage | 230V |
| Number of socket pots | 4 |
| Output alignment | 1x Geaard stopcontact, 2x USB, 1x ABD |
| USB Charger | yes |
| Material (casing) | Kunststof, Aluminium |
| Colour (Design profile) | RAL 7035 lichtgrau |
| Connection cable | 0,2m H05VV-F3G1,5mm² Kabel |
| Connector plug | GST18i3 connector |
| Regional use | Germany, Austria, Netherlands |
| Height | 255 mm |
| Width | 151 mm |
| Depth | 59 mm |
| Weight | 334 g |
| Height of packaging (single piece) | 80 mm |
| Width of packaging (single piece) | 70 mm |
| Depth of packaging (single piece) | 320 mm |
| Package weight (single piece) | 0.346 kg |
:strip_icc():strip_exif()/cms_secde/cms/ueber_uns/markenwelt/hersteller_logos/bachmann.png)
The BACHMANN brand stands for customer-oriented electrotechnical components and systems.
In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.
