Description

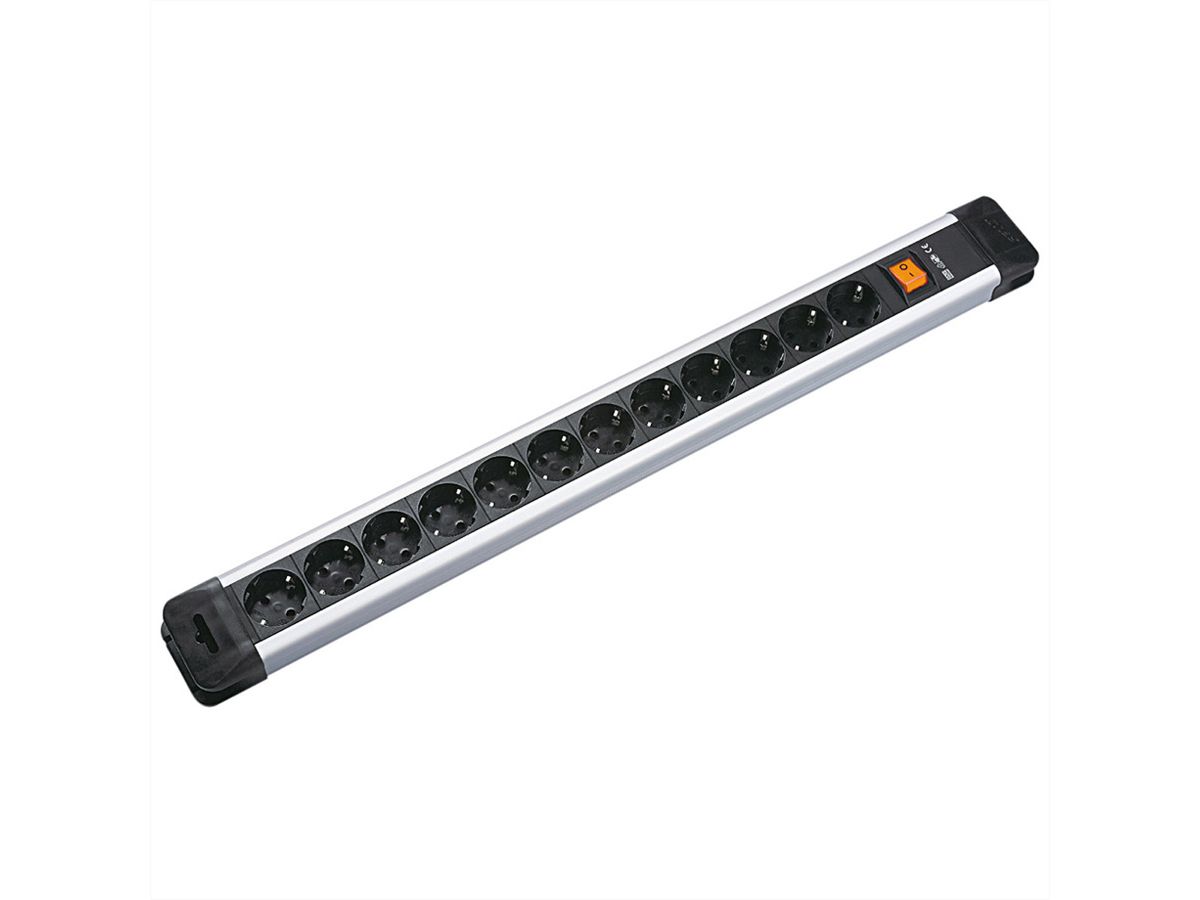

CONNECTUS socket strip with 12x earthing contact and switch

12-way socket strip - Cable: H05VV-F 3G 1.50 mm², length 2m - Total power max. 16 A / 3. 680 W - 2-pole illuminated rocker switch 16 A - Protective contact socket outlets rotated by 35°, with nickel-plated protective contacts and integrated touch protection - Halogen and PVC-free socket pots - Plastic profile - Moulded angled protective contact plug - Integrated black end caps with cable winder - Mounting surface for quick and secure attachment

Specifications

Manufacturer	BACHMANN
Product group	Power Bars
Product type	Power strip
Colour	various
Length	2 m
Function	6 fach Steckdosenleiste
Mounting form	Desktop
Max. capacitance	3600W
Max. voltage	230V AC
ON/OFF Switch	yes
Switch type	2 pol., beleuchtet
Number of socket pots	12
Quantity of outputs/angles	12 / 45 °
Output alignment	Reihe
Socket type	3P. German, CEE 7/3, Type-F
Material (casing)	Kunststoff
Colour (Design profile)	black /silver
Connection cable	HO5VV-F3G, 2m, schwarz
Connector plug	Schuko
Plug type	3P. German, CEE 7/7, Type-E/F
Regional use	Germany, Austria, Netherlands
Height	49 mm
Width	695 mm
Depth	72 mm
Weight	1.2 kg
Height of packaging (single piece)	30 mm
Width of packaging (single piece)	700 mm
Depth of packaging (single piece)	80 mm
Package weight (single piece)	1.114 kg

Downloads

Manufacturer data sheet - Deutsch (91.6 KB)

Download

Manufacturer data sheet - English (91.6 KB)

Download

Safety instructions - German - English - French - Italian - Nederlands (467.0 KB)

Download

Alternatives

BACHMANN CONNECTUS 12xCEE7/3, 1xSchalter 2,0m CEE7/7 Grau

Item no.:	19073358
Manuf. item no.	BM005901

None EUR incl. VAT

Deliverable approx. 04/21/2025
