Description

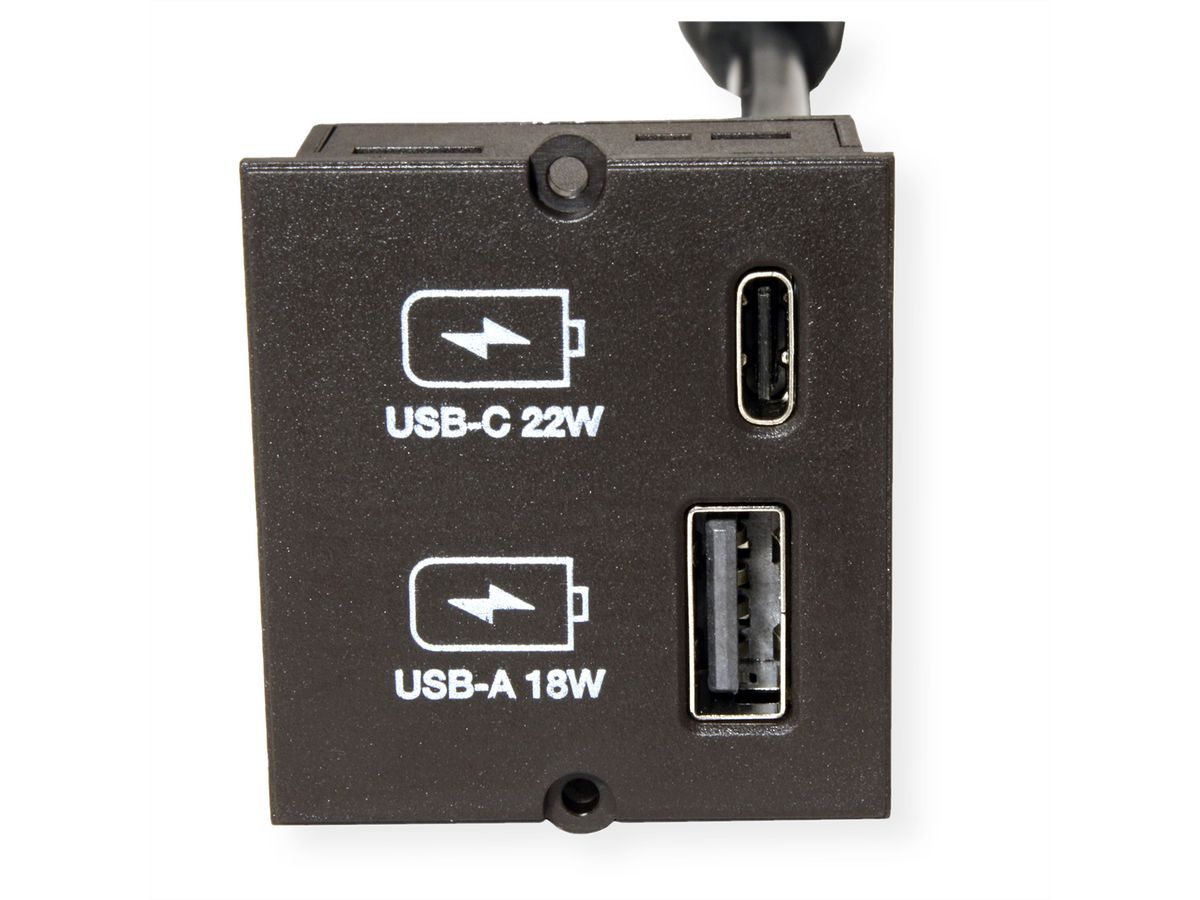

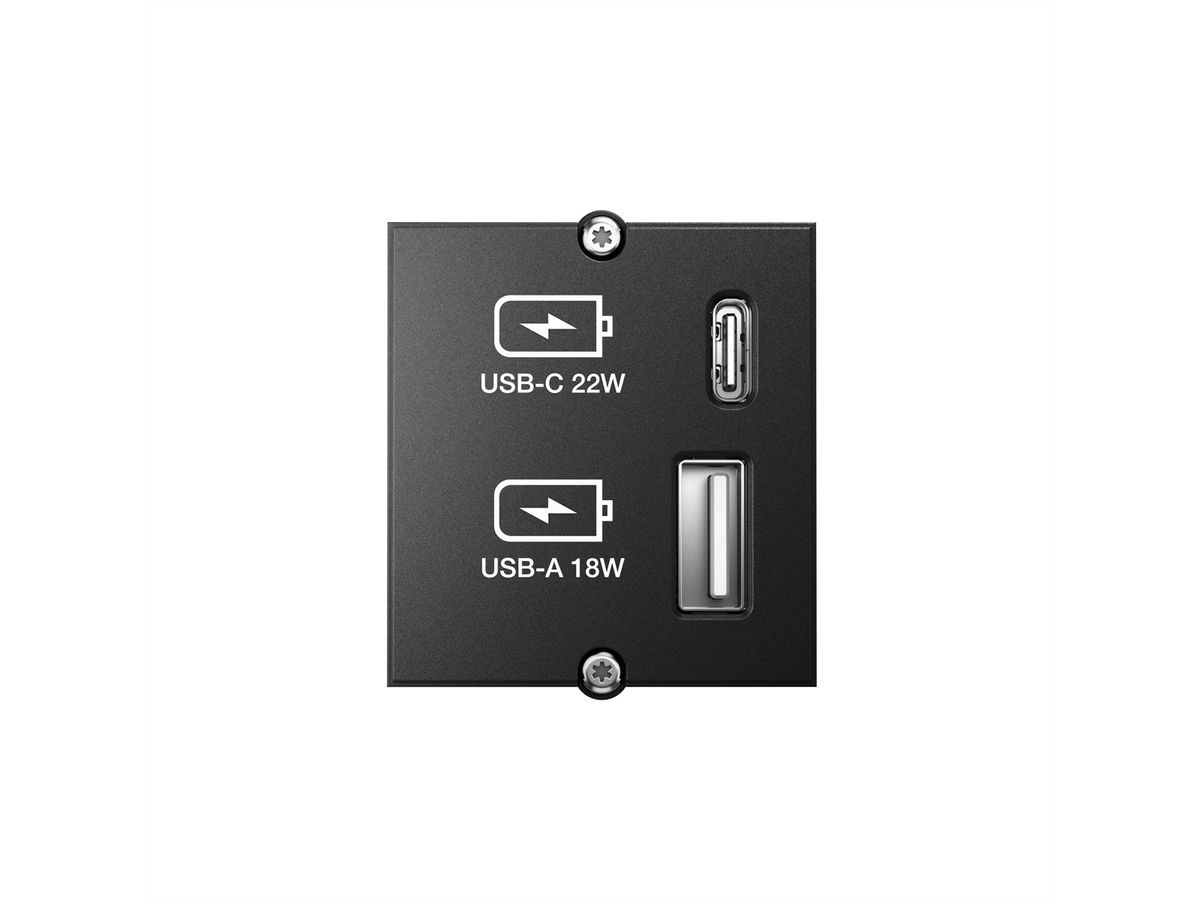

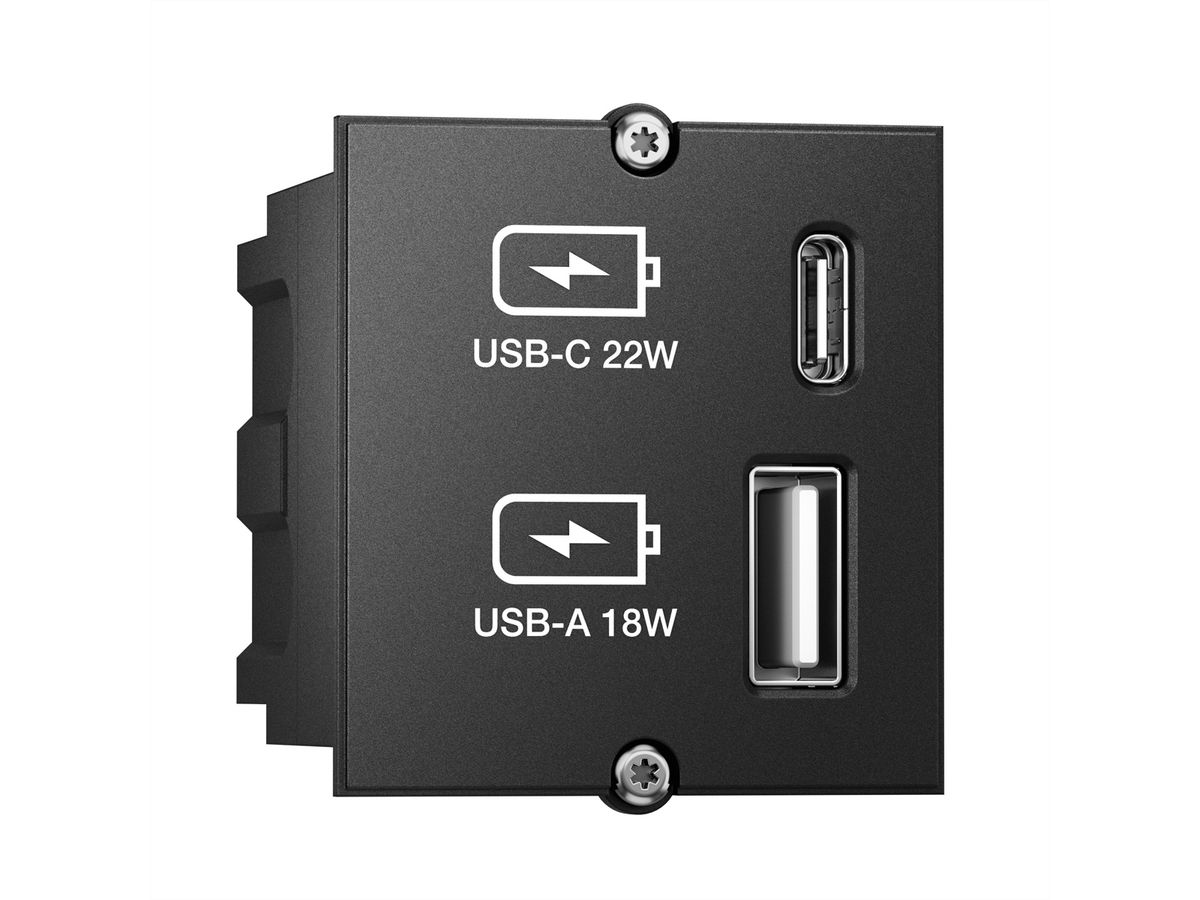

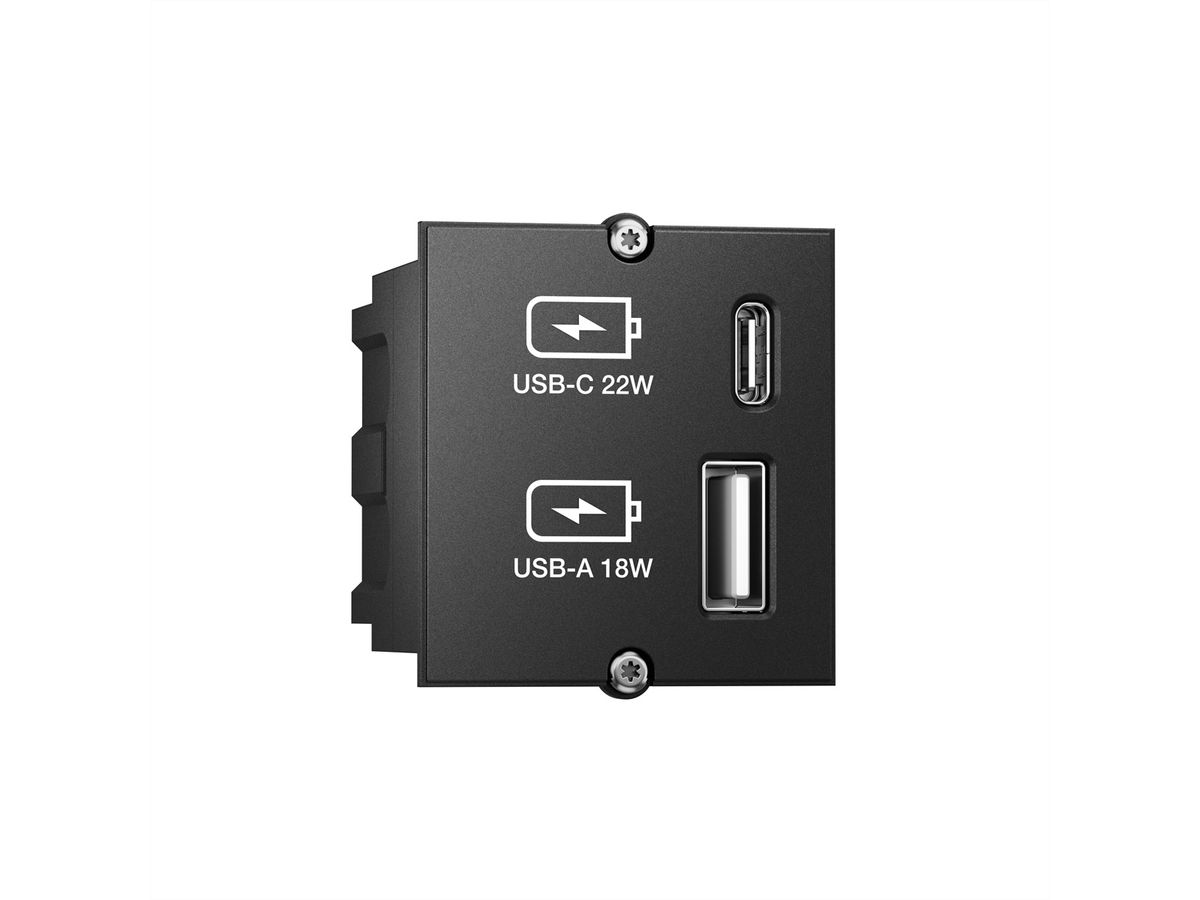

USB Charger Module Type A & Type C

Data, audio and video connections can be fitted easily and individually. - BACHMANN custom modules are the central building blocks for video, audio and network connections. Their design enables simple and flexible installation in the areas of facility systems, rack and electrical installations. The standardised custom modules enable optimum configuration for every media technology and network connection requirement. Socket / socket or connections with screw terminals also ensure the simplest possible installation. BACHMANN custom modules are also an excellent addition to your electrical installation. Just a few components make the custom modules compatible with the standard switch programmes of well-known manufacturers. Simple assembly and disassembly means that all installations can be quickly adapted to changing requirements or the latest state of the art. - Advantages at a glance - Flexibly interchangeable modules - For data, video and audio connections - Use in facility systems, rack installations and

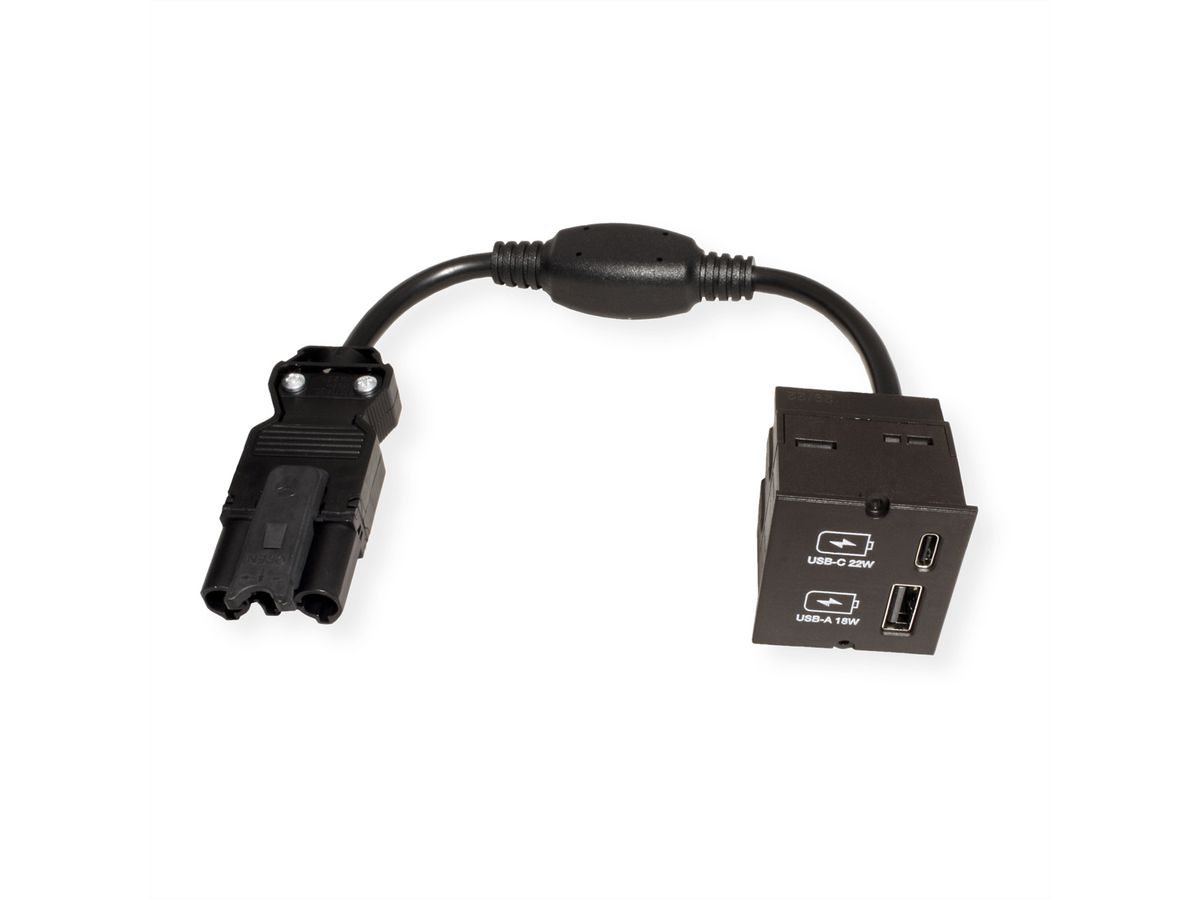

Integration into all switch programmes of well-known manufacturers - Simple connection via socket / socket or screw terminal connection - 1xUSB type A Q-port - 1xUSB type C port - Connection via GST18 - Output voltage / charging current C-port - DC5V 3.0A - DC9V 2. 3A - DC15V 1.5A - Output voltage / charging current Q-port - DC5V 3.0A - DC9V 2.0A - DC12V 1.5A - C port + Q port (both outputs) - C port:DC5V 2. 0A, - Q port:DC5V 1.5A - Charging standards - Power Delivery USB 3.1 PD - Qualcomm Quick Charge USB QC 3.0 -
