BACHMANN DESK 1x switch 3x earthing contact 1x ABD GST18

BACHMANN DESK 1x switch 3x earthing contact 1x ABD GST18

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 19071844
Brand / Manufacturer BACHMANN
Manuf. item no. 902.017
EAN 4016514035014
Item weight 0.578 kg

Description

BACHMANN DESK 1 desk connection panels create optimum conditions for data, media and energy management wherever workstations are used flexibly. For example, in meeting rooms, in the home office or for desk sharing.

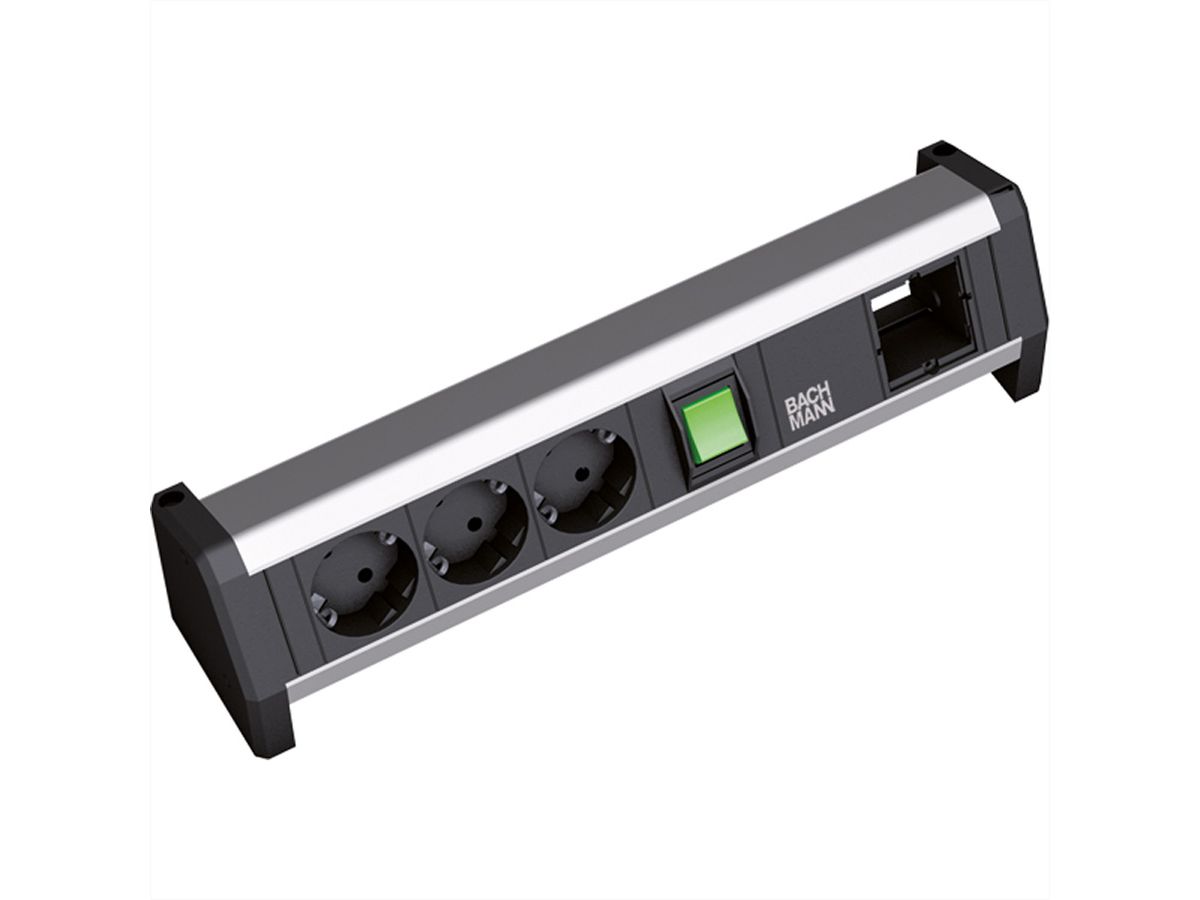

DESK 1 with 3x power sockets + 1x custom module - Anodised aluminium profile, power input: GST18 / power output: GST18, without supply cable and mounting bracket - 3 black socket outlets with earthing contact, rotated 35° - 1 illuminated 2-pole switch, length 365 mm

The advantages at a glance - Can be used flexibly anywhere - With Wieland plug-in system or permanently connected cables - With mounting or free-standing on the table - Custom versions for future-proofing

Specifications

Manufacturer BACHMANN
Product group Power Bars
Product type Surface-mounted unit DESK 1
Colour various
Length 0 m
Number of socket pots 4
Connection cable Zonder stroomkabel
Regional use Germany, Austria, Netherlands
Height 93 mm
Width 324 mm
Depth 74 mm
Weight 622 g
Height of packaging (single piece) 100 mm
Width of packaging (single piece) 340 mm
Depth of packaging (single piece) 90 mm
Package weight (single piece) 0.578 kg

Downloads

Manufacturer data sheet - Deutsch (55.8 KB)

Download

Manufacturer data sheet - English (55.8 KB)

Download

More PDF data - Installation and safety instructions - German - English - French - Italian (482.4 KB)

Download

Accesories

The BACHMANN brand stands for customer-oriented electrotechnical components and systems.

In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.
