BACHMANN DESK 2x earthing contact, 2x ABD GST18

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	19071976
Brand / Manufacturer	BACHMANN
Manuf. item no.	902.011
EAN	4057298009617
Item weight	0.485 kg

Description

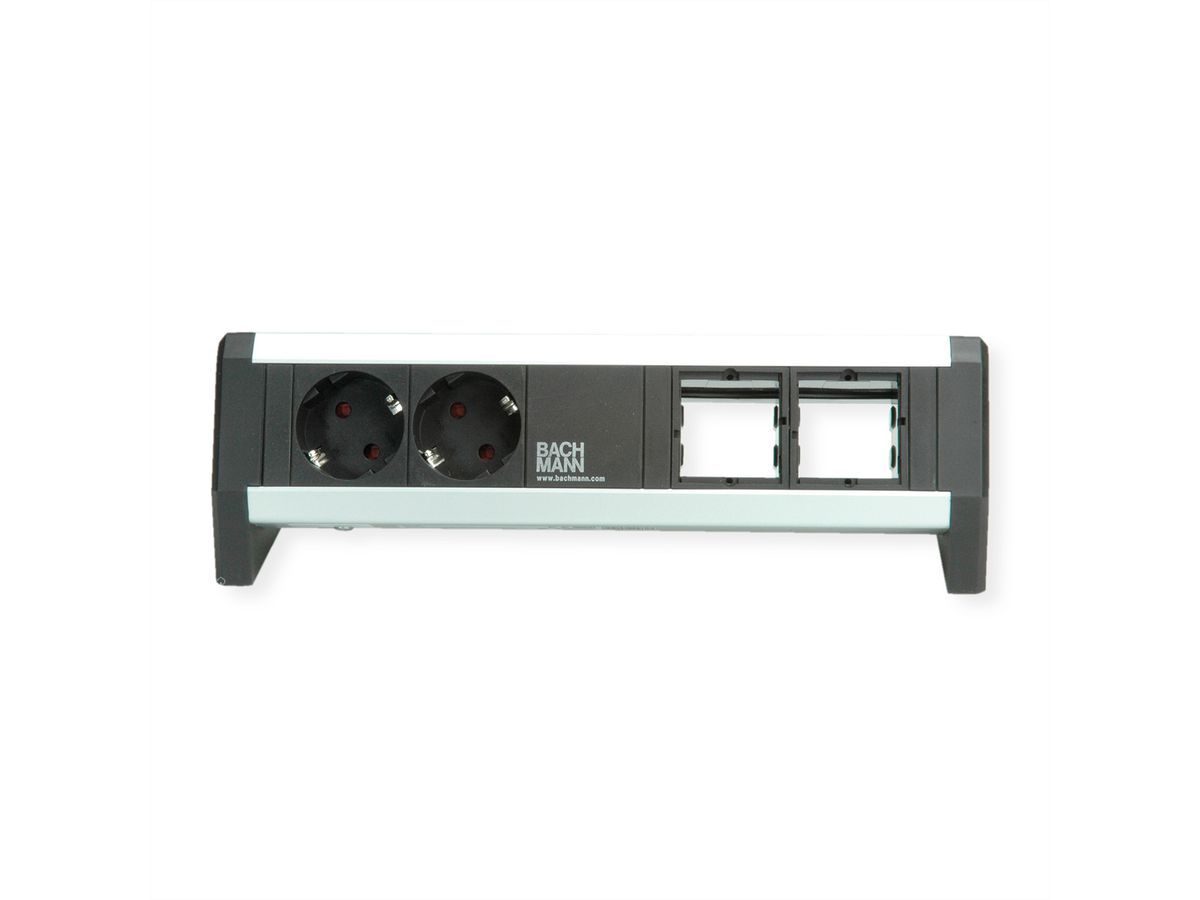

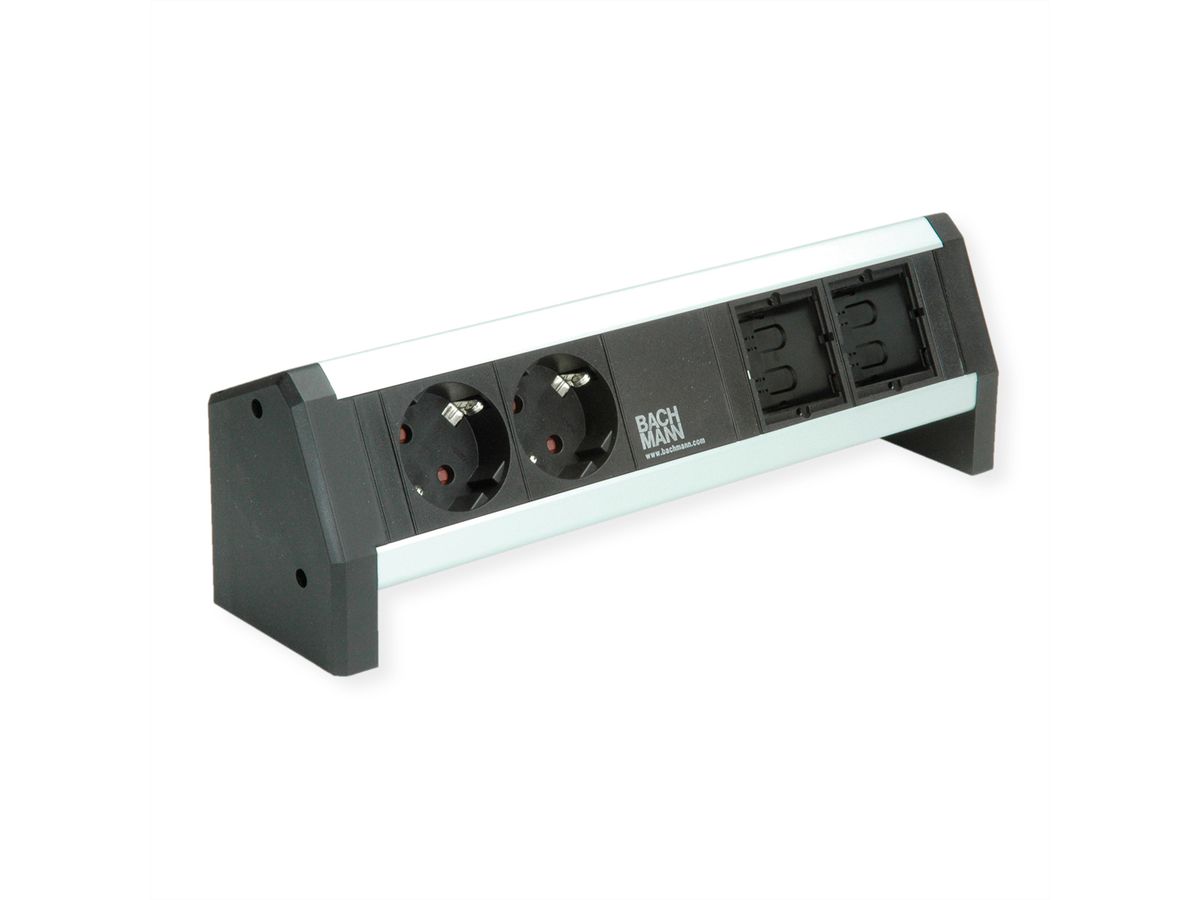

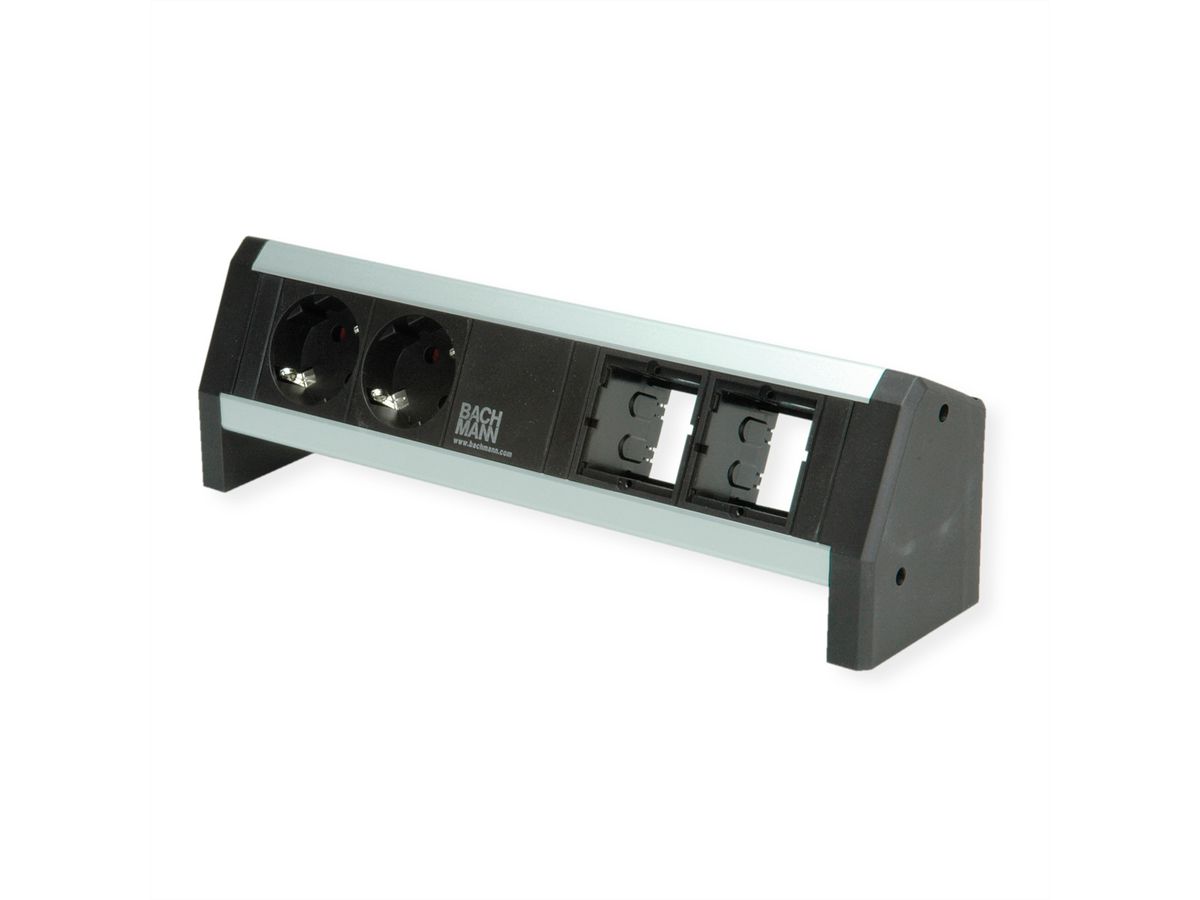

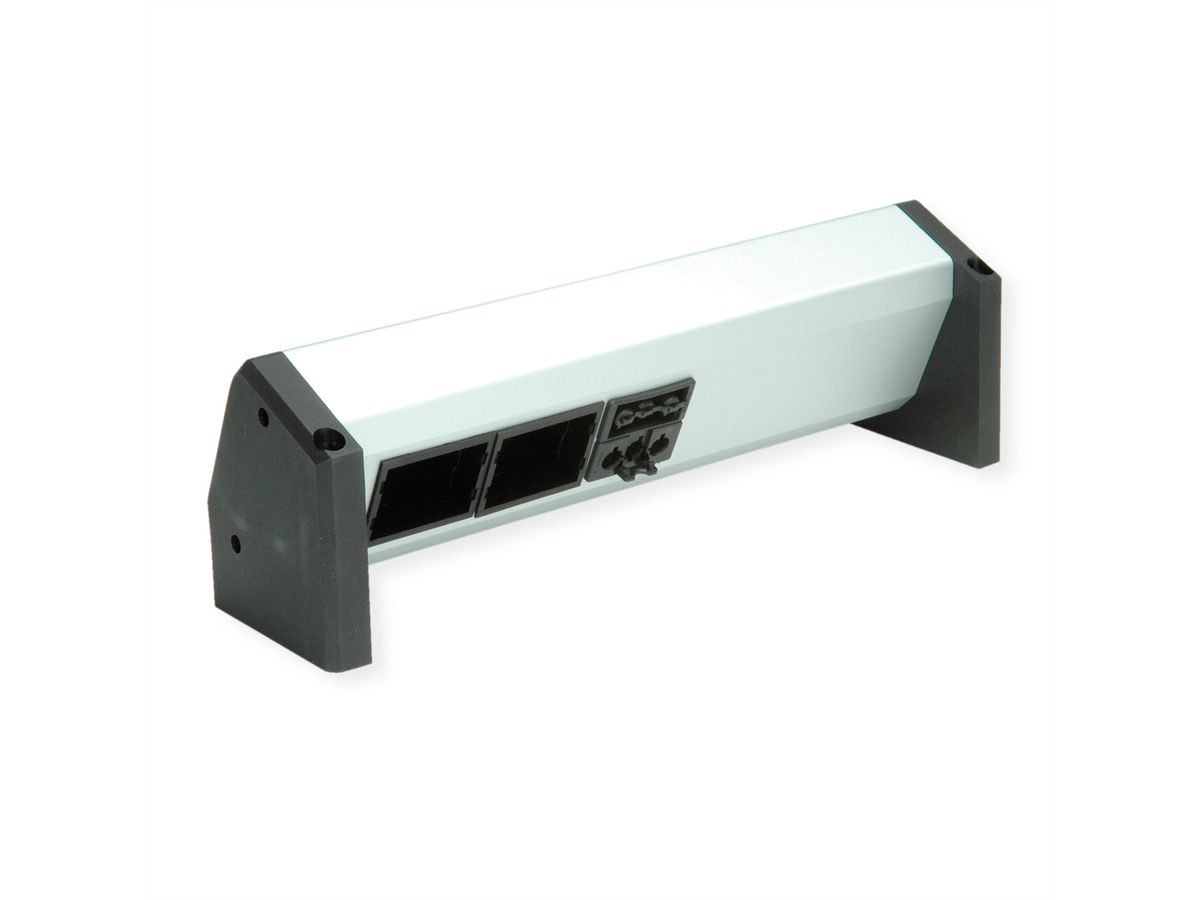

DESK 2x black socket outlets with earthing contact, 2x cover for custom modules, power input and output GST18

Sockets: - according to DIN 49 440, tested according to: VDE0620-1 - 2-pole with earthing contact - 16A/3680W, AC250V, IP20 - rotated by 35° - Custom modules: - 2x ABD for custom modules - Material: - Plastic: PA6 GF 30 V1, glow-wire test up to 850°C - Profile: anodised aluminium

Specifications

Manufacturer	BACHMANN
Product group	Power Bars
Product type	Surface-mounted unit DESK 1
Colour	black /silver
Number of socket pots	2
Regional use	Germany, Austria, Netherlands
Height	0.08 m
Width	0.09 m
Depth	0.34 m
Weight	0.53 kg
Height of packaging (single piece)	100 mm
Width of packaging (single piece)	90 mm
Depth of packaging (single piece)	340 mm
Package weight (single piece)	0.485 kg
