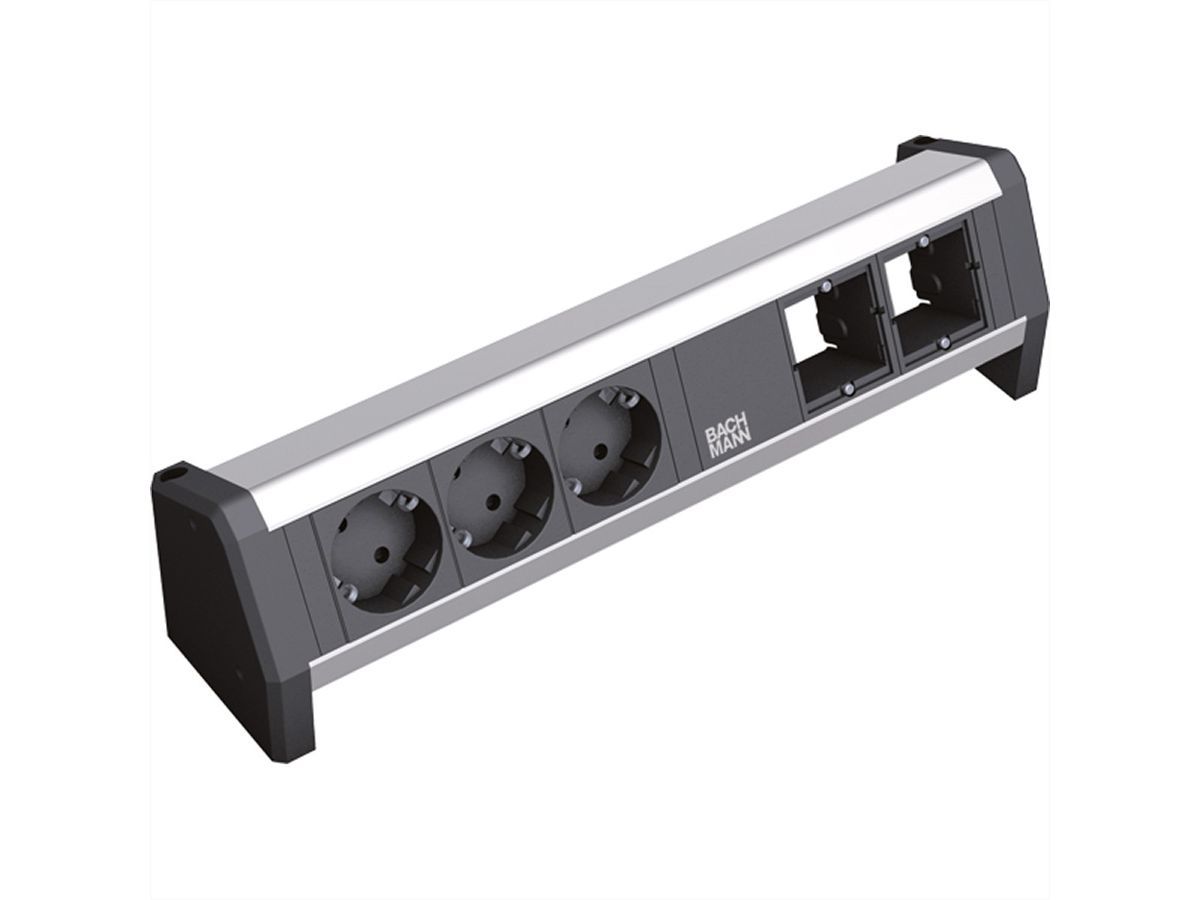

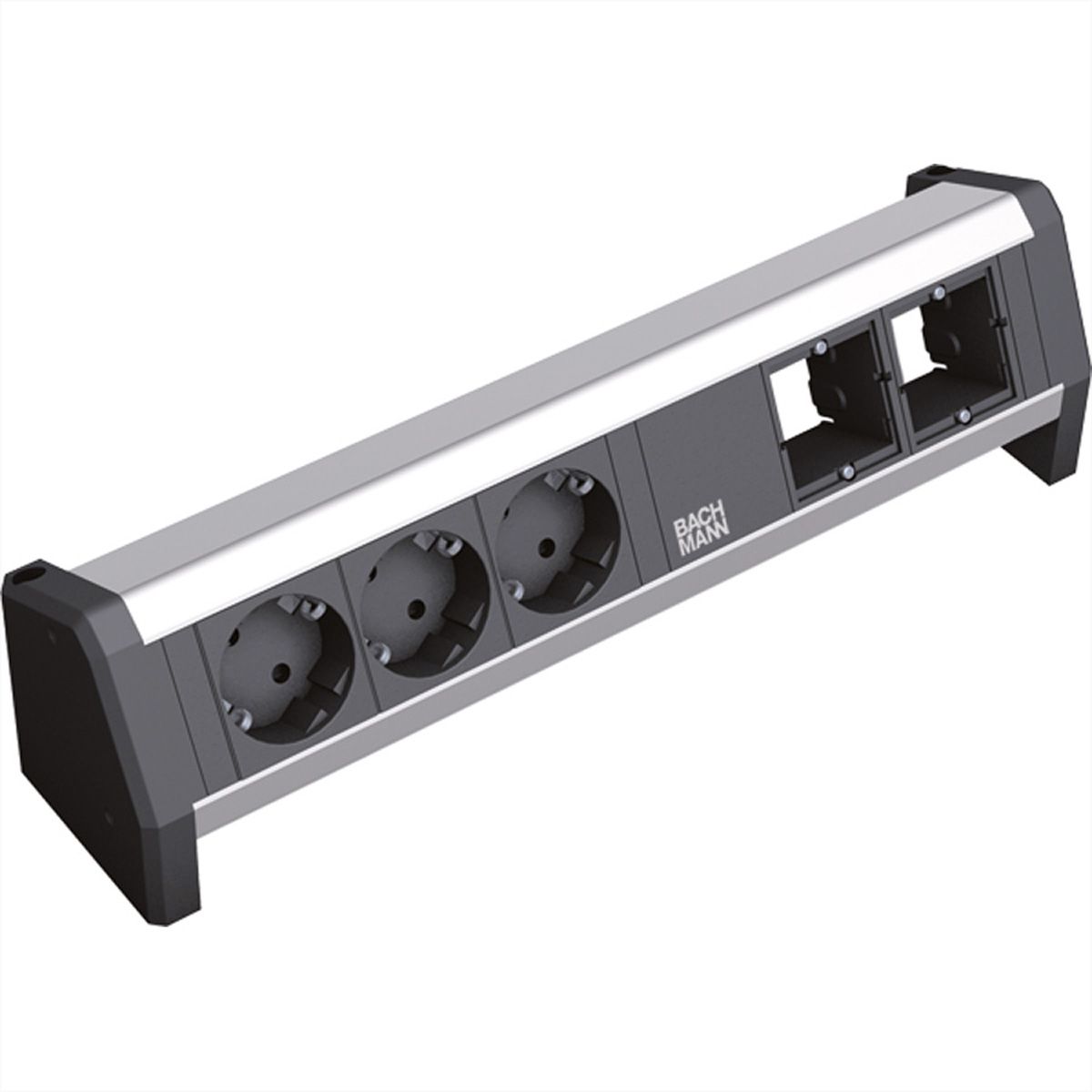

BACHMANN DESK 3x earthing contact 2x ABD GST18

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	19071843
Brand / Manufacturer	BACHMANN
Manuf. item no.	902.001
EAN	4016514030446
Item weight	0.572 kg

Description

BACHMANN DESK 1 desk connection panels create optimum conditions for data, media and energy management wherever workstations are used flexibly. For example, in meeting rooms, in the home office or for desk sharing.

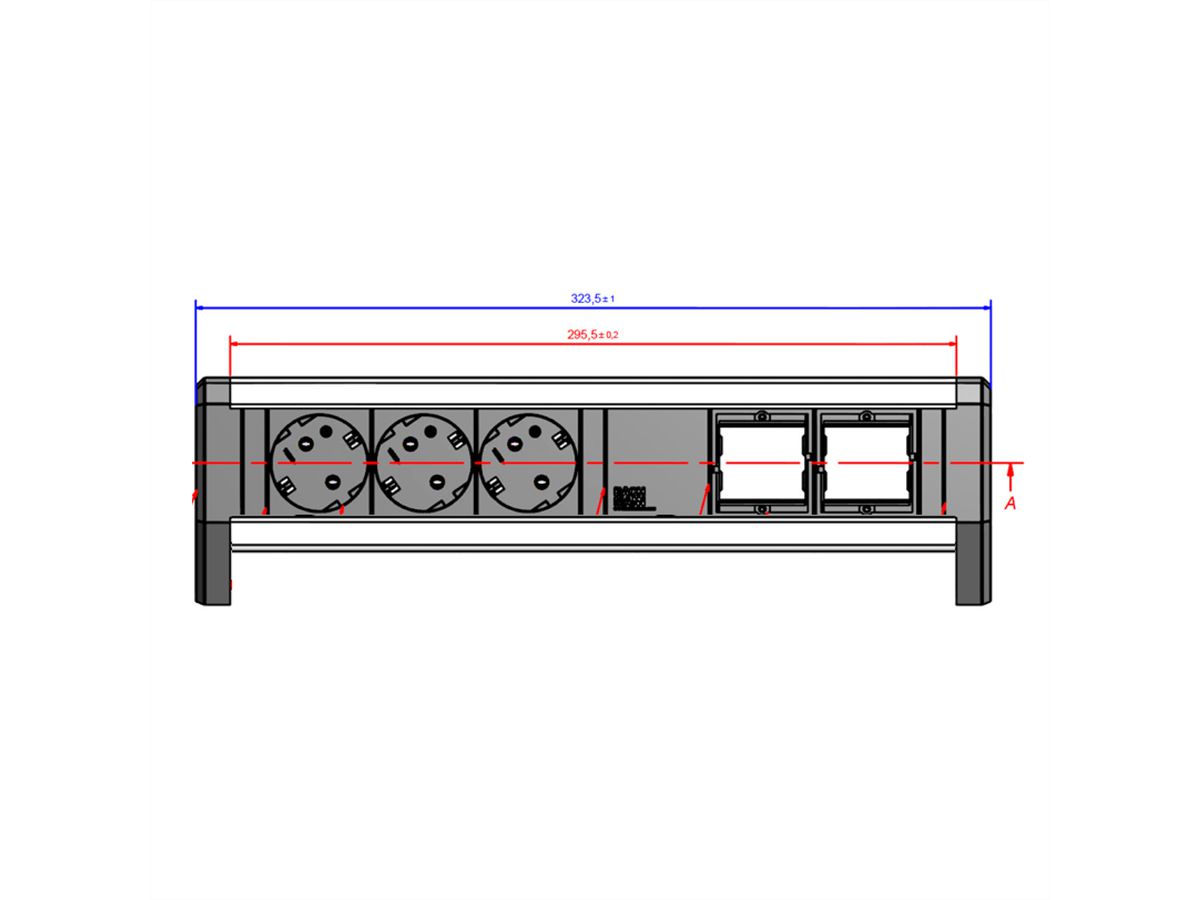

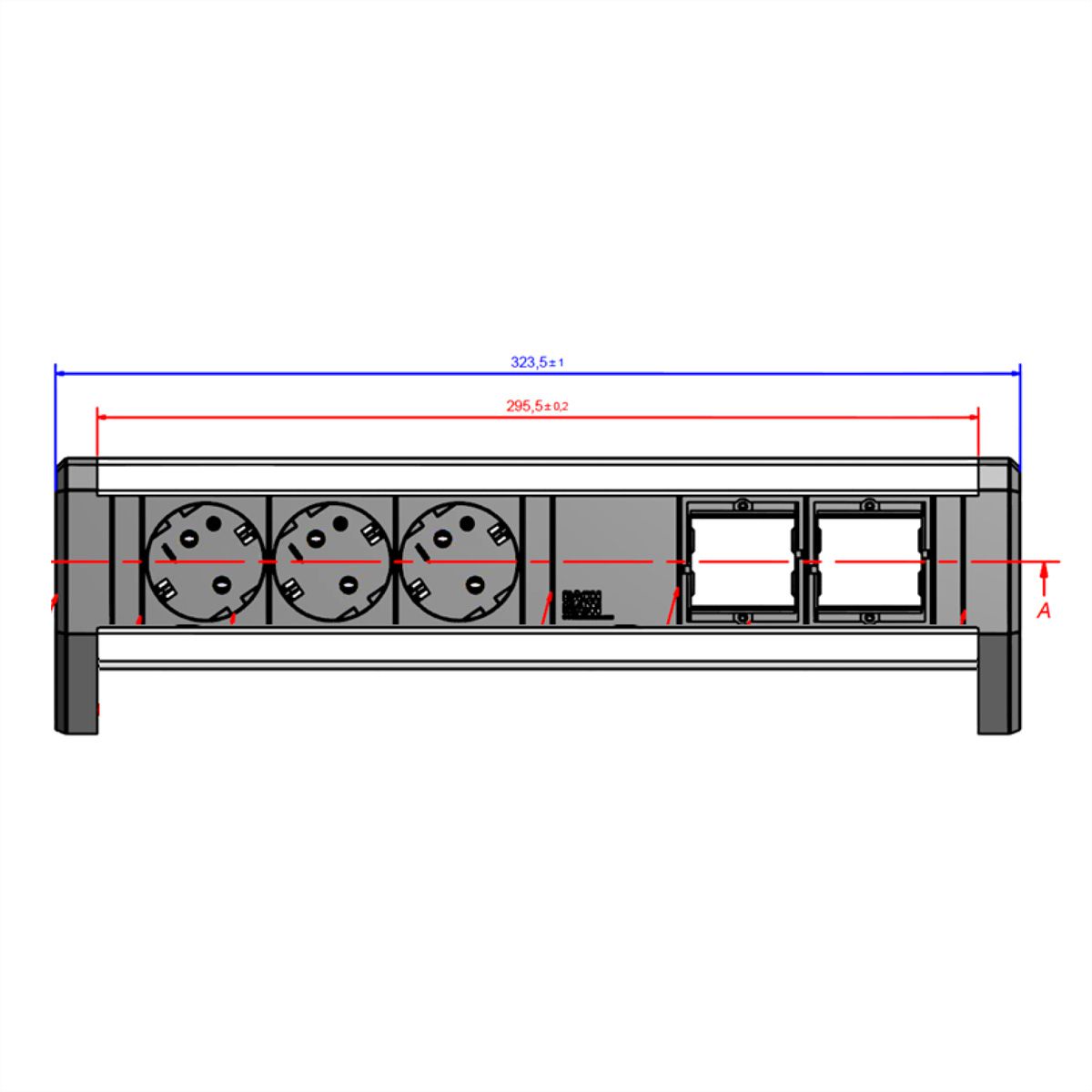

DESK 1 with 3x power sockets + 2x custom module - Anodised aluminium profile, power input: GST18 / power output: GST18, without supply cable and mounting bracket - 3 black socket outlets with earthing contact, rotated by 35°, - Length 365 mm

The advantages at a glance - Can be used flexibly anywhere - With Wieland plug-in system or permanently connected cables - With mounting or free-standing on the table - Custom versions for future-proofing

Specifications

Manufacturer	BACHMANN
Product group	Power Bars
Product type	Surface-mounted unit DESK 1
Colour	various
Length	0 m
Number of socket pots	5
Connection cable	Zonder aansluitkabel
Regional use	Germany, Austria, Netherlands
Height	93 mm
Width	324 mm
Depth	74 mm
Weight	570 g
Height of packaging (single piece)	90 mm
Width of packaging (single piece)	100 mm
Depth of packaging (single piece)	380 mm
Package weight (single piece)	0.572 kg

Downloads

Manufacturer data sheet - Deutsch (148.3 KB)

Download

Manufacturer data sheet - English (148.3 KB)

Download

More PDF data - Installation and safety instructions - German - English - French - Italian (482.4 KB)

Download

Accesories

BACHMANN DESK mounting bracket for desk top thickness 50 to 80 mm

Item no.:	19071256
Manuf. item no.	930.180

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

BACHMANN GST18-3 device cable with earthing contact/device coupler, 1,5 m, black, 1.5 m

Item no.:	19071257
Manuf. item no.	375.000

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

BACHMANN GST18-3 earthing contact/device coupler cable, 3 m, black, 3 m

Item no.:	19071258
Manuf. item no.	375.003

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Show all

The BACHMANN brand stands for customer-oriented electrotechnical components and systems.

In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.
