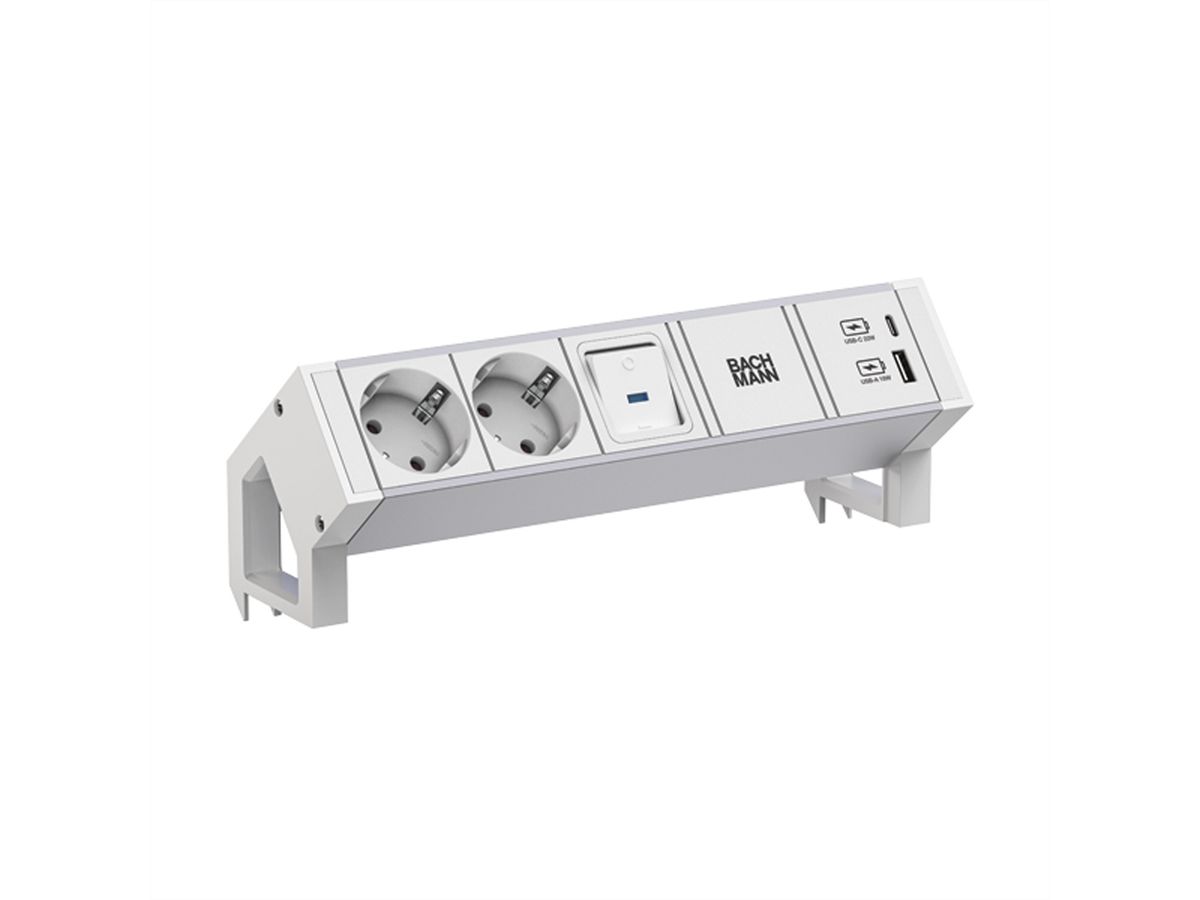

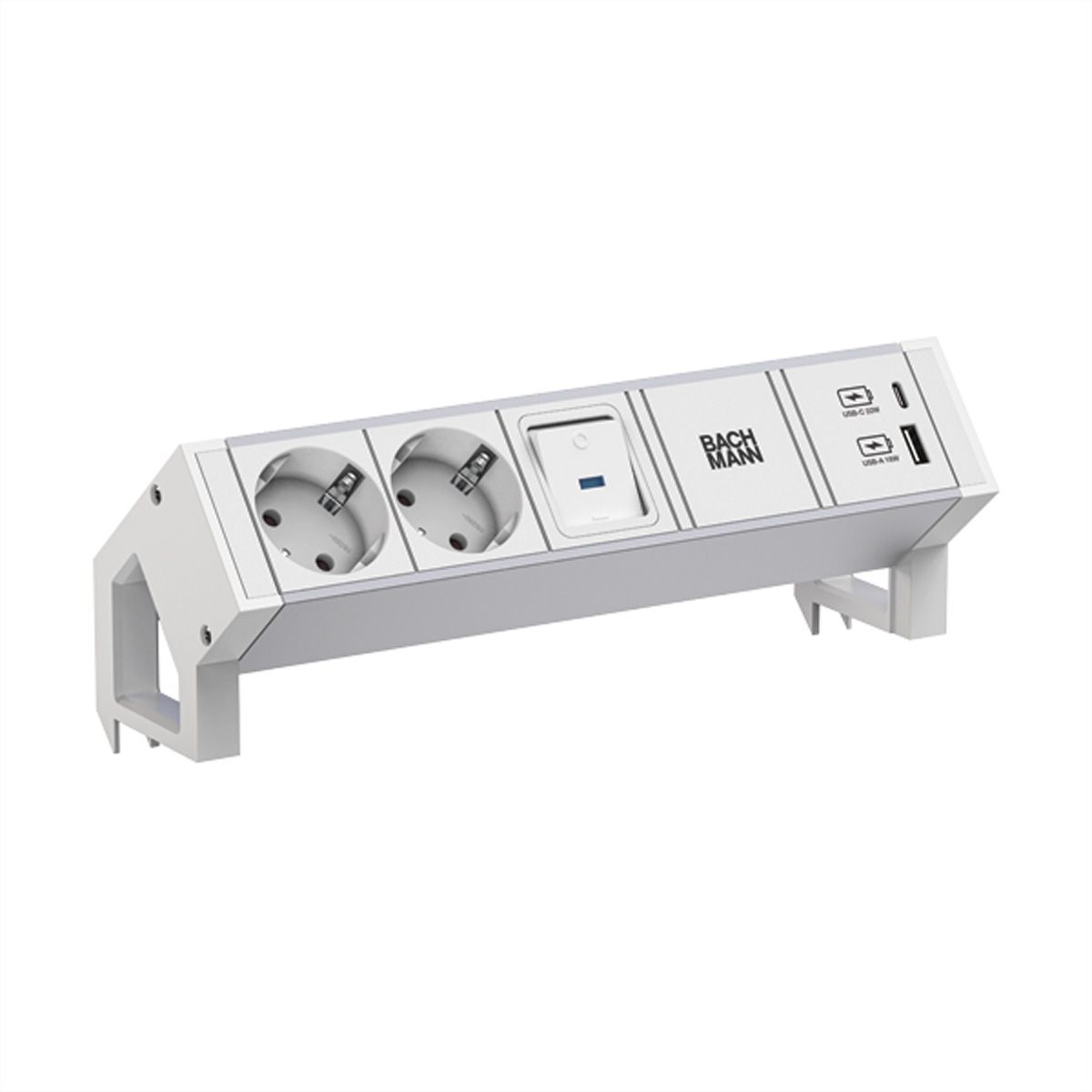

BACHMANN DESK2 ALU WHITE 2xCEE7/3 1xSwitch 1xUSB A/C 22W 0,2m

BACHMANN DESK2 ALU WHITE 2xCEE7/3 1xSwitch 1xUSB A/C 22W 0,2m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 12/23/2024
Item no. 19070408
Brand / Manufacturer BACHMANN
Manuf. item no. 937.404
EAN 4057298124747
Item weight 0.786 kg

Description

DESK2 ALU WHITE 2xCEE7/3 1xswitch 1xUSB A/C 22W 0.2m

DESK 2 ALU WHITE socket strip aluminium profile anodised (natural) end caps plastic white, similar to RAL9010 with enhanced touch protection 2xprotective contact sockets 35° white 1xswitch 1xUSB A/C 22W Charger plastic components white similar to RAL9010 supply cable 0.2m H05VV-F3G1.5mm² white with GST18 plug white with BACHMANN logo incl. mounting bracket packed in box

Specifications

Manufacturer BACHMANN
Product group Power Bars
Product type Surface-mounted unit DESK 2
Colour white
Length 0.2 m
Number of socket pots 2
Socket type 3P. German, CEE 7/3, Type-F
USB Charger yes
Plug type Wieland GST18
Regional use Germany, Austria, Netherlands
Height 0.1 m
Width 0.09 m
Depth 0.26 m
Weight 0.77 kg
Height of packaging (single piece) 160 mm
Width of packaging (single piece) 150 mm
Depth of packaging (single piece) 350 mm
Package weight (single piece) 0.786 kg

Downloads

Manufacturer data sheet - Deutsch (159.6 KB)

Download

Manufacturer data sheet - English (159.6 KB)

Download

More PDF data - Installation and safety instructions - German - English - French - Italian (482.4 KB)

Download
