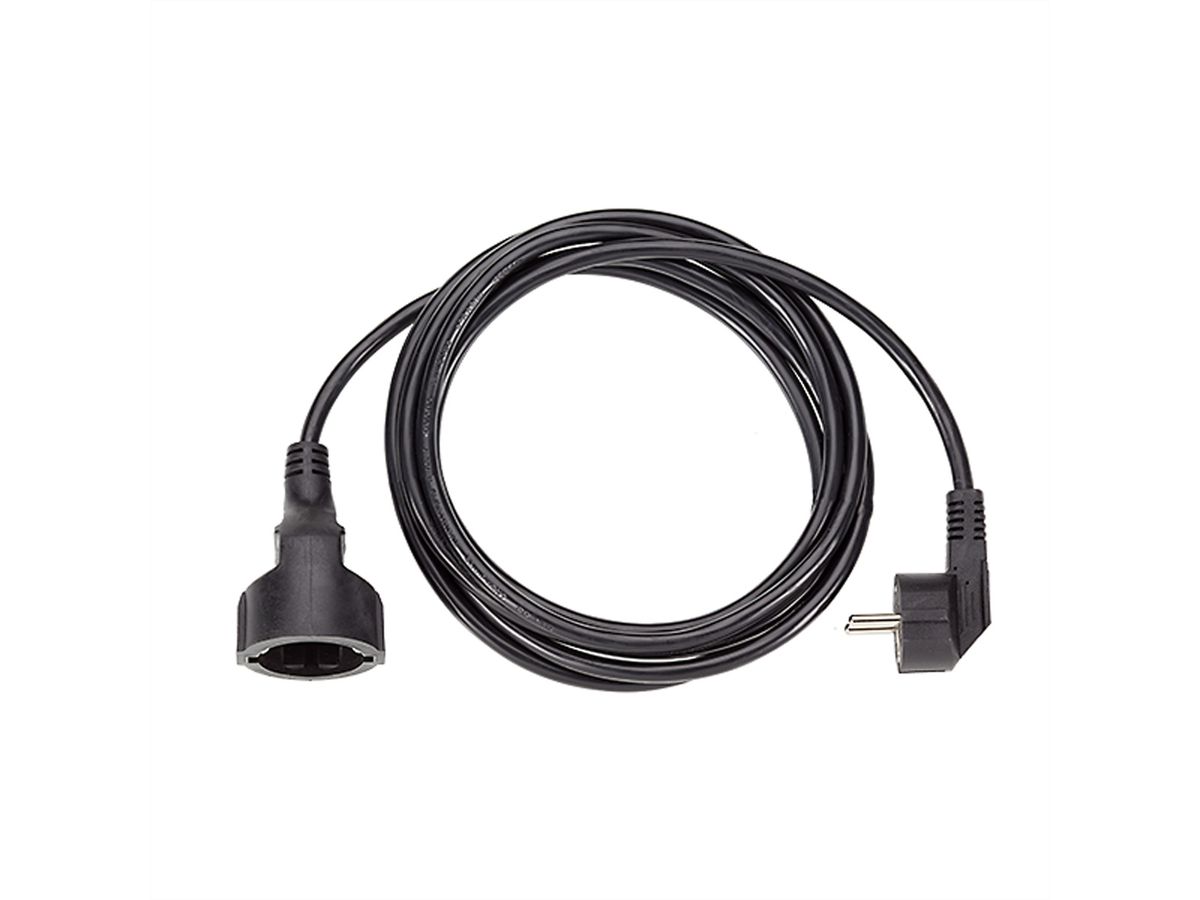

BACHMANN earthing contact extension cable, 230VAC, black, 3 m

BACHMANN earthing contact extension cable, 230VAC, black, 3 m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 19071166
Brand / Manufacturer BACHMANN
Manuf. item no. 341.185
EAN 4016514002948
Item weight 0.422 kg
Colour
Length
BACHMANN

Description

AC power extension cable - Extension cable with earthing contact plug and coupling, 16A/230V~

- Connections: Earthing contact, CEE 7/7 plug / earthing contact, CEE 7/7 socket - Supply cable: H05VV-F 3G 1.50mm²

Specifications

Manufacturer BACHMANN
Product group Power Cables
Product type Power Extensions
Colour black
Length 3 m
Connection ports 3P. German, CEE 7/7, Type-E/F Male / 3P. German, CEE 7/3, Type-F Female
Max. current 16 A
Max. voltage 250V AC
Max. power 3600W
Cable material H05VV-F
Conductor cross section (mm²) 1,5
Material identification H05VV-F
External diameter of cable 8 mm
Quantity of wires 3
Side 1 description Schuko Stecker
Side 1 connector external diameter (mm) 38
Side 2 description Schuko Buchse
Side 2 connector external diameter (mm) 52
Side 1 Connector Type 3P. German, CEE 7/7, Type-E/F
Side 1 Connector Gender Male
Side 2 Connector Type 3P. German, CEE 7/3, Type-F
Side 2 Connector Gender Female
Regional use Germany, Austria, Netherlands
Protection class (IP Code) IP20
Operating temperature min. 5 °C
Operating temperature max. 35 °C
Height 55 mm
Width 165 mm
Depth 165 mm
Weight 0.5 kg
Height of packaging (single piece) 50 mm
Width of packaging (single piece) 170 mm
Depth of packaging (single piece) 260 mm
Package weight (single piece) 0.422 kg

Downloads

Manufacturer data sheet - Deutsch (171.5 KB)

Download

Manufacturer data sheet - English (171.5 KB)

Download

More PDF data - Installation and safety instructions - German - English - French - Italian (482.4 KB)

Download
