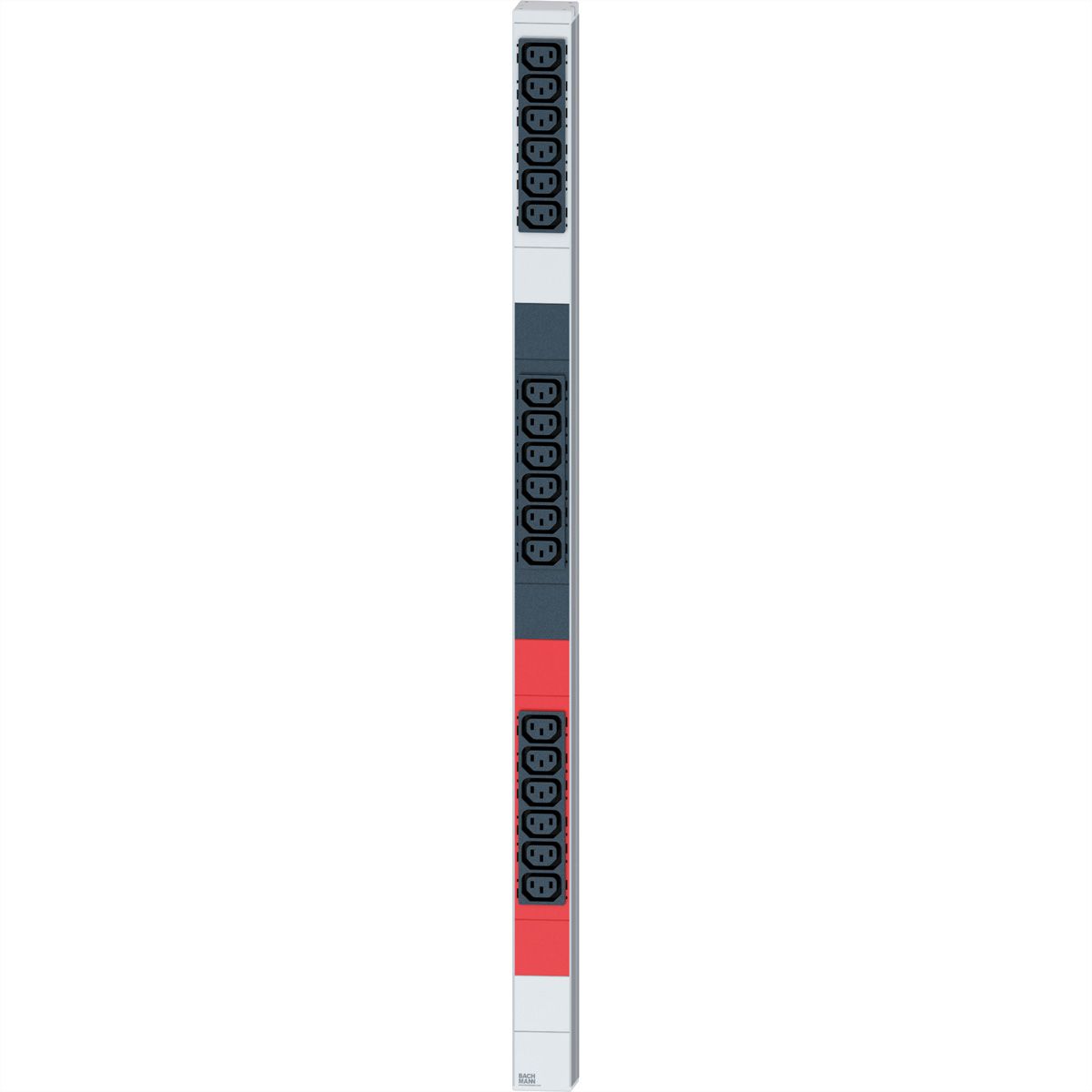

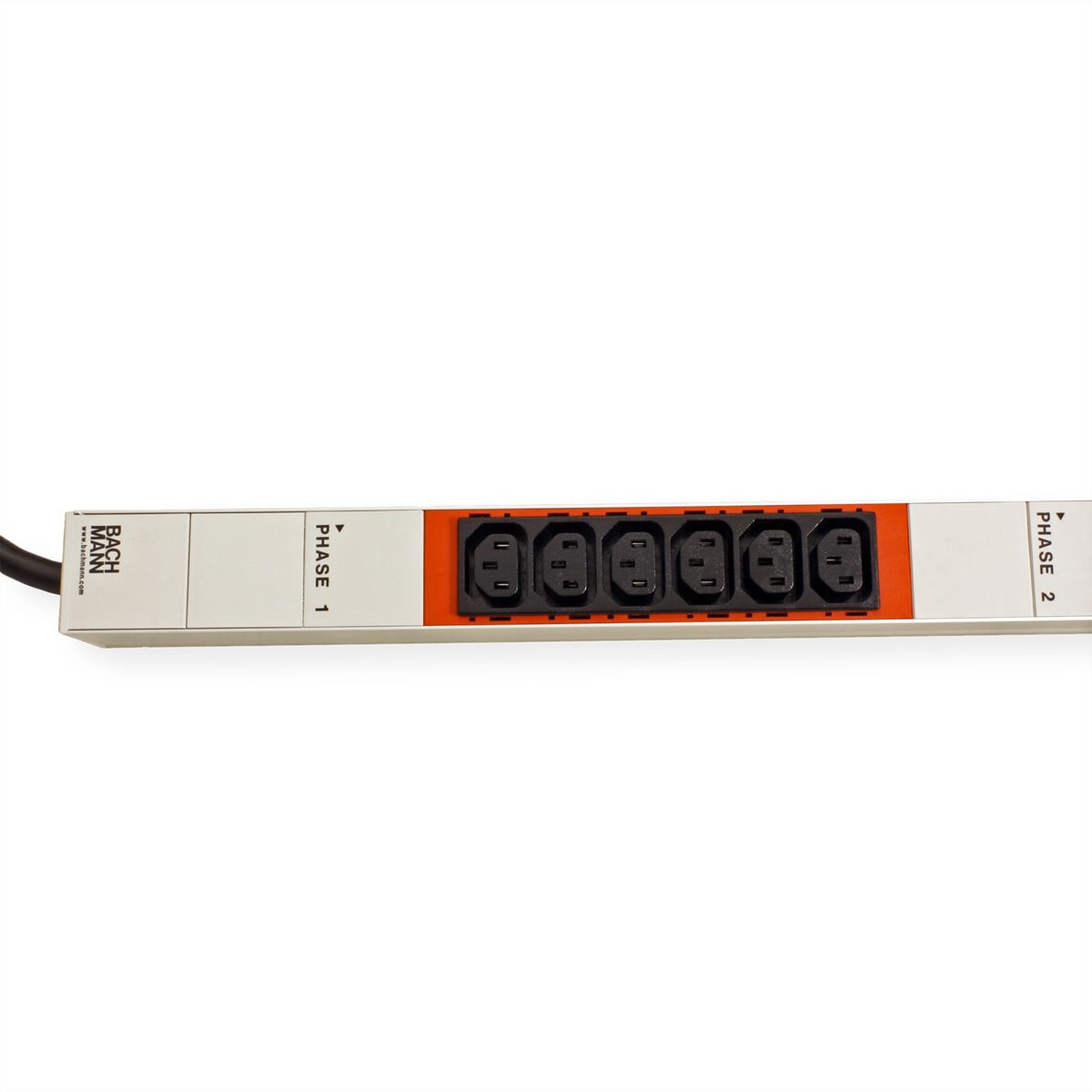

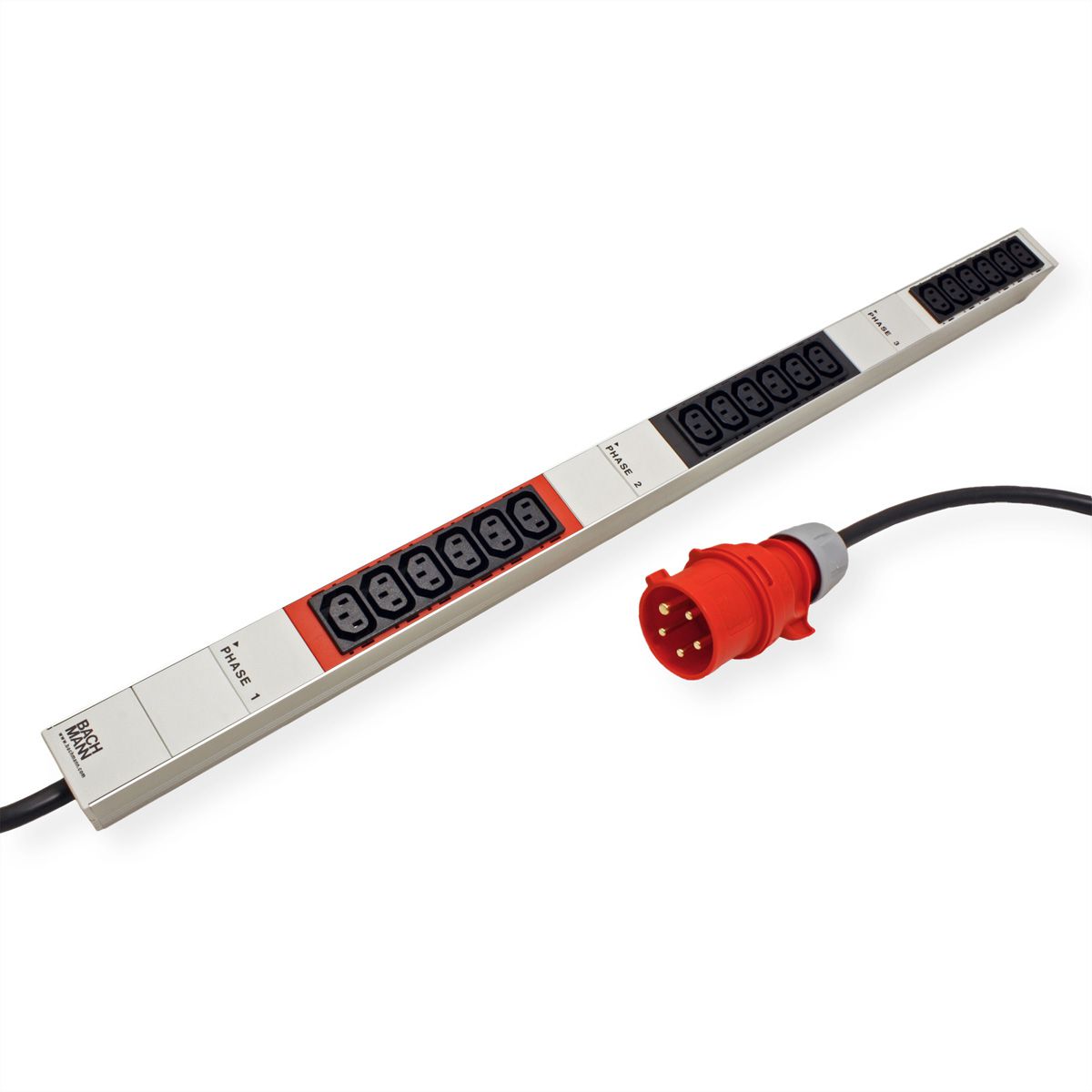

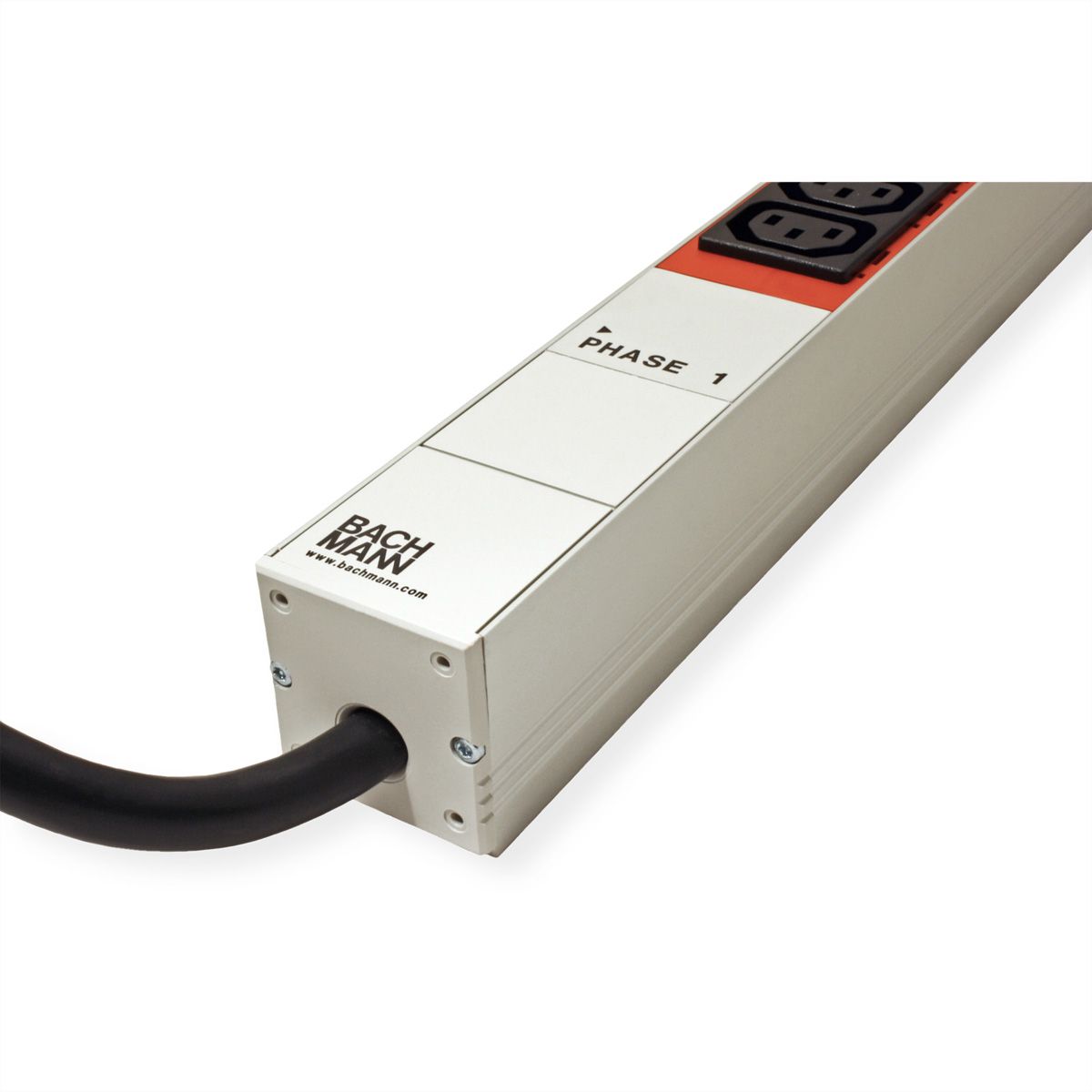

BACHMANN IT PDU ALU 1U 18x C13, connector plug CEE 3L+N+PE 16A

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	19072166
Brand / Manufacturer	BACHMANN
Manuf. item no.	800.0105
EAN	4016514048137
Item weight	2.806 kg

Description

Vertical IT PDU for space-saving and modularly expandable integration into the server rack

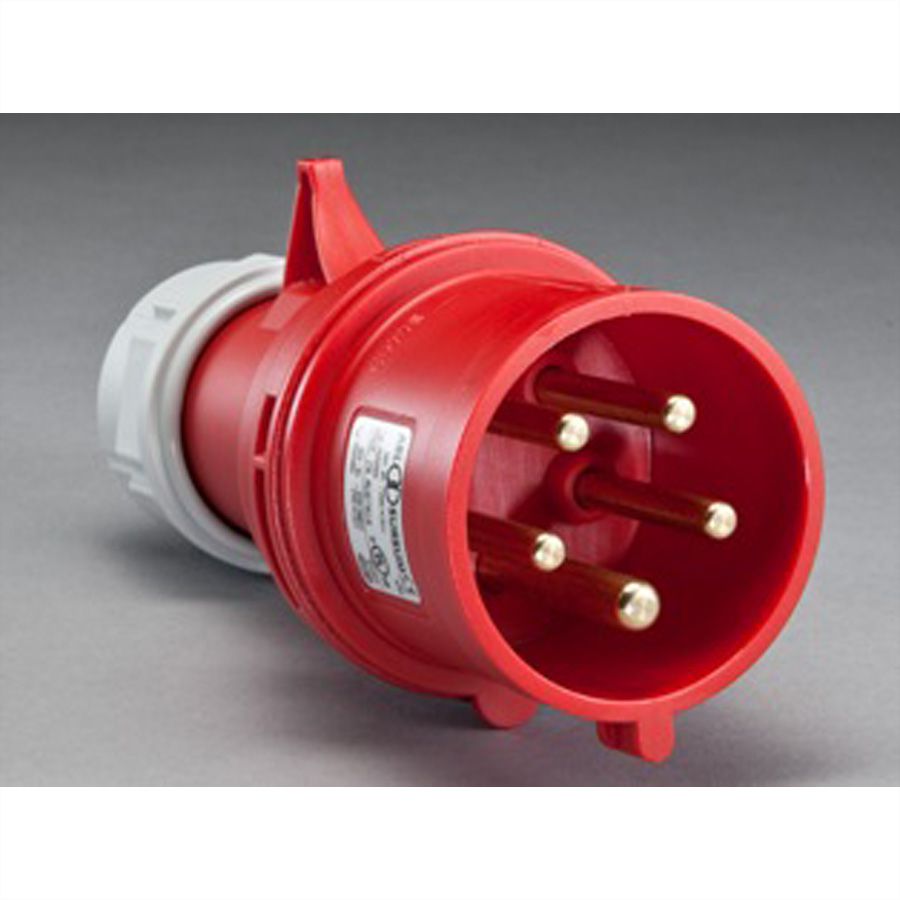

For future-oriented, highly effi cient power distribution in data centres, server racks and network racks. - The dimensions of the high-quality and very sturdy aluminium profile are a compact 44 x 47 mm. - The space-saving design therefore offers space for data cabling and air routing for air conditioning the server rack. - Space-saving and modularly expandable integration of the PDU into the server rack - High-quality and very stable aluminium profile - Extremely compact dimensions at 44 x 47 mm. - Locking of the plugs using PVC clip or IEC lock - Colour coding of the phases - Installation height in the cabinet 821mm - 18x C13 cold appliance sockets, lockable - Supply cable: 3.0m H05VV-F 3G2.5mm² - Plug CEE 3L+N+PE 16A, red, 3-phase - Dimensions: 44 x 821 x 47 mm - Including mounting bracket, packed in cardboard box

Specifications

Manufacturer	BACHMANN
Product group	Power Bars
Product type	Vertikal IT PDU
Colour	various
Length	3 m
Function	19" socket strip
Mounting form	Vertikal
Max. capacitance	3x3600W
Max. voltage	400V AC
ON/OFF Switch	no
Number of socket pots	18
Quantity of outputs/angles	18
Output alignment	24 x C13 3 x C19
Socket type	IEC320 C13, 10A
Material (casing)	Aluminium
Colour (Design profile)	Aluminium
Connection cable	3ph Zuleitung 3,0m CEE 16A
Regional use	Without restriction
Height	44 mm
Width	821 mm
Depth	47 mm
Weight	2.32 kg
Height of packaging (single piece)	120 mm
Width of packaging (single piece)	130 mm
Depth of packaging (single piece)	1100 mm
Package weight (single piece)	2.806 kg

Downloads

Manufacturer data sheet - Deutsch (149.0 KB)

Download

Manufacturer data sheet - English (149.0 KB)

Download

More PDF data - Installation and safety instructions - German - English - French - Italian (482.4 KB)

Download

Accesories

BACHMANN PDU locking clips, for C13 sockets, Set of 12, red

Item no.:	19072189
Manuf. item no.	940.103

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day
