Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 19072173 |
|---|---|
| Brand / Manufacturer | BACHMANN |
| Manuf. item no. | 800.2283 |
| EAN | 4057298003257 |
| Item weight | 2.173 kg |
:strip_icc():strip_exif()/logos/bachmann.png "BACHMANN")

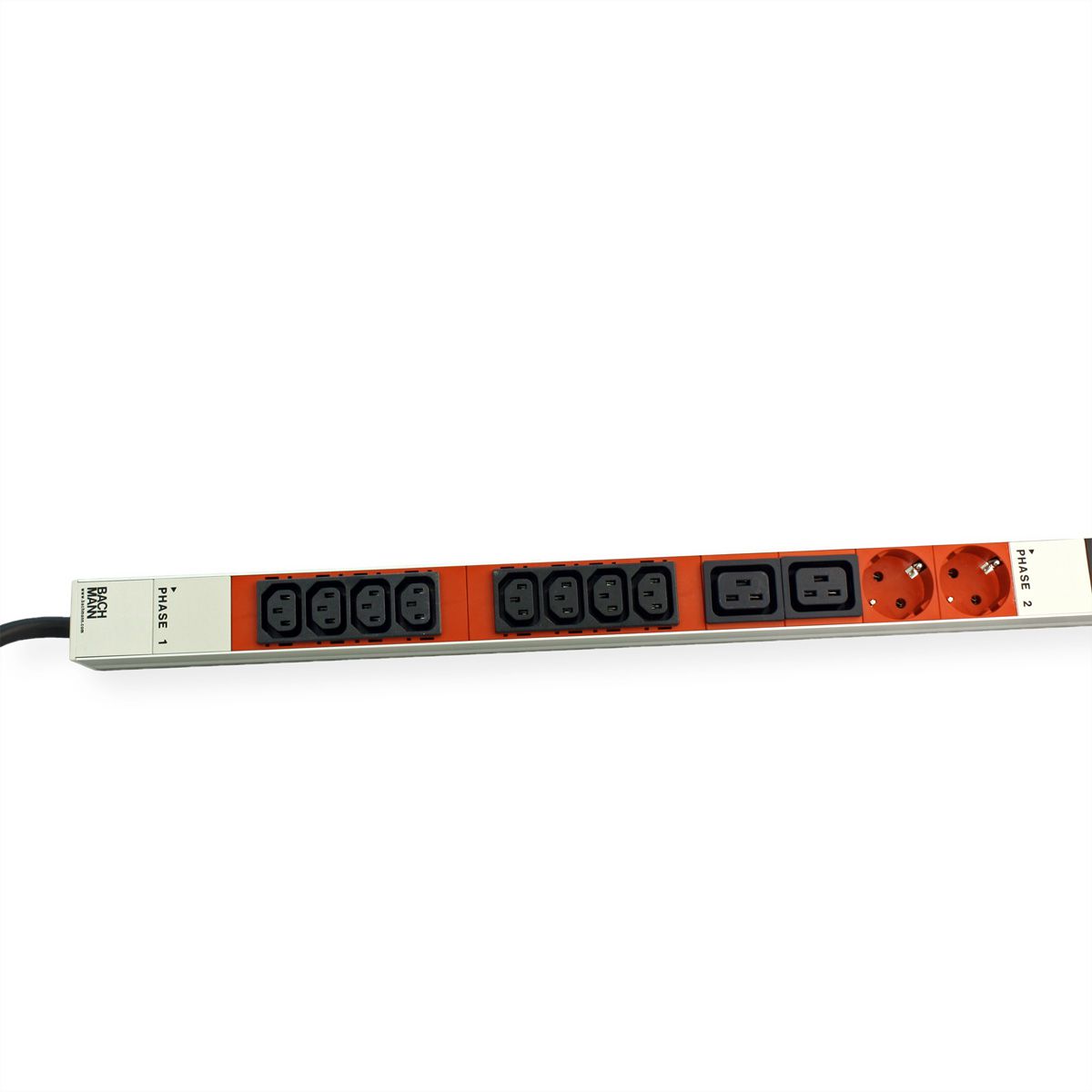

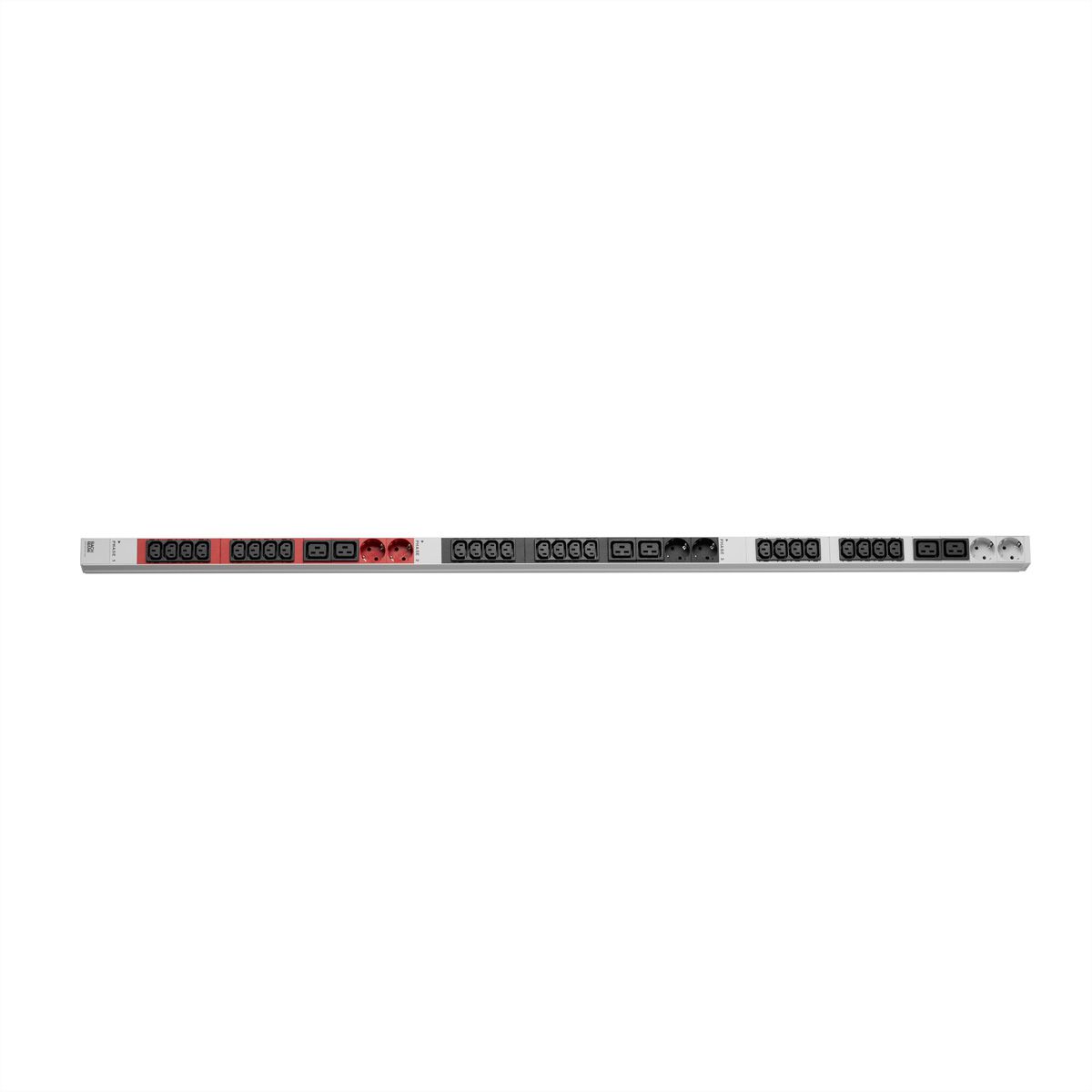

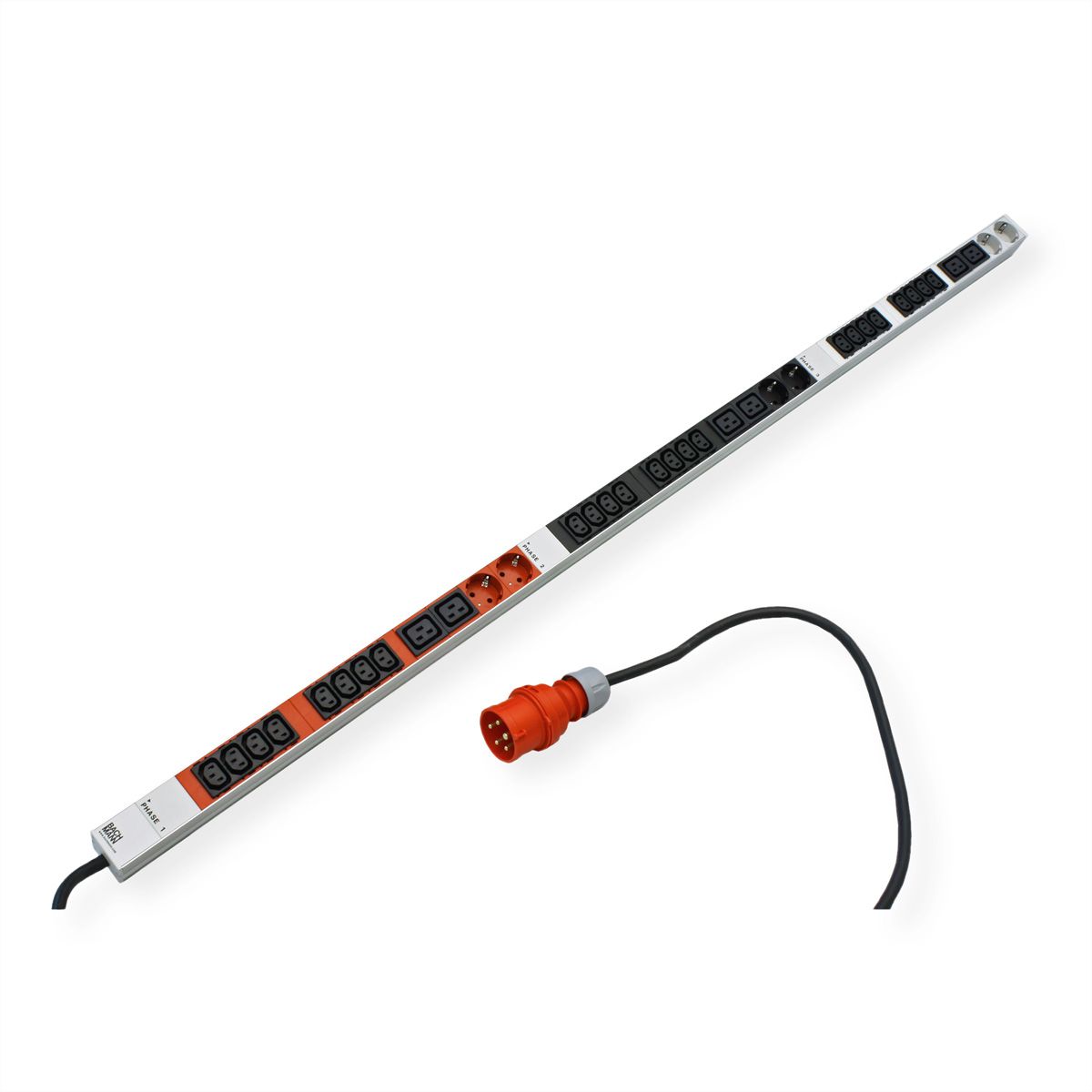

- Extremely compact dimensions with 44 x 47 mm, thus offering plenty of space for data cabling and air routing for air conditioning the server rack - Locking of the plugs by means of PVC clip or IEC lock - Colour coding of the phases - Installation height in the cabinet 1457mm - 24x C13 cold appliance sockets, lockable - 6x C19 - 6x earthing contact - Supply cable: 3.0m H05VV-F 5G2.5mm² with CEE plug 3-phase 16A red - incl. mounting bracket packed in cardboard box - connection plug CEE16A 3L+N+PE red
| Manufacturer | BACHMANN |
|---|---|
| Product group | Power Bars |
| Product type | Vertikal IT PDU |
| Colour | various |
| Length | 3 m |
| Function | 19" socket strip |
| Mounting form | Vertikal |
| Max. capacitance | 3x3600W |
| Max. voltage | 400V AC |
| ON/OFF Switch | no |
| Number of socket pots | 36 |
| Quantity of outputs/angles | 36 |
| Output alignment | 24 x C13 3 x C19 |
| Socket type |
|
| Material (casing) | Aluminium |
| Colour (Design profile) | Aluminium |
| Connection cable | 3,0m CEE 32A |
| Colour (Cable) | black |
| Plug type | CEE red 16A 3P+N+PE 400V |
| Regional use | Without restriction |
| Technical particularity | 2x stroomschakelaar 16A |
| Height | 44 mm |
| Width | 1457 mm |
| Depth | 47 mm |
| Weight | 5.72 kg |
| Height of packaging (single piece) | 150 mm |
| Width of packaging (single piece) | 140 mm |
| Depth of packaging (single piece) | 1640 mm |
| Package weight (single piece) | 2.173 kg |
:strip_icc():strip_exif()/cms_secde/cms/ueber_uns/markenwelt/hersteller_logos/bachmann.png)
The BACHMANN brand stands for customer-oriented electrotechnical components and systems.
In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.
