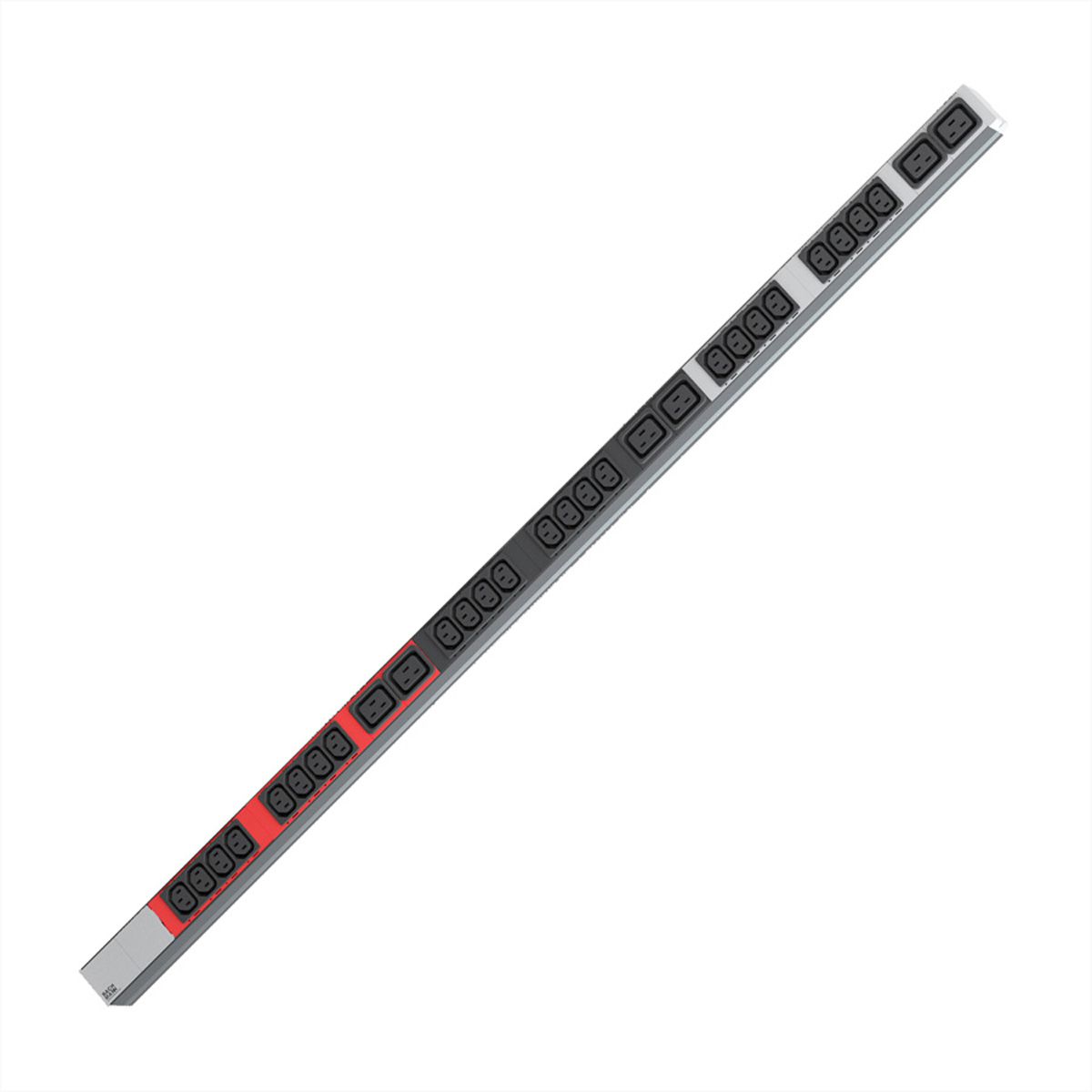

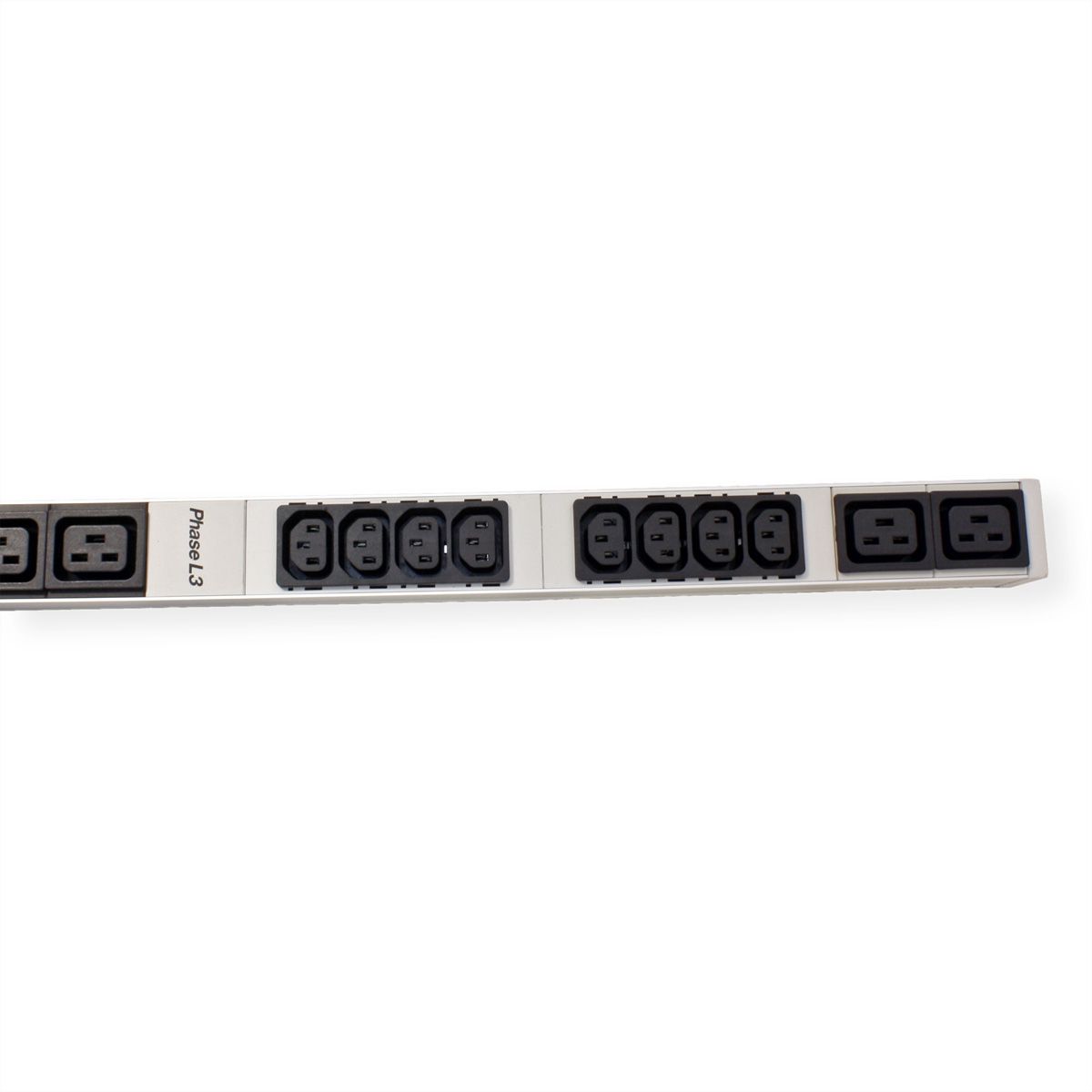

BACHMANN IT PDU Basic 3 x (16 A / 400 V / 50 Hz) 24 x C13 6 x C19)

BACHMANN IT PDU Basic 3 x (16 A / 400 V / 50 Hz) 24 x C13 6 x C19)

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 12/06/2024
Item no. 19072172
Brand / Manufacturer BACHMANN
Manuf. item no. 800.2282
EAN 4057298003240
Item weight 3.428 kg

Description

For future-oriented, highly efficient power distribution in data centres, server racks and network racks.

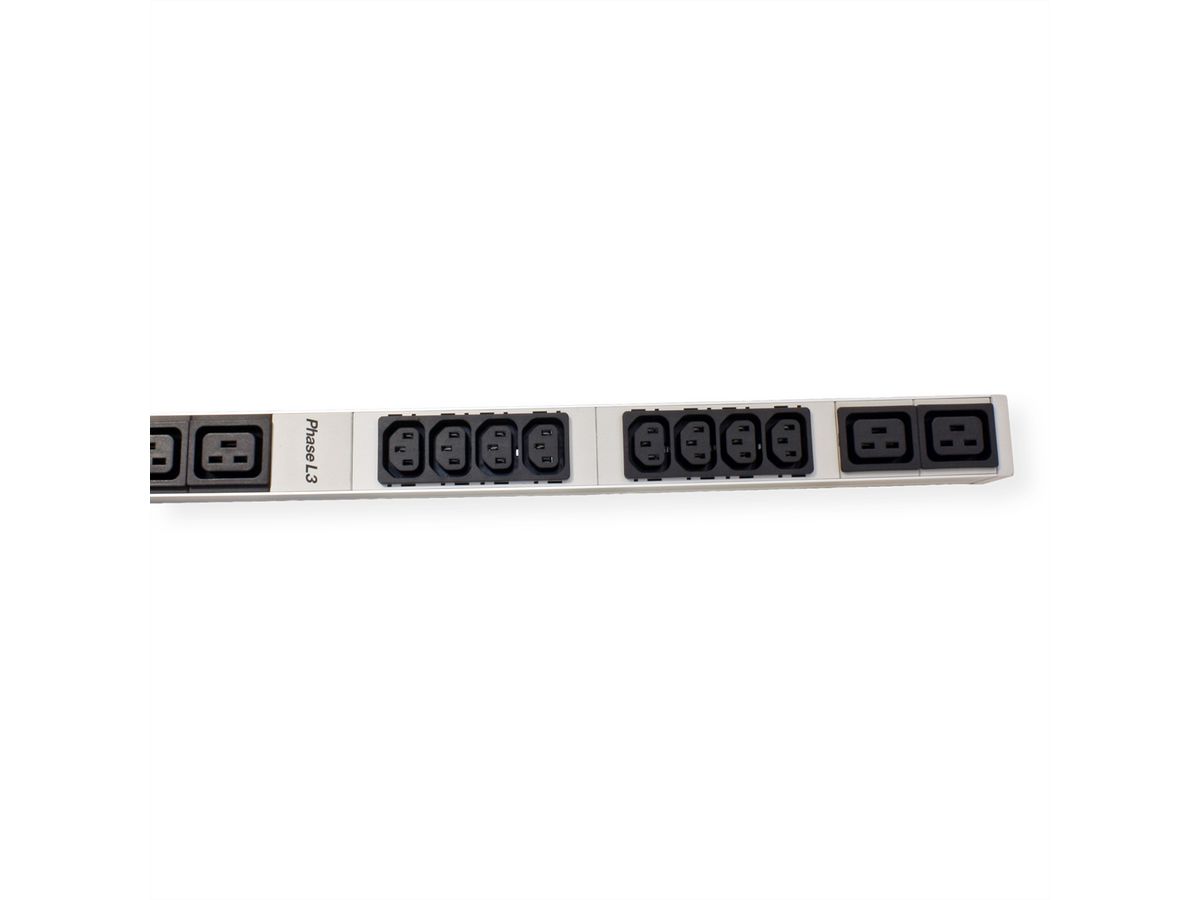

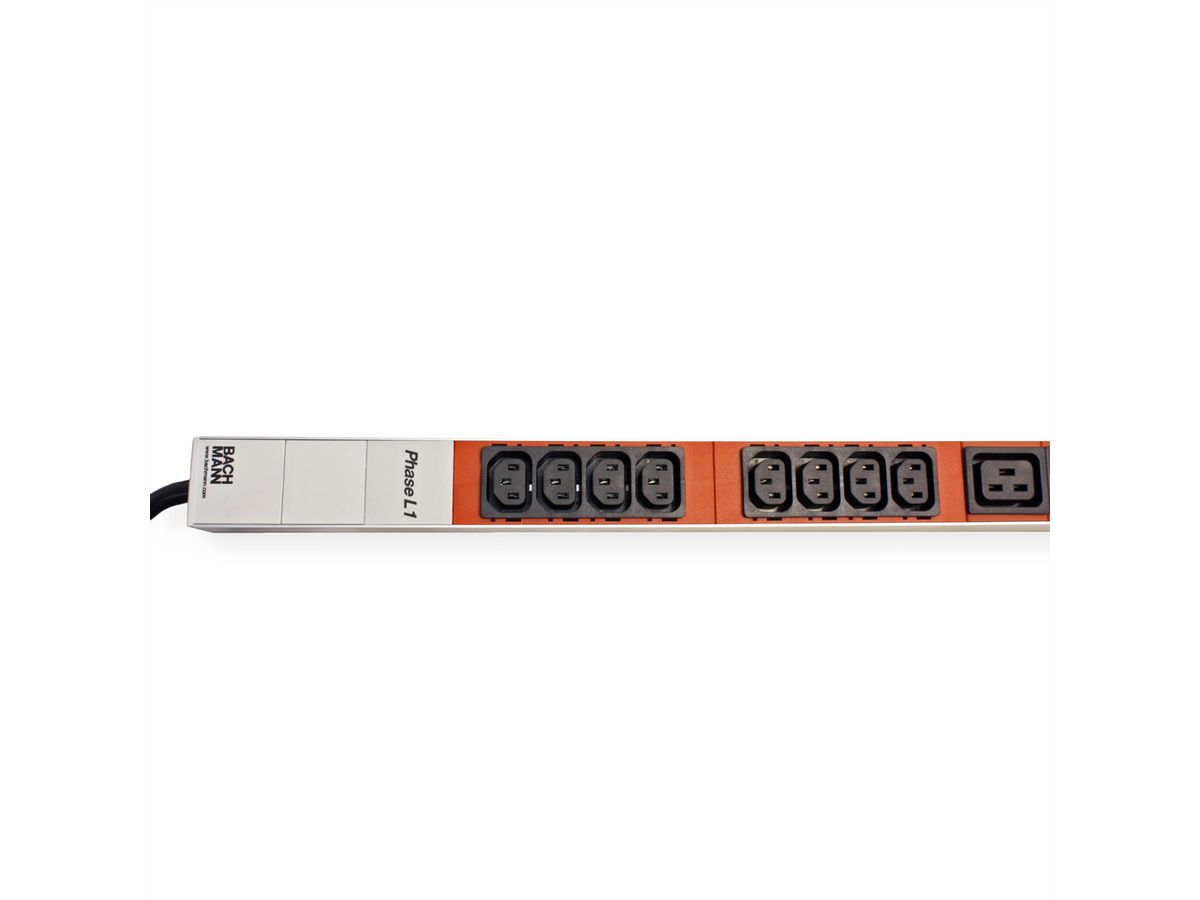

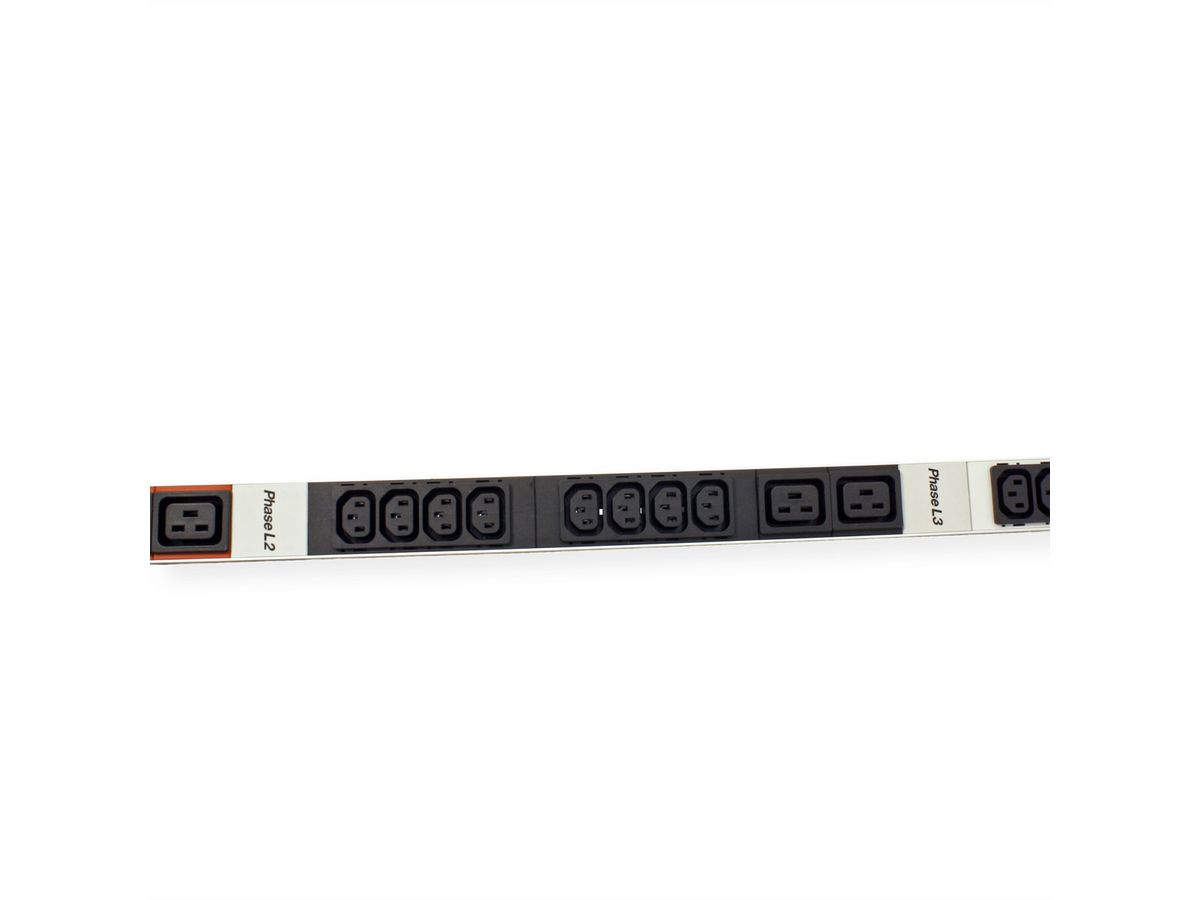

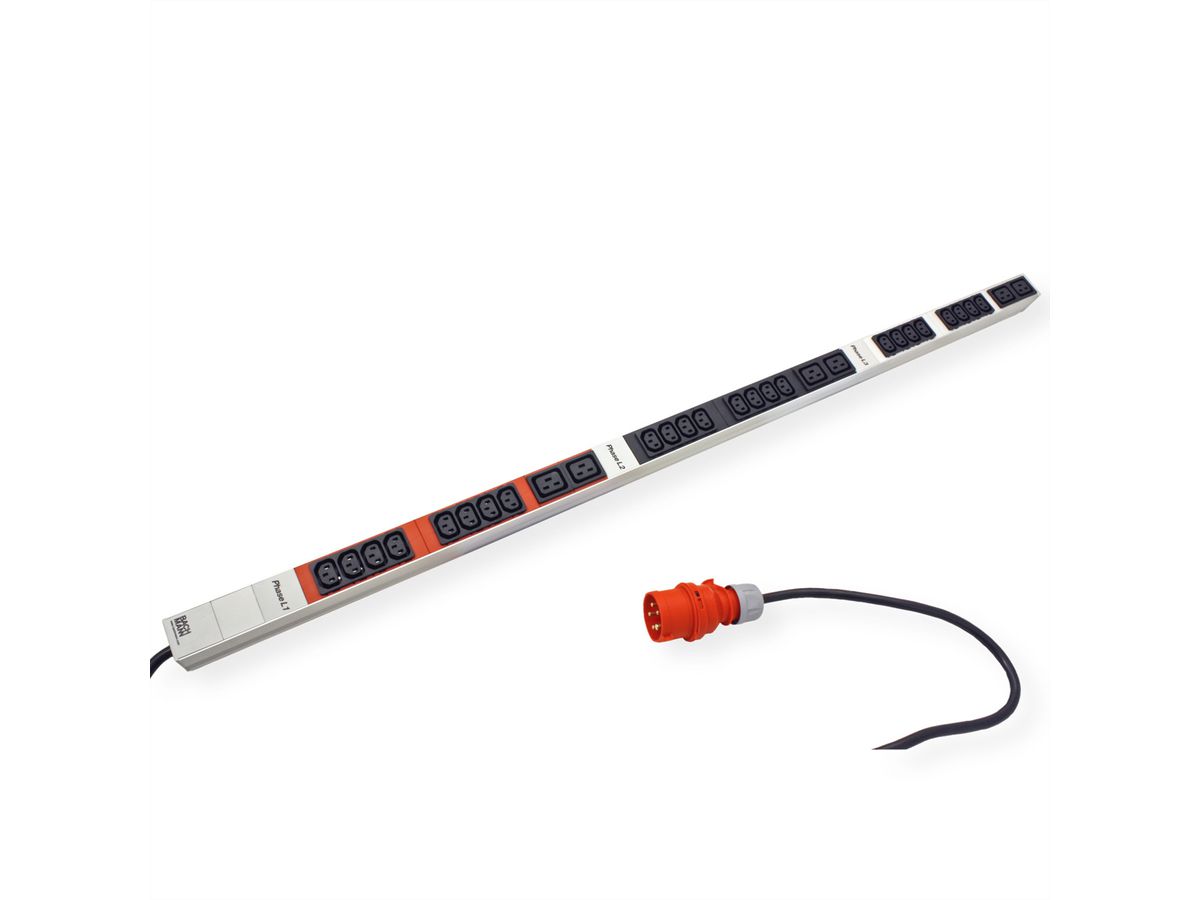

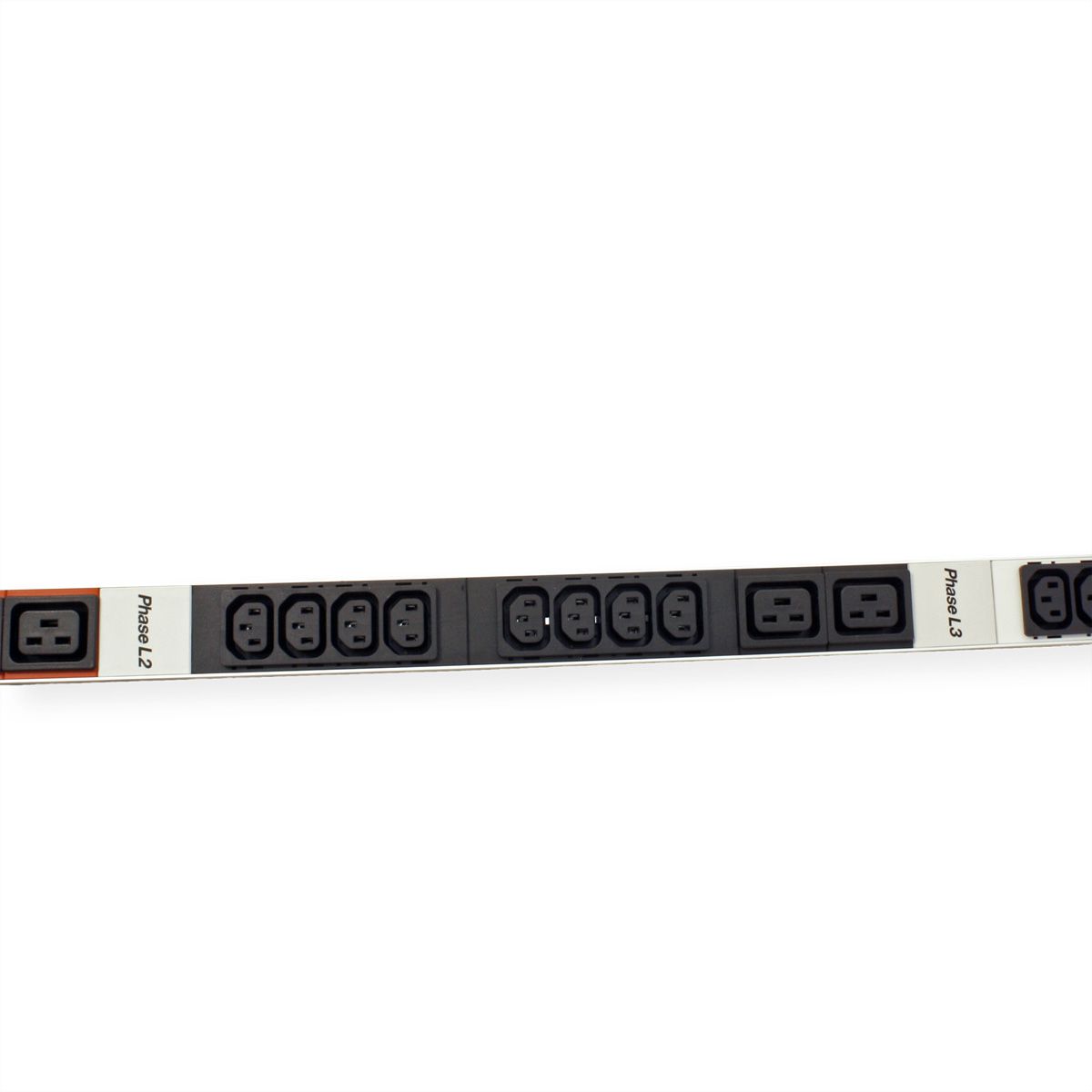

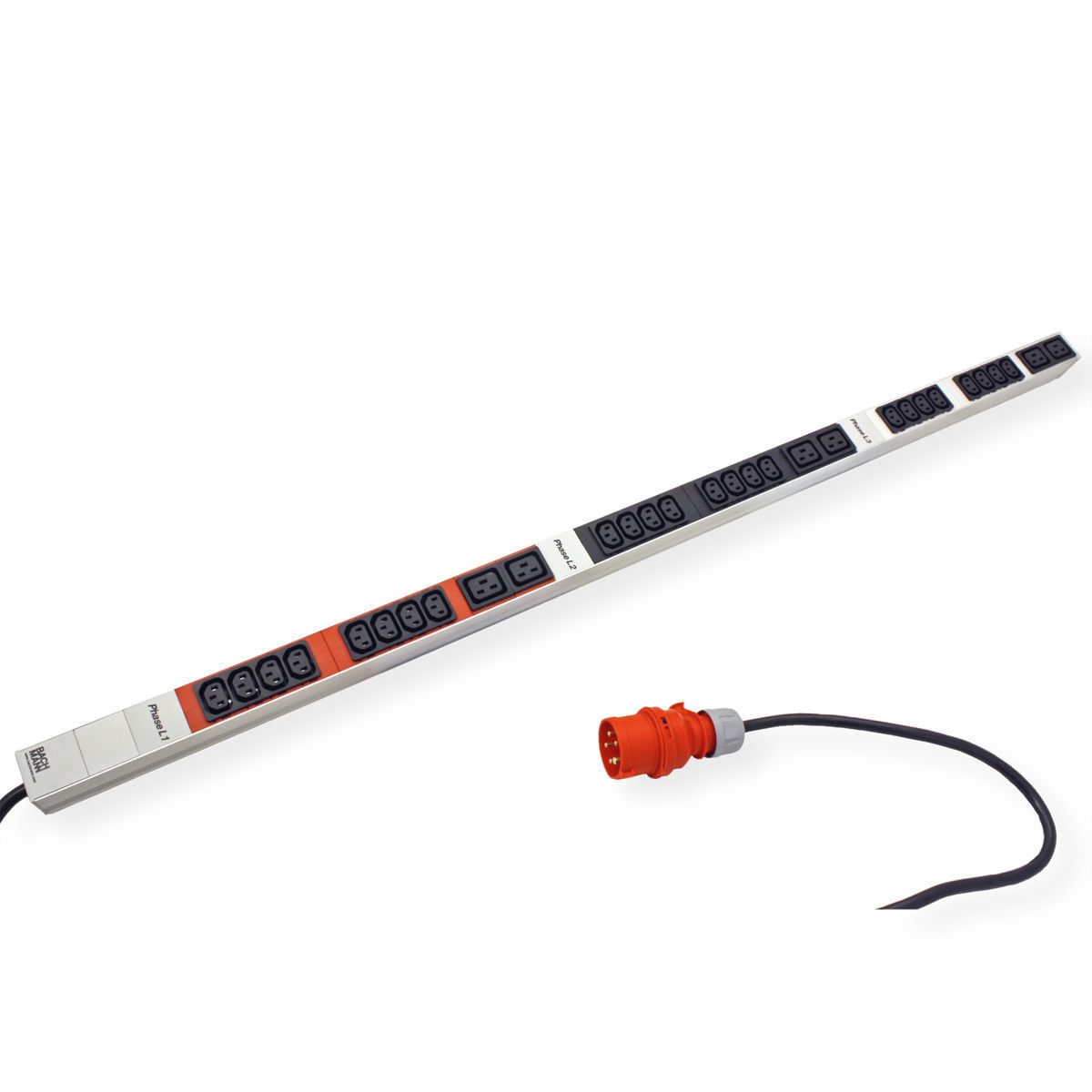

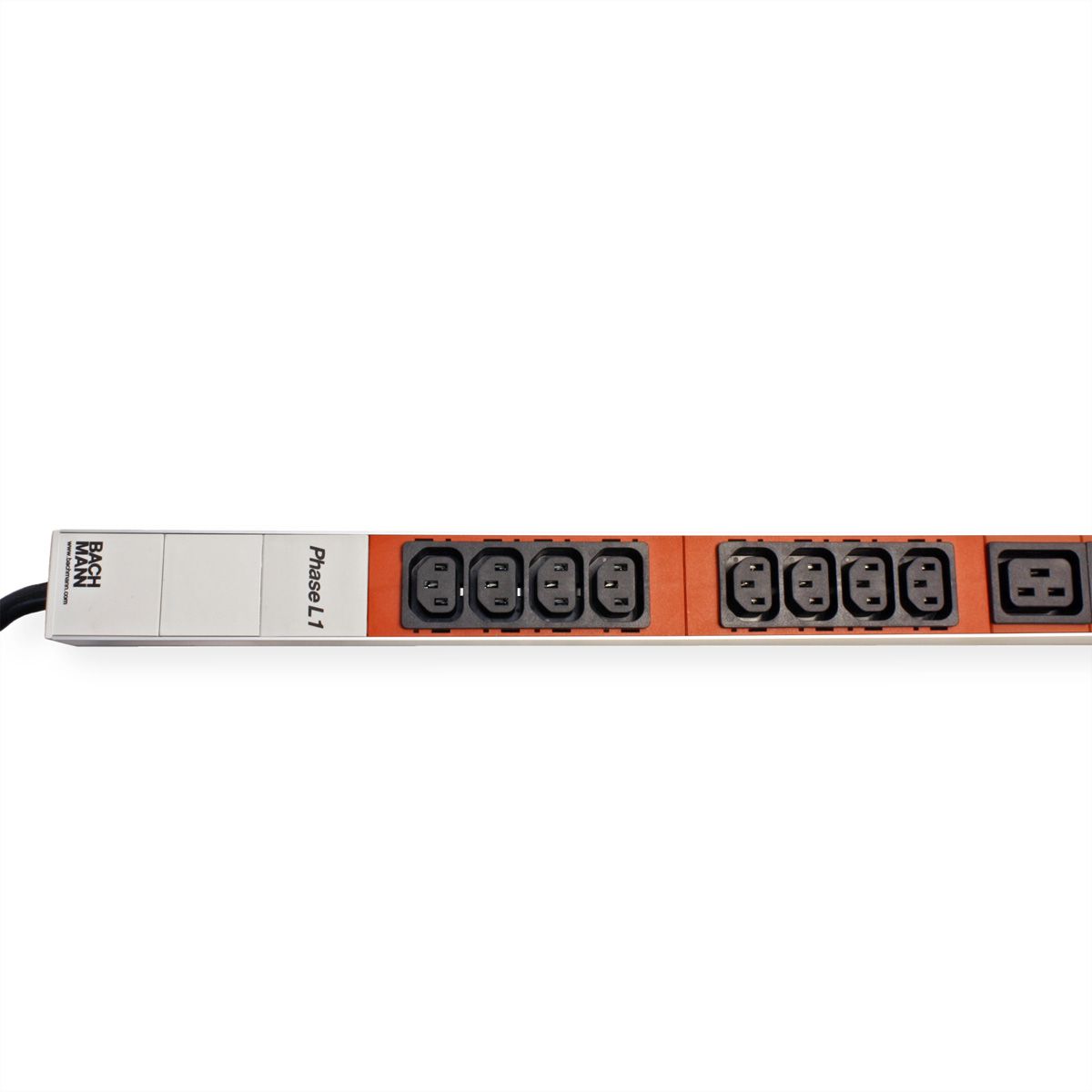

Technical data: - Cable: 3.0m 5G2.5 mm², black - Input: CEE 3 x 16A (three-phase) - Output: 3 groups each (8 x C13, 2 x C19) - 16A /phase - Dimensions (WxHxD) 1116 x 44 x 47 mm -

Specifications

Manufacturer BACHMANN
Product group Power Bars
Product type IT power strip
Colour Aluminium
Length 3 m
Max. capacitance 3 x 16A
Max. voltage 400V AC
ON/OFF Switch no
Number of socket pots 28
Quantity of outputs/angles 24 x IEC320 Kaltgerätedose C13 + 4 x IEC320 C19
Output alignment Reihe
Socket type
  • IEC320 C13, 10A
  • IEC320 C19, 16A
Material (casing) Kunststoff/Alu Profil
Colour (Design profile) black /silver
Connection cable H05VV-F 3G 1,5mm² mit CEE 16A Stecker
Connector plug CEE 16A
Regional use Without restriction
Height 1116 mm
Width 44 mm
Depth 47 mm
Weight 2972 g
Height of packaging (single piece) 120 mm
Width of packaging (single piece) 120 mm
Depth of packaging (single piece) 1500 mm
Package weight (single piece) 3.428 kg

Downloads

Manufacturer data sheet - Deutsch (148.0 KB)

Download

Manufacturer data sheet - English (148.0 KB)

Download

More PDF data - Installation and safety instructions - German - English - French - Italian (482.4 KB)

Download

The BACHMANN brand stands for customer-oriented electrotechnical components and systems.

In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.
