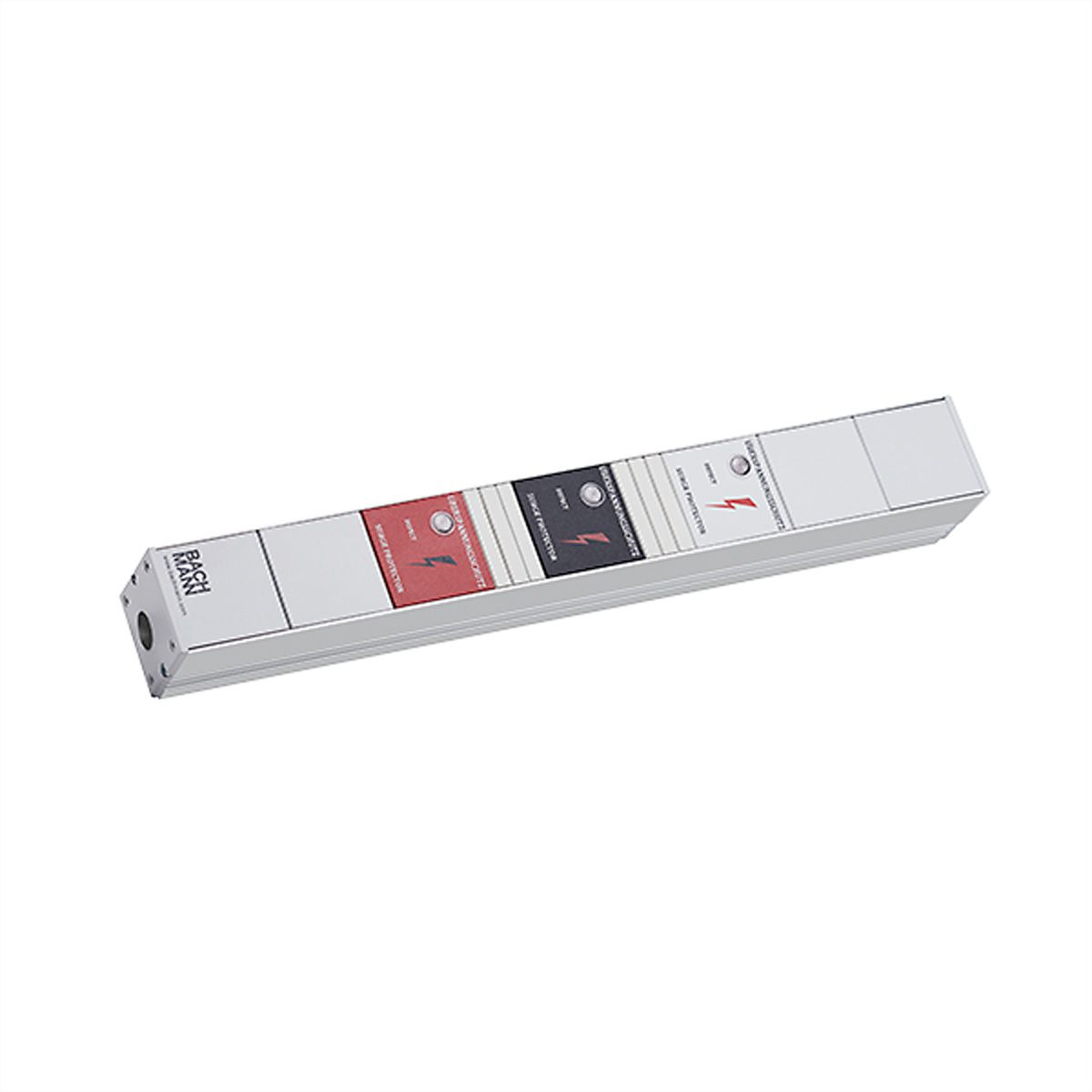

BACHMANN IT PDU Basic Inline SPD, 3ph 3x16A ÜSS 1m H05VV-F 5G2.5mm CEE 16A

BACHMANN IT PDU Basic Inline SPD, 3ph 3x16A ÜSS 1m H05VV-F 5G2.5mm CEE 16A

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 12/06/2024
Item no. 19073626
Brand / Manufacturer BACHMANN
Manuf. item no. 800.2546
EAN 4057298025266
Item weight 1.751 kg

Description

IT PDU Basic Inline SPD 3-phase 2xCEE 16A

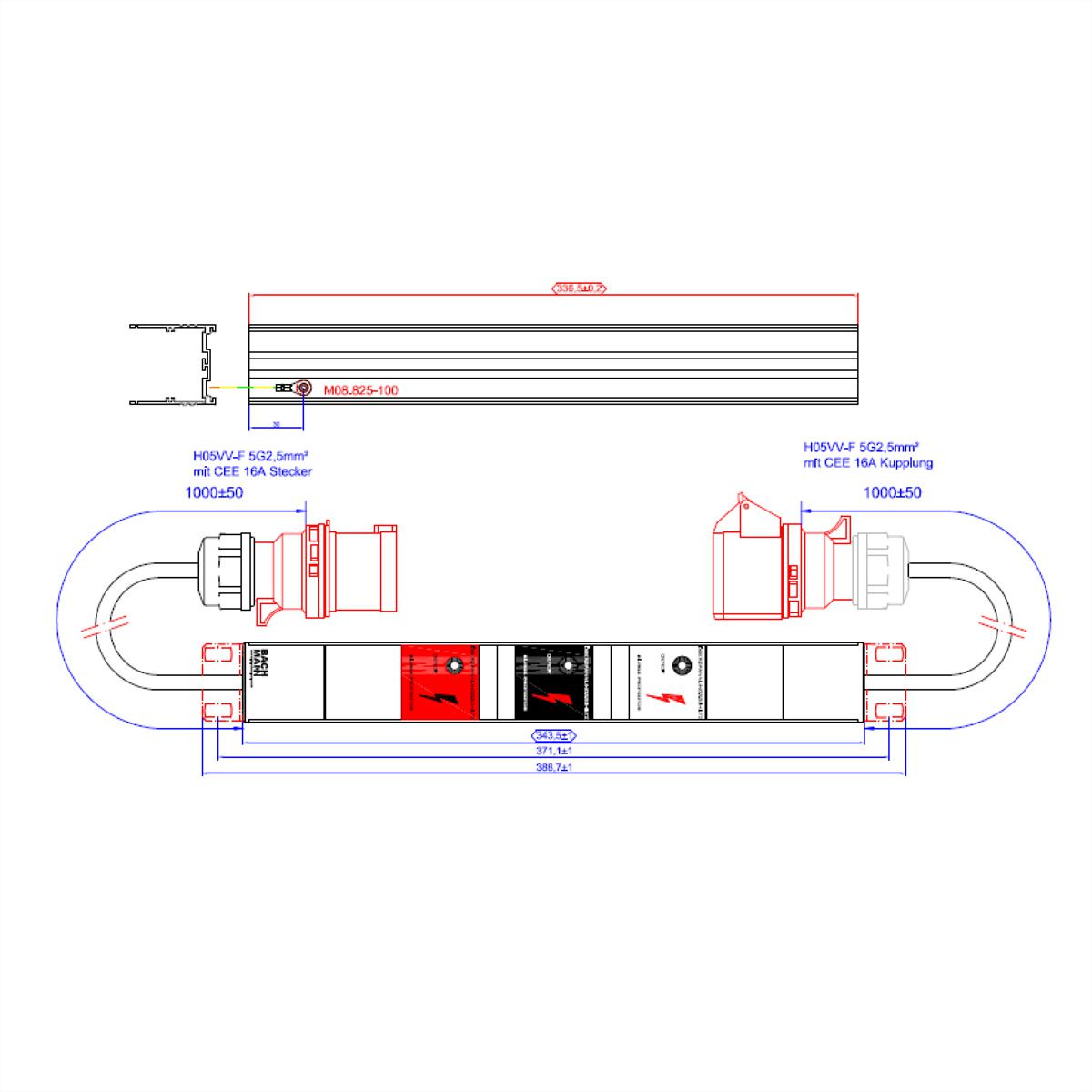

IT PDU Basic Inline SPD 3-phase - Bachmann standard 3x16A - ÜSS module SPD type3 - Power input: 1.0m H05VV-F 5G2.5mm² with CEE plug 16A - Power output: 1.0m H05VV-F 5G2.5mm² with CEE coupling 16A - with Bachmann logo - packed in cardboard box - incl. mounting bracket

Specifications

Manufacturer BACHMANN
Product group Power Bars
Product type IT power strip
Colour grey
Length 1 m
Number of socket pots 3
Regional use Without restriction
Height 120 mm
Width 225 mm
Depth 460 mm
Weight 1.729 kg
Height of packaging (single piece) 110 mm
Width of packaging (single piece) 120 mm
Depth of packaging (single piece) 1100 mm
Package weight (single piece) 1.751 kg

Downloads

Manufacturer data sheet - Deutsch (257.2 KB)

Download

More PDF data - Installation and safety instructions - German - English - French - Italian (482.4 KB)

Download

The BACHMANN brand stands for customer-oriented electrotechnical components and systems.

In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.
