BACHMANN module port replicator 2x USB, RJ45, Mini DisplayPort, USB-C, PowerDelivery 100W

BACHMANN module port replicator 2x USB, RJ45, Mini DisplayPort, USB-C, PowerDelivery 100W

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 19073509
Brand / Manufacturer BACHMANN
Manuf. item no. 917.229
EAN 4057298126871
Item weight 0.076 kg

Description

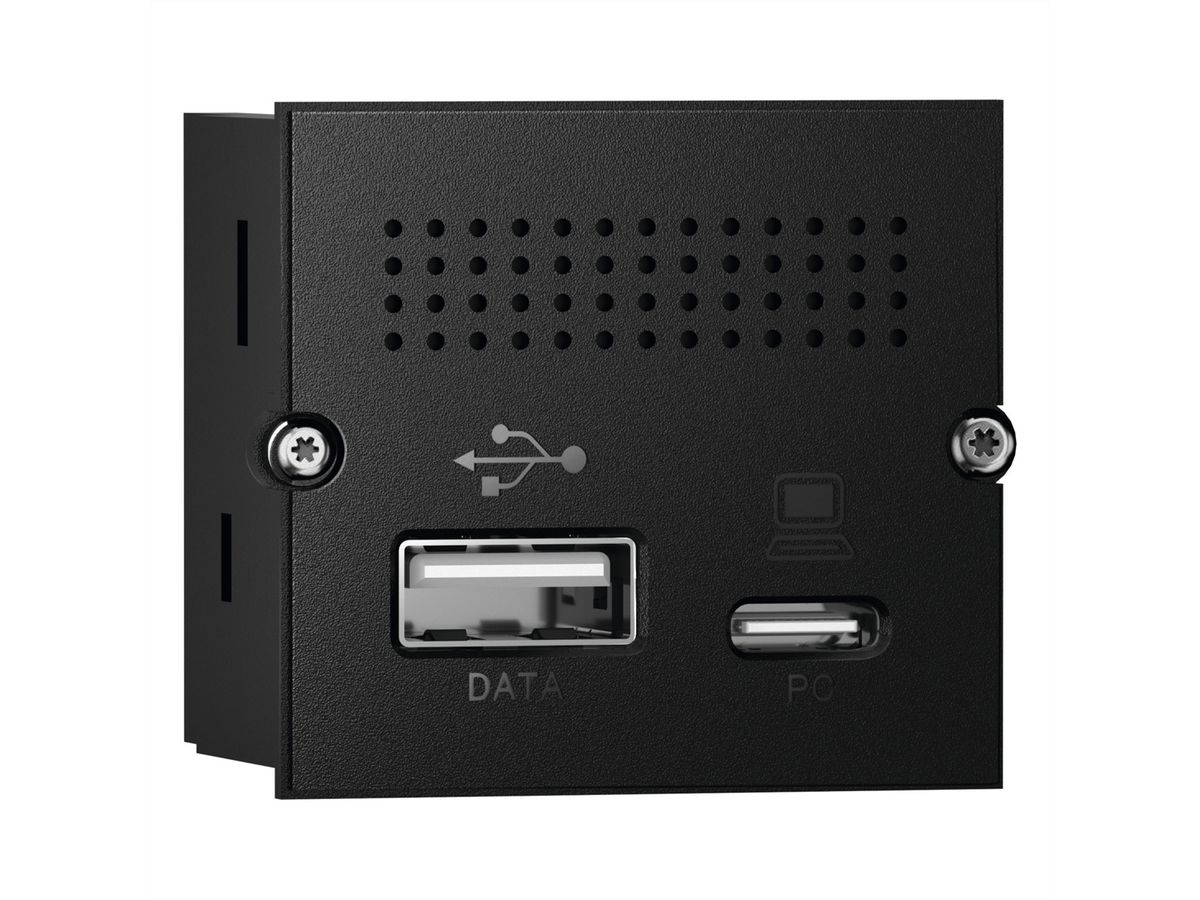

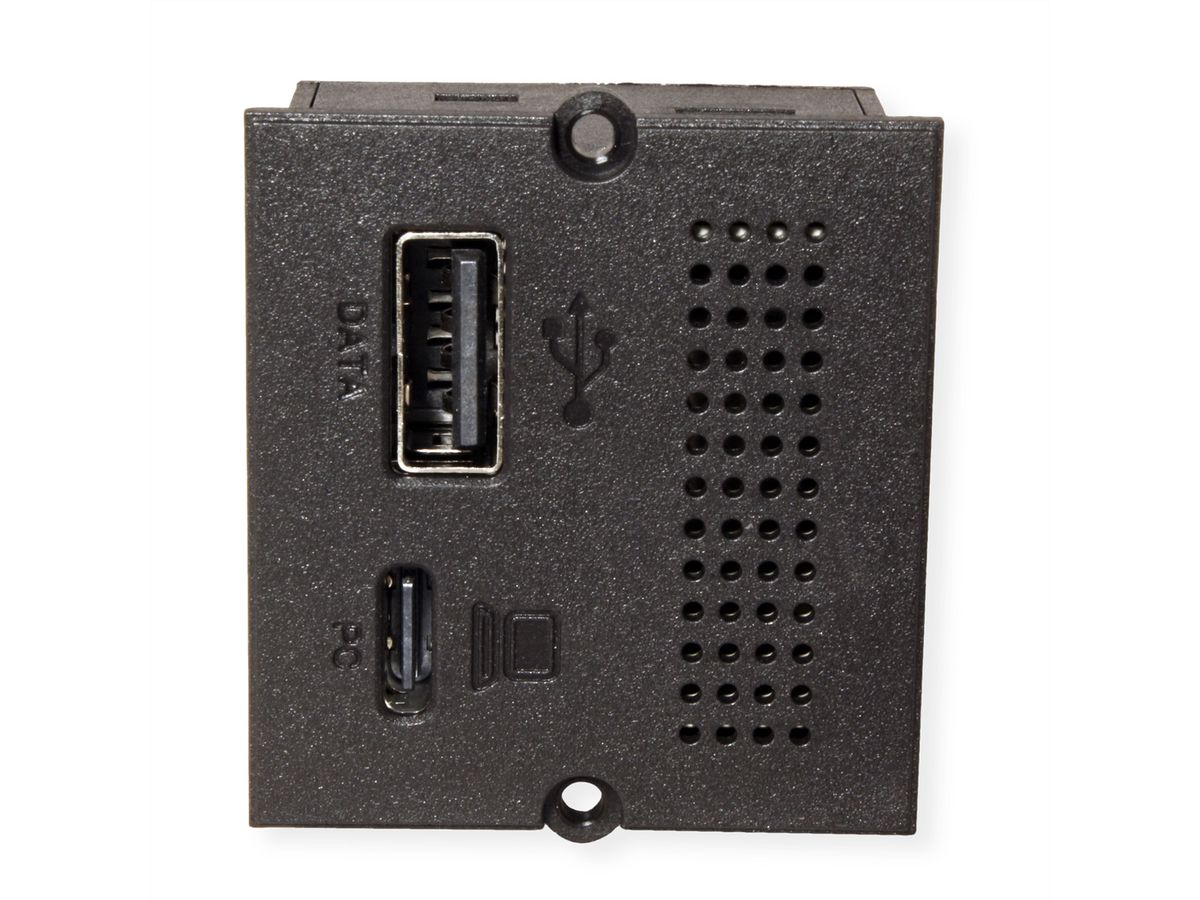

Internet connection, power supply, screen connection - the Custom Module Mini Port Replicator bundles everything a laptop needs and integrates it neatly into one connection panel. For DESK 2, CONI and Co.

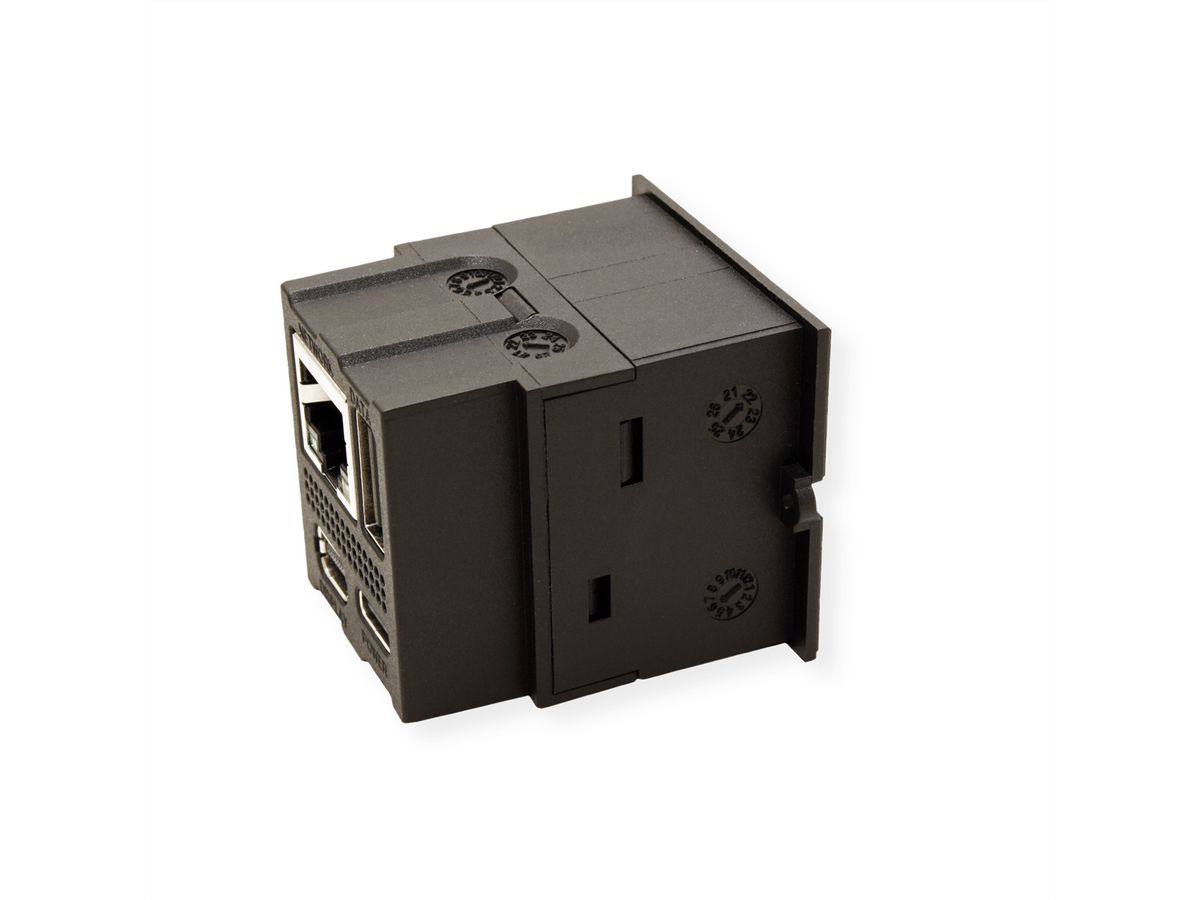

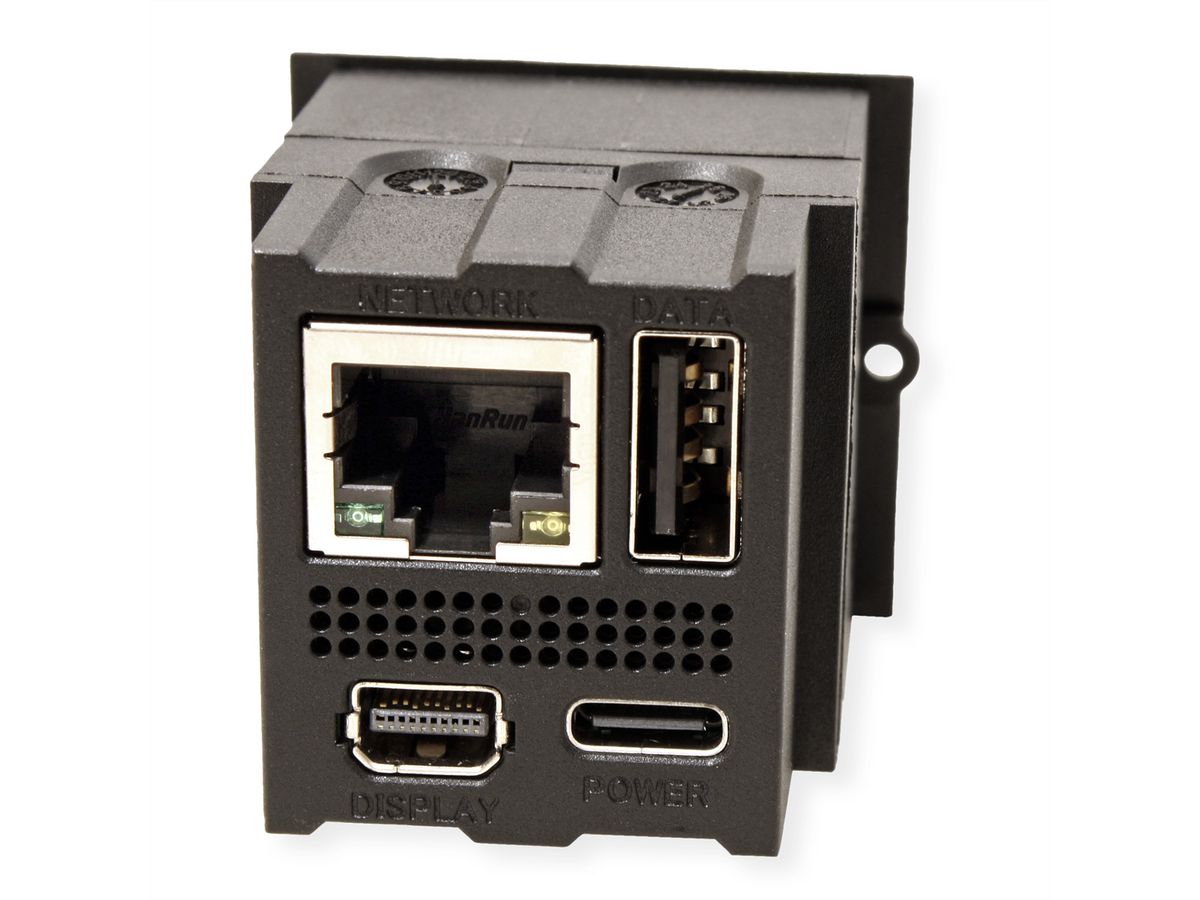

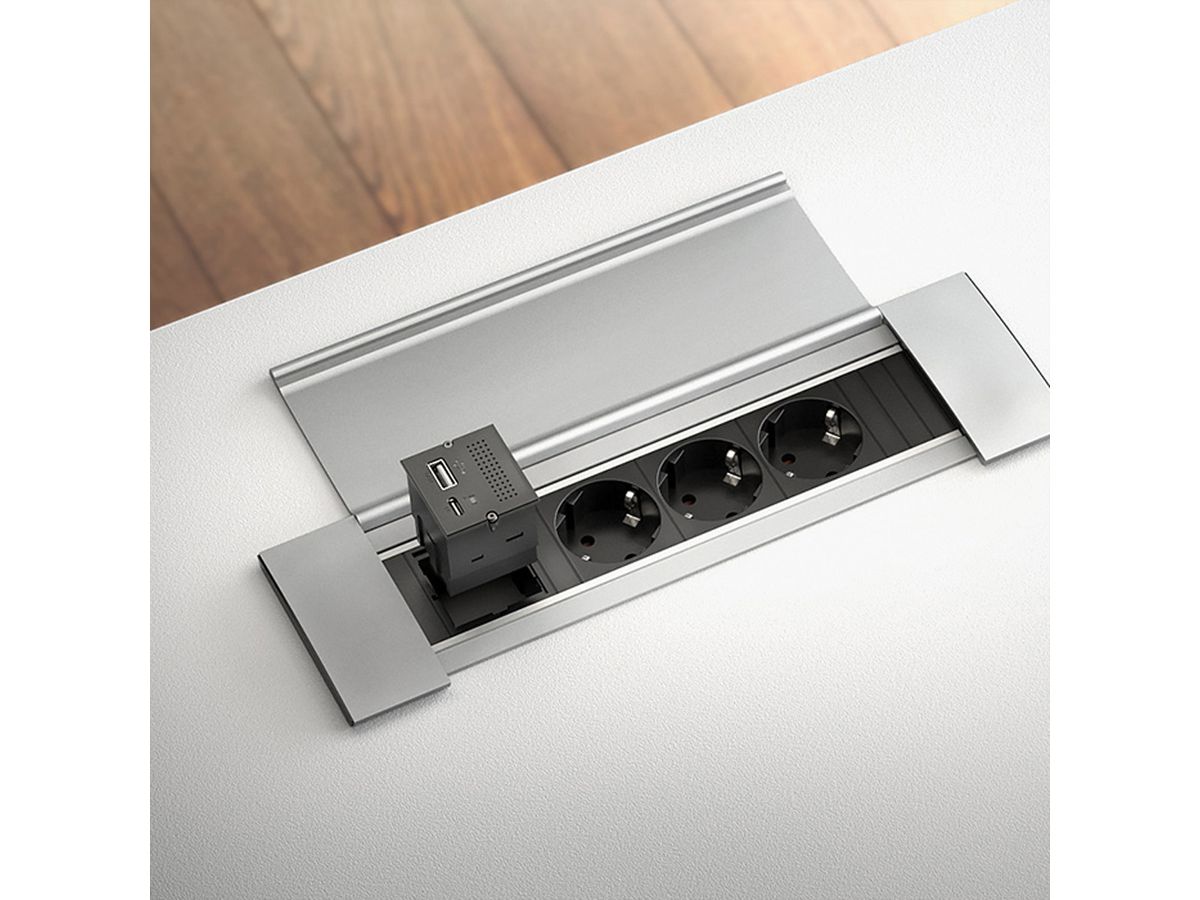

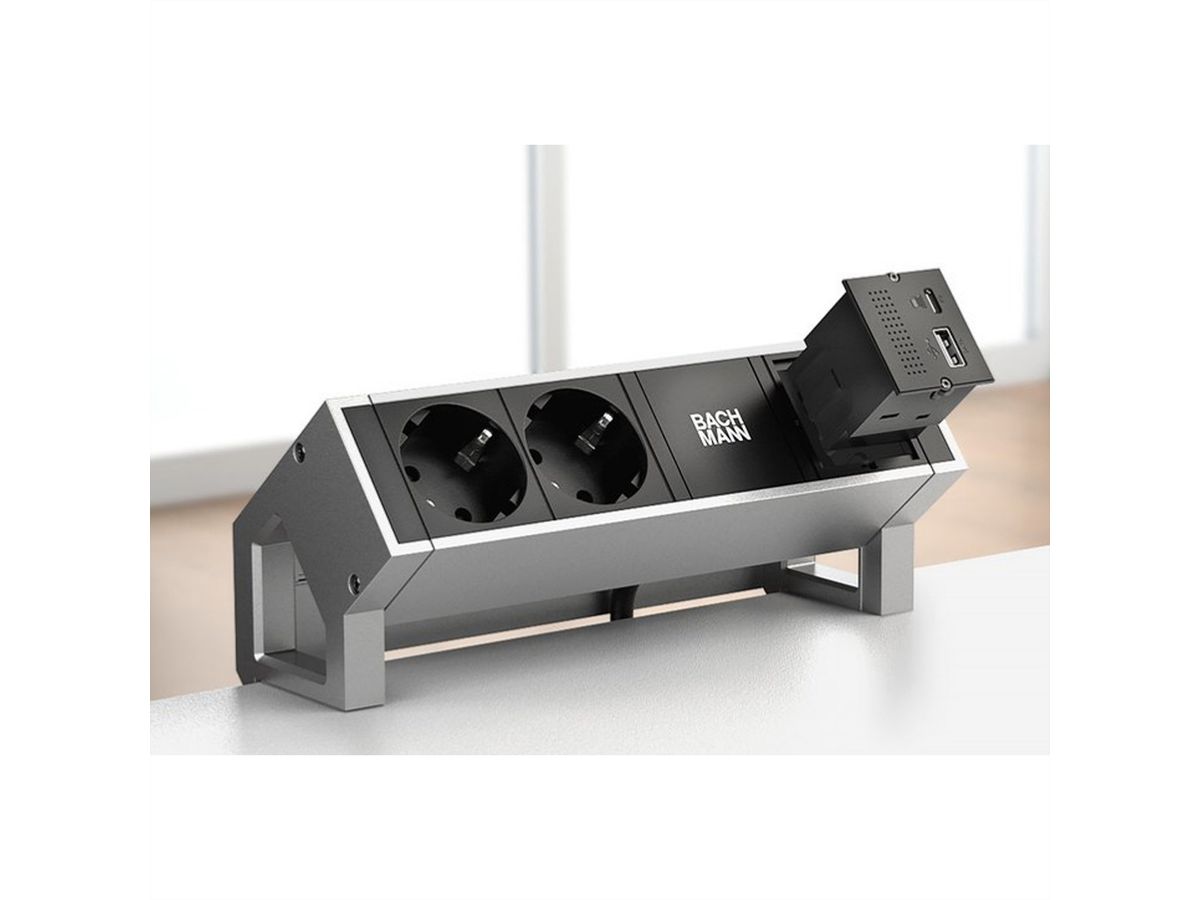

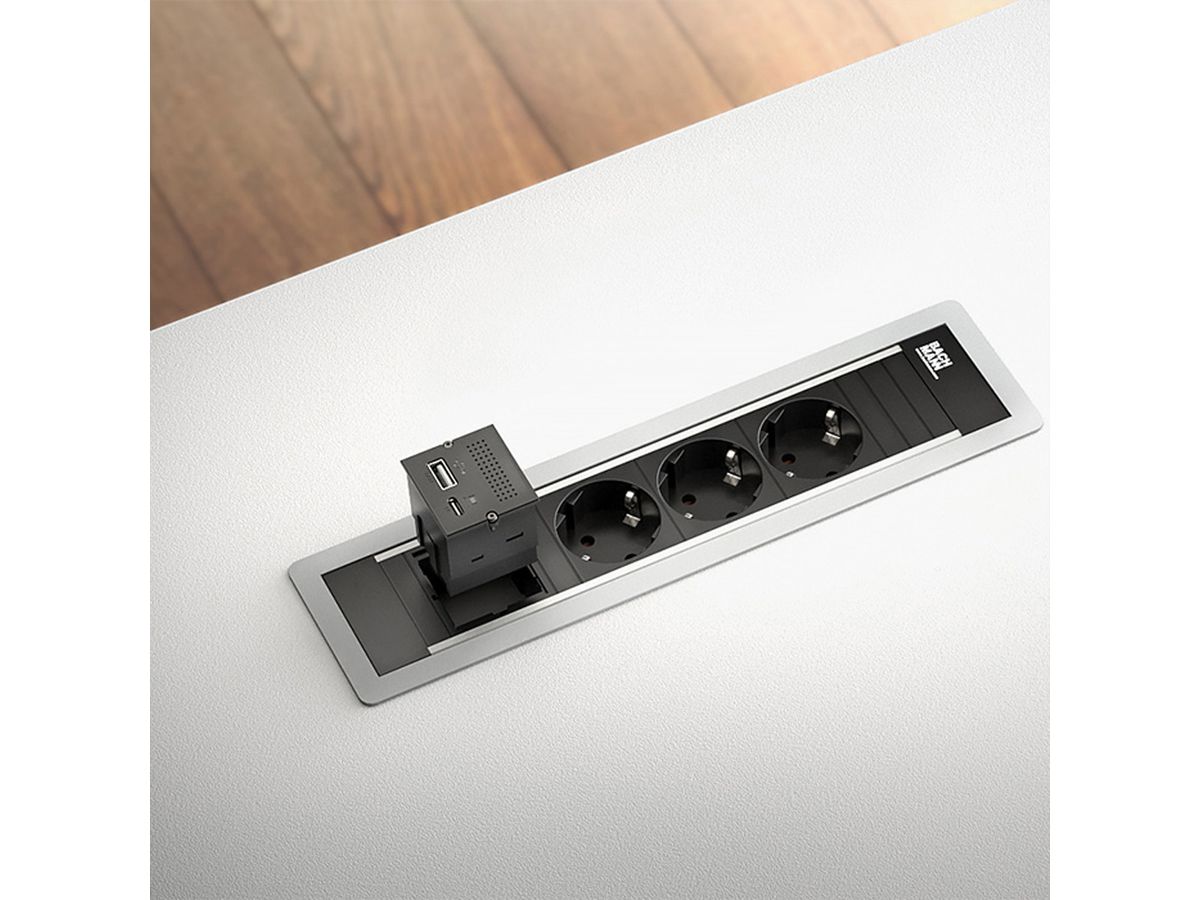

Data, audio and video connections can be fitted easily and individually. - Internet connection, power supply, screen connection - the mini port replicator bundles everything a laptop needs and integrates it neatly and clearly into one connection panel. This means that the entire desk arrangement can be utilised with just one cable and the work surface remains tidy and cable-free. - Docking stations, port replicators and similar devices do bundle the cables that supply the laptop. However, they move the interfaces to the work surface, consume space and disrupt the clean work aesthetic that characterises functional and aesthetic desks. - With the Mini Port Replicator, this optimised interface is now integrated into a DESK 2, POWER FRAME, CONI or other connection point of your choice. Cables and extensions remain away from the work surface. The Mini Port Replicator is connected to the laptop via USB-C - the laptop is supplied with power, projected onto a screen and connected to the Internet. Mini Display Port, 2x USB-A and network connections on the back.

- USB Type C 2.0 PD 100W (20Vcd/3.0A) - 2x USB Type A data (5V 500mA max) - Mini DisplayPort 1.2 (UHD 3840x2160@60Hz) - Ethernet 100Mbps RJ45 - Power input USB Type C 100W - packed in cardboard box -

Specifications

Manufacturer BACHMANN
Product group Power Bars
Product type Custom Module
Colour black
Height 40 mm
Width 25 mm
Depth 37 mm
Weight 114 g
Height of packaging (single piece) 60 mm
Width of packaging (single piece) 80 mm
Depth of packaging (single piece) 70 mm
Package weight (single piece) 0.076 kg

Downloads

Manufacturer data sheet - Deutsch (233.5 KB)

Download

User manual - Deutsch (1.0 MB)

Download
