Description

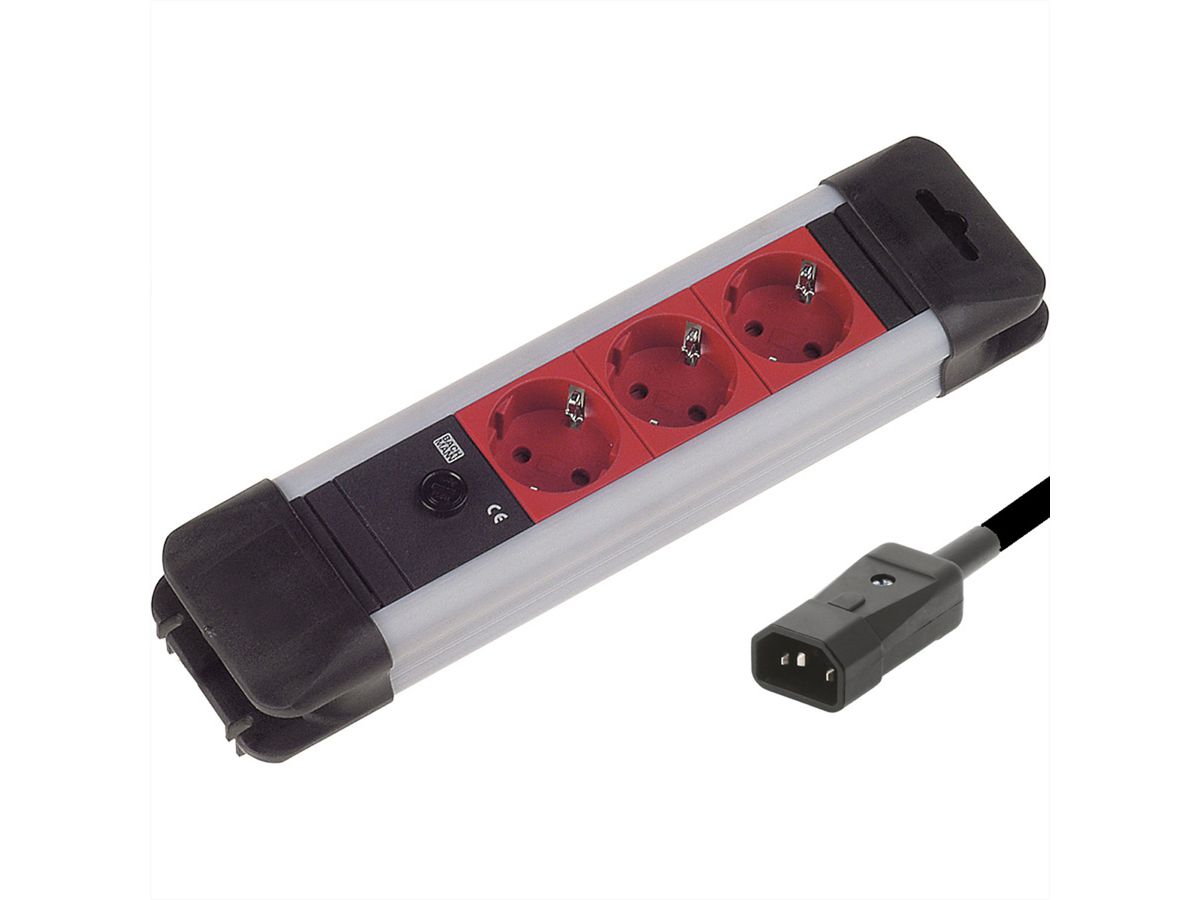

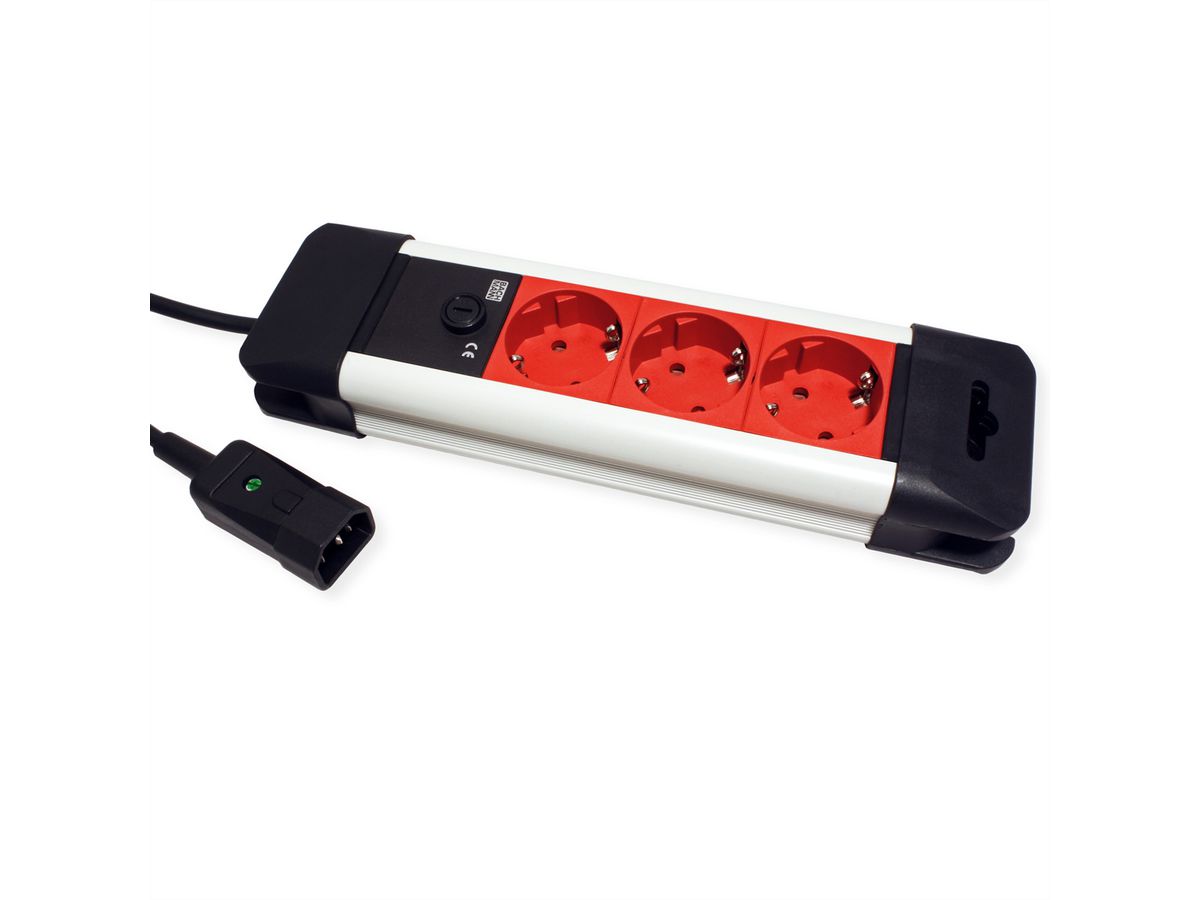

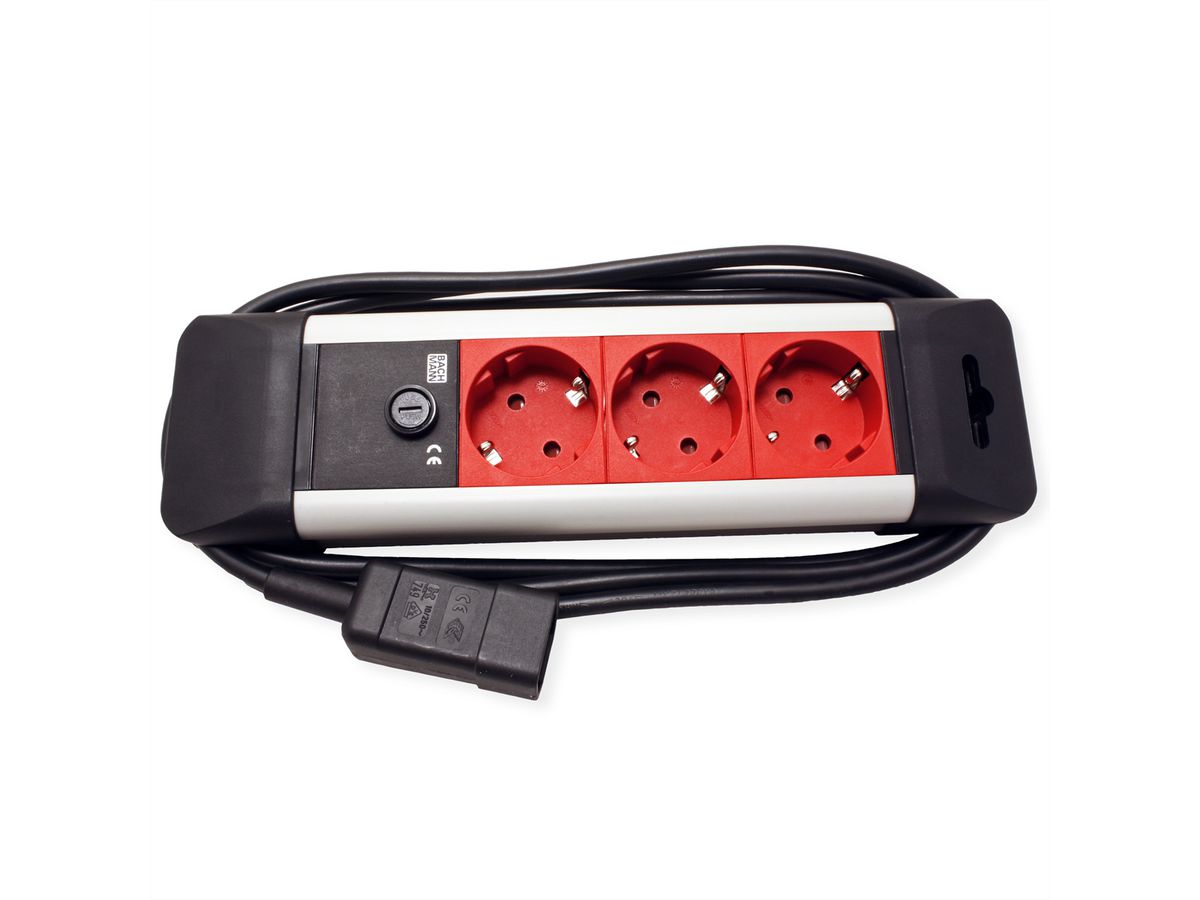

Socket strip with IEC plug for connecting devices with earthing contact plugs to the IEC connection of a UPS

- 3-way socket strip, plastic, screwed - Sockets rotated by 35° - Earthing contact inserts: red - Application: For connecting devices with earthing contact plugs to the IEC connections of a UPS - Technical data: - Cable: 2.0m H05VV-F 3G 1.00mm² black - Supply cable with IEC320 C14 IEC plug - Max. Load: 10A - 10A microfuse, replaceable -

Specifications

Manufacturer	BACHMANN
Product group	Power Bars
Product type	Power strip
Colour	various
Length	2 m
Function	3 f. Steckdosenleite mit. Kaltgerätestecker
Mounting form	Desktop
Max. capacitance	2300W
Max. voltage	250V AC
ON/OFF Switch	no
Number of socket pots	3
Quantity of outputs/angles	3 / 35°
Output alignment	Reihe
Socket type	3P. German, CEE 7/3, Type-F
Material (casing)	Kunststoff
Colour (Design profile)	black / red / silver
Connection cable	2m HO5VV-F 3G 1,0mm², schwarz
Colour (Cable)	black
Connector plug	Kaltgerätestecker IEC320 C14
Regional use	Germany, Austria, Netherlands
Technical particularity	zum Anschluss von Schukosteckerkabeln an USV
Height	45 mm
Width	290 mm
Depth	70 mm
Weight	0.44 kg
Height of packaging (single piece)	60 mm
Width of packaging (single piece)	130 mm
Depth of packaging (single piece)	310 mm
Package weight (single piece)	0.48 kg
