BACHMANN power distributor 400V/230V 2m, Portable H07RN-F5G2.5

BACHMANN power distributor 400V/230V 2m, Portable H07RN-F5G2.5

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 12/09/2024
Item no. 19070580
Brand / Manufacturer BACHMANN
Manuf. item no. 349.015
EAN 4057298092602
Item weight 6.62 kg

Description

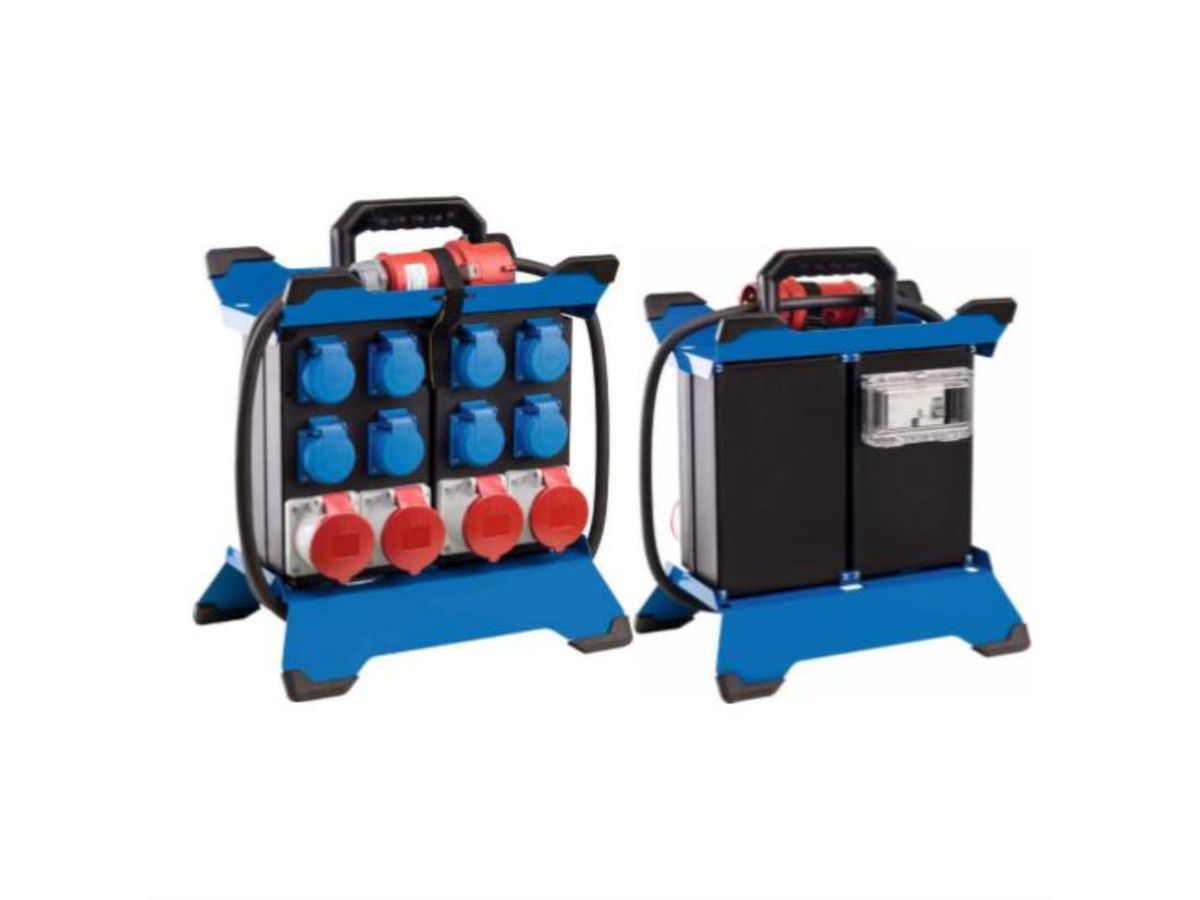

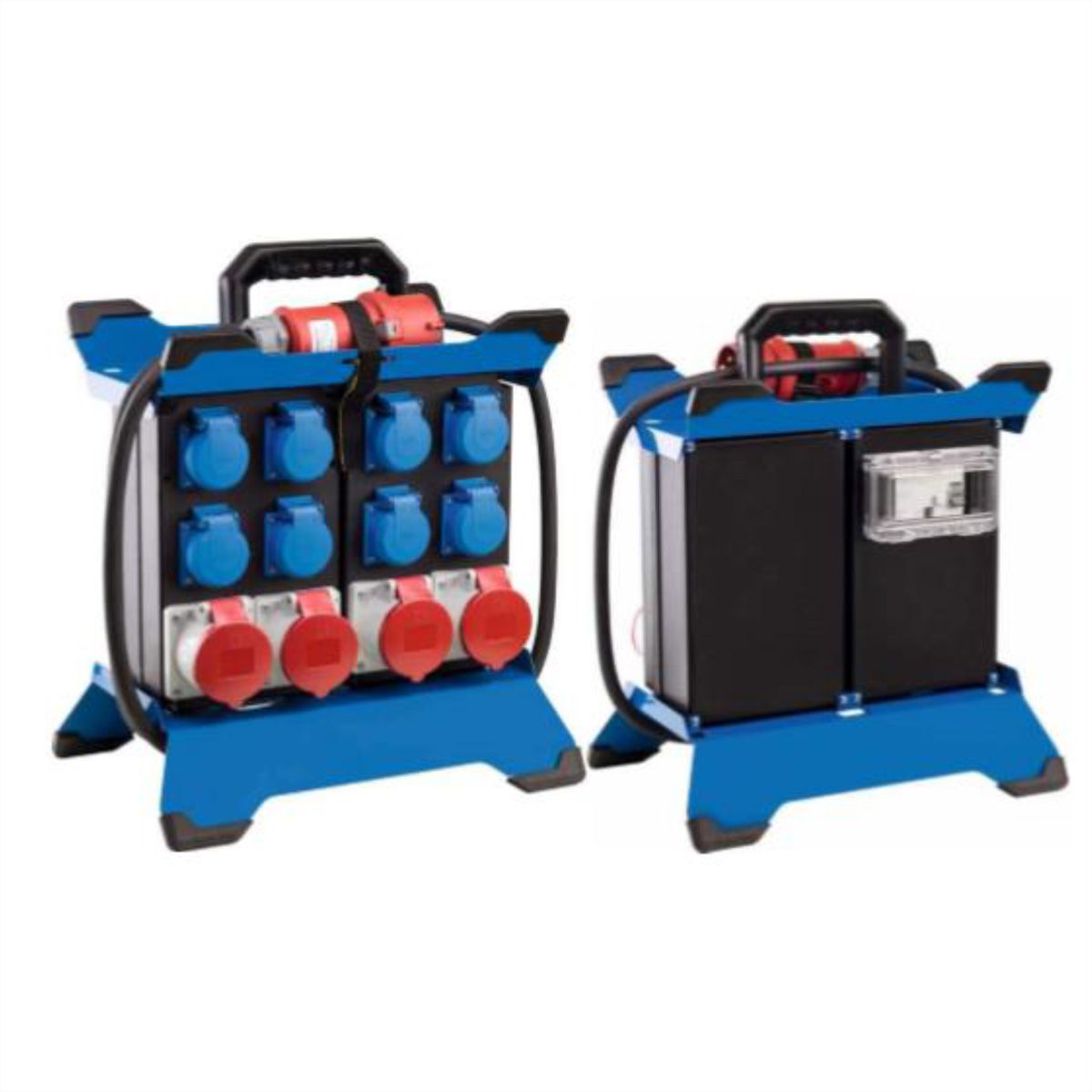

Portable power distributor 400V/230V, 2.0m,H07RN-F5G2.5

Portable power distributor with ergonomic carrying handle Input: 3.4m heavy-duty rubber hose cable H07RN-F 5G2.5 with CEE plug 400V/16A/5-pin Output: 4 x CEE sockets 400V/16A/5-pin with hinged cover 8 x protective contact sockets 230V/16A with hinged cover (2+2+4 sockets distributed over 3 phases) Fuse protection: 1 x RCD 4-pole, 40A, 30mA, type A 400V/16A/max. 11kW IP44 Dimensions (WxHxD): 400x450x252 mm

Specifications

Manufacturer BACHMANN
Product group Power Bars
Product type Power Distribution Units
Length 2 m
Number of socket pots 12
Socket type
  • 3P. German, CEE 7/3, Type-F
  • CEE red 16A 3P+N+PE 400V
Plug type CEE red 16A 3P+N+PE 400V
Protection class (IP Code) IP44
Height 0.26 m
Width 0.4 m
Depth 0.46 m
Weight 6.62 kg
Height of packaging (single piece) 0 mm
Width of packaging (single piece) 0 mm
Depth of packaging (single piece) 0 mm
Package weight (single piece) 6.62 kg

Downloads

Manufacturer data sheet - Deutsch (149.7 KB)

Download

Manufacturer data sheet - English (149.7 KB)

Download

More PDF data - Installation and safety instructions - German - English - French - Italian (482.4 KB)

Download

The BACHMANN brand stands for customer-oriented electrotechnical components and systems.

In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.
