Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 19073519 |
|---|---|
| Brand / Manufacturer | BACHMANN |
| Manuf. item no. | 349.010 |
| EAN | 4016514010295 |
| Item weight | 5.37 kg |
:strip_icc():strip_exif()/logos/bachmann.png "BACHMANN")

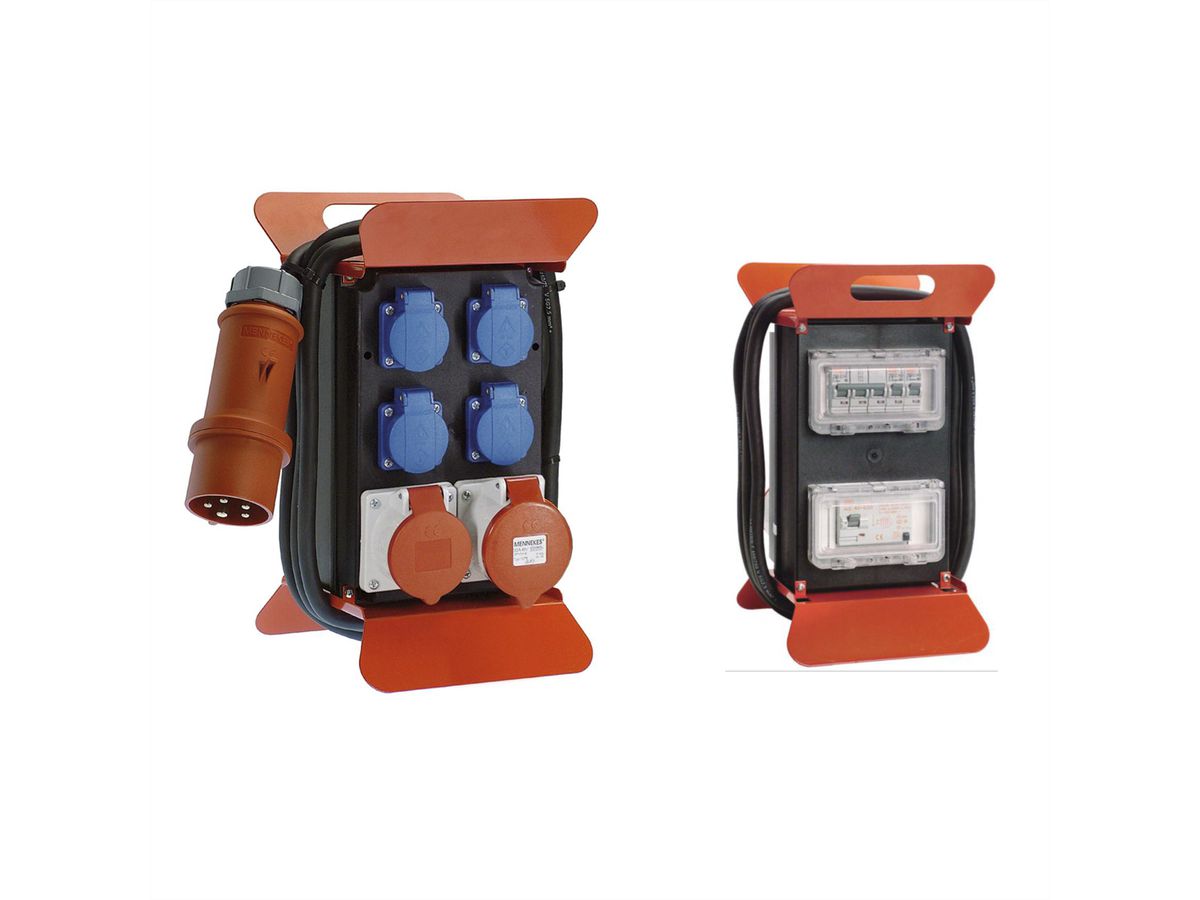

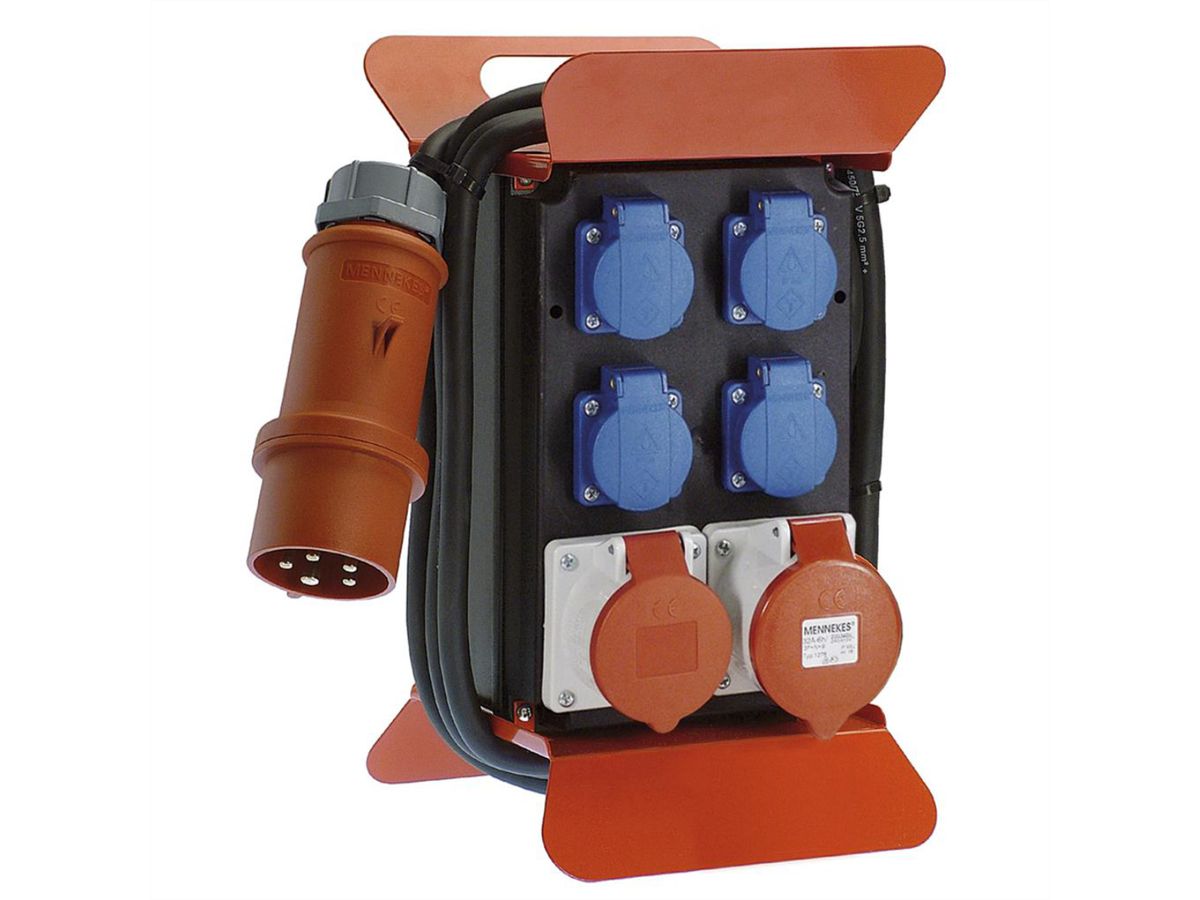

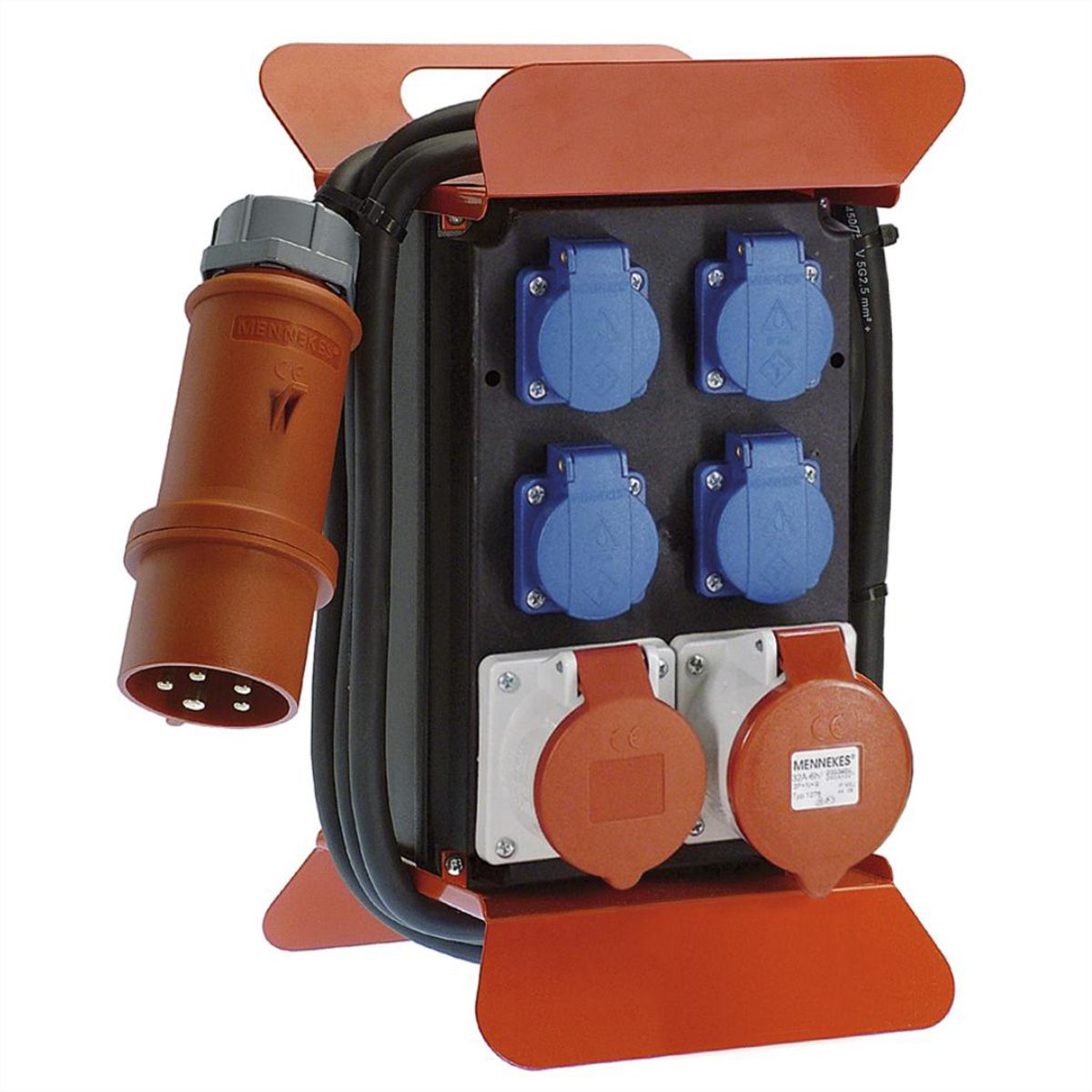

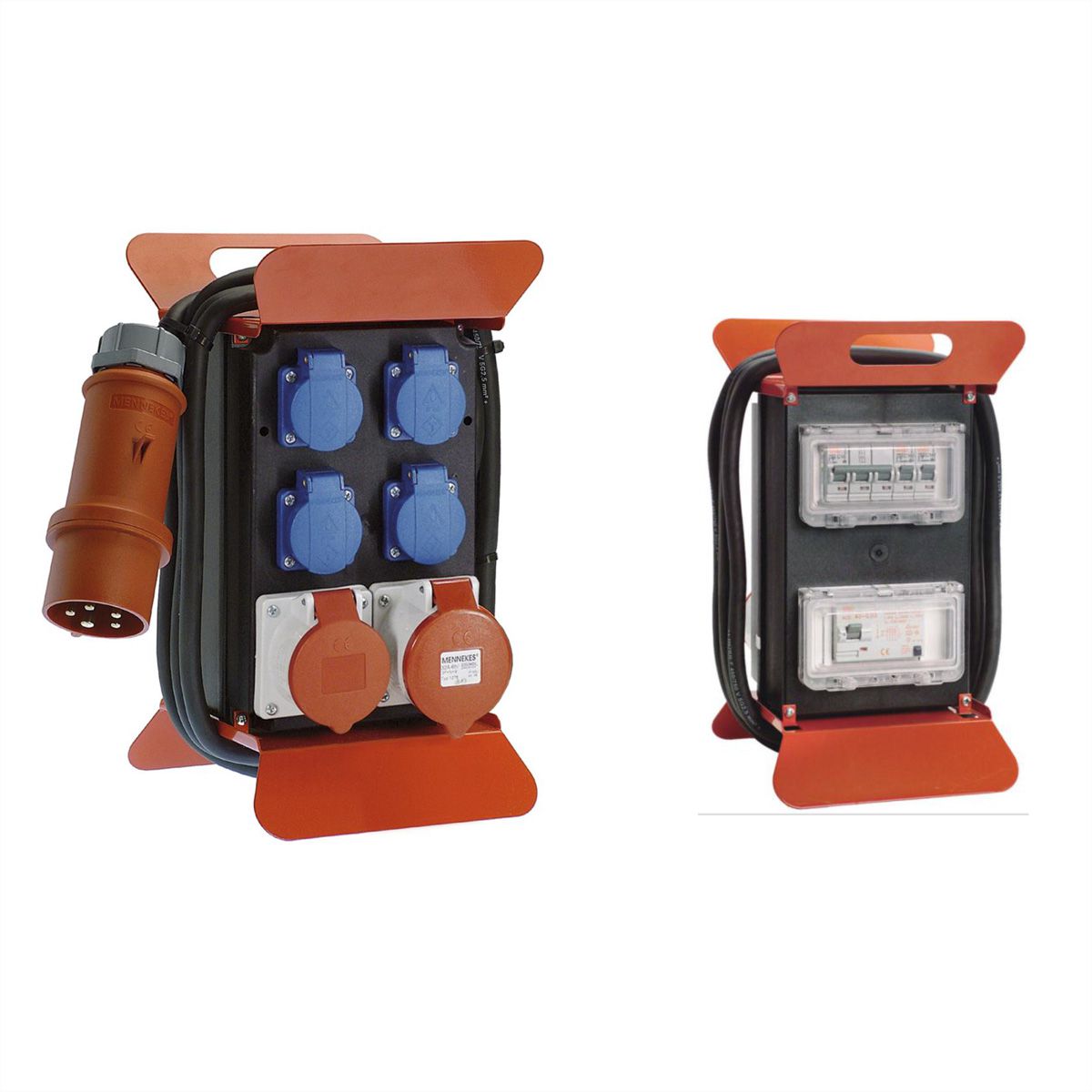

Power distributor 400V CEE, 1 CEE socket outlet 16A+ 32A, 4x protective contact, IPX4 with cable winder and carrying handle, 4m H07RN-F 5G4.0 - Socket outlets: - VDE tested - 230V/400V, IP44 splash-proof - Red/black - Connection: - Input: 4.0m H07RN-F 5G2.5 rubber cable with CEE plug (32A, 5-pin) max. loadable up to 26A - Output: 4 earthed sockets 230V / 16A, 1 CEE sockets (400V / 16A, 5-pin), 1 CEE sockets (400V / 32A, 5-pin) - Fuse: - 1x 3-pin cable protection C16A - 2x 1-pin cable protection C16A - 1x residual current protection 40A, 30mA
| Manufacturer | BACHMANN |
|---|---|
| Product group | Power Bars |
| Product type | Power Distribution Units |
| Colour | black |
| Length | 4 m |
| Scope of delivery | 1x power distributor |
| Number of socket pots | 6 |
| Socket type |
|
| Plug type | CEE red 32A 3P+N+PE 400V |
| Protection class (IP Code) | IP44 |
| Regional use | Without restriction |
| Height | 390 mm |
| Width | 230 mm |
| Depth | 230 mm |
| Weight | 5.366 kg |
| Height of packaging (single piece) | 0 mm |
| Width of packaging (single piece) | 0 mm |
| Depth of packaging (single piece) | 0 mm |
| Package weight (single piece) | 5.37 kg |
