BACHMANN Power Frame 3x earthing contact short

BACHMANN Power Frame 3x earthing contact short

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 19071837
Brand / Manufacturer BACHMANN
Manuf. item no. 317.100
EAN 4016514022113
Item weight 0.36 kg

Description

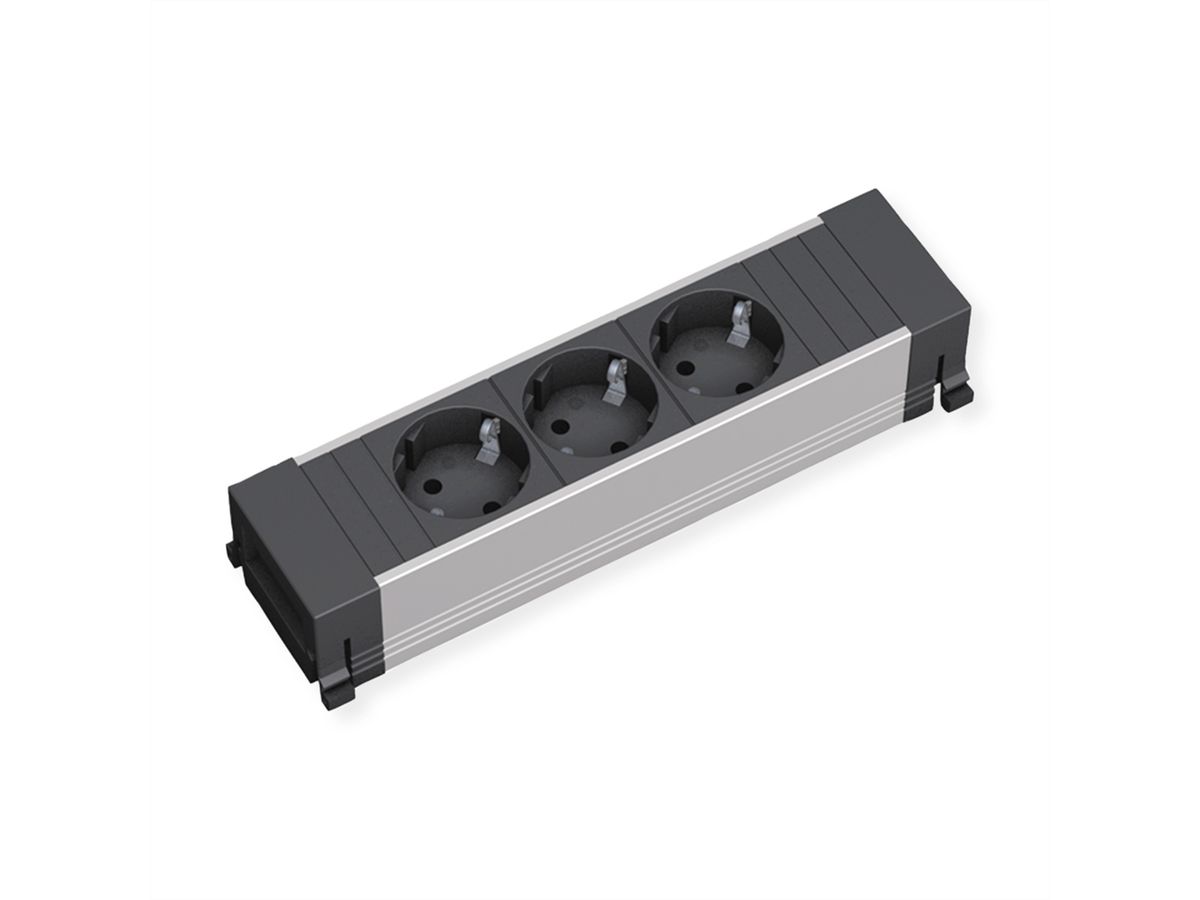

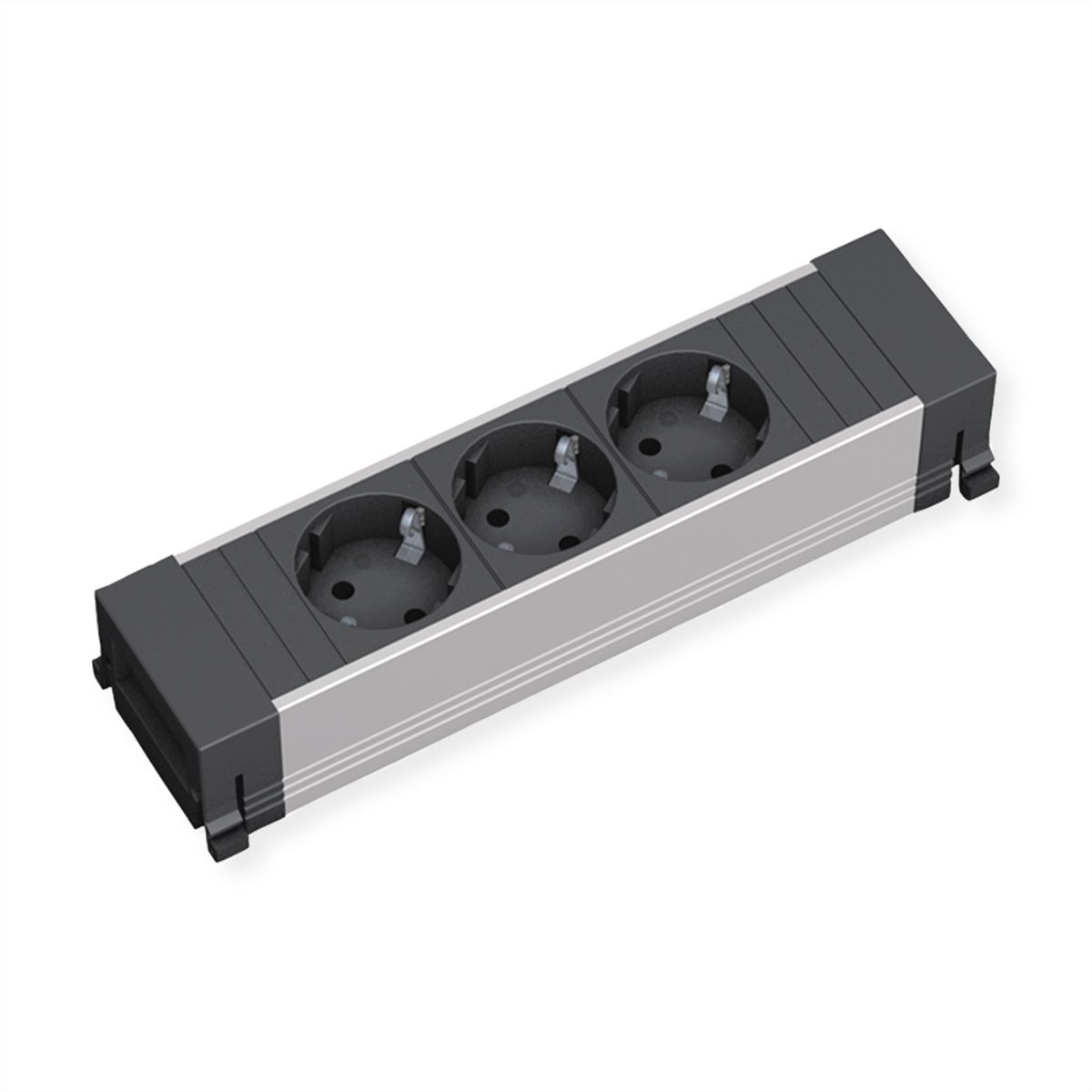

POWER FRAME the easily accessible electrification unit

POWER FRAME socket strip with enhanced touch protection ALU Length: 219.6+/- 0.2mm 3x black socket outlets with earthing contact Fixed connection with 0.20m cable length: H05VV-F 3G1 mm H05VV-F 3G1.5mm² black with Wieland GST18 plug individually in polybag

The advantages at a glance - Compact dimensions - Retrofitting possible - Timeless design - Versatile use - Quick installation of complete power strips

Specifications

Manufacturer BACHMANN
Product group Power Bars
Product type Integrated unit POWER FRAME
Colour black
Length 0.2 m
Number of socket pots 3
Socket type 3P. German, CEE 7/3, Type-F
Regional use Germany, Austria, Netherlands
Height 0.08 m
Width 0.05 m
Depth 0.22 m
Weight 0.36 kg
Height of packaging (single piece) 80 mm
Width of packaging (single piece) 70 mm
Depth of packaging (single piece) 320 mm
Package weight (single piece) 0.36 kg

Downloads

Manufacturer data sheet - Deutsch (156.7 KB)

Download

Manufacturer data sheet - English (156.7 KB)

Download

More PDF data - Installation and safety instructions - German - English - French - Italian (482.4 KB)

Download

The BACHMANN brand stands for customer-oriented electrotechnical components and systems.

In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.

Product security

Information in accordance with the EU Product Safety Regulation, (GPSR):

Bachmann GmbH
Ernsthaldenstr. 33, 70565 Stuttgart, Germany
