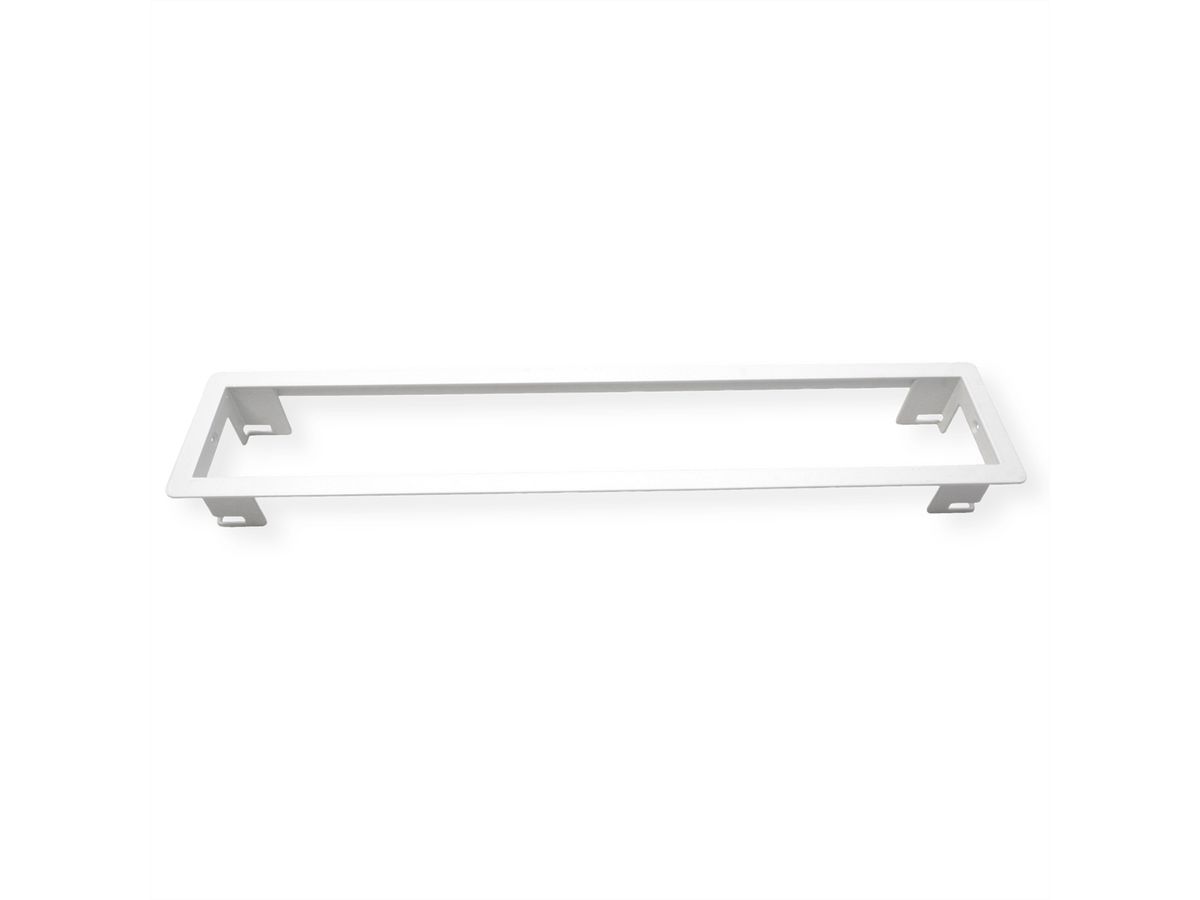

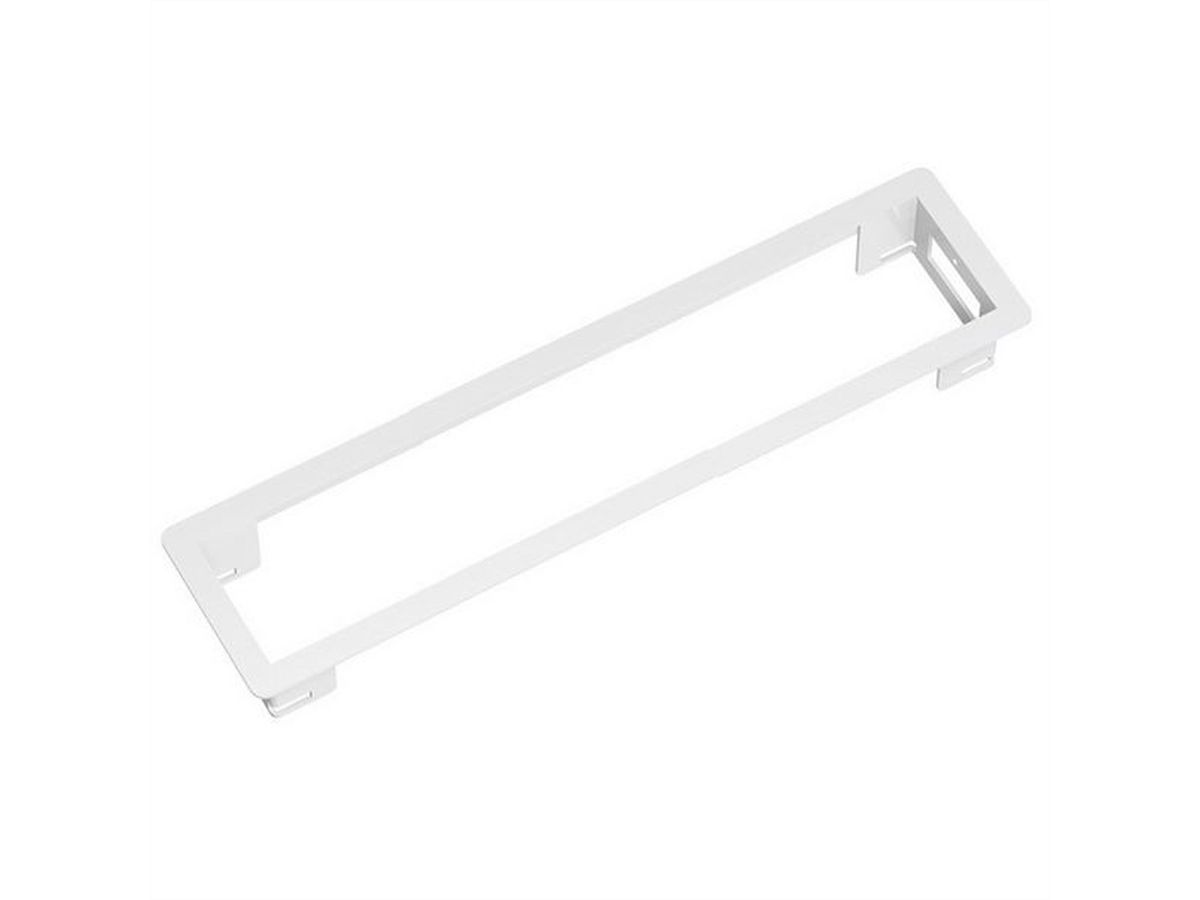

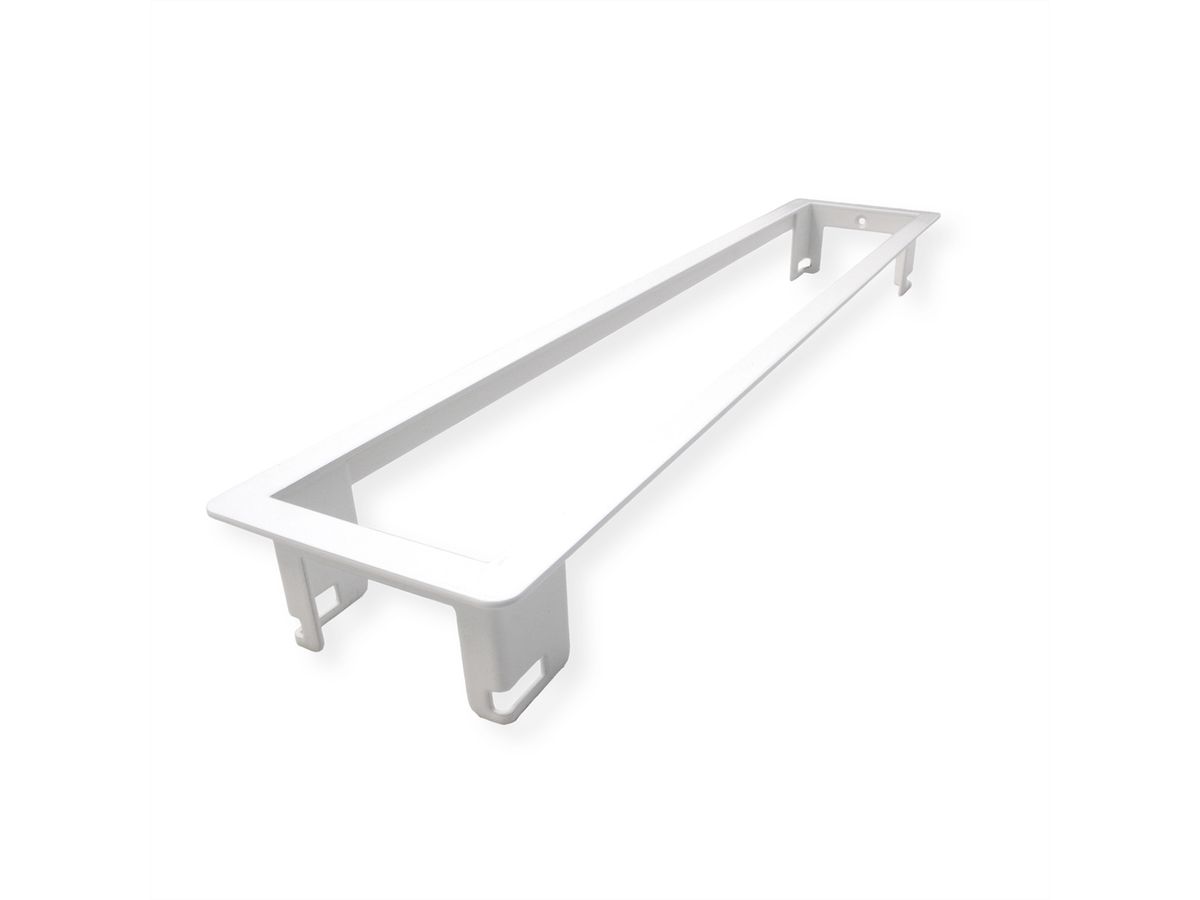

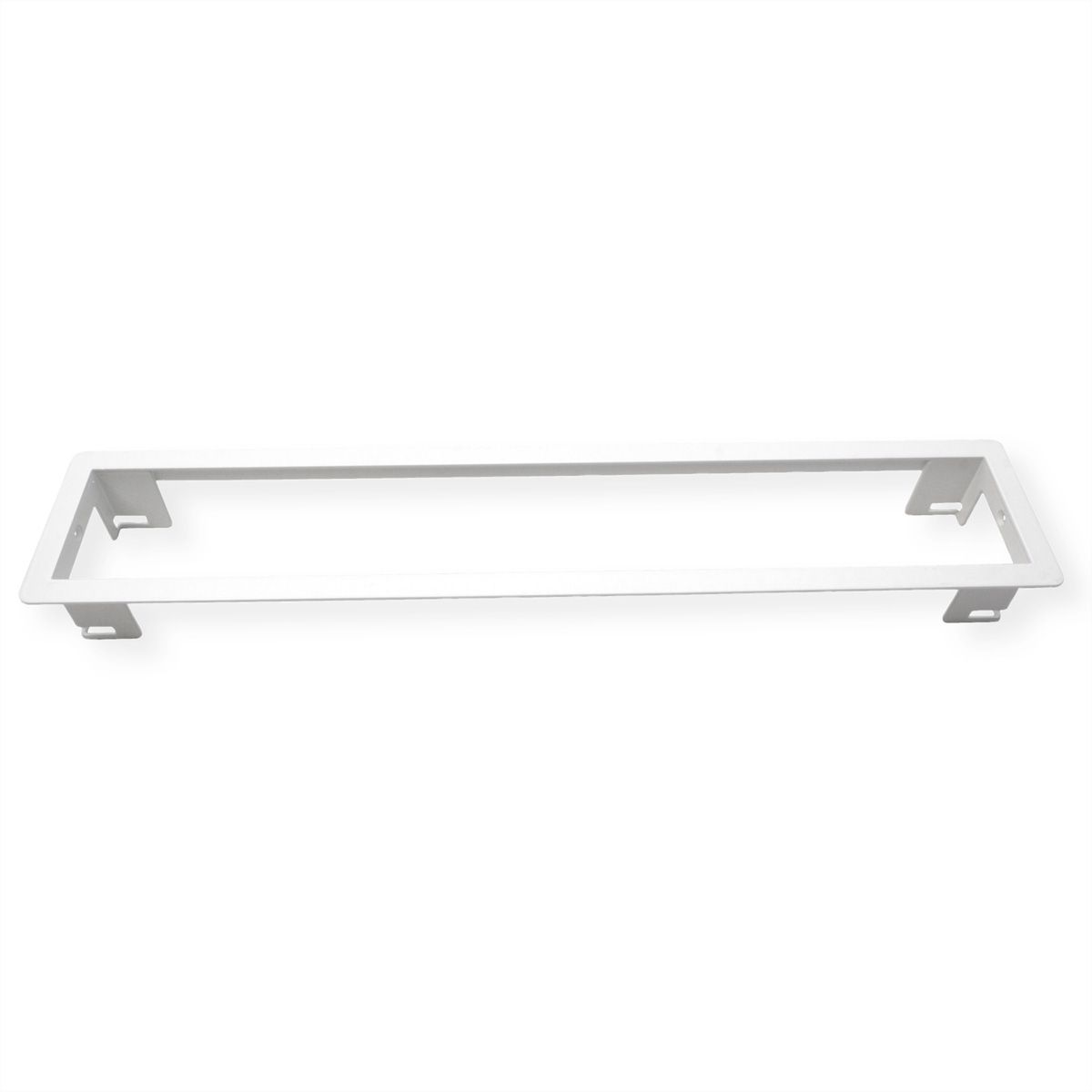

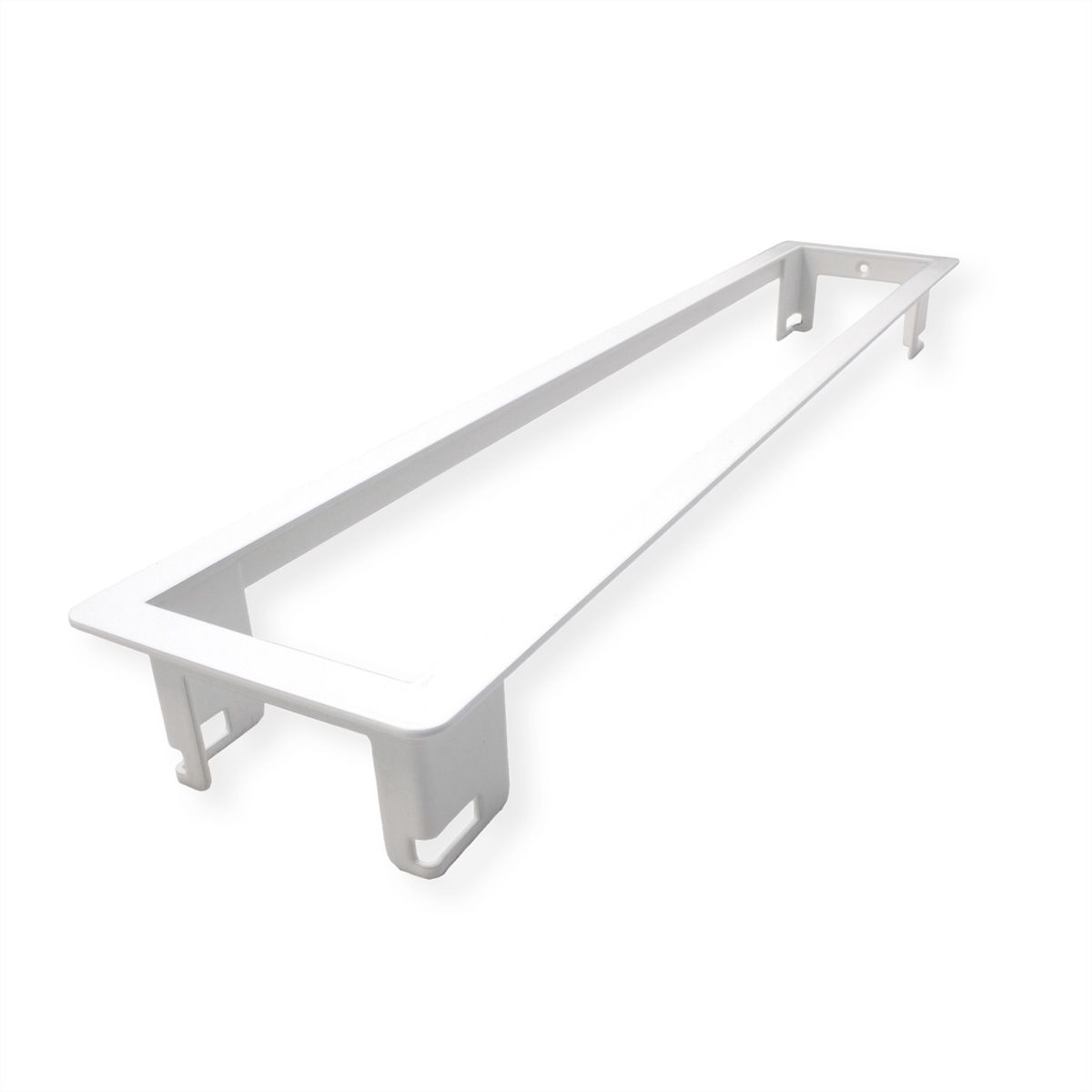

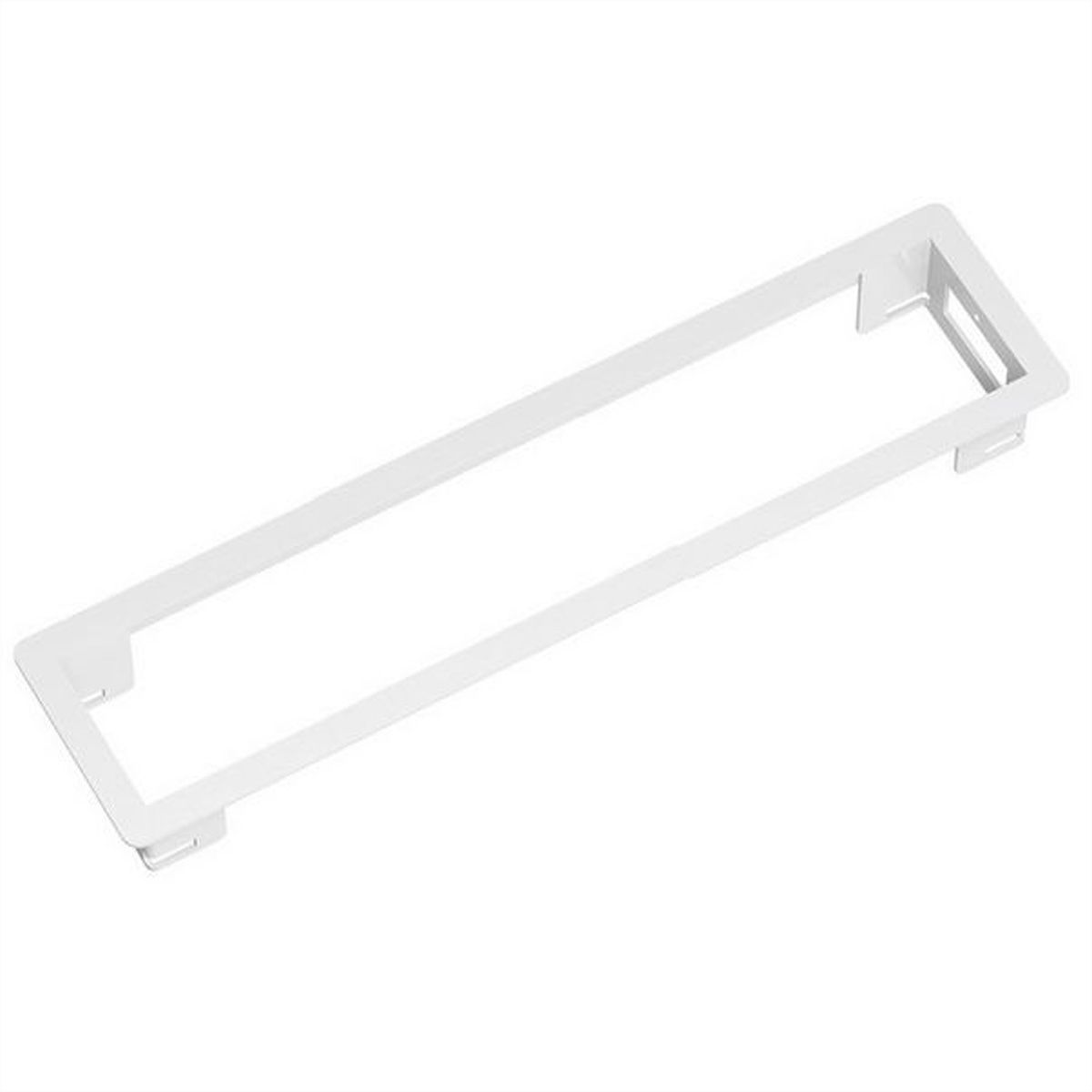

BACHMANN POWER FRAME Installation frame Large 6-gang, white

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 07/15/2024

Item no.	19071356
Brand / Manufacturer	BACHMANN
Manuf. item no.	915.003
EAN	4016514089611
Item weight	0.218 kg

Description

POWER FRAME the easily accessible electrification unit

Compact dimensions combined with a high-quality, timeless design open up almost limitless application possibilities for POWER FRAME. The power strip can simply be inserted into the installation frame from below without tools. - Compact dimensions - Retrofitting possible - Timeless design - Versatile use - Quick installation of complete power strips - Dimensions (W x H x D): 369 x 73 x 36 mm - Material: Installation frame: Sheet steel - Socket outlet: Plastic, aluminium - Installation depth: Installation frame: 34 mm - Installation frame incl. socket strip + safety bracket: 50 mm

Specifications

Manufacturer	BACHMANN
Product group	Power Bars
Product type	Integrated unit POWER FRAME
Colour	white
Regional use	Without restriction
RAL colour	RAL 9010 Pure white
Height	42 mm
Width	369 mm
Depth	73 mm
Weight	216 g
Height of packaging (single piece)	40 mm
Width of packaging (single piece)	100 mm
Depth of packaging (single piece)	390 mm
Package weight (single piece)	0.218 kg
