BACHMANN PRIMO 6x CEE7/3 ISDN GVS

BACHMANN PRIMO 6x CEE7/3 ISDN GVS

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 12/09/2024
Item no. 19073506
Brand / Manufacturer BACHMANN
Manuf. item no. 331.074
EAN 4016514011865
Item weight 1.2 kg

Description

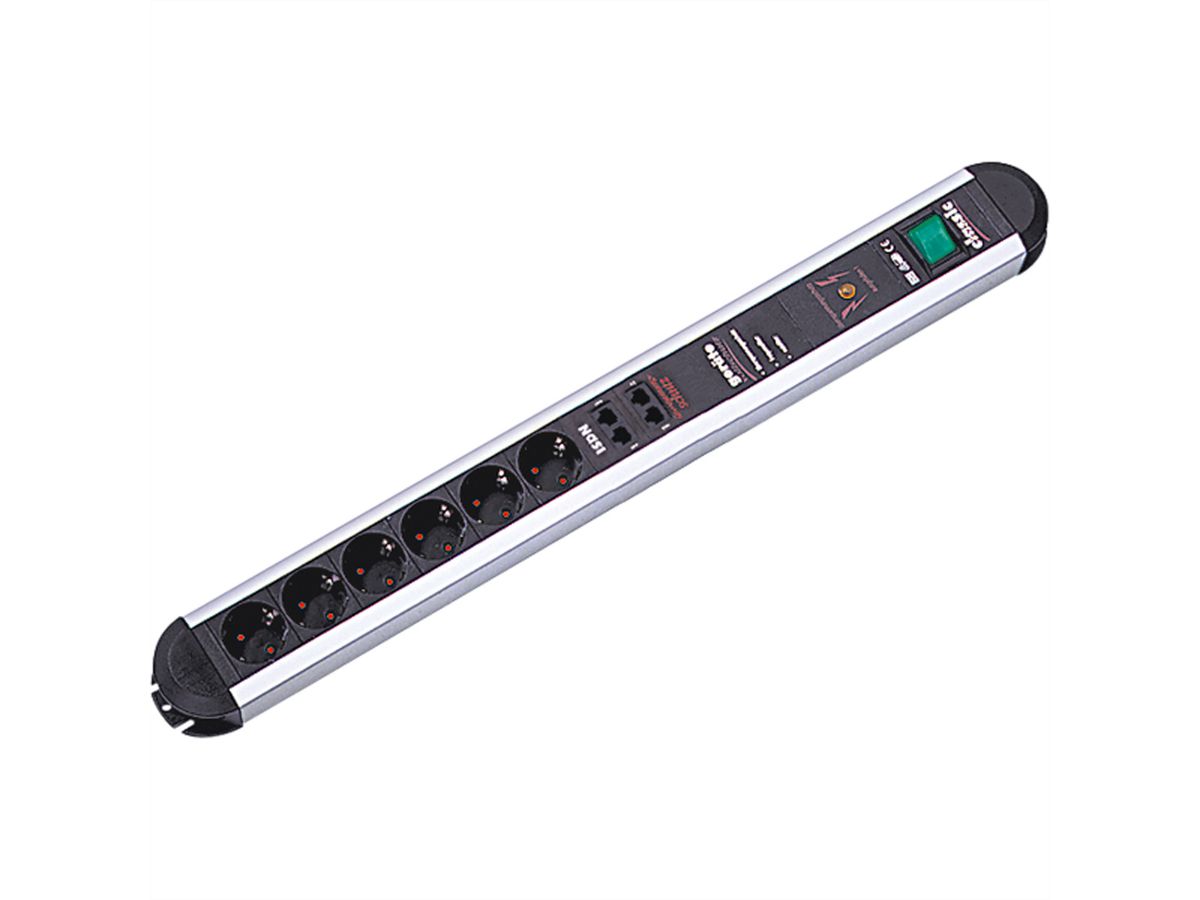

6-way socket outlet with earthing contact with ISDN, full device protection, switch and supply cable with earthing contact plug and double earthing system

- 6x earthing contact - 16A, AC 250V, 3600W - 1x ISDN input, 3x ISDN output - With touch protection - With switch - With overvoltage protection with 6.5kA filter - Supply cable: 1.75m H05VV-F3G1.5mm², black, earthing contact plug with double earthing system

Specifications

Manufacturer BACHMANN
Product group Power Bars
Product type Power strip
Colour black
Length 1.75 m
Mounting form Table socket
Max. capacitance 3600 W
ON/OFF Switch yes
Number of socket pots 6
Socket type 3P. German, CEE 7/3, Type-F
Material (casing) Geanodiseerd aluminium, kunststof
Connection cable 1,75m H05VV-F3G1,5mm²
Colour (Cable) black
Connector plug Geaarde stekker met dubbel aardingssysteem
Plug type 3P. German, CEE 7/7, Type-E/F
Regional use Germany, Austria, Netherlands
Height 70 mm
Width 100 mm
Depth 632 mm
Weight 1.2 kg
Height of packaging (single piece) 0 mm
Width of packaging (single piece) 0 mm
Depth of packaging (single piece) 0 mm
Package weight (single piece) 1.2 kg

Downloads

Manufacturer data sheet - Deutsch (64.7 KB)

Download

More PDF data - Installation and safety instructions - German - English - French - Italian (482.4 KB)

Download
