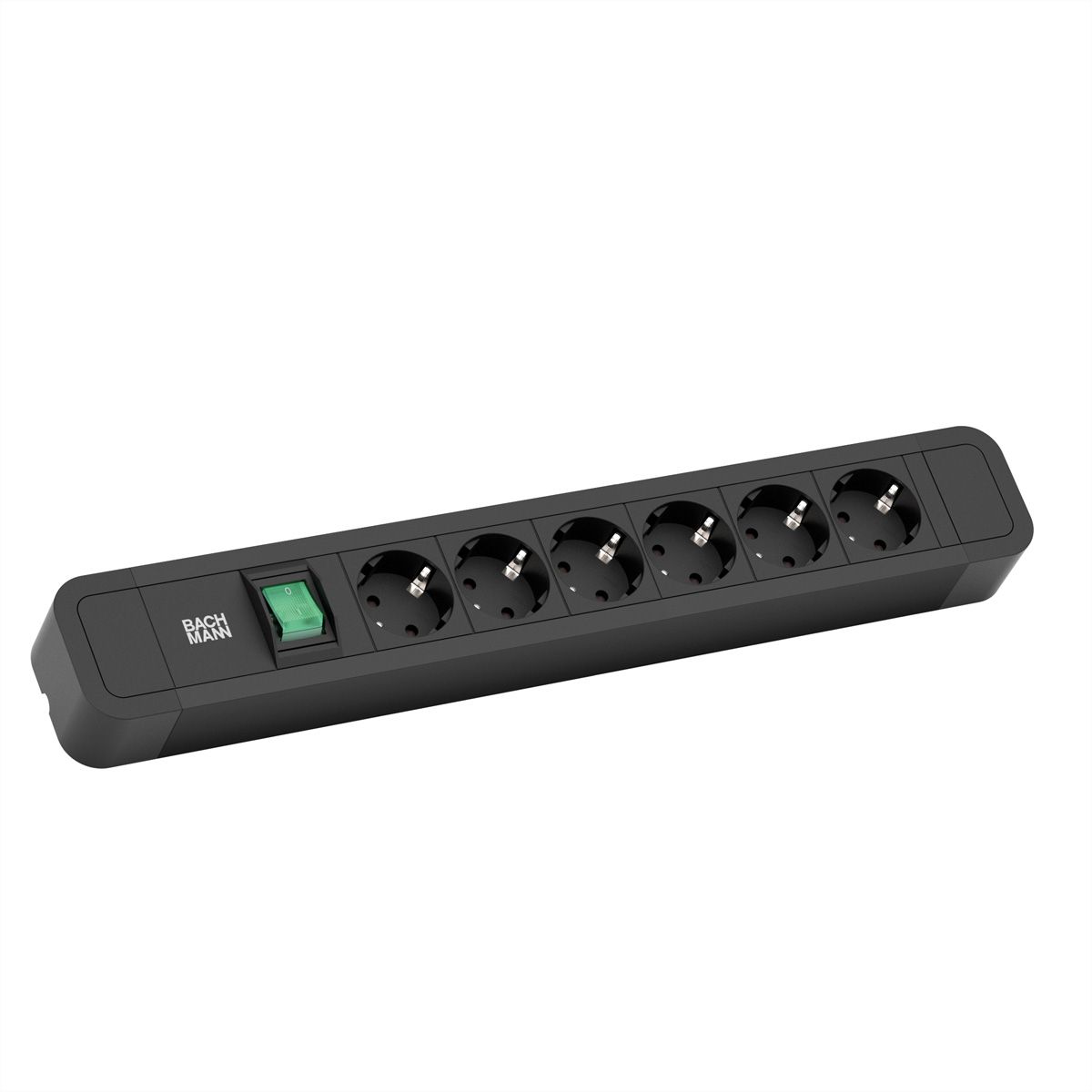

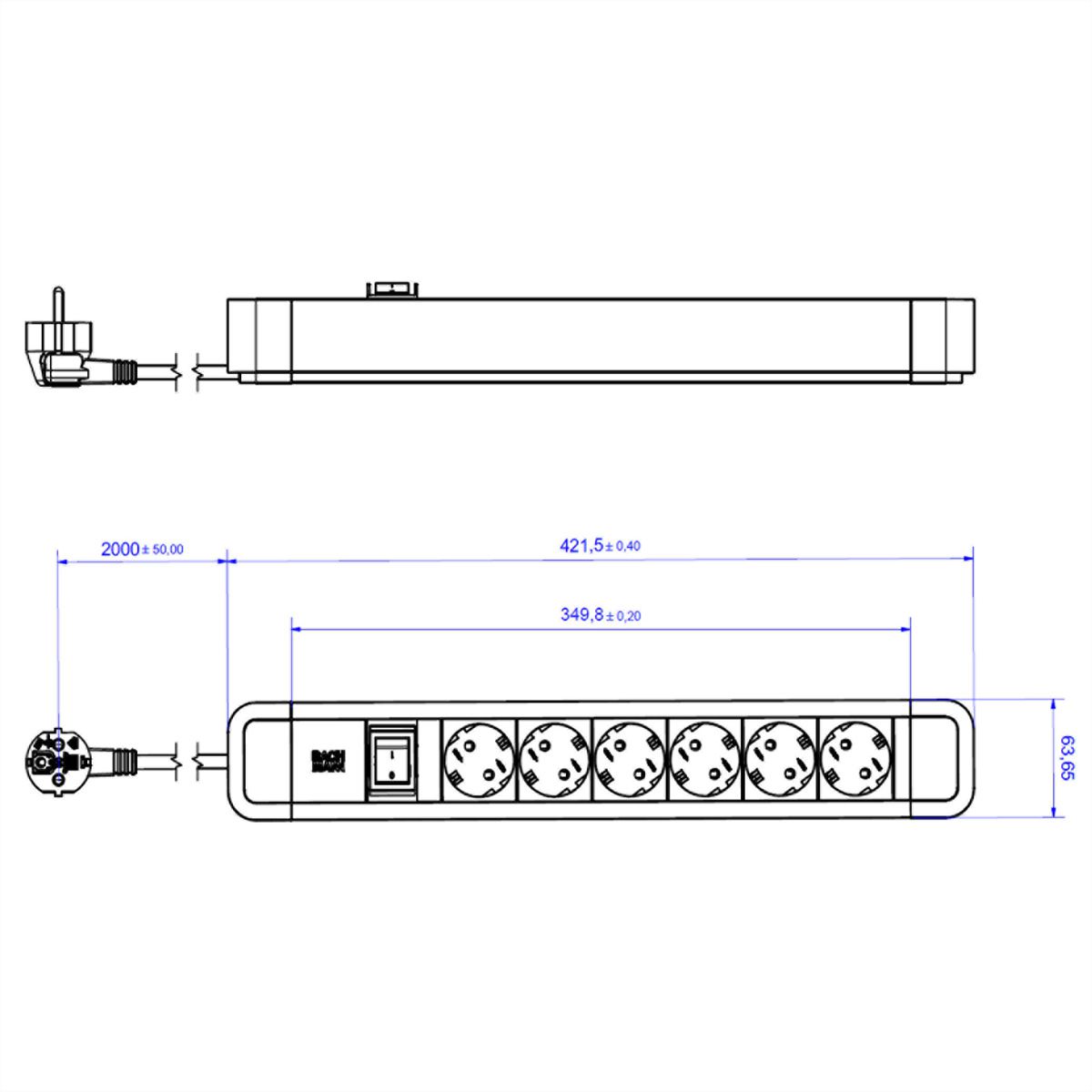

BACHMANN PRIMO2 socket strip 6x earthing contact, aluminium, switch, black, 2 m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	19072647
Brand / Manufacturer	BACHMANN
Manuf. item no.	350.001
EAN	4057298095900
Item weight	0.81 kg

Description

PRIMO2 socket strip with protective contact inserts rotated by 35° and rounded end pieces with practical cable winder.

In addition to high-quality aluminium and practical features, the PRIMO 2 is characterised by its modern design. - Screwless, variable end caps ensure maximum style. At the same time, the cable winder ensures tidiness and an optional design loop provides maximum flexibility. Whether floating, surface-mounted or suspended - the PRIMO 2 is attractive and the right power distribution solution for the modern office and home. - Function meets design: PRIMO 2 impresses with new technical, application-specific and user-orientated variants. For example, overvoltage protection, USB-A and -C chargers or a classic residual current circuit breaker can be individually integrated.

- Screwless end caps - Concealed installation - Cable winder for more order - Optional hanging loop - Simple, attractive design - Black anodised aluminium profile - IP20 protection rating

Specifications

Manufacturer	BACHMANN
Product group	Power Bars
Product type	Power strip
Colour	black
Length	2 m
Function	6 fach Steckdosenleiste
Mounting form	Desktop
Max. capacitance	3600W
Max. voltage	230V AC
ON/OFF Switch	yes
Number of socket pots	6
Quantity of outputs/angles	12 / 45 °
Output alignment	Reihe
Socket type	3P. German, CEE 7/3, Type-F
Material (casing)	Kunststoff / Aluminum
Colour (Design profile)	black
Connection cable	HO5VV-F3G, 2m, schwarz
Colour (Cable)	black
Connector plug	Schuko
Plug type	3P. German, CEE 7/7, Type-E/F
Regional use	Germany, Austria, Netherlands
Operating temperature min.	5 °C
Operating temperature max.	35 °C
Height	45 mm
Width	422 mm
Depth	64 mm
Weight	500 g
Height of packaging (single piece)	100 mm
Width of packaging (single piece)	100 mm
Depth of packaging (single piece)	560 mm
Package weight (single piece)	0.81 kg
