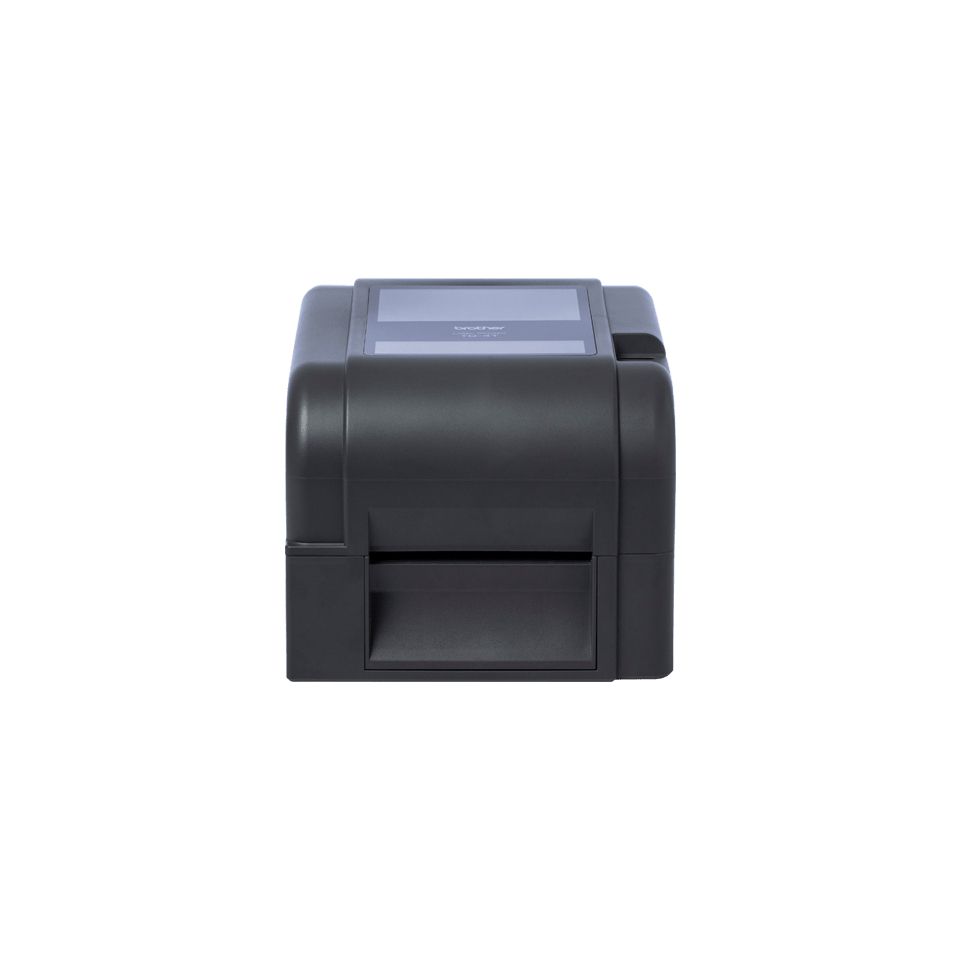

Brother TD-4420TN label printer Direct thermal / Thermal transfer 203 x 203 DPI 152 mm/sec Wired Ethernet LAN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 07/09/2024

Item no.	522342089
Brand / Manufacturer	BROTHER
Manuf. item no.	TD4420TNZ1
EAN	4977766798556

Description

Brother TD-4420TN. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 203 x 203 DPI, Print speed: 152 mm/sec. Connectivity technology: Wired. Product colour: Black

Brother’s TD-4420TN Thermal Transfer Label and Receipt printer provides the media flexibility, longevity and cost efficiency required for high volume printing at 203dpi resolution. This versatile device is ready to print on a wide range of media for barcodes, receipts and labels along with easy integration with the applications and database systems you rely on with ZPLII emulation, SAP & Bartender compatibility. Supporting a wide range of media to meet the needs of your operation, whether it’s longevity, abrasion resistance or even colour, the TD-4420TN offers the required flexibility that’s important to your commercial or industrial operation.

Specifications

Manufacturer	BROTHER
Product type	Label Printers
Printing technology	Direct thermal / Thermal transfer
Ethernet/LAN	Yes
Max. resolution	203 x 203 DPI
WLAN	No

System requirements

Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Linux operating systems supported	Yes

Ports & interfaces

Connectivity technology	Wired
Ethernet LAN	Yes
Wi-Fi	No
USB port	Yes
Bluetooth	No
USB 2.0 ports quantity	2
RS-232 ports	1

Weight & dimensions

Width	204 mm
Depth	280 mm
Height	177.5 mm
Weight	2.5 kg

Printing

Print technology	Direct thermal / Thermal transfer
Colour	No
Maximum resolution	203 x 203 DPI
Print speed	152 mm/sec
Print speed	6 lpm
Maximum print height	10.8 cm
Maximum print length	25.4 m

Power

AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
AC adapter output current	2 A

Operational conditions

Operating relative humidity (H-H)	5 - 40%
Storage relative humidity (H-H)	25 - 85%
Operating temperature (T-T)	10 - 90 °C
Storage temperature (T-T)	-40 - 60 °C

Paper handling

Maximum label width	11.2 cm
Maximum roll diameter	12.7 cm
Core diameter	2.54 cm

Packaging data

Quantity per pack	1 pc(s)
Package weight	3.93 kg

Packaging content

Cables included	AC, USB
Quick start guide	Yes
Warranty card	Yes
AC adapter included	Yes
Software development kit (SDK)	Yes
Starter roll included	Yes

Other features

LED indicators	Yes
Languages support	Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Portuguese, Swedish
Number of languages	11

Design

Product colour	Black
Display	No

Performance

Page description languages	DPL, EPL, ZPL, ZPL II
Internal memory	64 MB
Flash memory	128 MB
Built-in barcodes	GS1 DataMatrix, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, EAN128, EAN13, EAN8, GS1 DataBar, ITF-14, Interleaved 2/5, LOGMARS, MSI, MaxiCode, MicroPDF417, PDF417, PLESSEY, POSTNET, QR Code, UPC-A, UPC-E
Number of fonts	8

Logistics data

Harmonized System (HS) code	84433210
