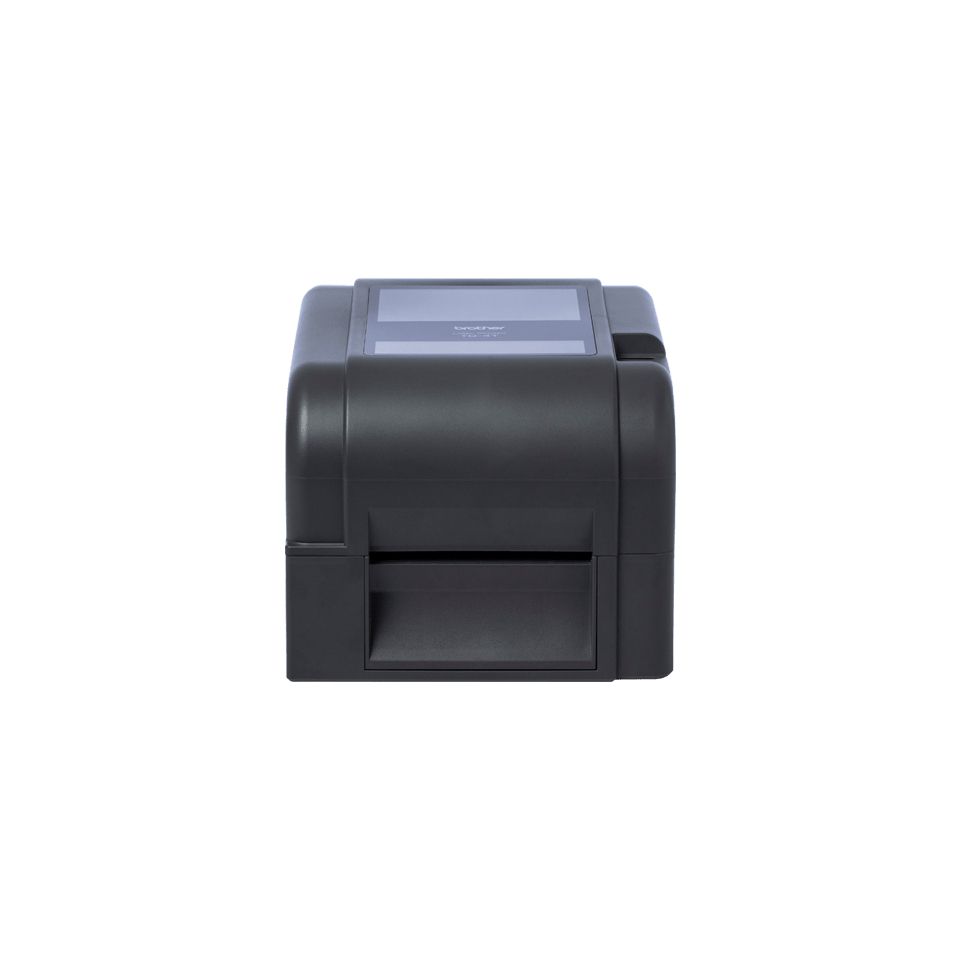

Brother TD-4520TN label printer Direct thermal / Thermal transfer 300 x 300 DPI 127 mm/sec Wired Ethernet LAN
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 522342088 |
|---|---|
| Brand / Manufacturer | BROTHER |
| Manuf. item no. | TD4520TNZ1 |
| EAN | 4977766798563 |
:strip_icc():strip_exif()/logos/brother.png "BROTHER")
Description
Brother TD-4520TN. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 300 x 300 DPI, Print speed: 127 mm/sec. Connectivity technology: Wired. Product colour: Black
Brother’s TD-4520TN Thermal Transfer Label and Receipt printer provides the media flexibility, longevity and cost efficiency required for high volume printing at 300dpi resolution. This versatile device is ready to print on a wide range of media for barcodes, receipts and labels along with easy integration with the applications and database systems you rely on with ZPLII emulation, SAP & Bartender compatibility. Supporting a wide range of media to meet the needs of your operation, whether it’s longevity, abrasion resistance or even colour, the TD-4520TN offers the required flexibility that’s important to your commercial or industrial operation.
Specifications
| Manufacturer | BROTHER |
|---|---|
| Product type | Label Printers |
| Printing technology | Direct thermal / Thermal transfer |
| Ethernet/LAN | Yes |
| Max. resolution | 300 x 300 DPI |
| WLAN | No |
System requirements
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Linux operating systems supported | Yes |
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| USB port | Yes |
| Bluetooth | No |
| USB 2.0 ports quantity | 2 |
| RS-232 ports | 1 |
Weight & dimensions
| Width | 204 mm |
|---|---|
| Depth | 280 mm |
| Height | 177.5 mm |
| Weight | 2.5 kg |
Printing
| Print technology | Direct thermal / Thermal transfer |
|---|---|
| Colour | No |
| Maximum resolution | 300 x 300 DPI |
| Print speed | 127 mm/sec |
| Maximum print height | 10.5 cm |
| Maximum print length | 11.43 m |
Power
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC adapter output current | 2 A |
Operational conditions
| Operating relative humidity (H-H) | 5 - 40% |
|---|---|
| Storage relative humidity (H-H) | 25 - 85% |
| Operating temperature (T-T) | 10 - 90 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Paper handling
| Maximum label width | 11.2 cm |
|---|---|
| Maximum roll diameter | 12.7 cm |
| Core diameter | 2.54 cm |
Packaging data
| Quantity per pack | 1 pc(s) |
|---|---|
| Package weight | 3.93 kg |
Packaging content
| Cables included | AC, USB |
|---|---|
| Quick start guide | Yes |
| Warranty card | Yes |
| AC adapter included | Yes |
| Software development kit (SDK) | Yes |
| Starter roll included | Yes |
Other features
| LED indicators | Yes |
|---|---|
| Languages support | Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Portuguese, Swedish |
| Number of languages | 11 |
Design
| Product colour | Black |
|---|---|
| Display | No |
Performance
| Page description languages | DPL, EPL, ZPL, ZPL II |
|---|---|
| Internal memory | 64 MB |
| Flash memory | 128 MB |
| Built-in barcodes | AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 49, Code 93, EAN128, EAN13, EAN8, GS1 DataBar, ITF-14, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
| Number of fonts | 8 |
Logistics data
| Harmonized System (HS) code | 84433210 |
|---|
