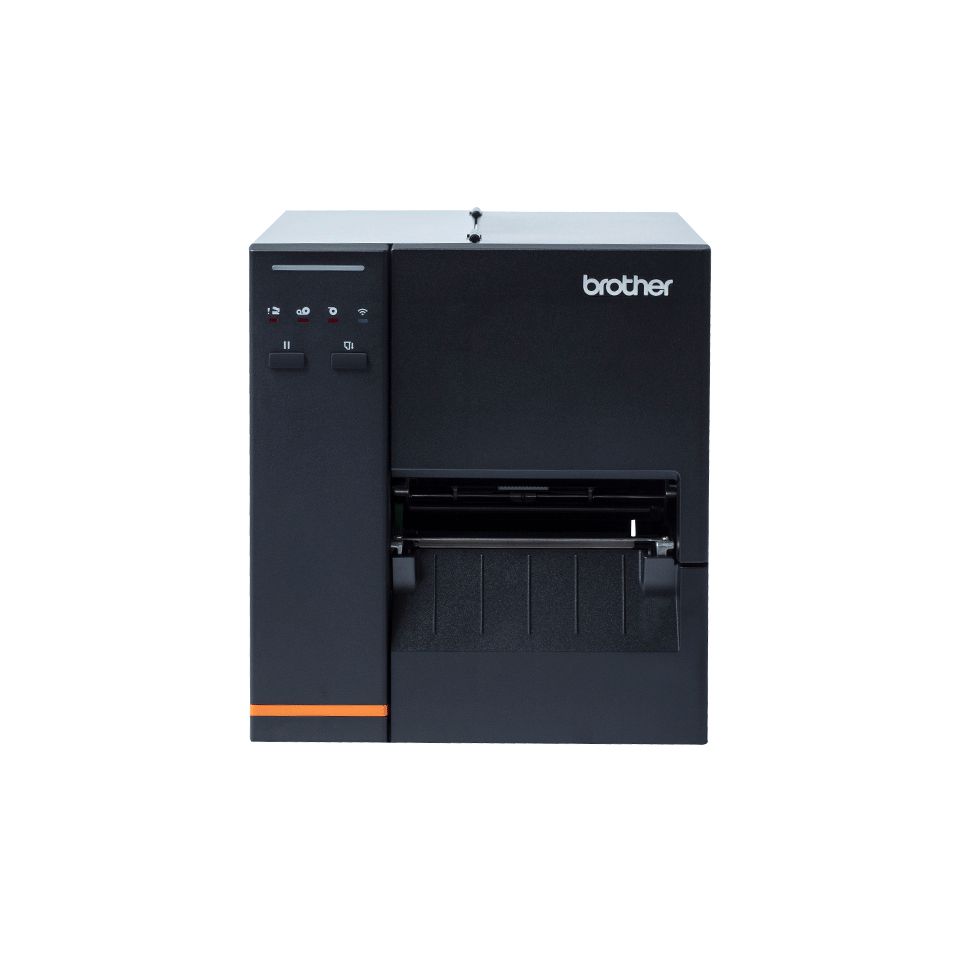

Brother TJ-4020TN label printer Direct thermal / Thermal transfer 203 x 203 DPI 254 mm/sec Wired Ethernet LAN
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 524155614 |
|---|---|
| Brand / Manufacturer | BROTHER |
| Manuf. item no. | TJ4020TNZ1 |
| EAN | 4977766804684 |
:strip_icc():strip_exif()/logos/brother.png "BROTHER")
Description
Brother TJ-4020TN. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 203 x 203 DPI, Print speed: 254 mm/sec. Connectivity technology: Wired. Product colour: Black
Brother TJ-4020TN Industrial Label Printer
4" industrial thermal label printer with print width up to 107mm
The Brother TJ-4020TN industrial label printer offers performance you can rely on when keeping up with increasing demand.
The high-volume thermal label printer has been designed to ensure minimal downtime and maximum productivity through fast print speeds, large ribbon capacity and in-built durability.
With ZPL2 emulation compatibility and multiple connectivity options, the TJ-4020TN has been built with you in mind.
Connectivity as standard
USB, USB Host, Serial and Ethernet are included as standard for the industrial printers. An optional WLAN interface for WiFi connectivity is also available as an accessory to meet your requirements.
In-built durability
The TJ industrial printer series offers performance you can rely on, even in the toughest production environments. The reliable thermal barcode printer has been built with you in mind and built to last, ensuring you enjoy years of hassle-free label printing.
Integrate with ease
With the Brother TJ series, there is no need to worry about integration.
Our industrial printers support various printer command languages, including ZPL2 emulation, making printer replacements as easy as possible - with minimal disruption.
Maximise productivity
The TJ-4020TN label machine offers fast print speeds to help you keep up with increasing demand. The high volume label printer is perfect for manufacturing and transport & logistics environments.
Specifications
| Manufacturer | BROTHER |
|---|---|
| Product type | Label Printers |
| Printing technology | Direct thermal / Thermal transfer |
| Ethernet/LAN | Yes |
| Max. resolution | 203 x 203 DPI |
| WLAN | No |
System requirements
| Windows operating systems supported | Windows 10, Windows 8.1 |
|---|---|
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Mobile operating systems supported | Android, iOS |
| Linux operating systems supported | Yes |
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| USB port | Yes |
| RS-232 ports | 1 |
Weight & dimensions
| Width | 248 mm |
|---|---|
| Depth | 436 mm |
| Height | 274 mm |
| Weight | 9.2 kg |
Printing
| Print technology | Direct thermal / Thermal transfer |
|---|---|
| Colour | No |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 254 mm/sec |
| Maximum printing width | 10.7 cm |
| Minimum print length | 5 mm |
| Maximum print length | 25.4 m |
Operational conditions
| Operating relative humidity (H-H) | 25 - 85% |
|---|---|
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Paper handling
| Ribbon width | 4 cm |
|---|---|
| Ribbon length | 450 m |
| Maximum label width | 12 cm |
| Maximum roll diameter | 20.3 cm |
| Core diameter | 7.62 cm |
Packaging content
| Cables included | AC, USB |
|---|---|
| Software development kit (SDK) | Yes |
Other features
| LED indicators | Error, Power, Status |
|---|---|
| Languages support | Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Portuguese, Swedish |
Design
| Product colour | Black |
|---|---|
| Display | No |
| Control type | Buttons |
Performance
| Page description languages | DPL, EPL2, ZPL II |
|---|---|
| Internal memory | 128 MB |
| Flash memory | 128 MB |
| Built-in barcodes | AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, ITF-14, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39, UPC-E |
| Number of fonts | 8 |
Logistics data
| Harmonized System (HS) code | 84433210 |
|---|
