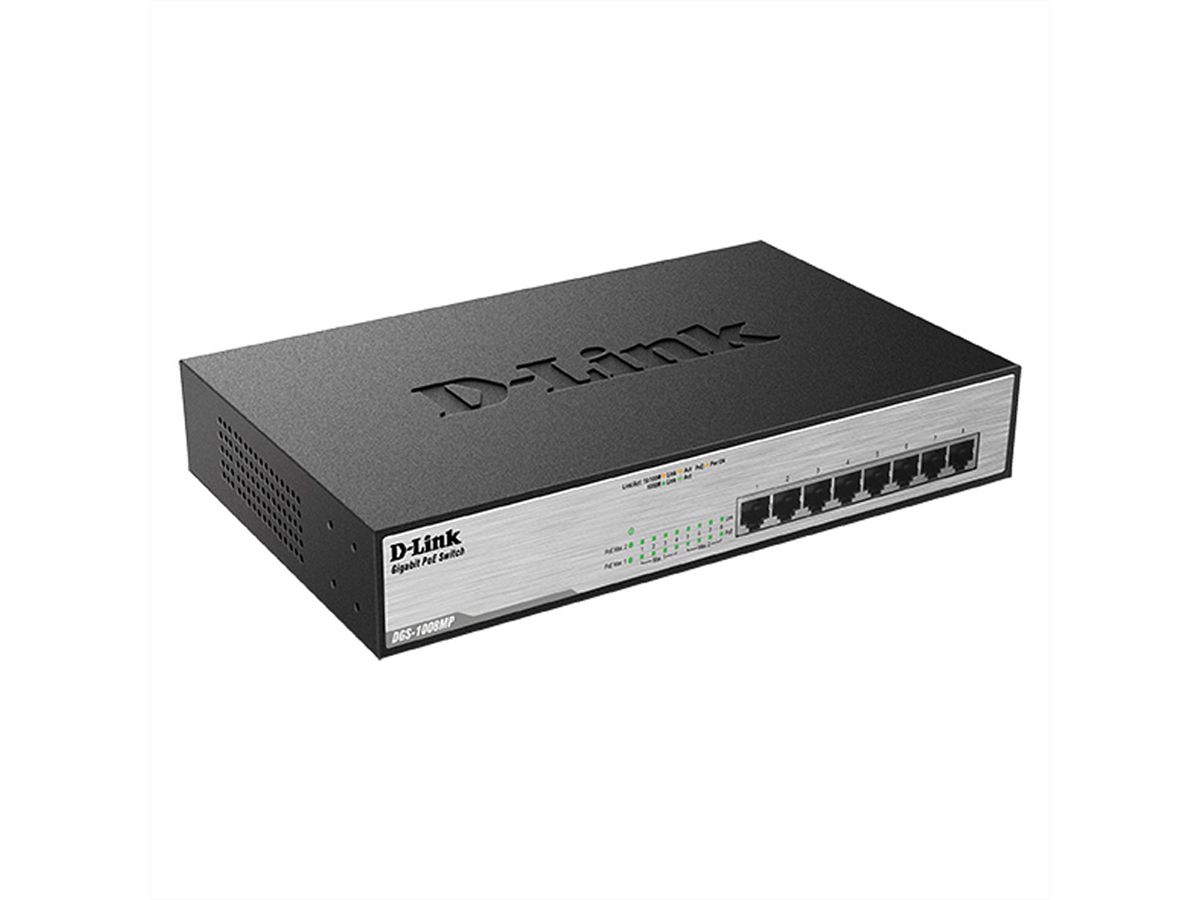

D-Link DGS-1008MP Netzwerk Switch

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	21140368
Brand / Manufacturer	D-LINK
Manuf. item no.	DGS-1008MP
EAN	790069420337
Item weight	2.838 kg

Description

Dieses kompakte und attraktive Gerät ist das Kraftpaket unter den Power-over-Ethernet Netzwerk Switches. Es bietet PoE gemäss 802.3af/at-Standard an allen acht Gigabit Ethernet-Ports mit bis zu 30 Watt je Port und einer maximalen Gesamtleistung von 140 Watt. Das bedeutet, Sie können gleich mehrere Geräte wie Access Points, IP-Telefone und Überwachungskameras betreiben, indem Sie diese einfach per Ethernet-Kabel anschließen – ganz ohne zusätzliche Stromversorgung.

D-Link DGS-1008MP. Switch-Typ: ungemanaged. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Netzstandard: IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. MAC-Adressentabelle: 8000 Eintragungen, Paketweiterleitungsrate (1 Gbit/s): 14880 pps, Paketweiterleitungsrate (100 Mbit/s): 148800 pps. Produktfarbe: Schwarz, Formfaktor: 1U

DGS-1008MP - 8-Port Layer2 PoE + Gigabit Switch

8x10/100/1000Mbit/s TP (RJ-45) PoE Port
11-Zoll Gehäuse für Tisch- oder Rackmontage
Automatische Erkennung von PoE Geräten (PD)
Automatisches Umschalten in den Stromsparmodus von ungenutzten Anschlüssen
Reduzierter Stromverbrauch, geringere Hitzeentwicklung
140W PoE Kapazität
Geräuschlos ohne Lüfter

Something of a powerhouse when it comes to Power-over-Ethernet switches, this compact beauty offers PoE to 802.3af/at standard across all eight Gigabit Ethernet ports, at up to 30 Watts per port with a power budget total of 140 Watts. Which, put simply, means you can power devices such as access points, IP phones and video surveillance cameras simply by plugging them in with an Ethernet cable – no additional power required.The DGS-1008MP features 8 x 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ protocol. Each of the 8 PoE+ ports can supply up to 30 watts with a total PoE power budget of 140 watts. PoE is especially suitable for devices that are far from power outlets or when you want to minimise the clutter of extra cables.No configuration is required and installation is quick and easy. Support for Auto MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch. Auto- Negotiation on each port senses the link speed of a network device (10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. The switch has been designed without fans ensuring silent operation wherever it is installed. With wire-speed filtering and store-and-forward switching, the DGS-1008MP maximises network performance while minimising the transmission of bad network packets.DGS-1008MP switches feature both D-Link Green 3.0 Technology and IEEE802.3az Energy Efficient Ethernet (EEE) to cut operating costs without sacrificing operational performance or functionality. With D-Link Green technology, the switches constantly monitor the link status and network utilisation of every port. The switches also automatically detect cable length and can reduce transmission power usage for shorter cables. By pairing EEE capable devices with DGS-1008MP switches organizations can drastically reduce power consumption by automatically putting ports into a sleep mode when not being used.

Specifications

Manufacturer	D-LINK
Product group	Netzwerk-Switches
Product type	PoE Gigabit Switch
Colour	various
Network standard	Gigabit Ethernet
LAN (Mbps)	10/100/1000
Quantity of ports	8
Gigabit Ethernet Ports RJ-45	8
Power over Ethernet (PoE)	ja
Quantity of PoE ports	8
Max. PoE output power (total)	125 W
Mounting form	Rack
Mounting angle	im Lieferumfang enthalten
Management	nein
Stackable	nein
Mains connection	Kaltgeräte-Anschluss
Height	44 mm
Width	280 mm
Depth	180 mm
Weight	2.9 kg
Height of packaging (single piece)	120 mm
Width of packaging (single piece)	260 mm
Depth of packaging (single piece)	390 mm
Package weight (single piece)	2.838 kg

Technical details

Shipping (inner) case height	28.5 cm
Shipping (inner) case width	40.6 cm
Shipping (inner) case length	54.5 cm
Shipping (inner) case net weight	14.2 kg
Products per shipping (inner) case	5 pc(s)
Pallet gross weight (air)	563.8 kg
Master (outer) cases per pallet (air)	36 pc(s)
Products per pallet (air)	180 pc(s)
Pallet gross length	110 cm
Pallet gross width	120 cm
Pallet height (air)	193.5 cm
Pallet gross weight (sea)	563.8 kg
Master (outer) cases per pallet (sea)	36 pc(s)
Products per pallet (sea)	180 pc(s)
Pallet height (sea)	193.5 cm
Shipping (inner) case gross weight	15.3 kg

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)

Weight & dimensions

Width	280 mm
Depth	180 mm
Height	44 mm

Power

AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	13.5 W

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	5 - 95%

Network

Networking standards	IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Full duplex	Y
Auto MDI/MDI-X	Y

Data transmission

MAC address table	8000 entries
Switching capacity	16 Gbit/s
Store-and-forward	Y
Packet forwarding rate (1 Gbps)	14880 pps
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	1488000 pps
Packet buffer memory	0.192 MB

Packaging data

Package width	262 mm
Package depth	391 mm
Package height	102 mm
Package weight	2.85 kg

Management features

Switch type	Unmanaged

Design

Rack mounting	Y
Form factor	1U
Product colour	Black
LED indicators	Y

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Y
Total Power over Ethernet (PoE) budget	140 W

Performance
