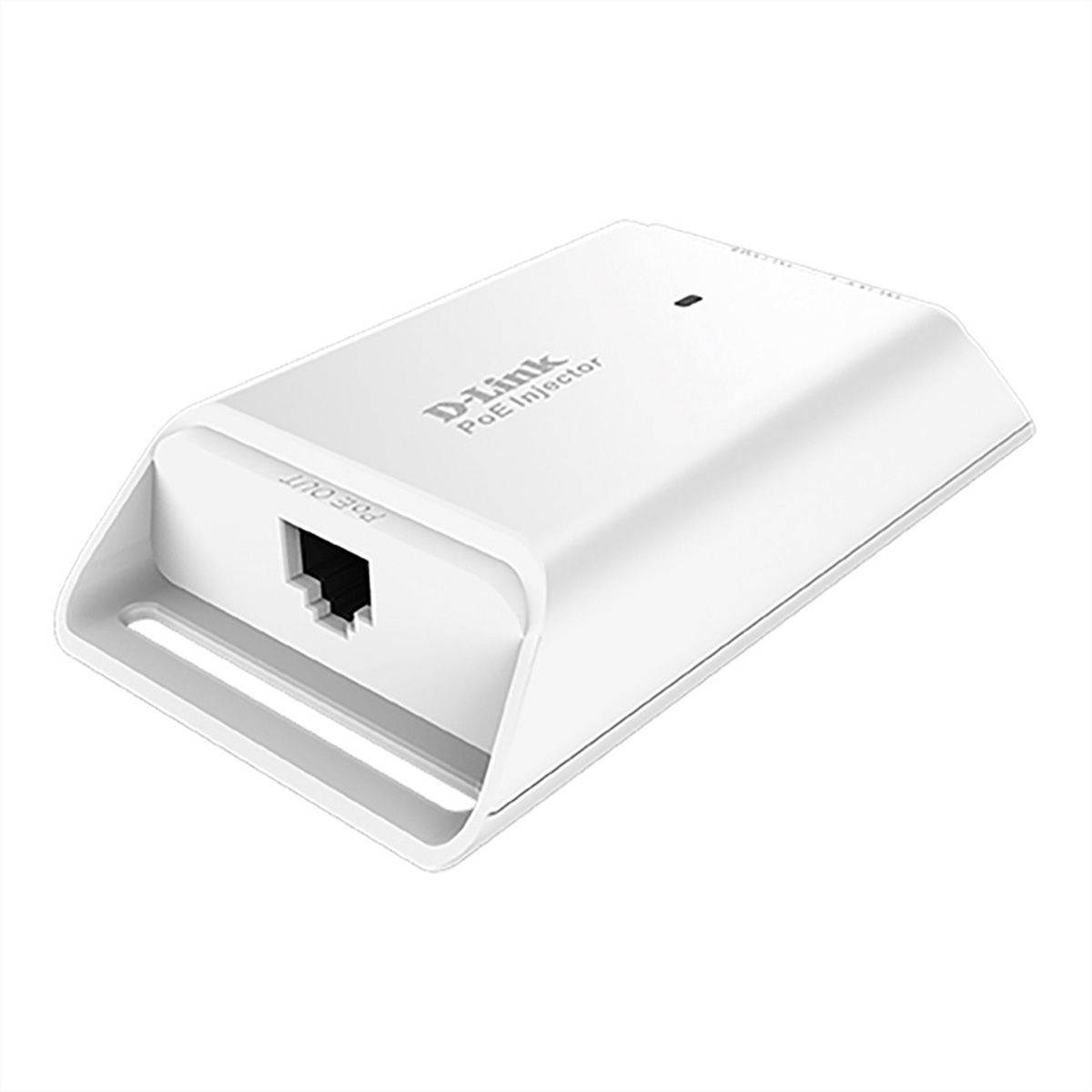

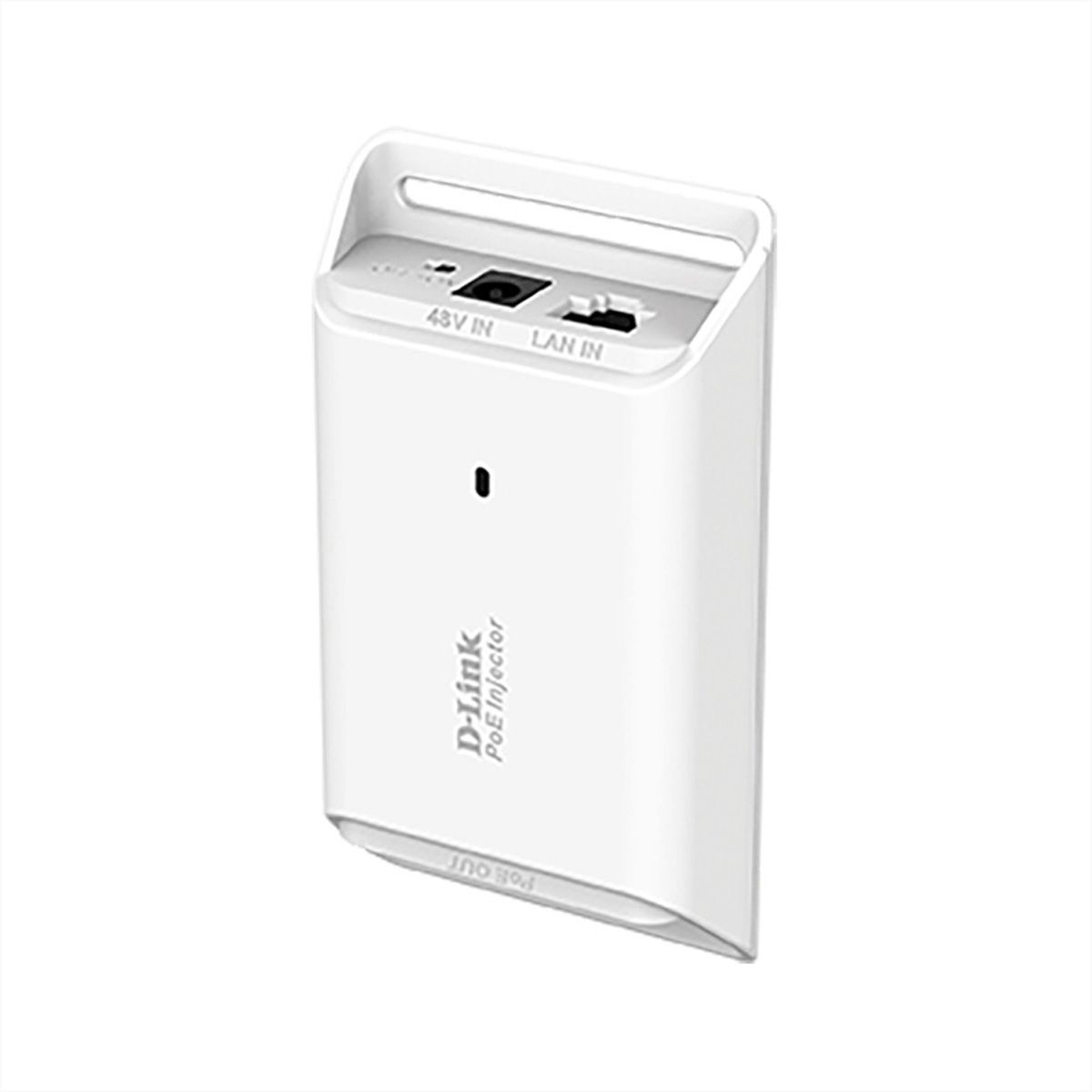

D-Link DPE-101GI - 1-Port Gigabit PoE Injektor

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 11/18/2024

Item no.	21140366
Brand / Manufacturer	D-LINK
Manuf. item no.	DPE-101GI
EAN	790069341335
Item weight	0.454 kg

Description

Bis zu 15,4 Watt Ausgangsleistung gemäß 802.3af - Data Port In: 1 x 10/100/1000BASE-T Port, Data Port Out und PoE: 1 x 10/100/1000BASE-T PoE Port - Unterstützt Half-/Full-Duplex - Reguliert die Ausgangsleistung, um Schäden am angeschlossenen Gerät zu vermeiden

2x 10/100/1000Mbit/s TP
IEEE 802.3/3u/3ab kompatibel
Bis zu 15,4 Watt Ausgangsleistung
Inkl. Multi-Steckernetzteil

The DPE-101GI Gigabit PoE Injector is designed to supply a power and data connection to PoE devices such as an IP Camera or Wireless Access Point. The IEEE 802.3af compliant DPE-101GI gives you the ability to mount your PoE device virtually anywhere in a building, such as on ceilings or near entryways, by eliminating the need for a nearby power outlet and attached power supply. D-Link’s DPE-101GI combines electrical power with a Gigabit network connection and produces a Gigabit Power over Ethernet (PoE) signal, allowing a single Ethernet cable to carry both data and power to a device.

Cost Efficient Flexibility Deploying the DPE-101GI saves both installation costs and equipment costs, allowing a single RJ-45 Ethernet cable to carry both power and data to each device. This reduces cables, eliminates the need for dedicated electrical outlets on the wall, ceiling, or other unreachable place, and most of all, reduces installation time. The Power over Ethernet solution frees IP surveillance cameras and wireless AP deployments from the restrictions of power outlet locations.

High Speed Connectivity The DPE-101GI Gigabit PoE Injector is designed to be deployed in situations where high bandwidth is demanded. Examples where the DPE-101GI is ideal include powering network devices such as wall mounted PTZ (Pan, Tilt & Zoom) network cameras, ceiling mounted PTZ dome network cameras, video and voice over IP (VoIP) telephones, and wireless LAN access points.

Specifications

Manufacturer	D-LINK
Product group	Netzwerk-Switches
Product type	PoE-Adapter
Colour	grey
Network standard	Gigabit Ethernet
LAN (Mbps)	10/100/1000
Quantity of ports	1
Power over Ethernet (PoE)	ja
Quantity of PoE ports	1
Dimensions (HxWxD)	109.8 x 62.2 x 24.5 mm
Height	109.8 mm
Width	62.2 mm
Depth	24.5 mm
Weight	0.65 kg
Height of packaging (single piece)	90 mm
Width of packaging (single piece)	150 mm
Depth of packaging (single piece)	220 mm
Package weight (single piece)	0.454 kg

Ports & interfaces

Ethernet LAN (RJ-45) ports	2

Weight & dimensions

Weight	65 g

Network

Ethernet interface type	Gigabit Ethernet

Packaging data

Package width	153 mm
Package depth	213 mm
Package height	68 mm
Package weight	420 g

Features

LED indicators	Yes

Logistics data

Shipping (inner) case length	32.6 cm
Shipping (inner) case width	23.3 cm
Shipping (inner) case height	36 cm
Shipping (inner) case net weight	4.26 kg
Products per shipping (inner) case	10 pc(s)
Pallet gross weight (air)	316.4 kg
Master (outer) cases per pallet (air)	60 pc(s)
Products per pallet (air)	600 pc(s)
Pallet gross length	120 cm
Pallet gross width	110 cm
Pallet height (air)	194 cm
Pallet gross weight (sea)	316.4 kg
Master (outer) cases per pallet (sea)	60 pc(s)
Products per pallet (sea)	600 pc(s)
Pallet height (sea)	194 cm
Shipping (inner) case gross weight	4.94 kg
Harmonized System (HS) code	85044095
