EasyLan Desk Consolidation Point Panel, for 6x Keystone, RAL7035

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	21173143
Brand / Manufacturer	EasyLan
Manuf. item no.	CKVPL0061E
EAN	4055516000989
Item weight	0.428 kg

Description

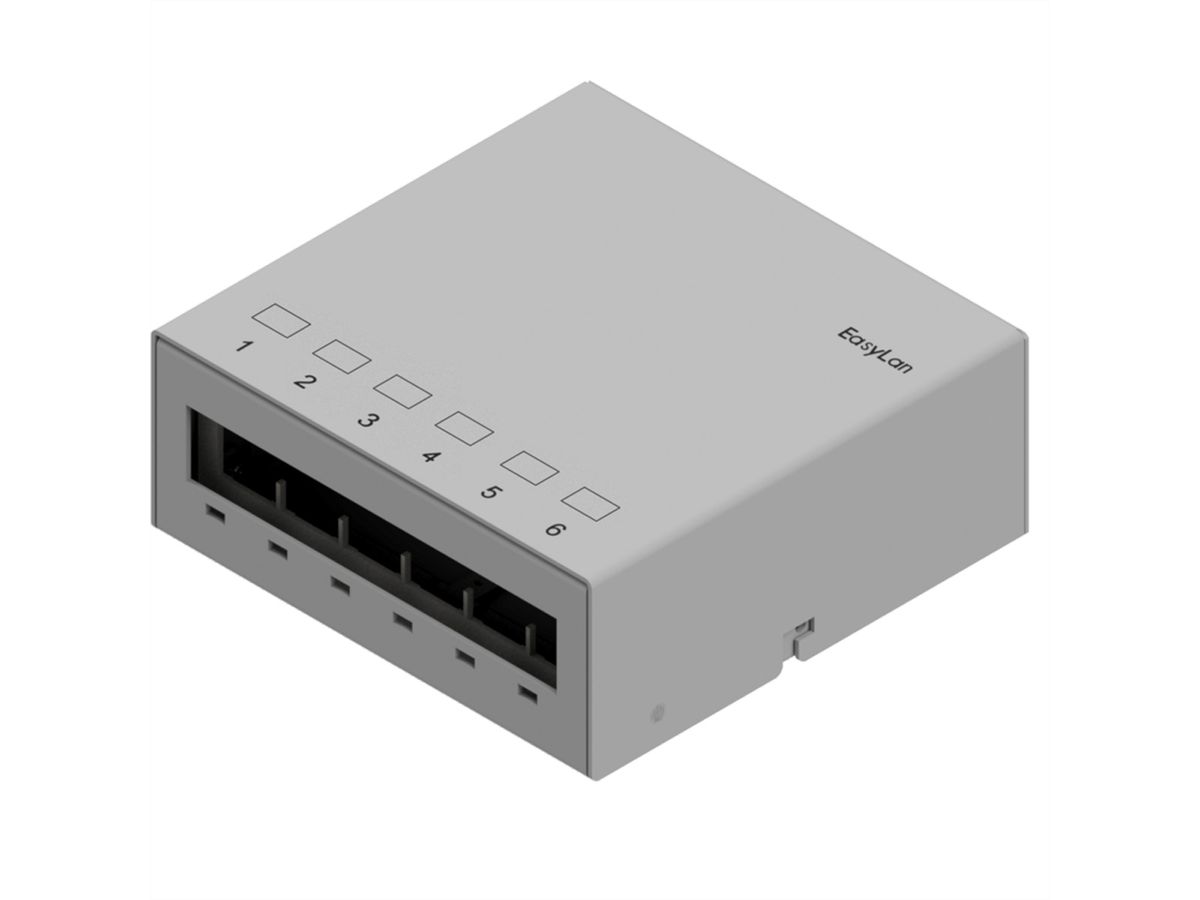

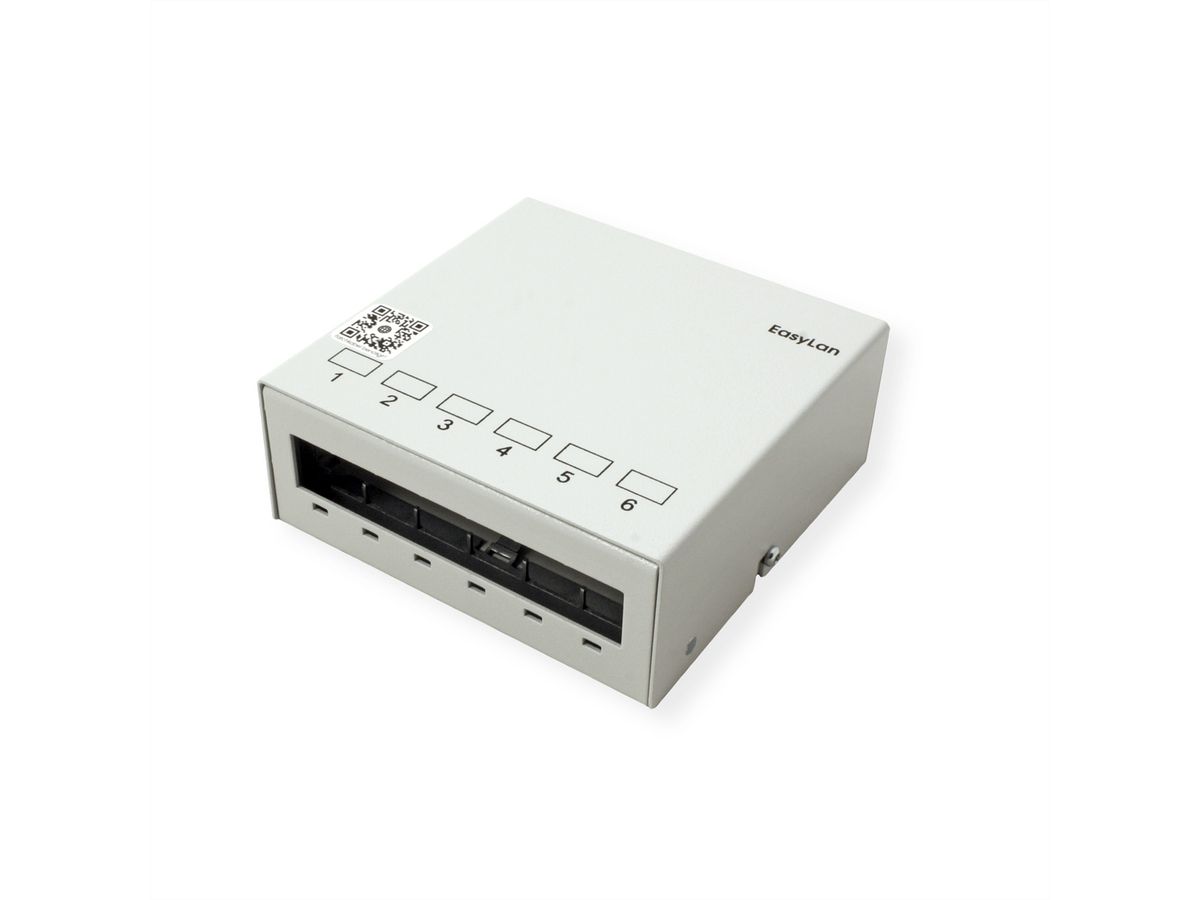

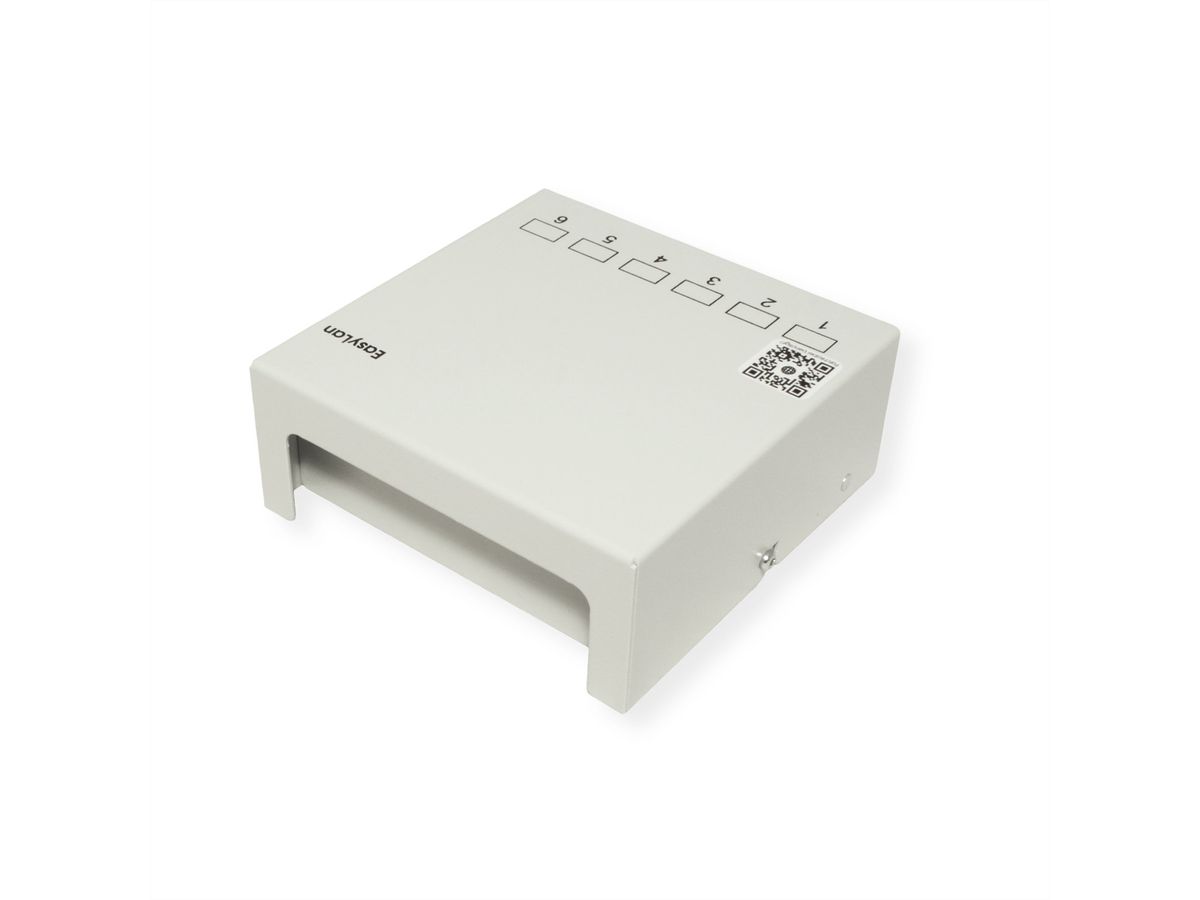

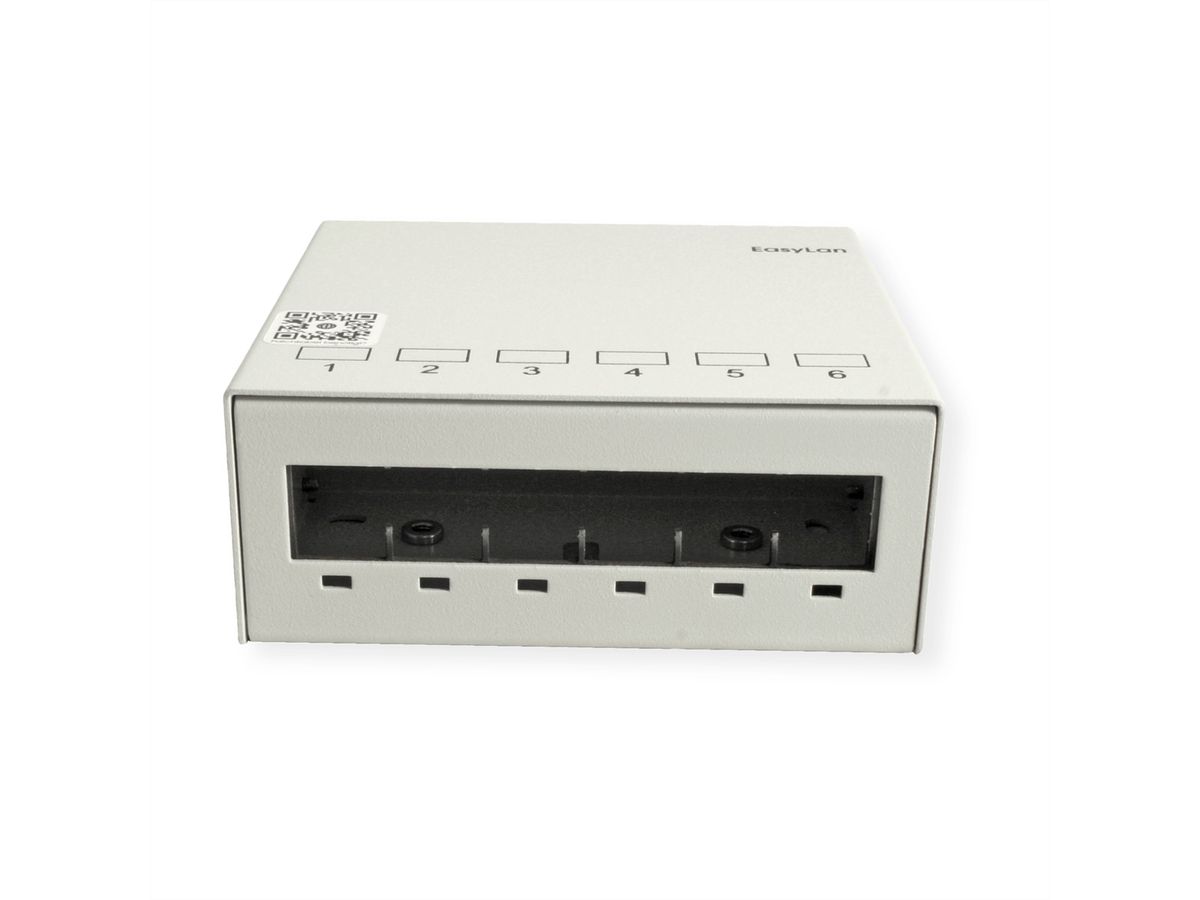

EasyLan® preLink® / fixLink® Desk Consolidation Point Panel 6x Keystone, RAL7035

Consolidation Point Housing for 6 Keystone modules, e.g., RJ45, sheet steel, grey
For use as Consolidation Panel, direct mounting or mounting set on DIN rails in electrical distribution systems

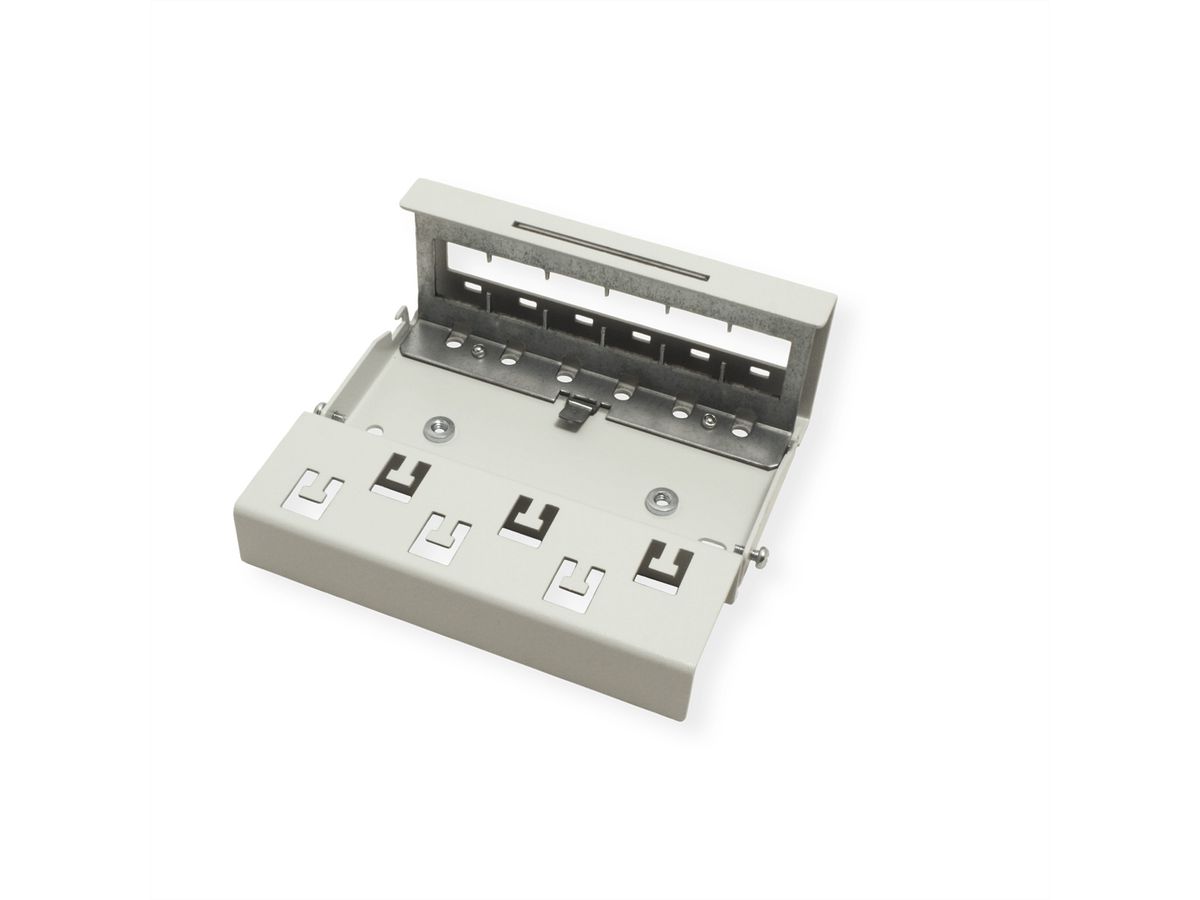

The Desk Mounted Consolidation Point Panel has two levels
This positions the modules flush with the front panel
Material: Galvanized, fire-coated sheet steel
Color: Grey, similar to RAL 7035
Dimensions: Approx. 90 x 120 x 40 mm
RoHS: compliant to 2002/95/EC

Specifications

Manufacturer	EasyLan
Product group	Network Passive Components
Product type	Network components housing
Colour	grey
RAL colour	RAL 7035 Light grey
Operating temperature min.	-40 °C
Operating temperature max.	60 °C
Height	45 mm
Width	113 mm
Depth	112 mm
Weight	1175.813 g
Height of packaging (single piece)	70 mm
Width of packaging (single piece)	120 mm
Depth of packaging (single piece)	130 mm
Package weight (single piece)	0.428 kg

With EASYLAN products, you can keep track of the network jungle. These include the DualBoot® LED S/FTP and fiber optic LED patch cables with light identification, the injectors for feeding energy into the patch cables and the marking clips. But also the DualBoot IP20 patch cables with PushPull locking instead of the usual jack release.
